Amana
Washer

Model # ALW680RAC-PALW680RAC Official Amana washer

Here are the diagrams and repair parts for Official Amana ALW680RAC-PALW680RAC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

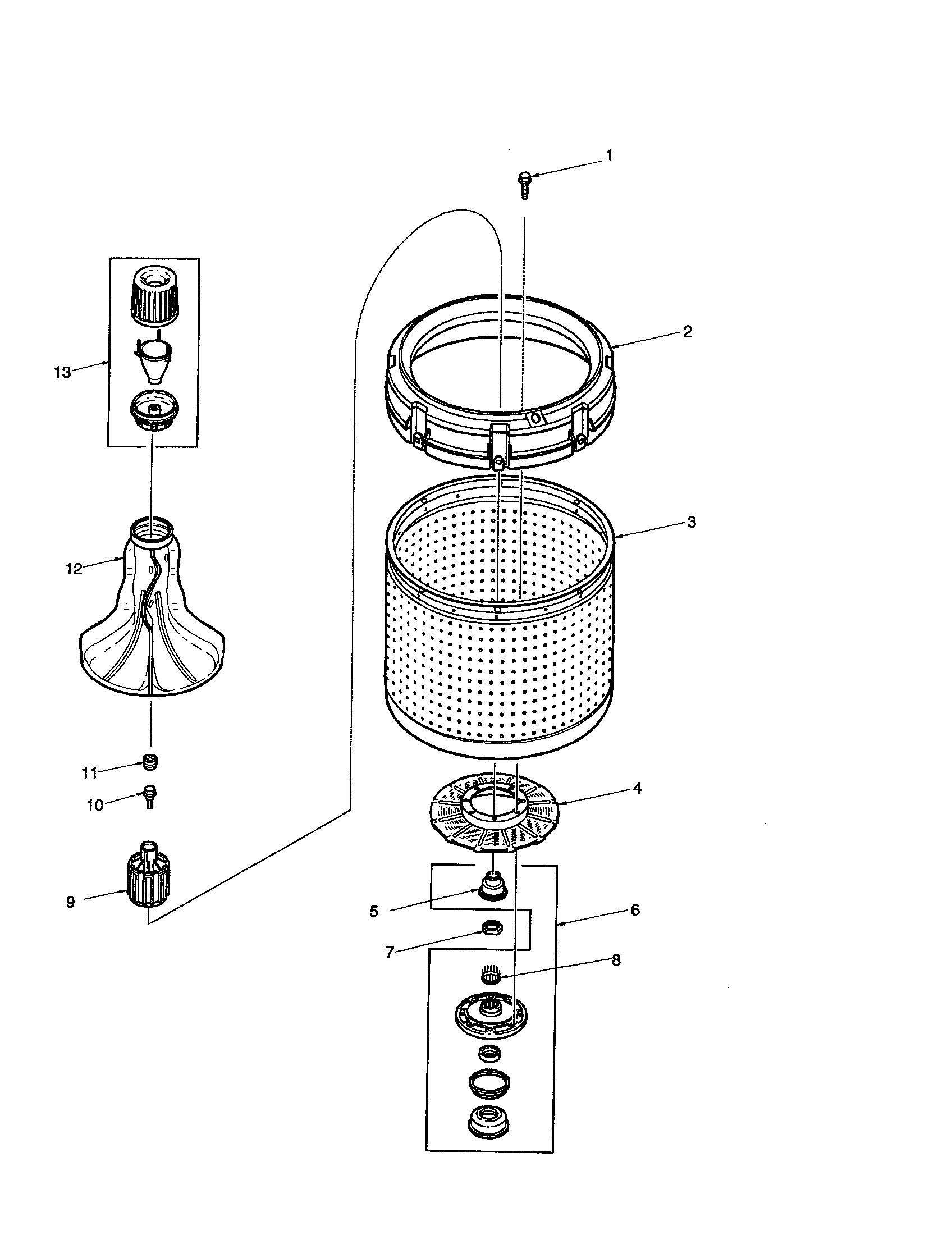

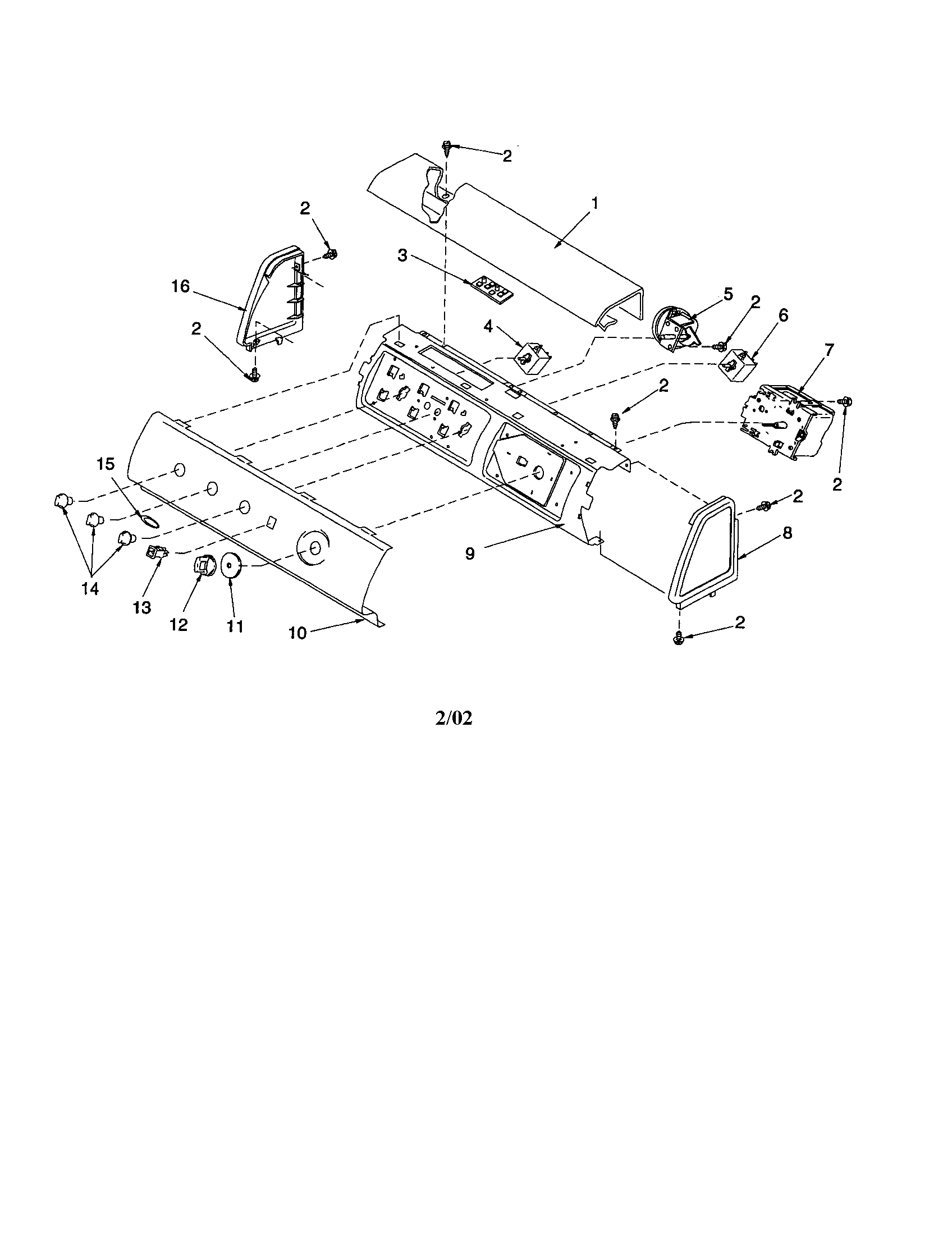

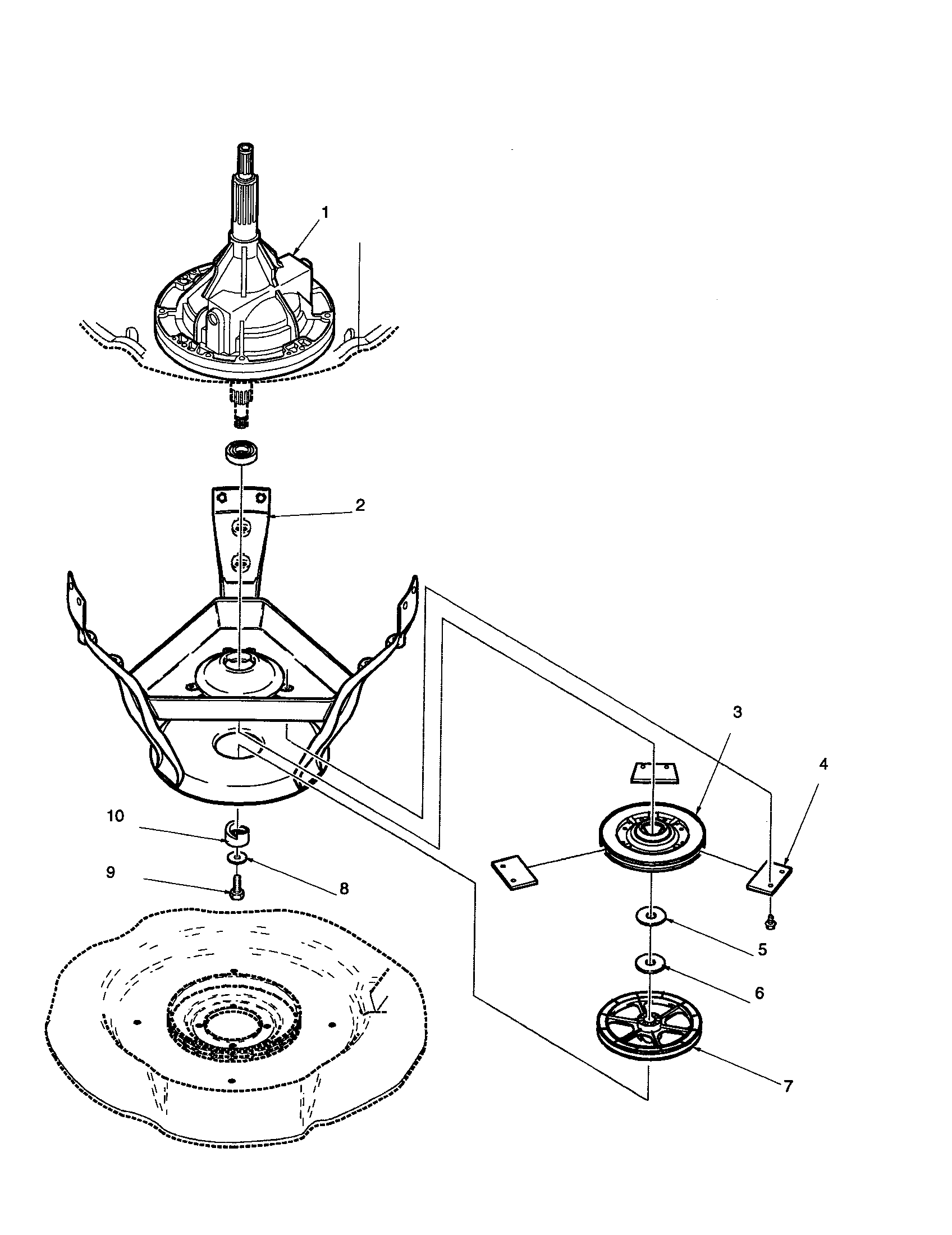

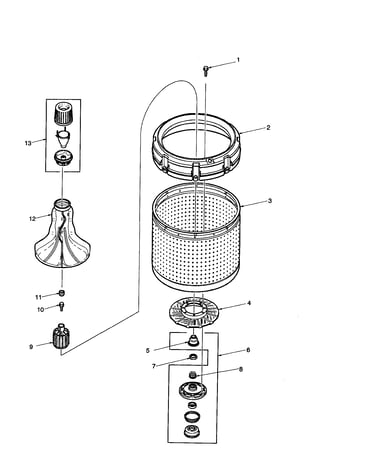

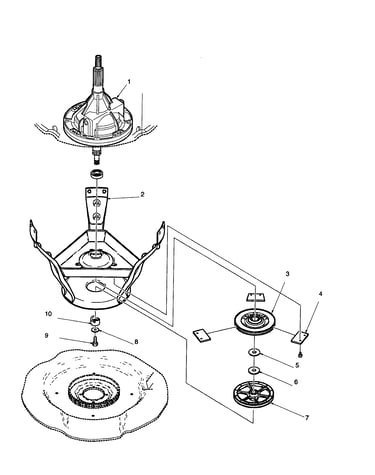

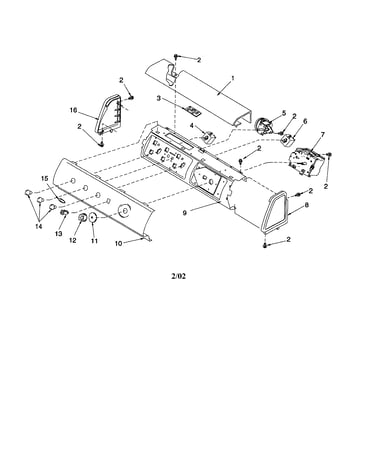

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Hose Clamp 36801
#3

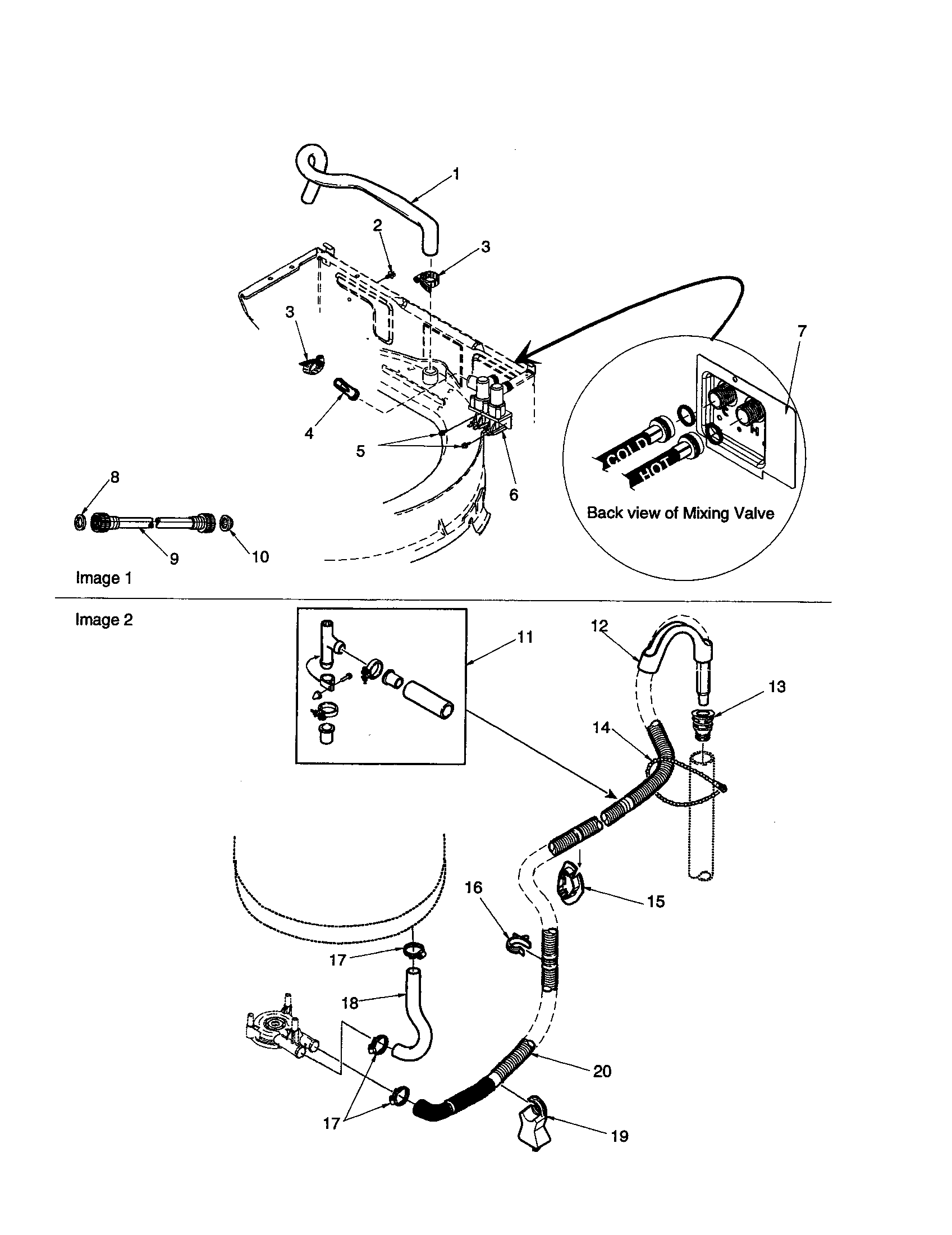

Mixing valve and hoses diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 40039201
#5

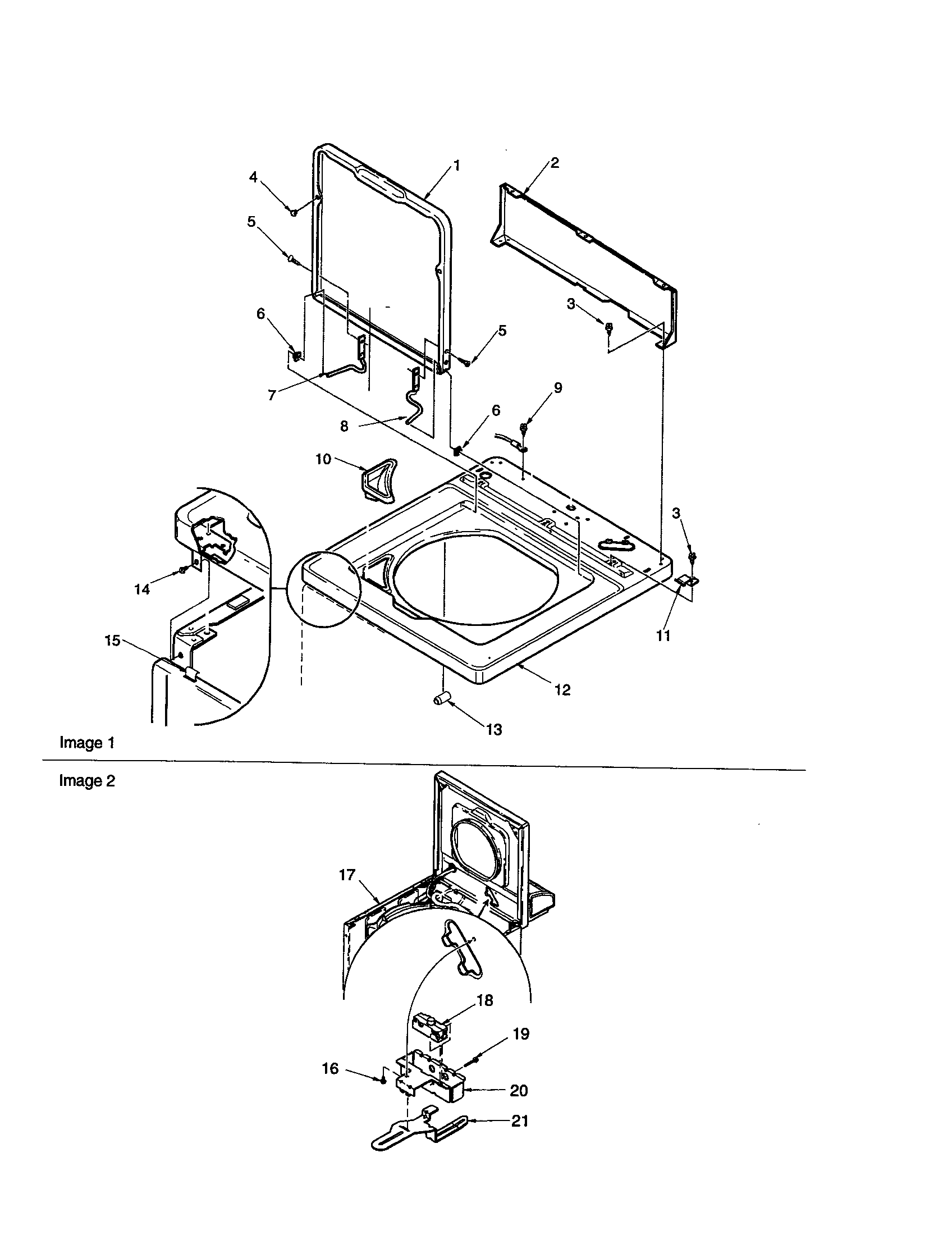

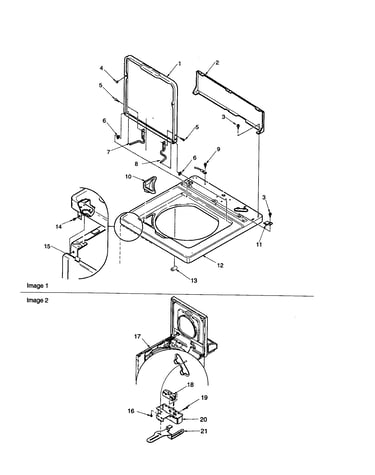

Cabinet top/door/door switch diagram

Screw

Part #40039201

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 40039201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Washer 52549
#16

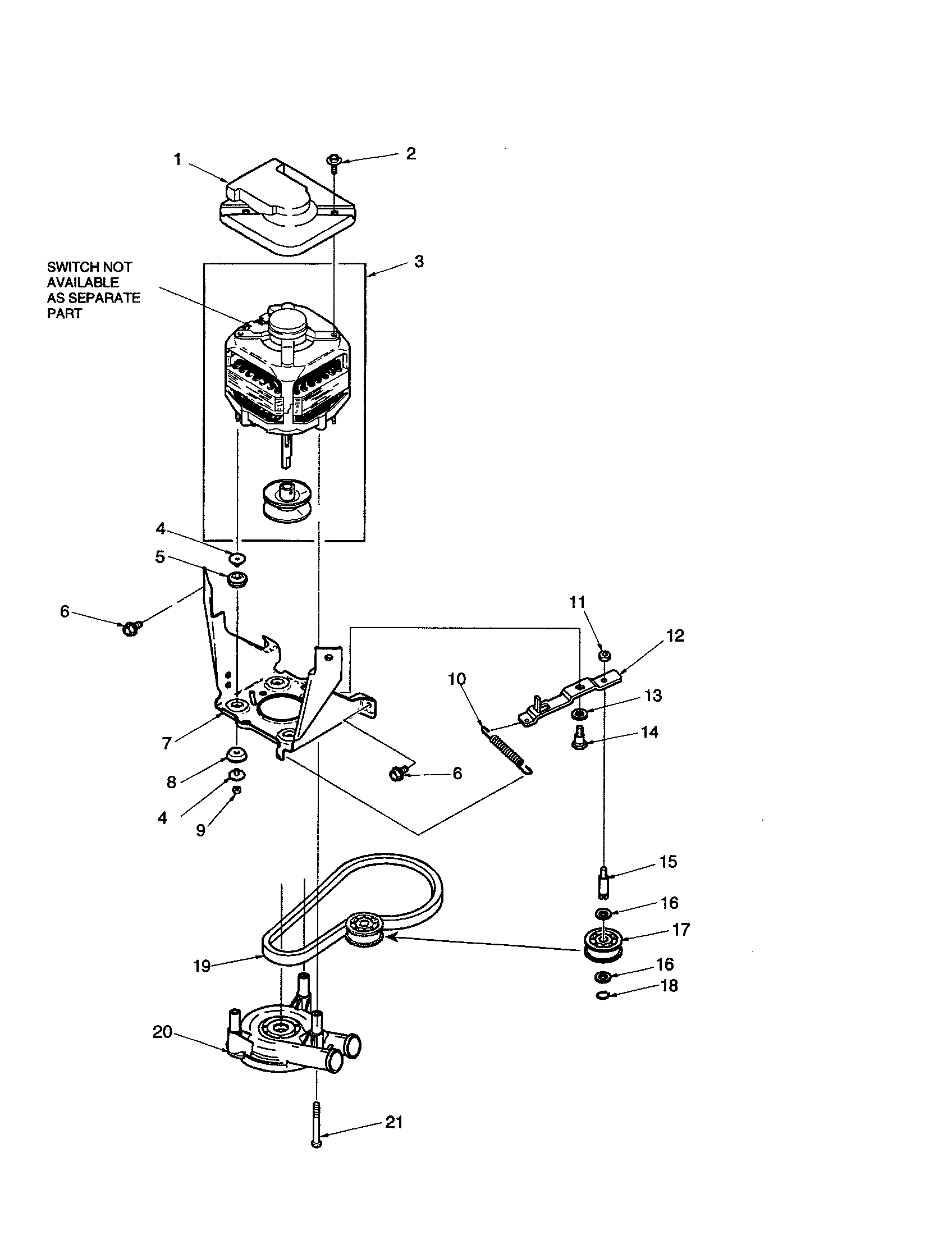

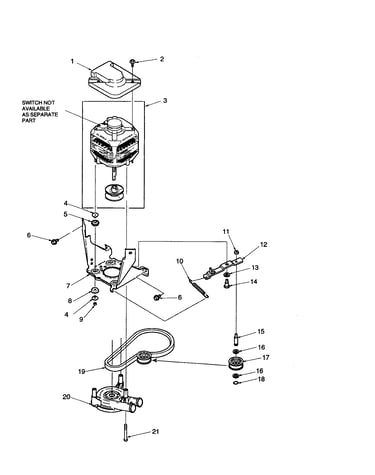

Motor/belt/pump/idler diagram

Washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 40064801
#5

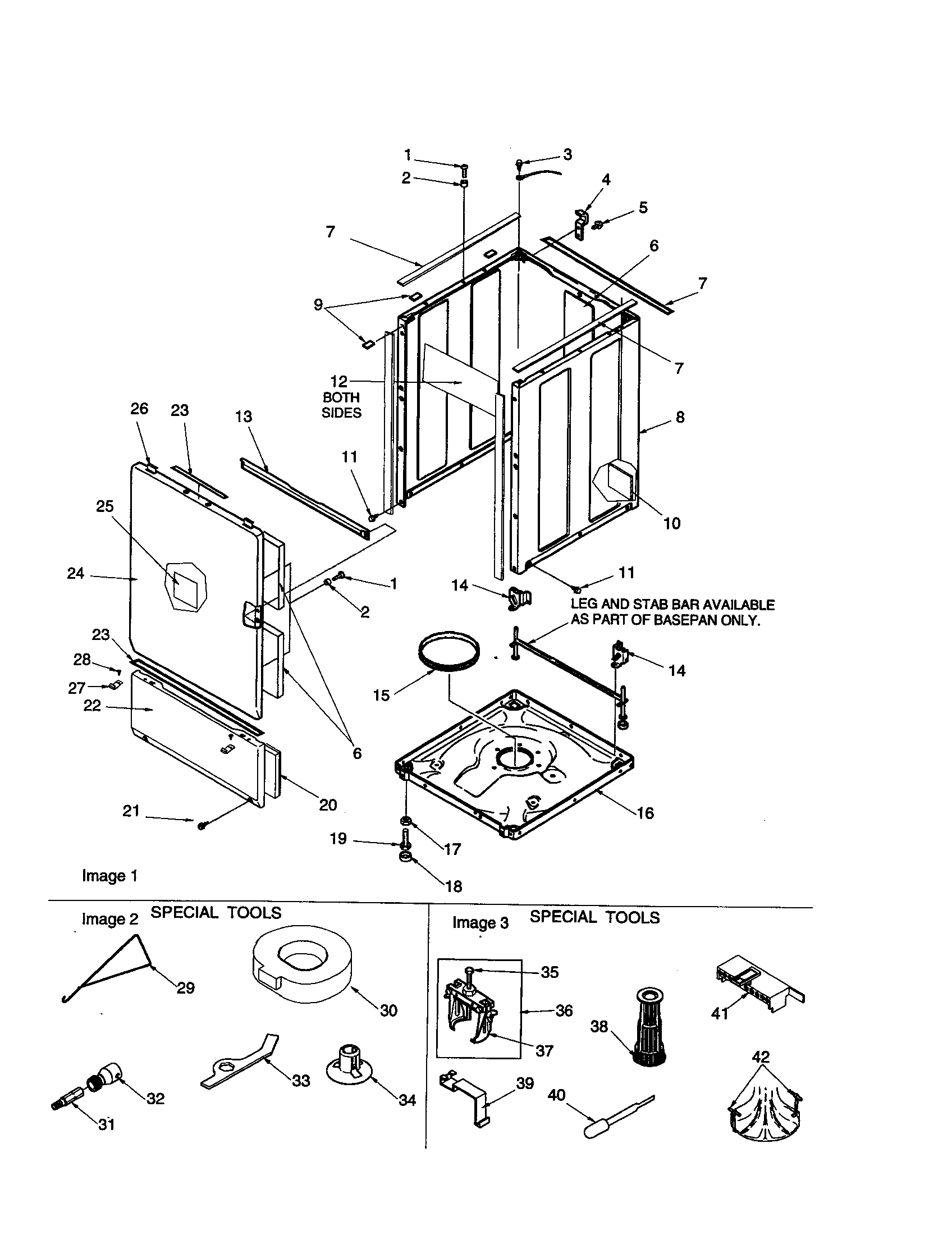

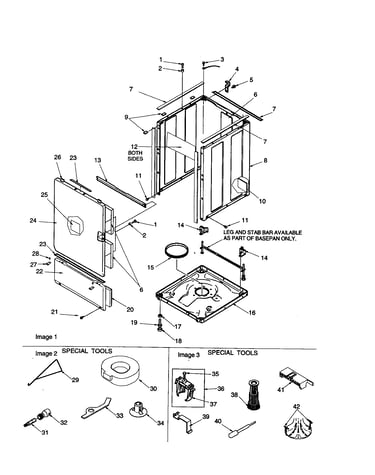

Base/cabinet/front/special tools diagram

Screw

Part #40064801

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 40064801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Spin Belt 40053607
#19A

Motor/belt/pump/idler diagram

Spin belt

Part #40053607

Replaced by #WP27001007

?
Manufacturer substitution
This part replaces 40053607. Substitute parts can look different from the original.
$43.09 |
12% OFF Phone Price : $49.09
In Stock
Washer 20290
#8

Mixing valve and hoses diagram

Washer

Part #20290

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 20290. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Locknut, 10- 40095101
#9

Motor/belt/pump/idler diagram

Locknut, 10-

Part #40095101

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 40095101. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Tubing 40065001
#15

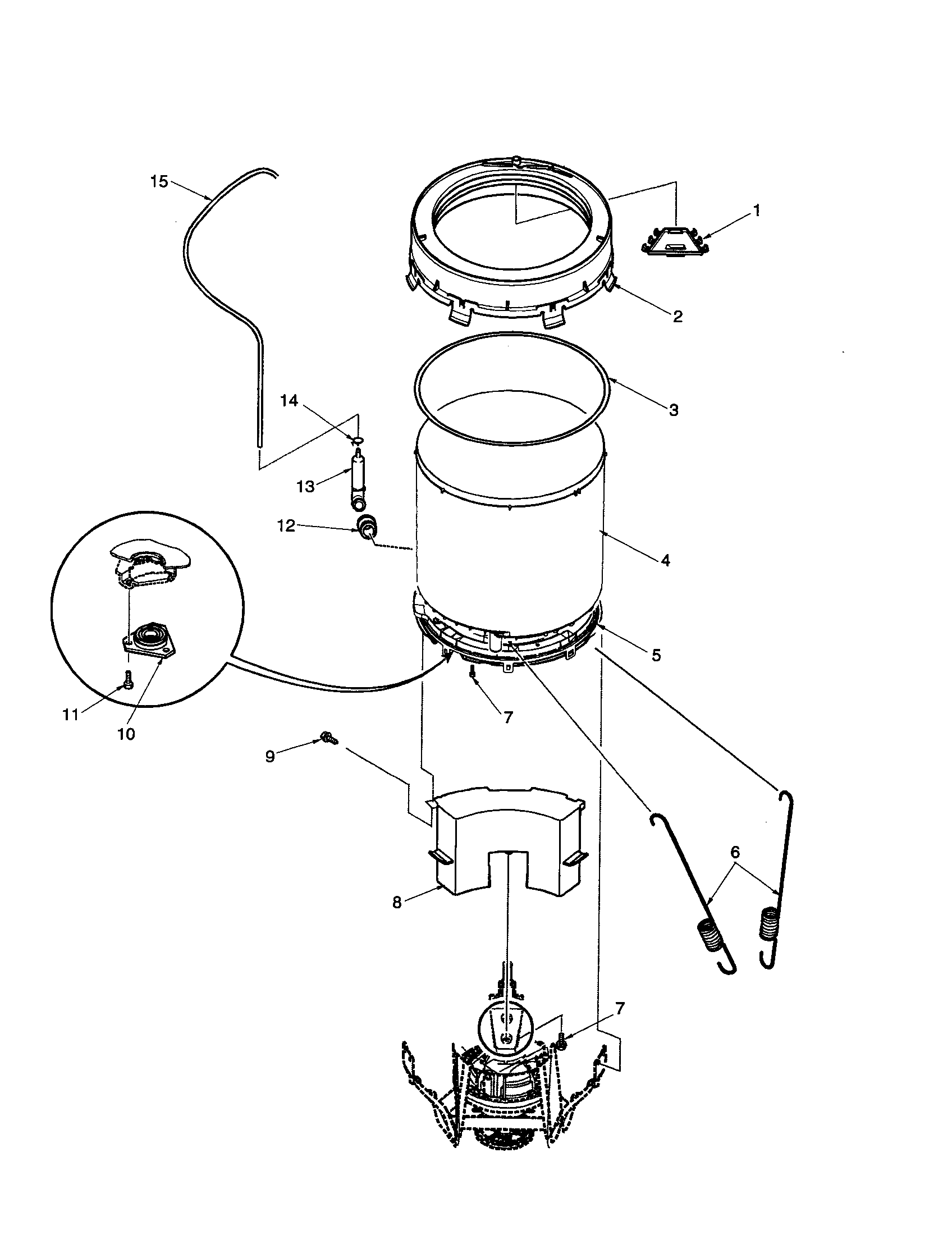

Outer tub and pressure tube diagram

Tubing

Part #40065001

Replaced by #WP21001748

?
Manufacturer substitution
This part replaces 40065001. Substitute parts can look different from the original.
This item is not returnable
$5.84 |
15% OFF Phone Price : $6.84
In Stock
Drain Hose 40053901
#20

Mixing valve and hoses diagram

Drain hose

Part #40053901

Replaced by #WP40053901

?
Manufacturer substitution
This part replaces 40053901. Substitute parts can look different from the original.
$38.59 |
13% OFF Phone Price : $44.59
In Stock
Pulley 40045001
#17

Motor/belt/pump/idler diagram

Pulley

Part #40045001

Replaced by #WP40045001

?
Manufacturer substitution
This part replaces 40045001. Substitute parts can look different from the original.
$37.68 |
14% OFF Phone Price : $43.68
In Stock
