KitchenAid
Countertop Microwave

Model # KCMS135SBL5 Official KitchenAid microwave

Here are the diagrams and repair parts for Official KitchenAid KCMS135SBL5 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Magnetron 660595
#29

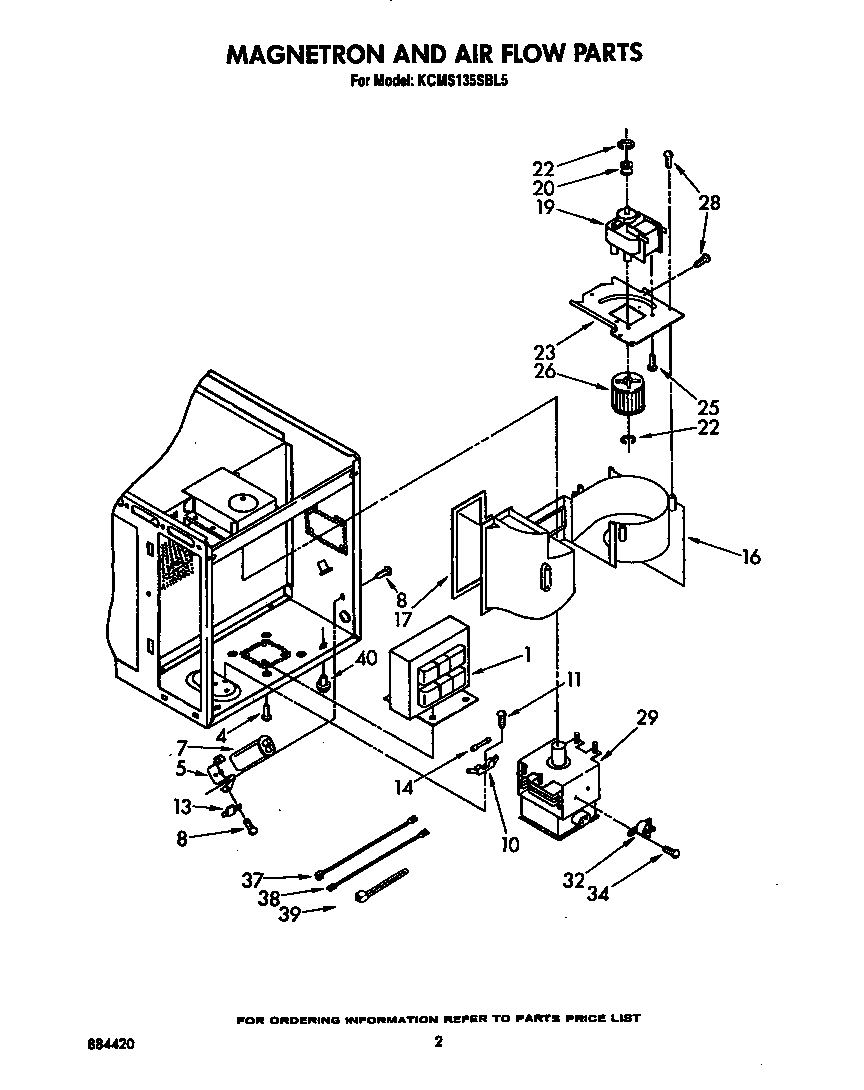

Magnetron and air flow diagram

Magnetron

Part #660595

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311992
#29A

Magnetron and air flow diagram

Magnetron

Part #311992

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 313034
#29C

Magnetron and air flow diagram

Magnetron

Part #313034

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 311993
#29B

Magnetron and air flow diagram

Magnetron

Part #311993

The manufacturer no longer makes this part, and there's no substitute part

Screw 313638
#19

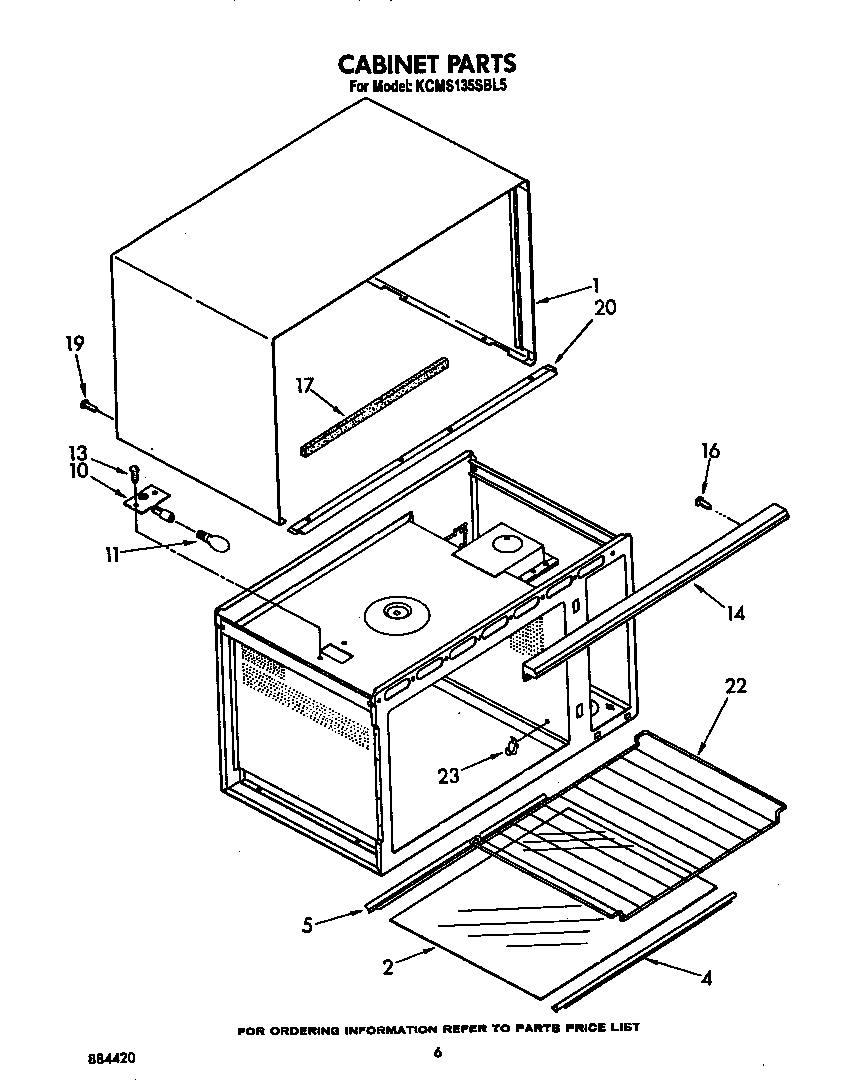

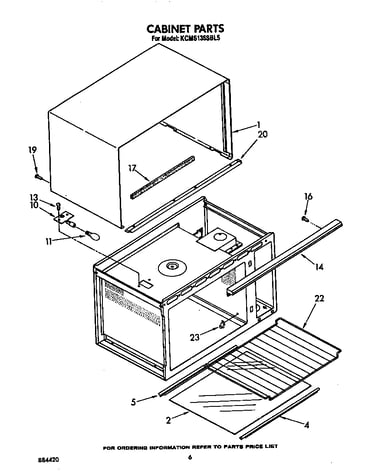

Cabinet diagram

Screw

Part #313638

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Fuse 661172
#14

Magnetron and air flow diagram

Fuse

Part #661172

Replaced by #STD388200

?
Manufacturer substitution
This part replaces 661172. Substitute parts can look different from the original.
This item is not returnable
$2.53 |
28% OFF Phone Price : $3.53
In Stock
Fuse 313887
#14A

Magnetron and air flow diagram

Fuse

Part #313887

Replaced by #STD388200

?
Manufacturer substitution
This part replaces 313887. Substitute parts can look different from the original.
This item is not returnable
$2.53 |
28% OFF Phone Price : $3.53
In Stock
Support 313653
#23

Cabinet diagram

Support

Part #313653

Replaced by #WP3149478

?
Manufacturer substitution
This part replaces 313653. Substitute parts can look different from the original.
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
