Frigidaire
Top-Mount Refrigerator

Model # FFTR1820VS0 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFTR1820VS0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

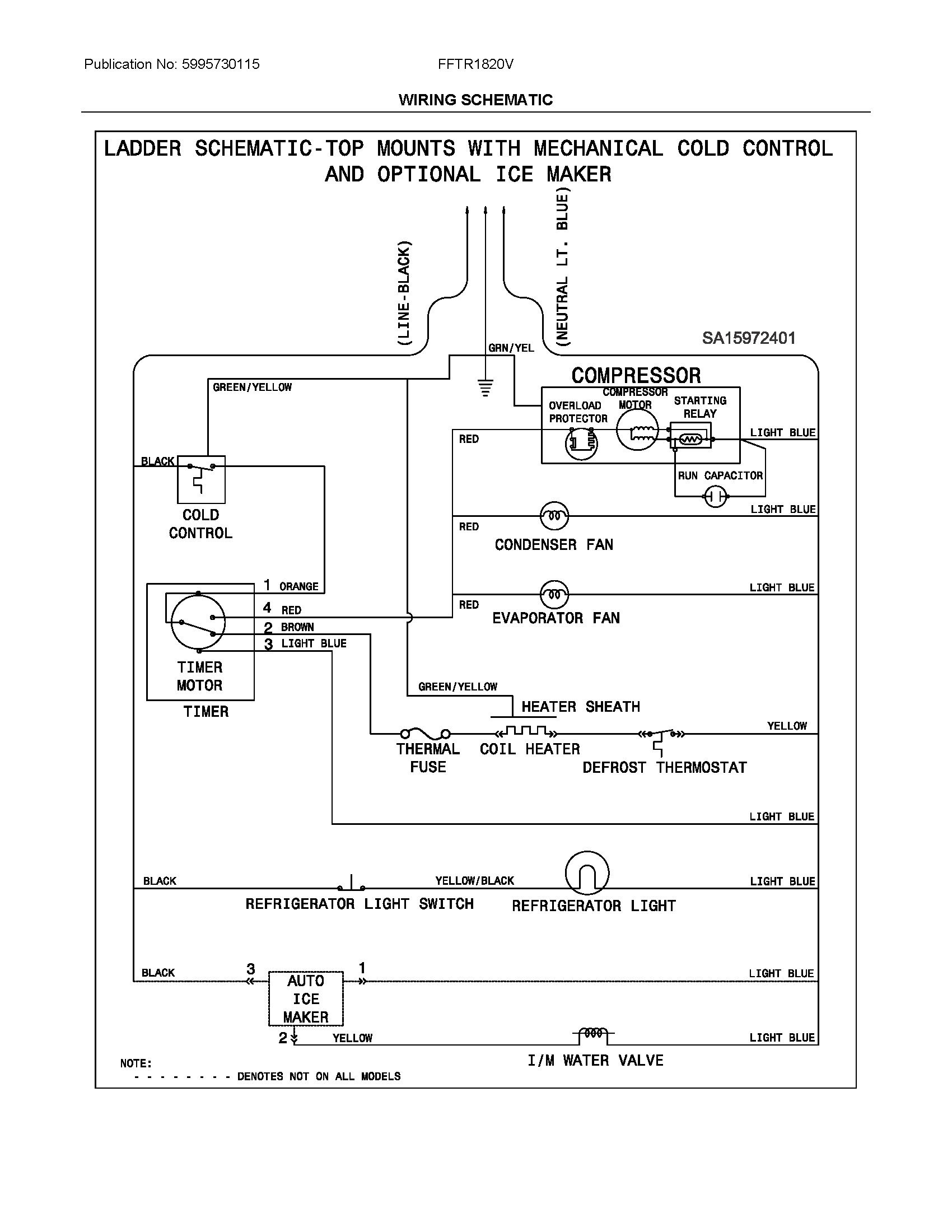

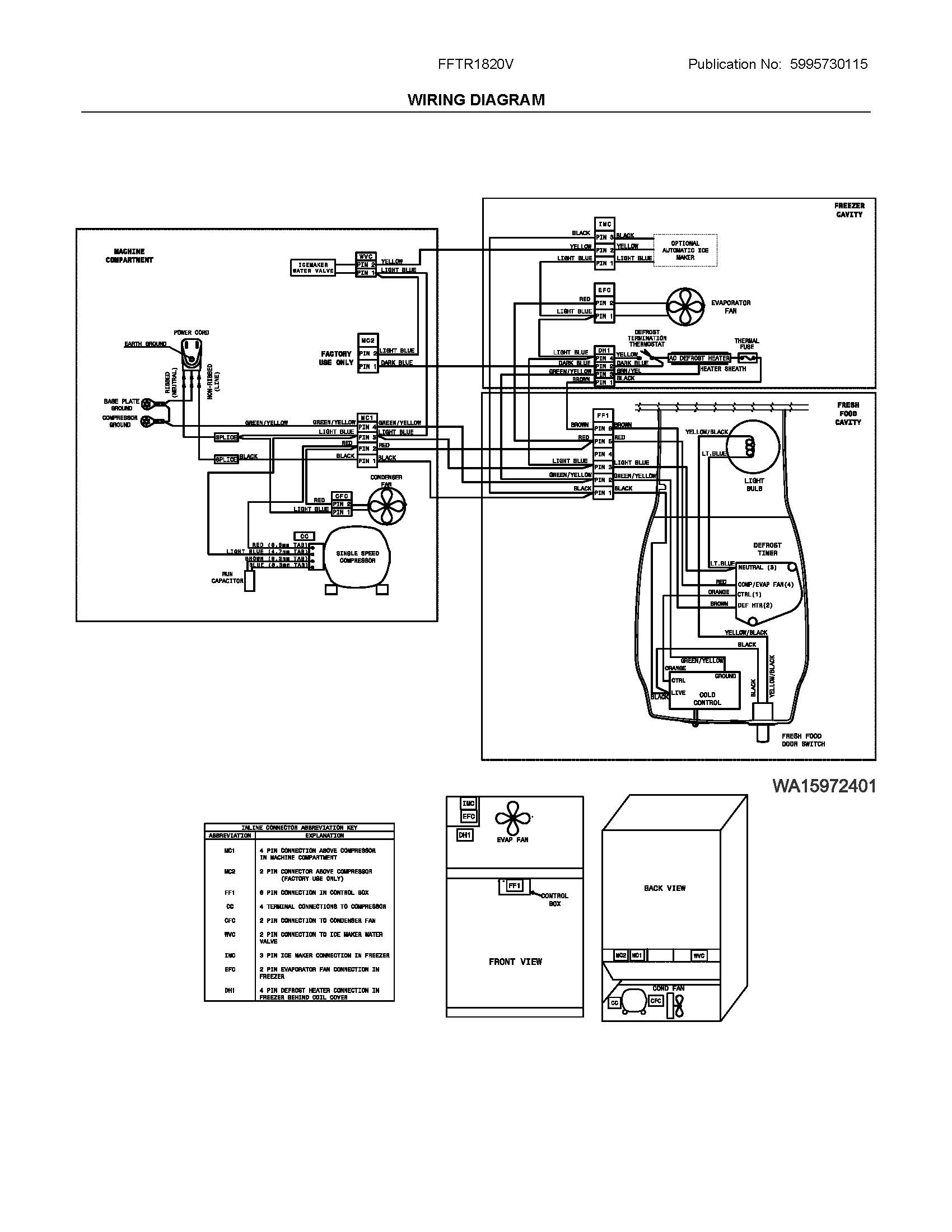

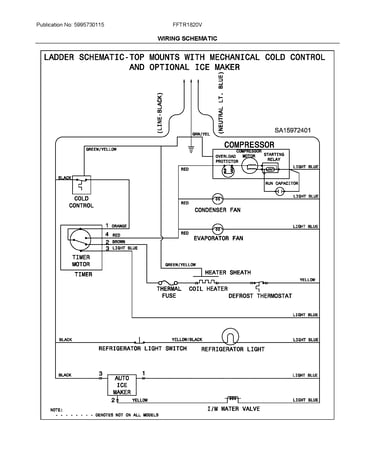

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Refrigerator Defrost Timer 5304522331
#19

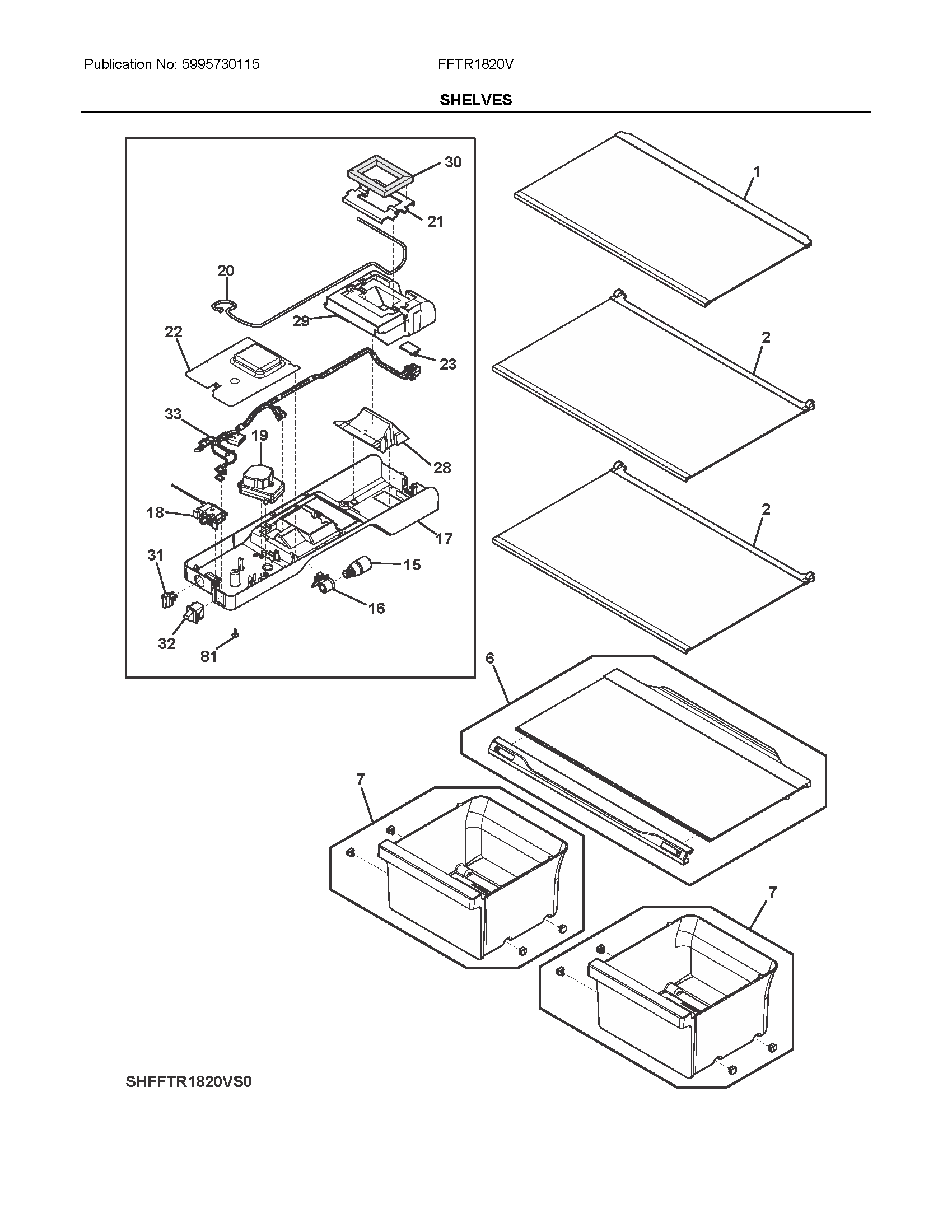

Shelves diagram

Refrigerator defrost timer

Part #5304522331

Replaced by #5304526183

?
Manufacturer substitution
This part replaces 5304522331. Substitute parts can look different from the original.
BEST SELLER
$82.73
In Stock
S/a Pur Compressor Esx55cbt 5304529496
#29

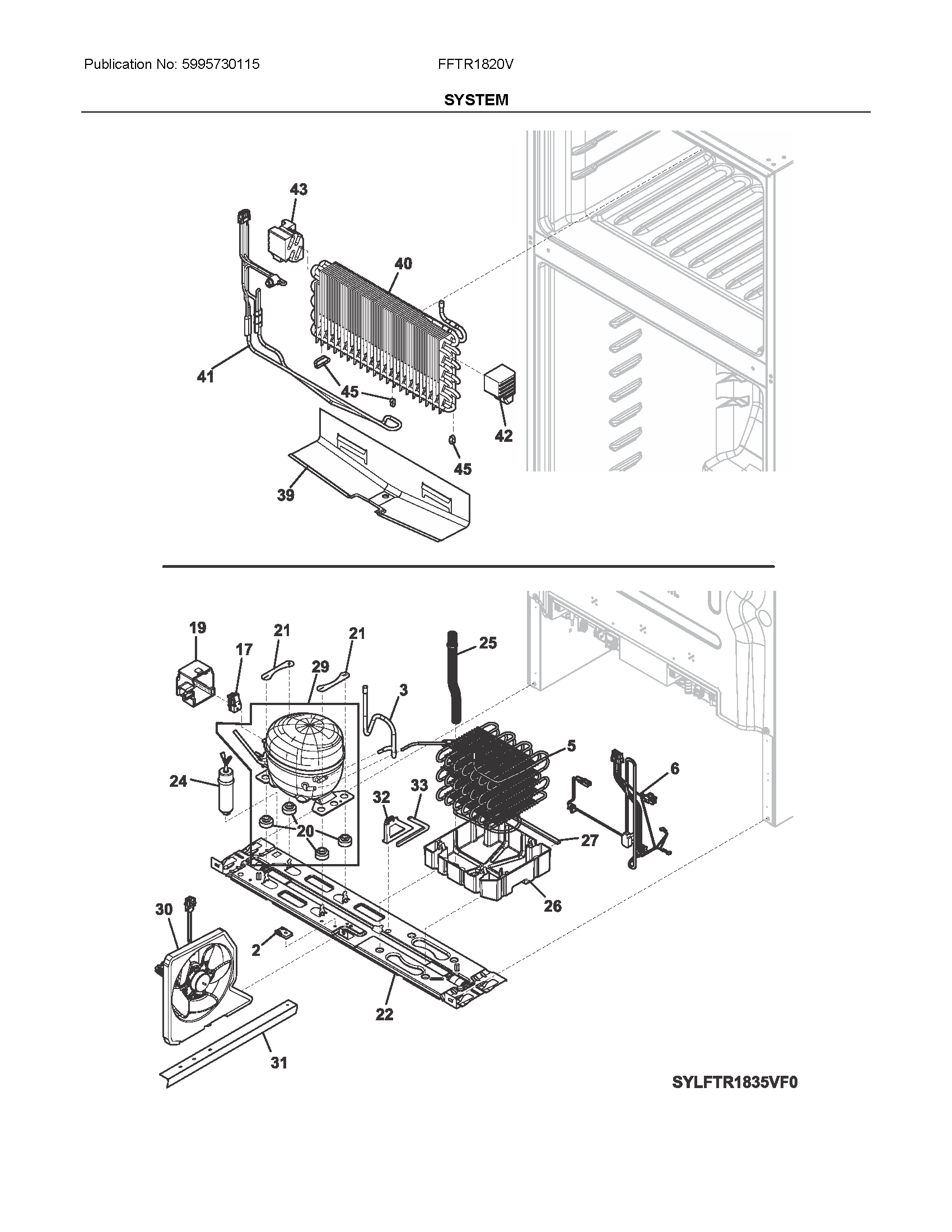

System diagram

S/a pur compressor esx55cbt

Part #5304529496

Replaced by #5304532451

?
Manufacturer substitution
This part replaces 5304529496. Substitute parts can look different from the original.
BEST SELLER
$193.64
In Stock
Refrigerator Evaporator Fan Blade 242219302
#15

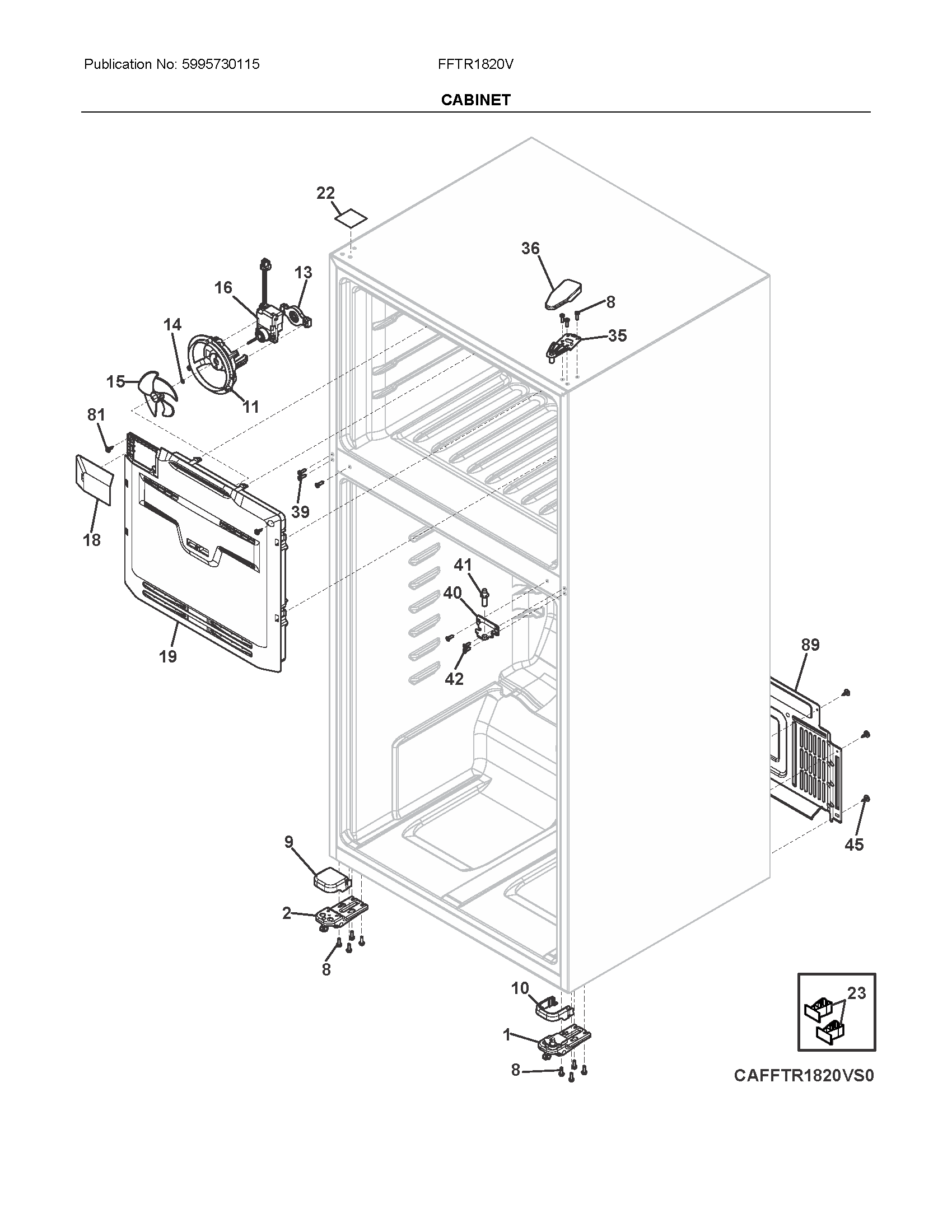

Cabinet diagram

Refrigerator evaporator fan blade

Part #242219302

BEST SELLER
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Refrigerator Run Capacitor (replaces 5304522105) 5304528894
#24

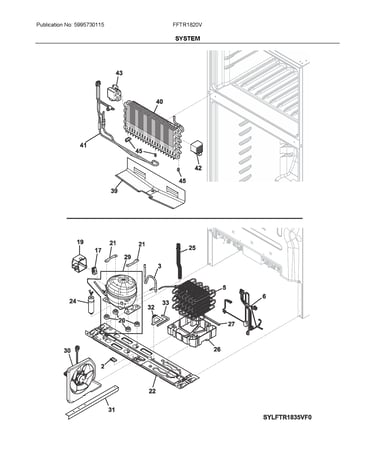

System diagram

Refrigerator run capacitor (replaces 5304522105)

Part #5304528894

BEST SELLER
$34.04
In Stock
Assy-evaporator & Compts Br 5304529495
#40

System diagram

Assy-evaporator & compts br

Part #5304529495

BEST SELLER
$133.52
In Stock
Universal/multiflex (frigidaire) Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#80

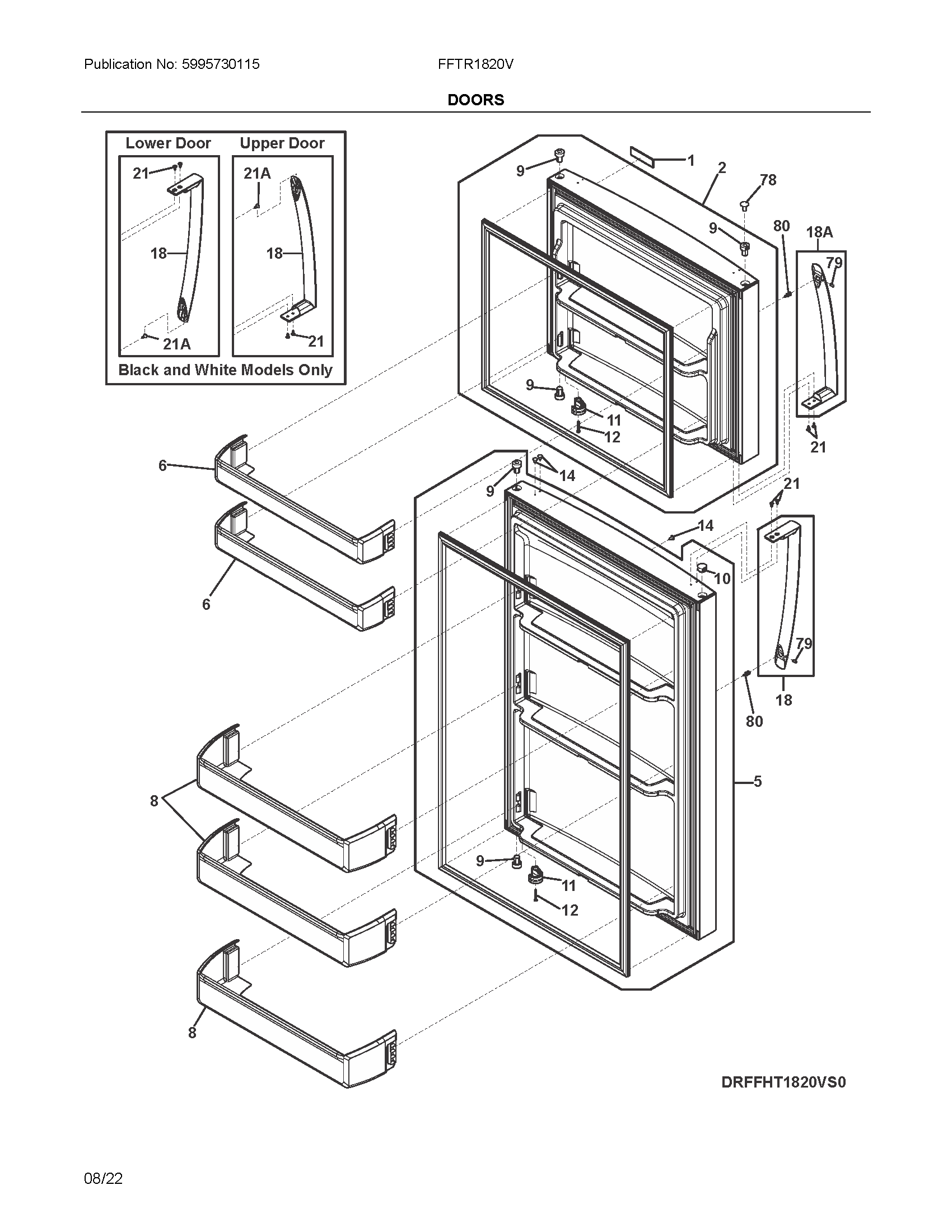

Doors diagram

Universal/multiflex (frigidaire) refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$15.46 |
11% OFF Phone Price : $17.46
In Stock
Screw 218755407
#79

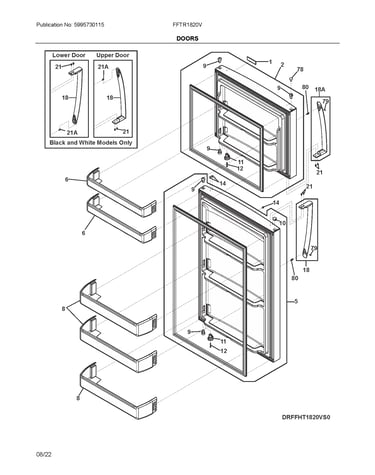

Doors diagram

Screw

Part #218755407

Replaced by #218755402

?
Manufacturer substitution
This part replaces 218755407. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Freezer Door Handle Mounting Bolt (replaces 240521301) 240521303
#21A

Doors diagram

Freezer door handle mounting bolt (replaces 240521301)

Part #240521303

BEST SELLER
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Condenser 5304530007
#5

System diagram

Condenser

Part #5304530007

BEST SELLER
$73.31
In Stock
Refrigerator Machine Compartment Wire Harness 5304519649
#6

System diagram

Refrigerator machine compartment wire harness

Part #5304519649

BEST SELLER
$64.42 |
9% OFF Phone Price : $70.42
In Stock
