GE
Wall Oven/Microwave Combo

Model # JKP90SM1SS Official GE wall oven with microwave

Here are the diagrams and repair parts for Official GE JKP90SM1SS wall oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

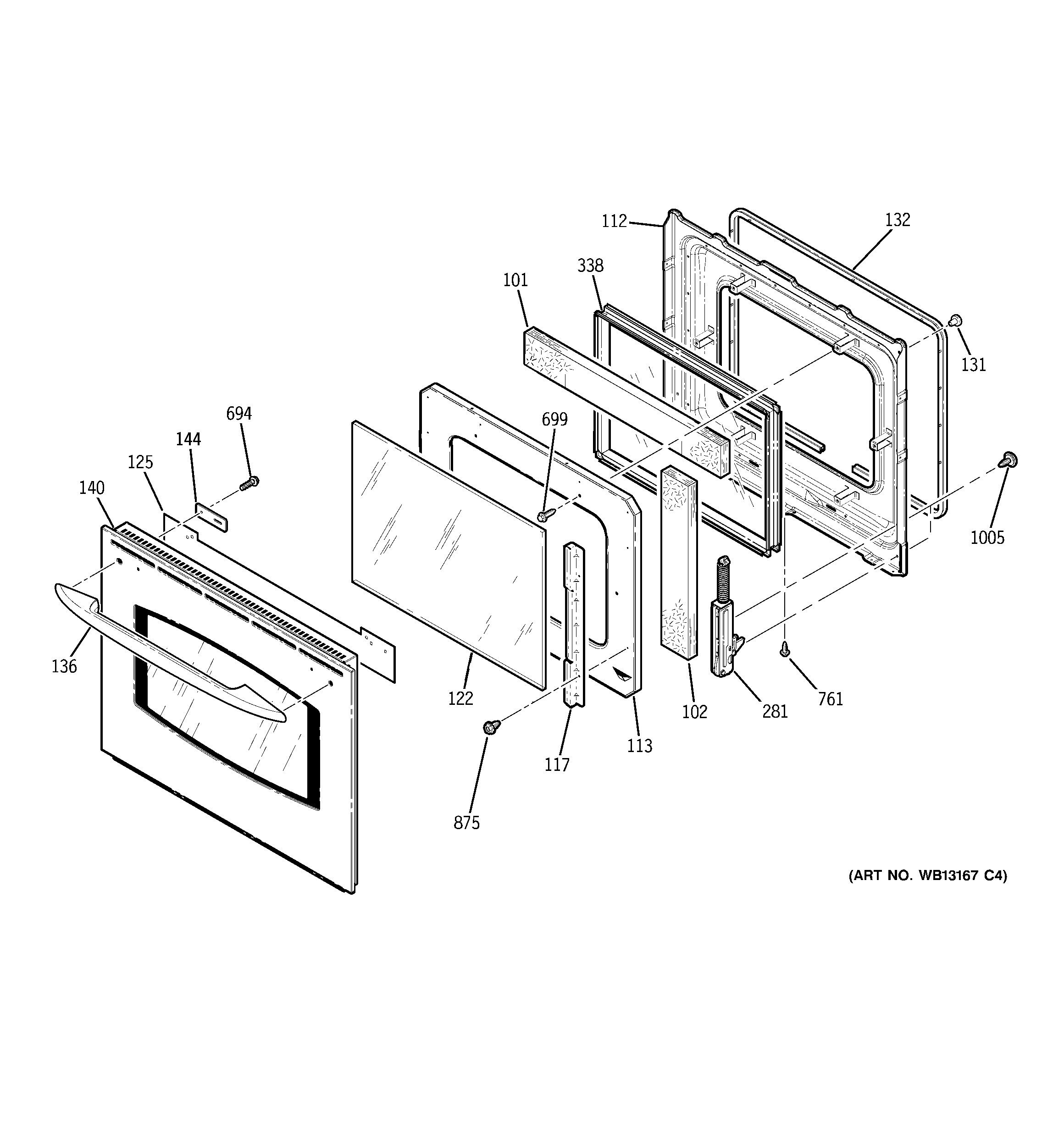

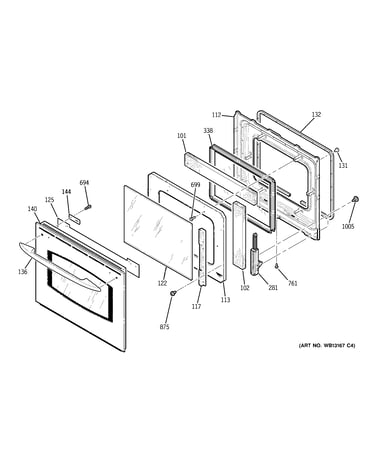

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Switch-micro WB24X0829
#576

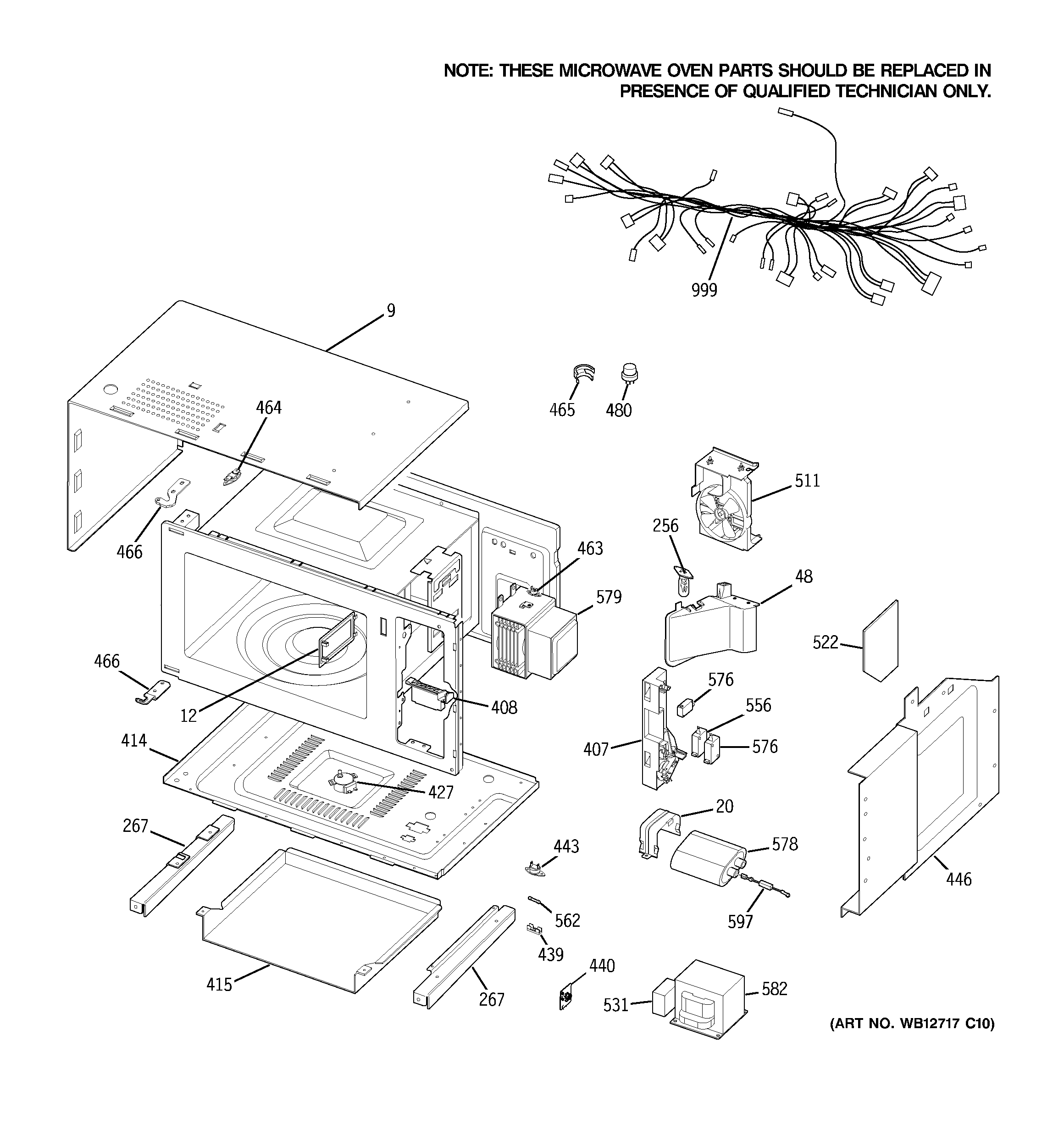

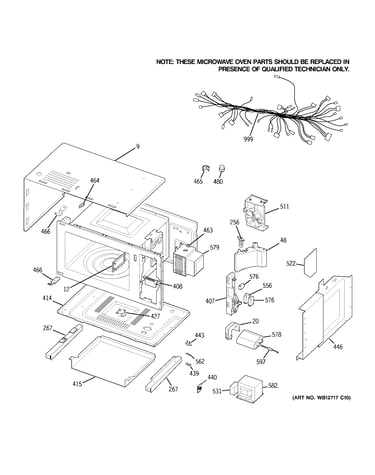

Microwave body parts diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Cartridge WB27X10474
#562

Microwave body parts diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Monitor Switch WB24X0830
#556

Microwave body parts diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Sensor WB21T10017
#253

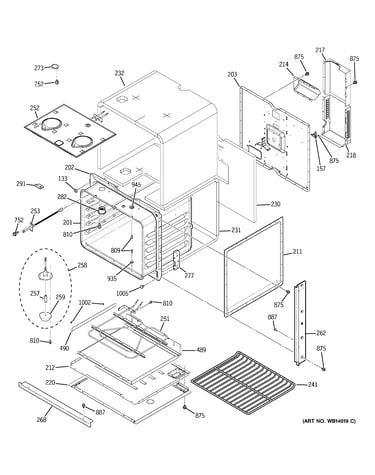

Body with microwave support diagram

Sensor

Part #WB21T10017

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10017. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Microwave Magnetron (replaces Wb27x10343, Wb27x1114) WB27X10516
#579

Microwave body parts diagram

Microwave magnetron (replaces wb27x10343, wb27x1114)

Part #WB27X10516

BEST SELLER
$263.24 |
$12.00 OFF Phone Price : $275.24
In Stock
Microwave High-voltage Capacitor (replaces Wb27x254) WB27X10073
#578

Microwave body parts diagram

Microwave high-voltage capacitor (replaces wb27x254)

Part #WB27X10073

$67.21 |
8% OFF Phone Price : $73.21
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Control Board WB27T10914
#16

Microwave control panel diagram

Range oven control board

Part #WB27T10914

This item is not returnable
$191.76 |
6% OFF Phone Price : $203.76
In Stock
Screw, #10-32 X 17/32-in WB01X1253
#810

Body with microwave support diagram

Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Microwave Turntable Motor WB26X0172
#427

Microwave body parts diagram

Microwave turntable motor

Part #WB26X0172

Replaced by #WB26X172

?
Manufacturer substitution
This part replaces WB26X0172. Substitute parts can look different from the original.
$48.06 |
11% OFF Phone Price : $54.06
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

  • Foam Tape WB01T10052
    Foam tape
    $7.88 |
    11% OFF Phone Price : $8.88
