Lawn & Garden Engine

Model # 143717092 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143717092 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143717092 4-Cycle Engine
Gasket 27110
#21

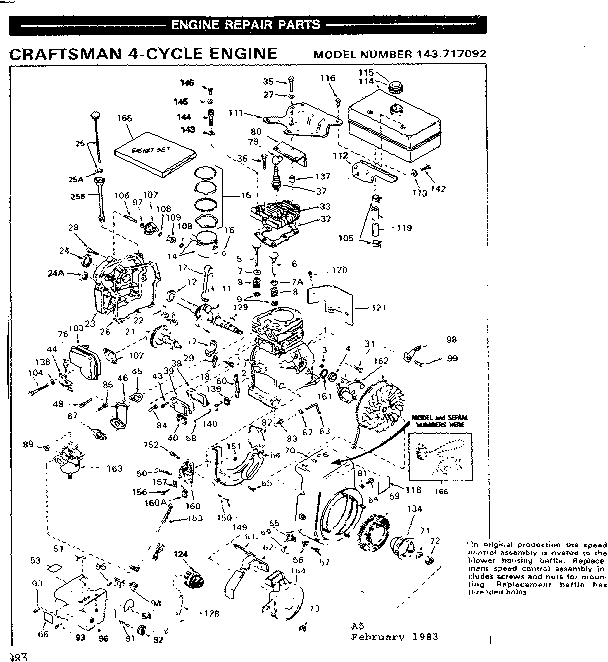

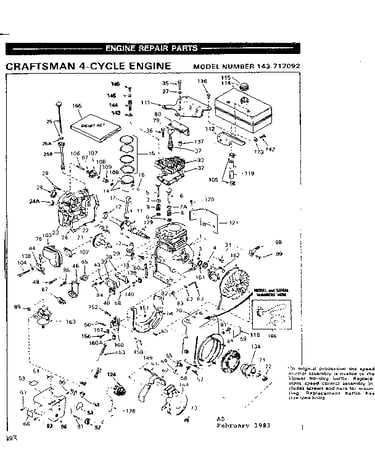

Replacement parts diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#105

Replacement parts diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
Back Order
Primer Line 32180B
#128

Replacement parts diagram

Primer line

Part #32180B

Replaced by #32180C

?
Manufacturer substitution
This part replaces 32180B. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
Back Order
Troybilt Lawn & Garden Equipment Engine Oil Seal 27897
#24

Replacement parts diagram

Troybilt lawn & garden equipment engine oil seal

Part #27897

This item is not returnable
$7.02
12% OFF Phone Price : $8.02
In Stock
Generac Lawn & Garden Equipment Engine Stop Wire Terminal 610973
#160A

Replacement parts diagram

Generac lawn & garden equipment engine stop wire terminal

Part #610973

This item is not returnable
$4.11
20% OFF Phone Price : $5.11
In Stock
Generac Lawn & Garden Equipment Engine Breather Filter 31410
#40

Replacement parts diagram

Generac lawn & garden equipment engine breather filter

Part #31410

This item is not returnable
In Stock
Troybilt Carburetor Float 631024
#15

Replacement parts diagram

Troybilt carburetor float

Part #631024

This item is not returnable
In Stock
Lauson Lawn & Garden Equipment Engine Carburetor Rebuild Kit 31840
#32

Replacement parts diagram

Lauson lawn & garden equipment engine carburetor rebuild kit

Part #31840

This item is not returnable
$22.60
21% OFF Phone Price : $28.60
In Stock
Screw 30688
#146

Replacement parts diagram

Screw

Part #30688

Replaced by #30063

?
Manufacturer substitution
This part replaces 30688. Substitute parts can look different from the original.
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Knob 34585
#92

Replacement parts diagram

Knob

Part #34585

Replaced by #35438

?
Manufacturer substitution
This part replaces 34585. Substitute parts can look different from the original.
This item is not returnable
$4.09
20% OFF Phone Price : $5.09
In Stock
