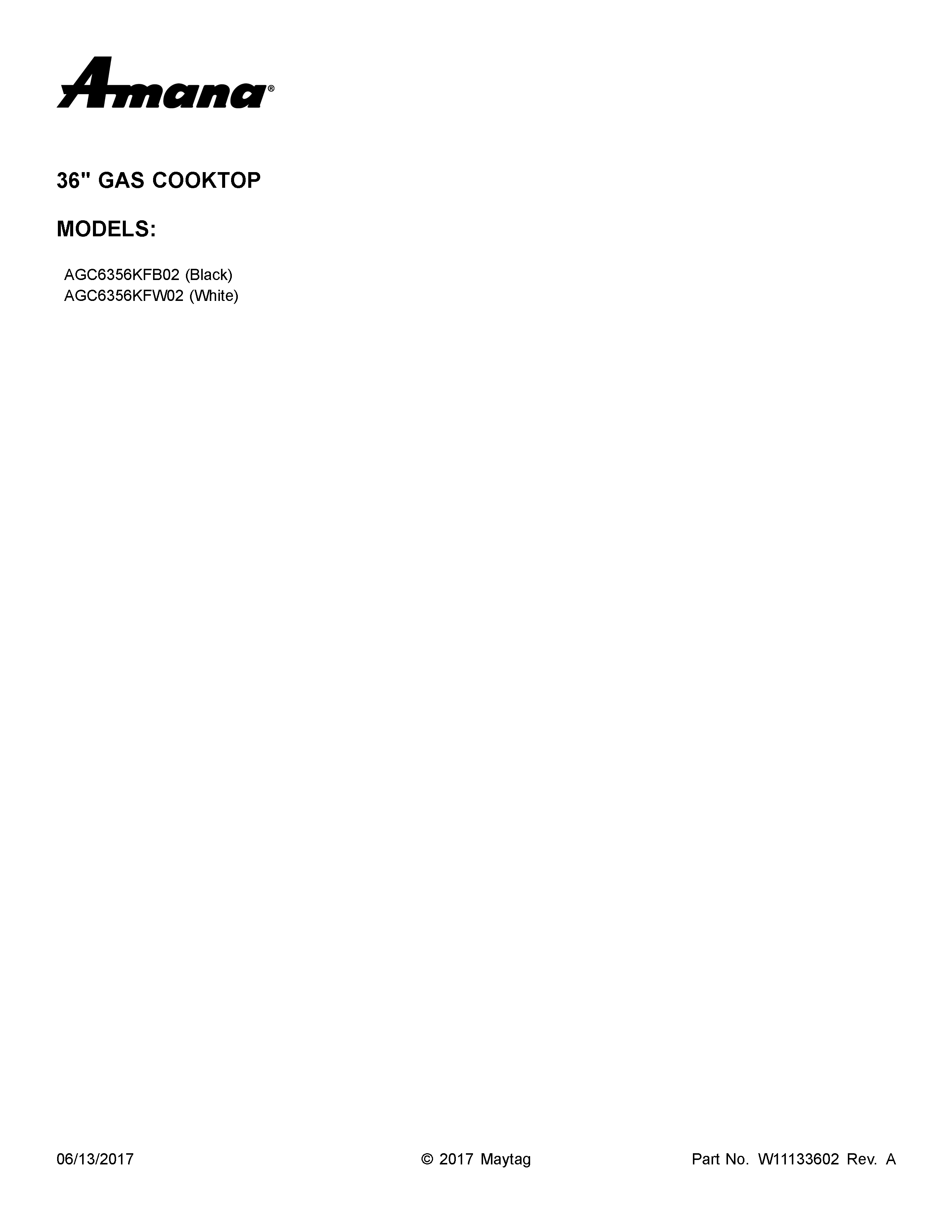

Model # AGC6356KFB02 Official Amana counter unit

Here are the diagrams and repair parts for Official Amana AGC6356KFB02 counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Screw (tog 7 7101P685-60
#9

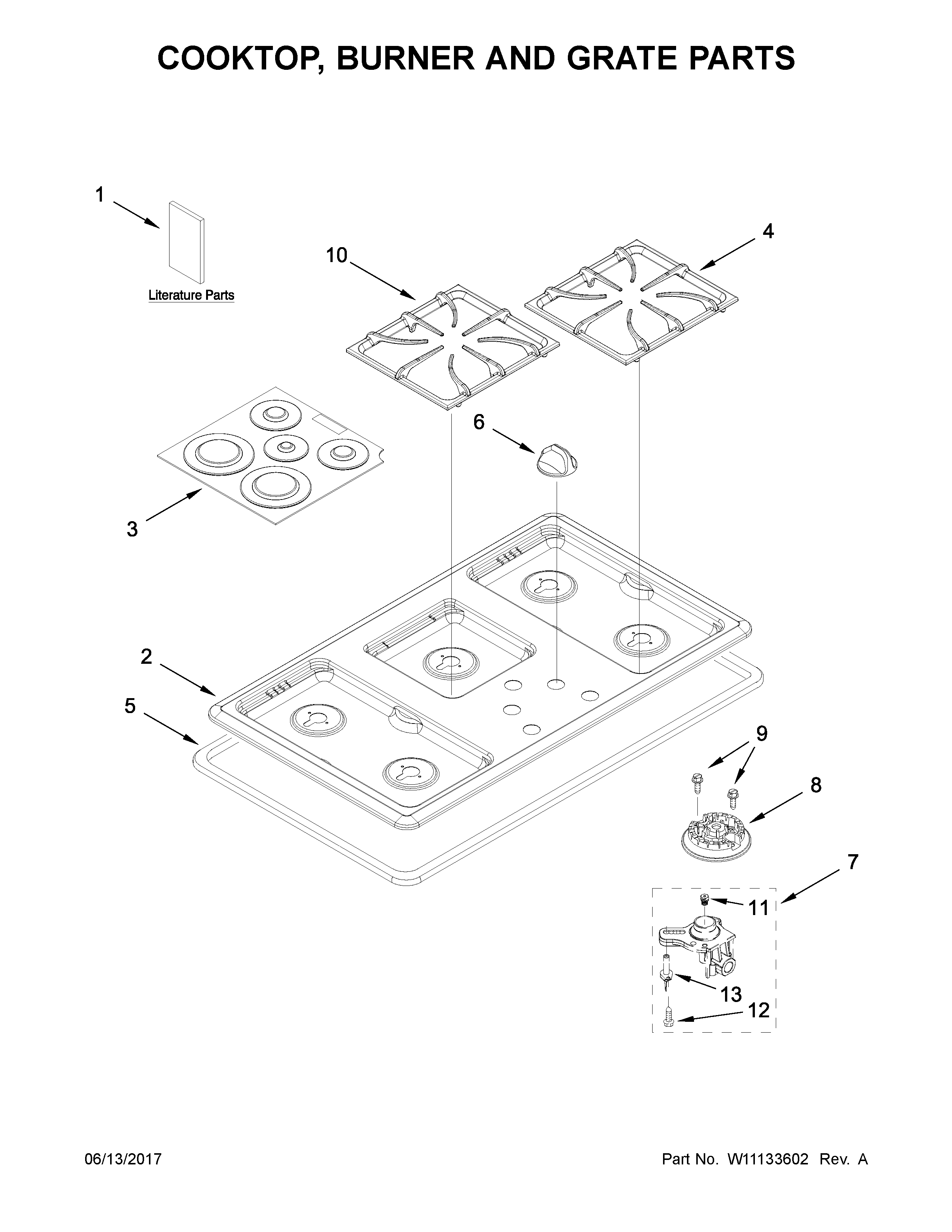

Cooktop, burner and grate parts diagram

Screw (tog 7

Part #7101P685-60

The manufacturer no longer makes this part, and there's no substitute part

Range Screw 8273062
#12

Cooktop, burner and grate parts diagram

Range screw

Part #8273062

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 8273062. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Range Burner Head W10406797
#8

Cooktop, burner and grate parts diagram

Range burner head

Part #W10406797

Replaced by #WPW10406797

?
Manufacturer substitution
This part replaces W10406797. Substitute parts can look different from the original.
BEST SELLER
$38.61 |
13% OFF Phone Price : $44.61
In Stock
Spark Module W10110489
#3

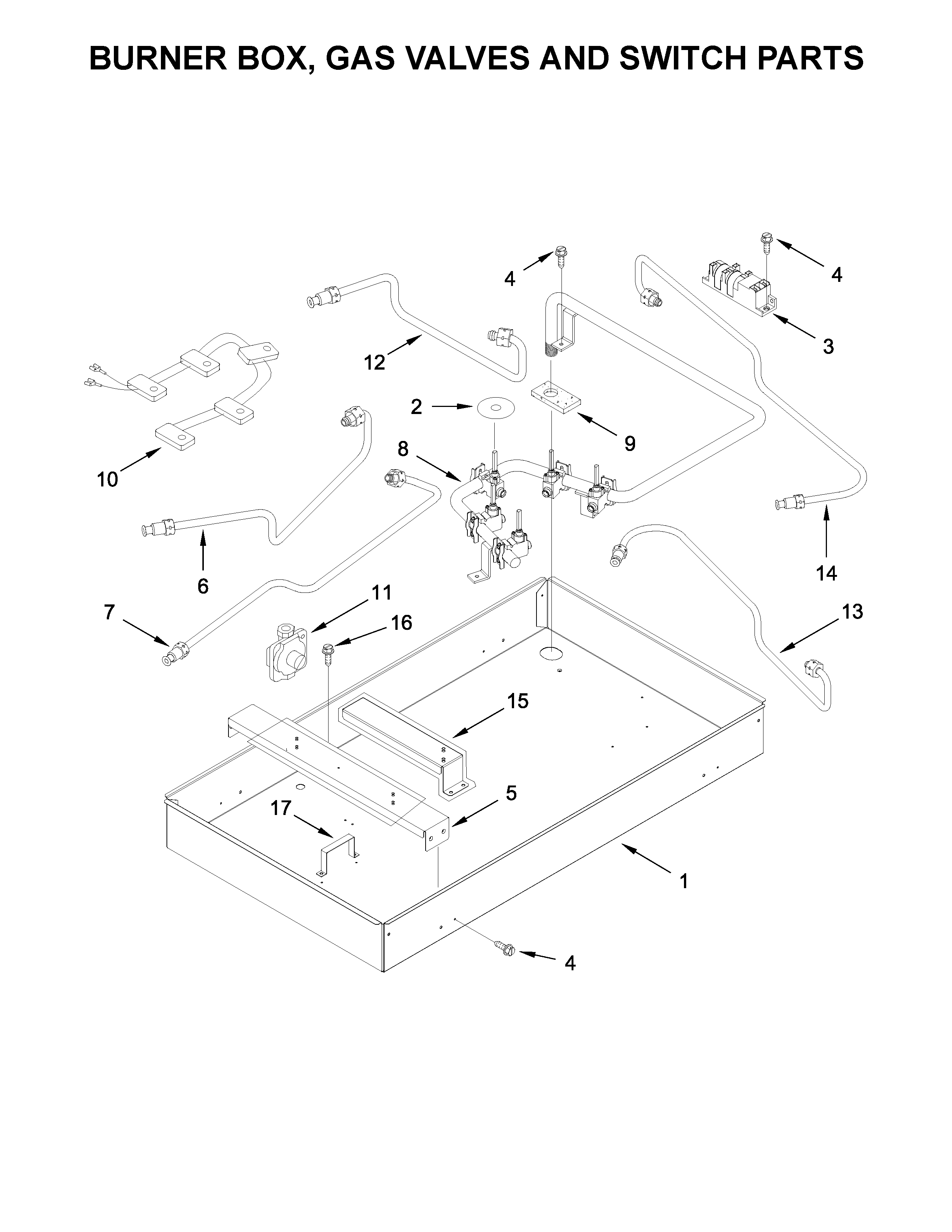

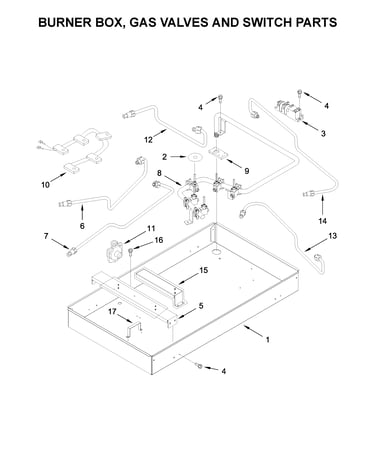

Burner box, gas valves and switch parts diagram

Spark module

Part #W10110489

Replaced by #WPW10110486

?
Manufacturer substitution
This part replaces W10110489. Substitute parts can look different from the original.
$112.14 |
10% OFF Phone Price : $124.14
In Stock
Cooktop Igniter Switch And Harness Assembly W10184468
#10

Burner box, gas valves and switch parts diagram

Cooktop igniter switch and harness assembly

Part #W10184468

Replaced by #WPW10184468

?
Manufacturer substitution
This part replaces W10184468. Substitute parts can look different from the original.
$101.69 |
11% OFF Phone Price : $113.69
In Stock
Manifold Pipe 7513P522-60
#8

Burner box, gas valves and switch parts diagram

Manifold pipe

Part #7513P522-60

$237.36
In Stock
Cooktop Burner Cap Kit, 5-pack (gray) W10237938
#3A

Cooktop, burner and grate parts diagram

Cooktop burner cap kit, 5-pack (gray)

Part #W10237938

$68.89 |
8% OFF Phone Price : $74.89
In Stock
Cooktop Burner Grate 7518P468-60
#10A

Cooktop, burner and grate parts diagram

Cooktop burner grate

Part #7518P468-60

$92.80
In Stock
Bracket 3801F878-51
#15

Burner box, gas valves and switch parts diagram

Bracket

Part #3801F878-51

$29.89
In Stock
Burner Tube 7506P362-60
#6

Burner box, gas valves and switch parts diagram

Burner tube

Part #7506P362-60

$35.00
In Stock
