GE
Gas Range

Model # JGBS19BEH1WH Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS19BEH1WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

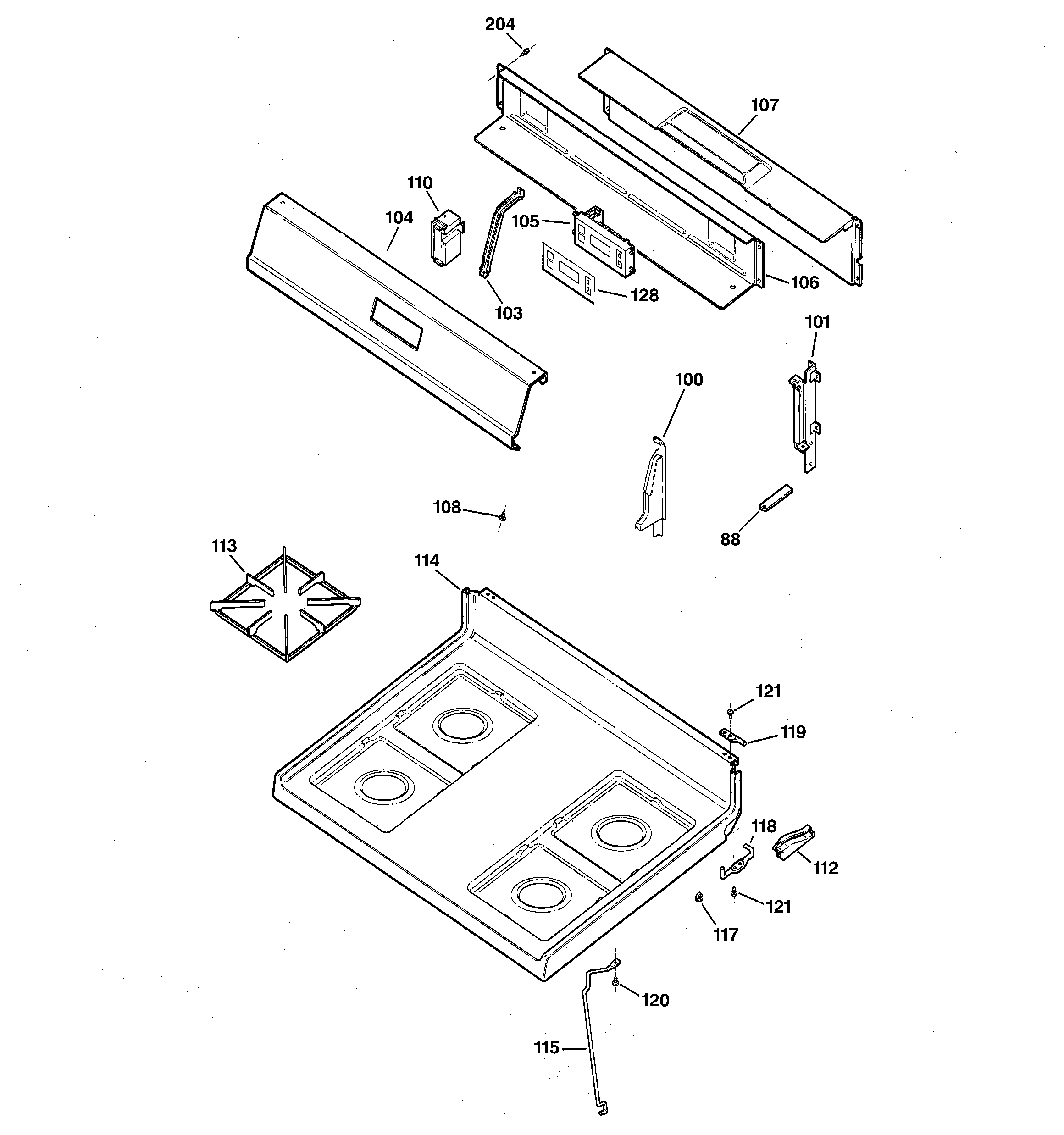

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Bake Burner Ignition WB13K0021
#218

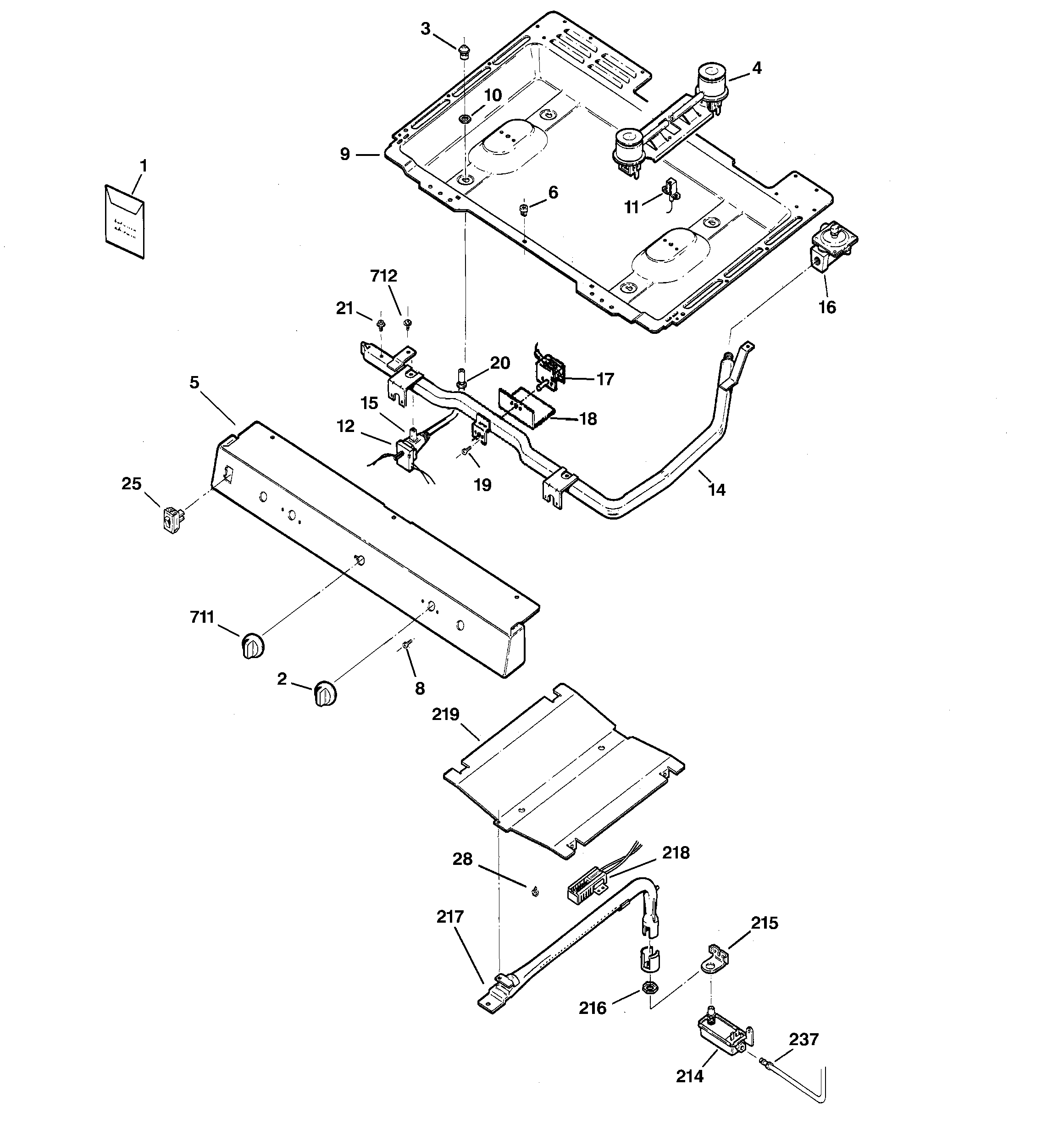

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$53.97 |
10% OFF Phone Price : $59.97
In Stock
40a15bulb STD372401
#235

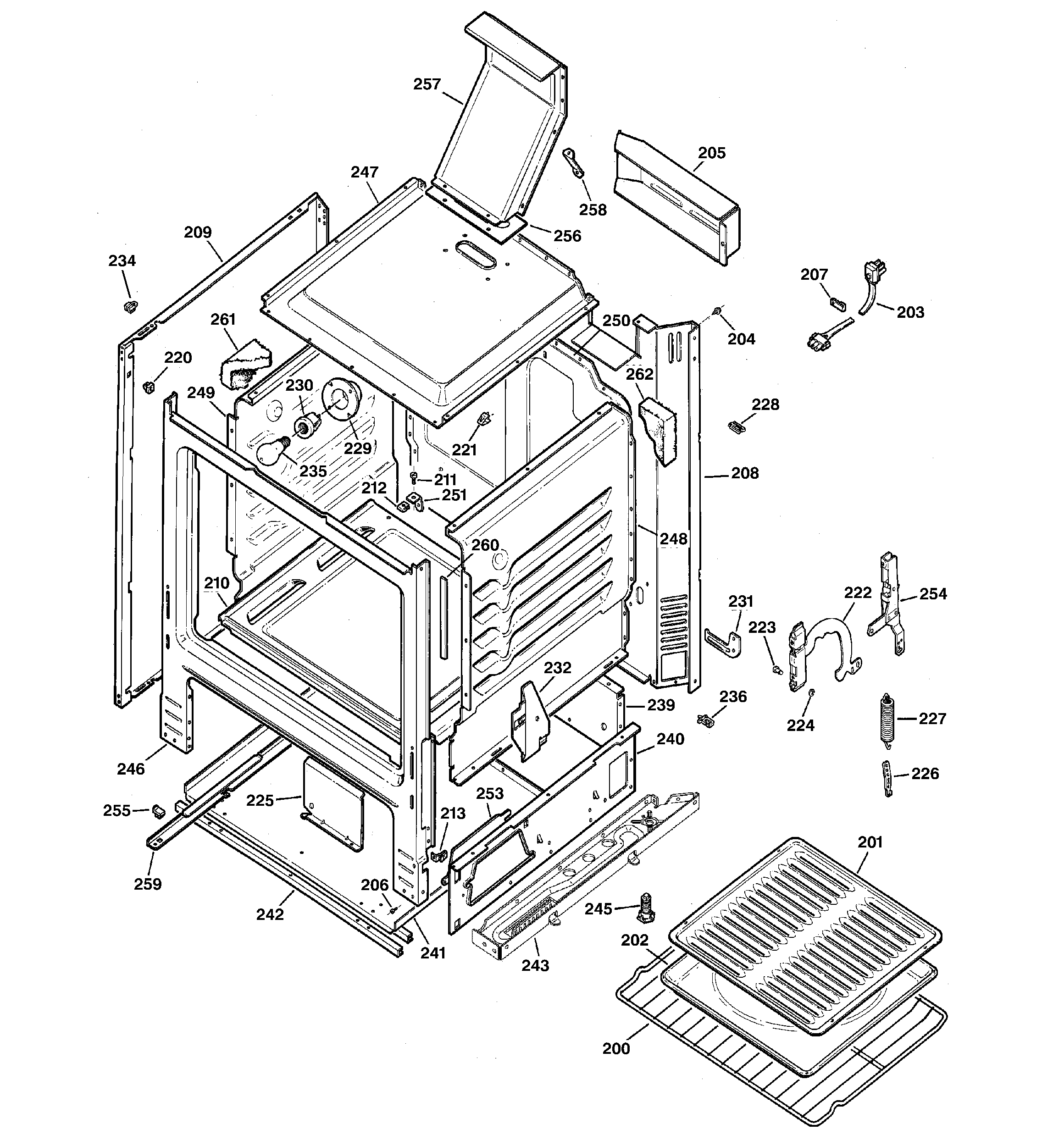

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Oven Control Thermostat WB20K10008
#17

Gas & burner parts diagram

Range oven control thermostat

Part #WB20K10008

Replaced by #WB20K8

?
Manufacturer substitution
This part replaces WB20K10008. Substitute parts can look different from the original.
BEST SELLER
$303.21 |
$12.00 OFF Phone Price : $315.21
In Stock
Range Light Socket WB08T10004
#230

Body parts diagram

Range light socket

Part #WB08T10004

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08T10004. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hex Washer Head Screw WB01K0050
#28

Gas & burner parts diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Door Gasket WB32K0003
#318

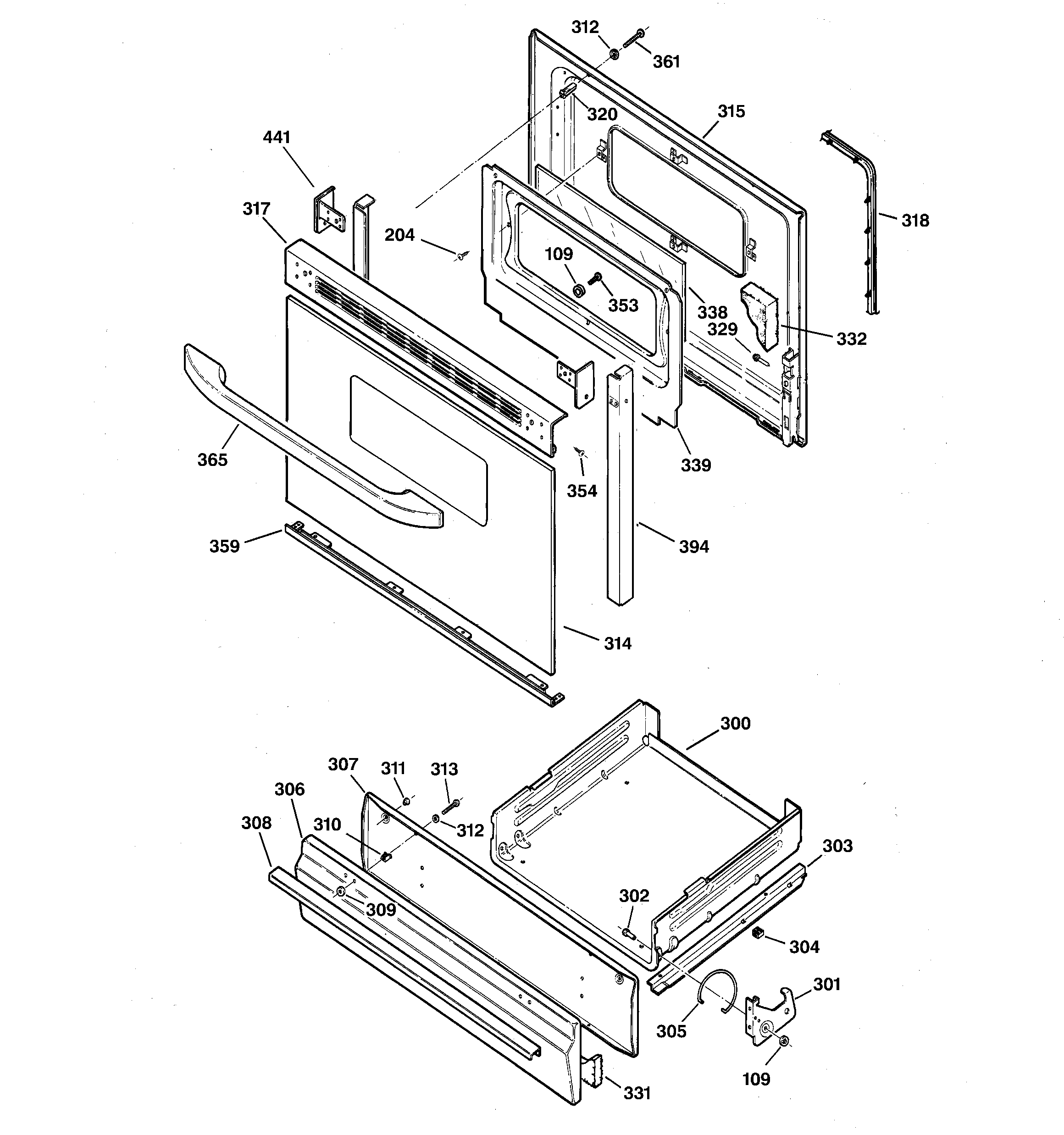

Door & drawer parts diagram

Door gasket

Part #WB32K0003

Replaced by #WB35X29720

?
Manufacturer substitution
This part replaces WB32K0003. Substitute parts can look different from the original.
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Range Bake Burner (replaces Wb16k27) WB16K10043
#217

Gas & burner parts diagram

Range bake burner (replaces wb16k27)

Part #WB16K10043

$100.83 |
11% OFF Phone Price : $112.83
In Stock
Range Surface Burner Igniter Switch WB24K10017
#12

Gas & burner parts diagram

Range surface burner igniter switch

Part #WB24K10017

$73.14 |
8% OFF Phone Price : $79.14
In Stock
Bumper WB02K0015
#311

Door & drawer parts diagram

Bumper

Part #WB02K0015

Replaced by #WB2K15

?
Manufacturer substitution
This part replaces WB02K0015. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Trim B. Door WB07K0379
#359

Door & drawer parts diagram

Trim b. door

Part #WB07K0379

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB07K0379. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
