Model # 3-9391X1 Official Murray 24" women's 15-speed raging river atb bicycle

Here are the diagrams and repair parts for Official Murray 3-9391X1 24" women's 15-speed raging river atb bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Kickstand 302336
#20

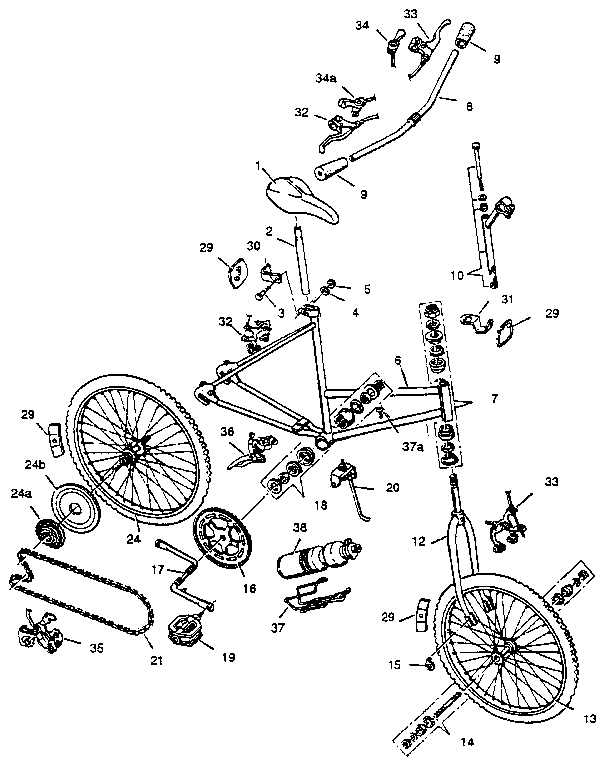

Ladies' 24" 15 atb "raging river" diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Inner Tube 139X2
#13B

Ladies' 24" 15 atb "raging river" diagram

Inner tube

Part #139X2

The manufacturer no longer makes this part, and there's no substitute part

R Derailleur 44581
#35

Ladies' 24" 15 atb "raging river" diagram

R derailleur

Part #44581

The manufacturer no longer makes this part, and there's no substitute part

Washer 17X47Z
#4

Ladies' 24" 15 atb "raging river" diagram

Washer

Part #17X47Z

The manufacturer no longer makes this part, and there's no substitute part

Cable Casing 308525
#34B

Ladies' 24" 15 atb "raging river" diagram

Cable casing

Part #308525

The manufacturer no longer makes this part, and there's no substitute part

Spoke Protec 39927
#24B

Ladies' 24" 15 atb "raging river" diagram

Spoke protec

Part #39927

The manufacturer no longer makes this part, and there's no substitute part

Rear Wheel 303087E701
#24

Ladies' 24" 15 atb "raging river" diagram

Rear wheel

Part #303087E701

The manufacturer no longer makes this part, and there's no substitute part

Grip 41564
#9

Ladies' 24" 15 atb "raging river" diagram

Grip

Part #41564

The manufacturer no longer makes this part, and there's no substitute part

Shift Lever 41722
#34A

Ladies' 24" 15 atb "raging river" diagram

Shift lever

Part #41722

The manufacturer no longer makes this part, and there's no substitute part

Water Bottle 49619
#38

Ladies' 24" 15 atb "raging river" diagram

Water bottle

Part #49619

The manufacturer no longer makes this part, and there's no substitute part
