Jenn-Air
Warming Drawer

Model # JWD7530CDX Official Jenn-Air warming drawer accessories

Here are the diagrams and repair parts for Official Jenn-Air JWD7530CDX warming drawer accessories, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Screw 78001034
Screw

Part #78001034

Replaced by #WP489399

?
Manufacturer substitution
This part replaces 78001034. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut, Hex (6- 78001027
#27

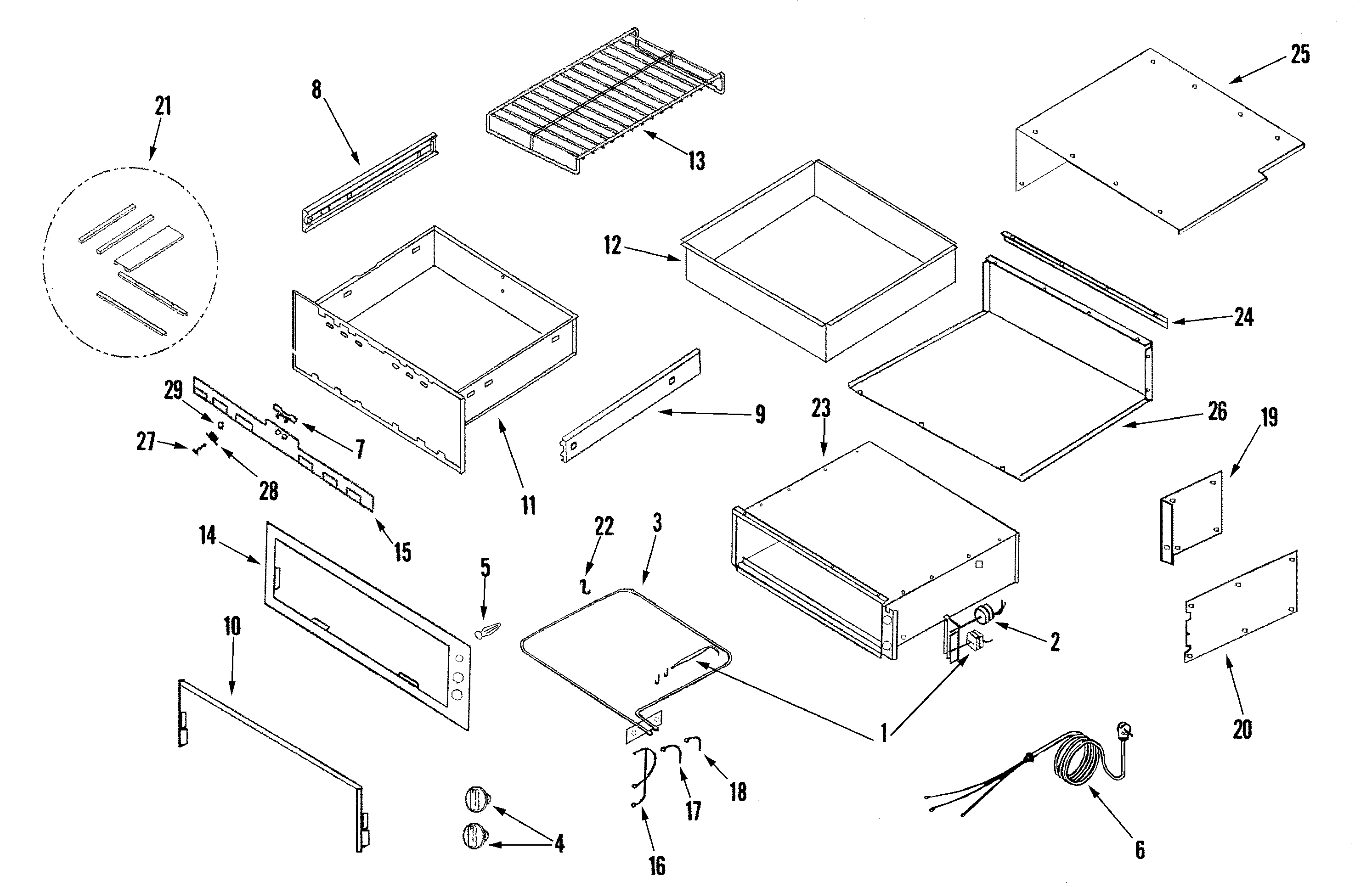

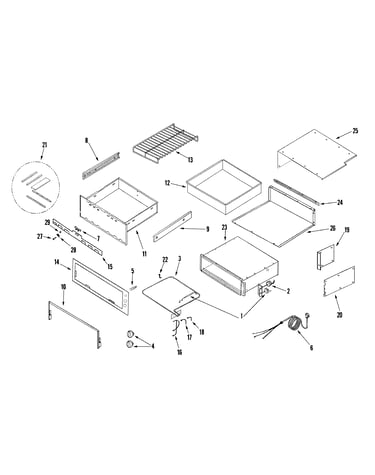

Warming drawer diagram

Nut, hex (6-

Part #78001027

Replaced by #M0282005

?
Manufacturer substitution
This part replaces 78001027. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw, Phill 78001035
#1B

Warming drawer diagram

Screw, phill

Part #78001035

Replaced by #W11214483

?
Manufacturer substitution
This part replaces 78001035. Substitute parts can look different from the original.
$12.49
In Stock
Screw, 3/8 H 78001032
Screw, 3/8 h

Part #78001032

Replaced by #W10236043

?
Manufacturer substitution
This part replaces 78001032. Substitute parts can look different from the original.
$29.89
In Stock
Indicator Light 78001005
#5

Warming drawer diagram

Indicator light

Part #78001005

The manufacturer no longer makes this part, and there's no substitute part

Mag Bracket 78001036
#30

Warming drawer diagram

Mag bracket

Part #78001036

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 78001016
#16

Warming drawer diagram

Wire harness

Part #78001016

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 78001006
#6

Warming drawer diagram

Power cord

Part #78001006

The manufacturer no longer makes this part, and there's no substitute part

Drawerpan Ki DRAWERPANS
#7

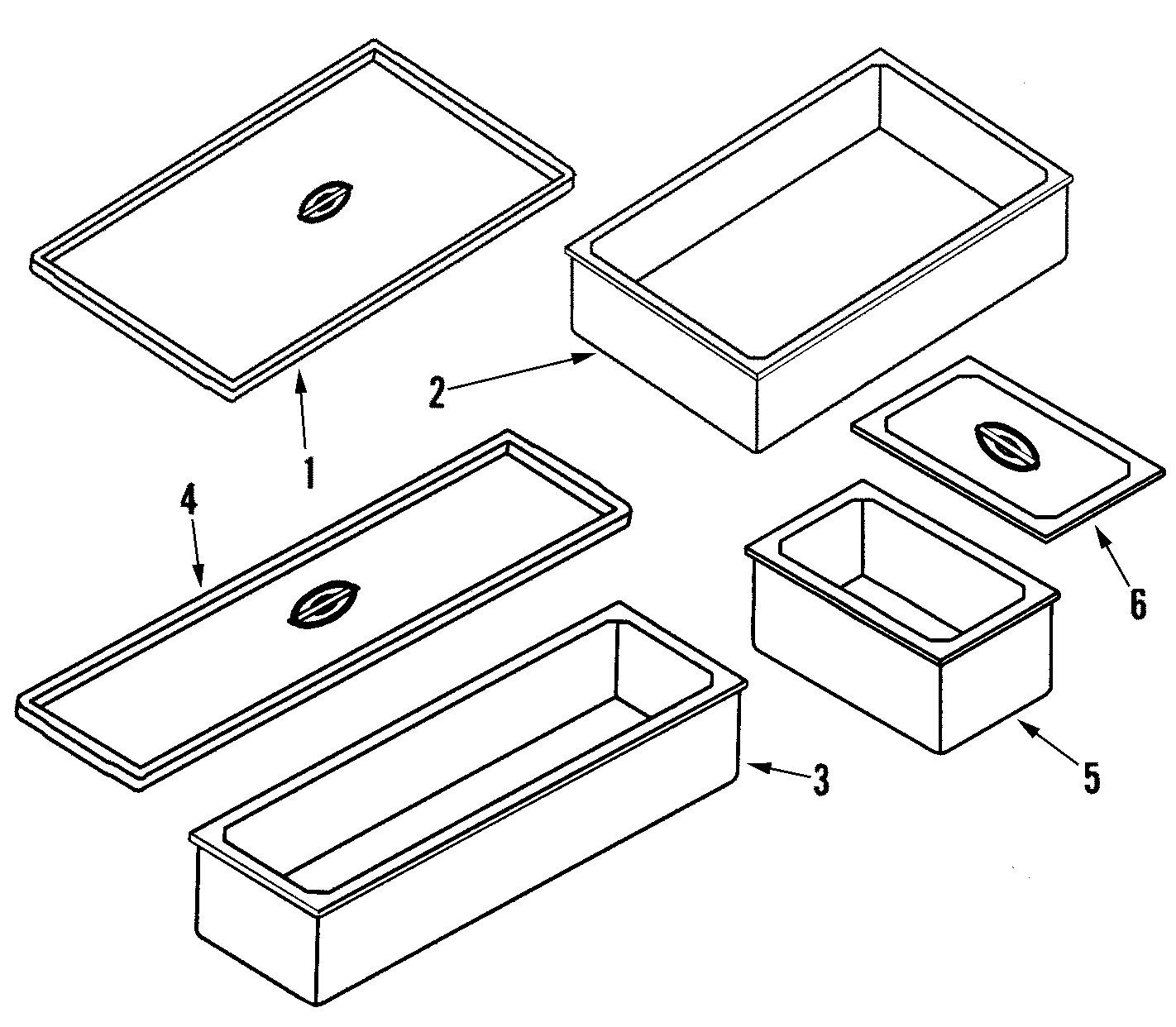

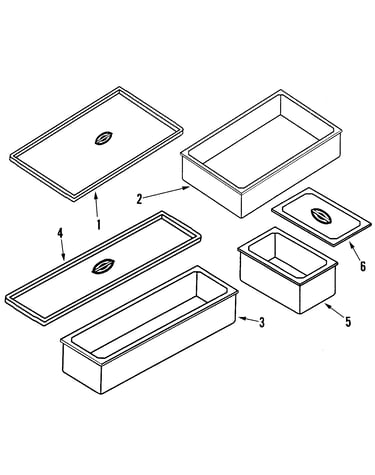

Drawer pans (accessory only) diagram

Drawerpan ki

Part #DRAWERPANS

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 78001017
#17

Warming drawer diagram

Wire harness

Part #78001017

The manufacturer no longer makes this part, and there's no substitute part
