Model # 36-540 Official Delta 10" bench saw

Here are the diagrams and repair parts for Official Delta 36-540 10" bench saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Nut 1313228
#113

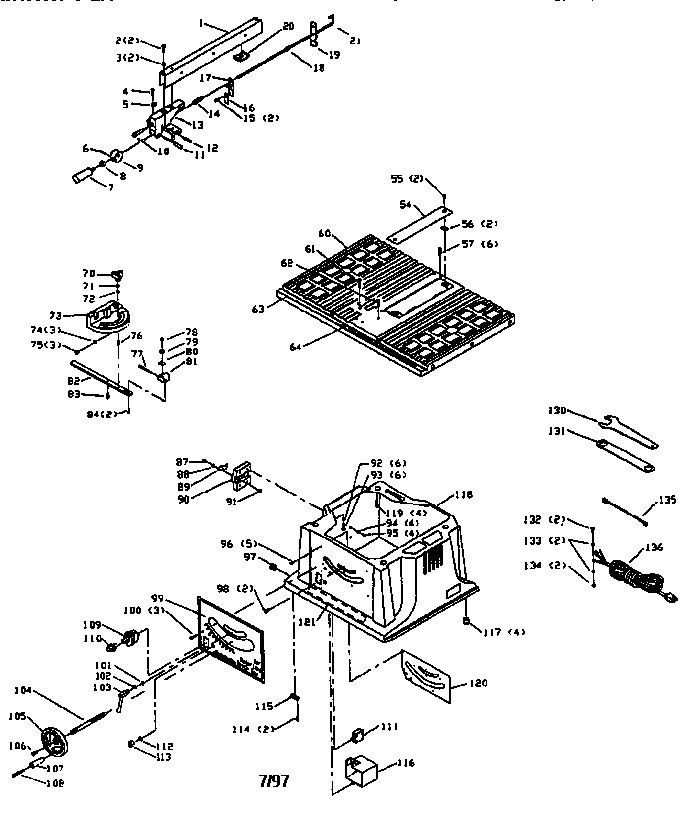

Unit parts diagram

Nut

Part #1313228

The manufacturer no longer makes this part, and there's no substitute part

Plate 1345739
#214

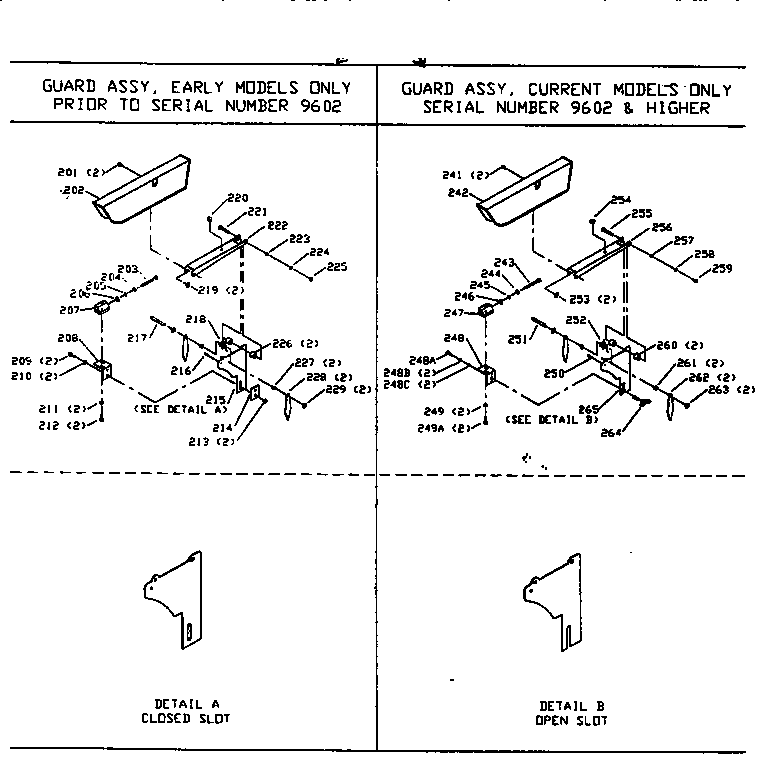

Guard assembly diagram

Plate

Part #1345739

The manufacturer no longer makes this part, and there's no substitute part

Pin 1346706
#12

Unit parts diagram

Pin

Part #1346706

The manufacturer no longer makes this part, and there's no substitute part

Pad 1345702
#308

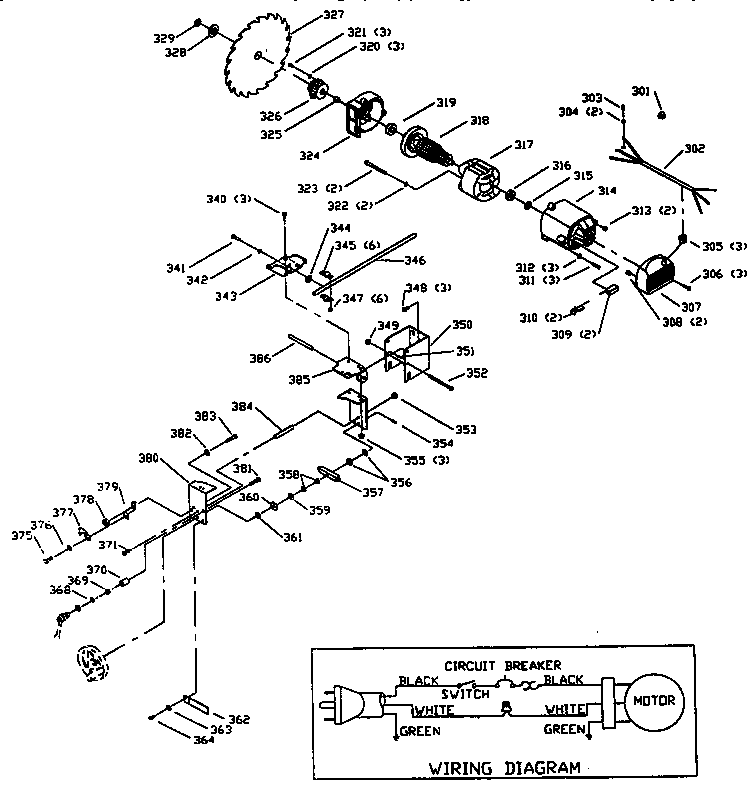

Motor assembly diagram

Pad

Part #1345702

The manufacturer no longer makes this part, and there's no substitute part

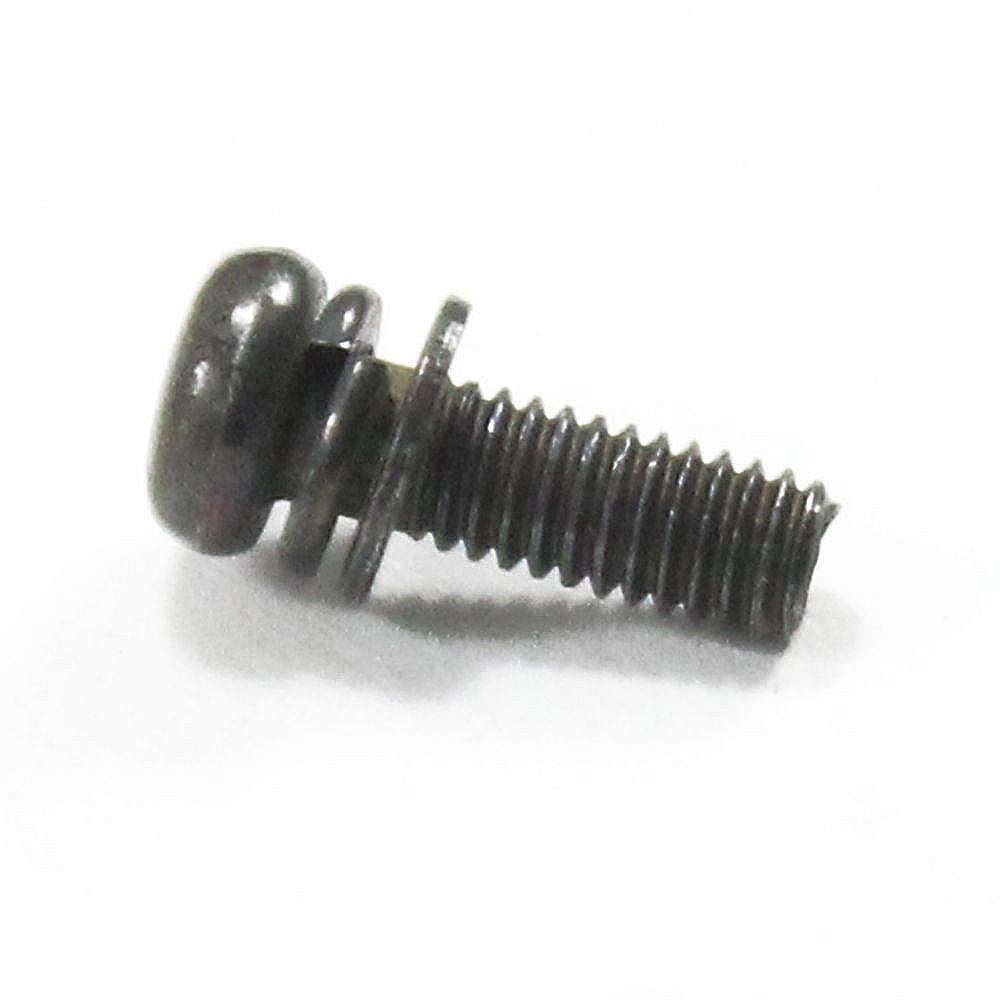

Screw 1310146
#311

Motor assembly diagram

Screw

Part #1310146

The manufacturer no longer makes this part, and there's no substitute part

Hex Screw 1346205
#402

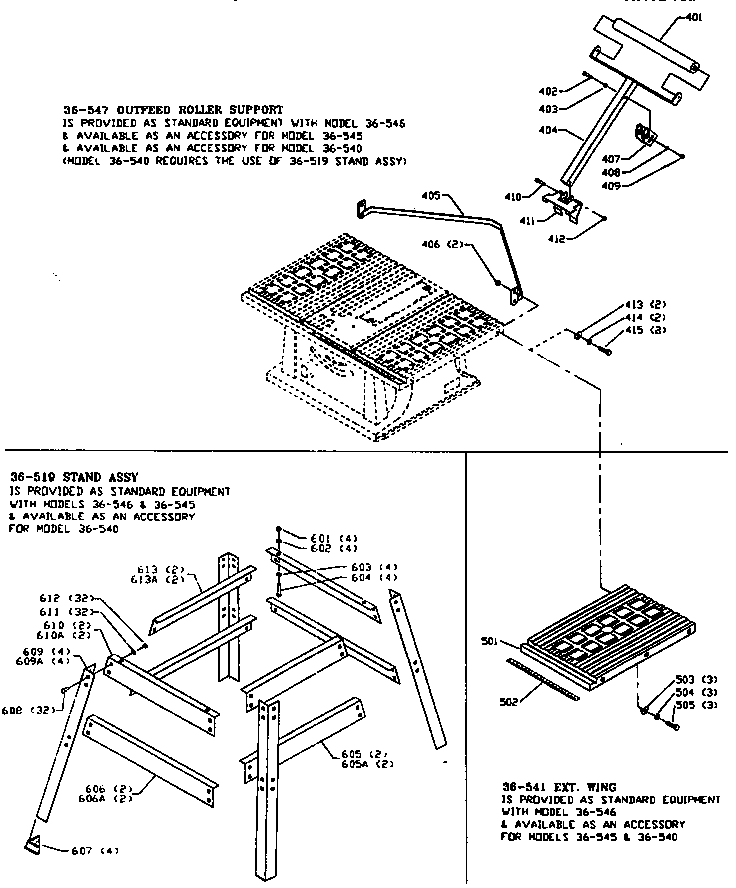

Outfeed roller support assembly diagram

Hex screw

Part #1346205

The manufacturer no longer makes this part, and there's no substitute part

Screw 901020100535
#61

Unit parts diagram

Screw

Part #901020100535

The manufacturer no longer makes this part, and there's no substitute part

Spring Clip 1346724
#89

Unit parts diagram

Spring clip

Part #1346724

The manufacturer no longer makes this part, and there's no substitute part

Spacer 1345726
#384

Motor assembly diagram

Spacer

Part #1345726

The manufacturer no longer makes this part, and there's no substitute part

Housing 1345704
#309

Motor assembly diagram

Housing

Part #1345704

The manufacturer no longer makes this part, and there's no substitute part
