Kenmore
Top-Mount Refrigerator

Model # 79578002210 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79578002210 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Refrigerator Filter Dryer 5851JA2007A
#317A

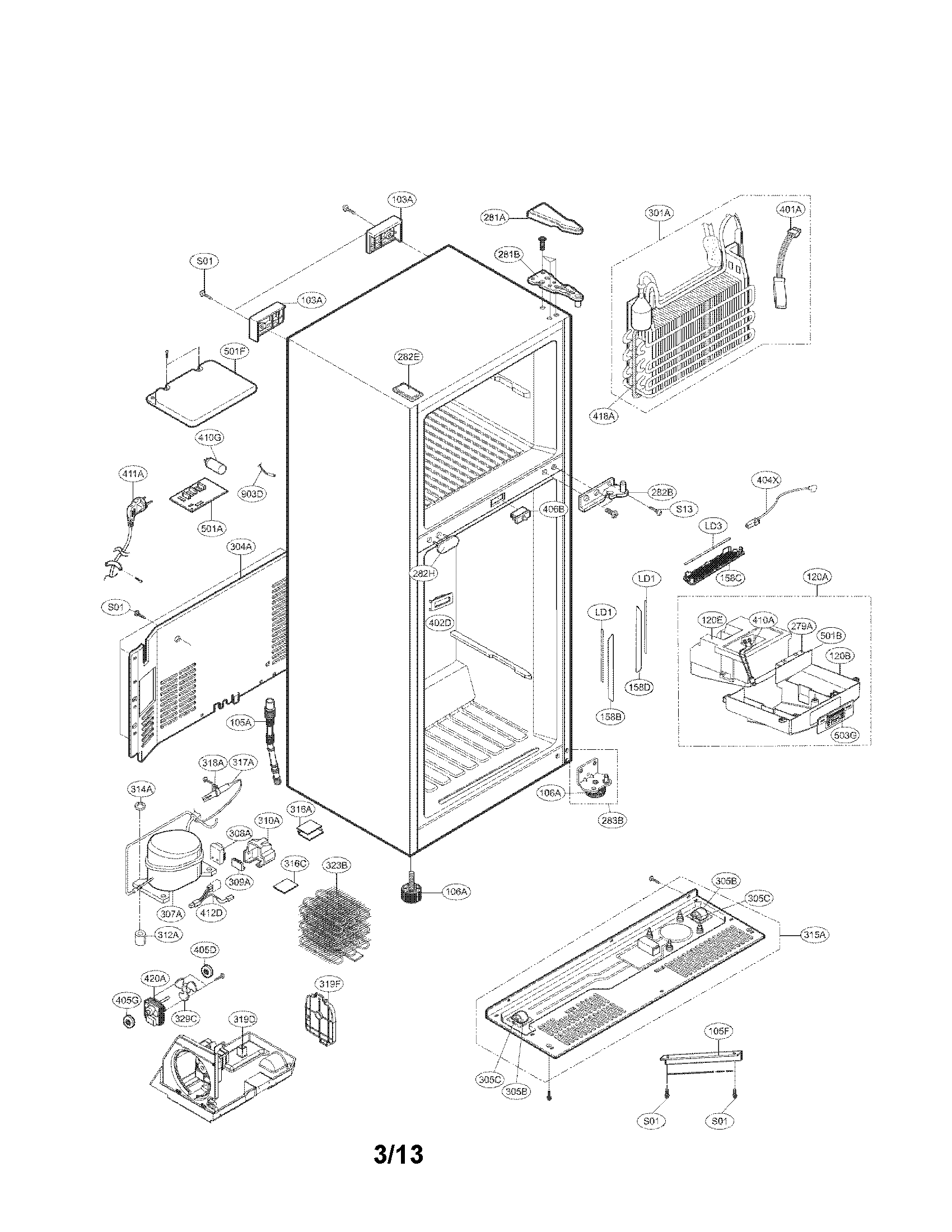

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007A

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007A. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

Case parts diagram

Refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Shelf AHT73514301
#143A

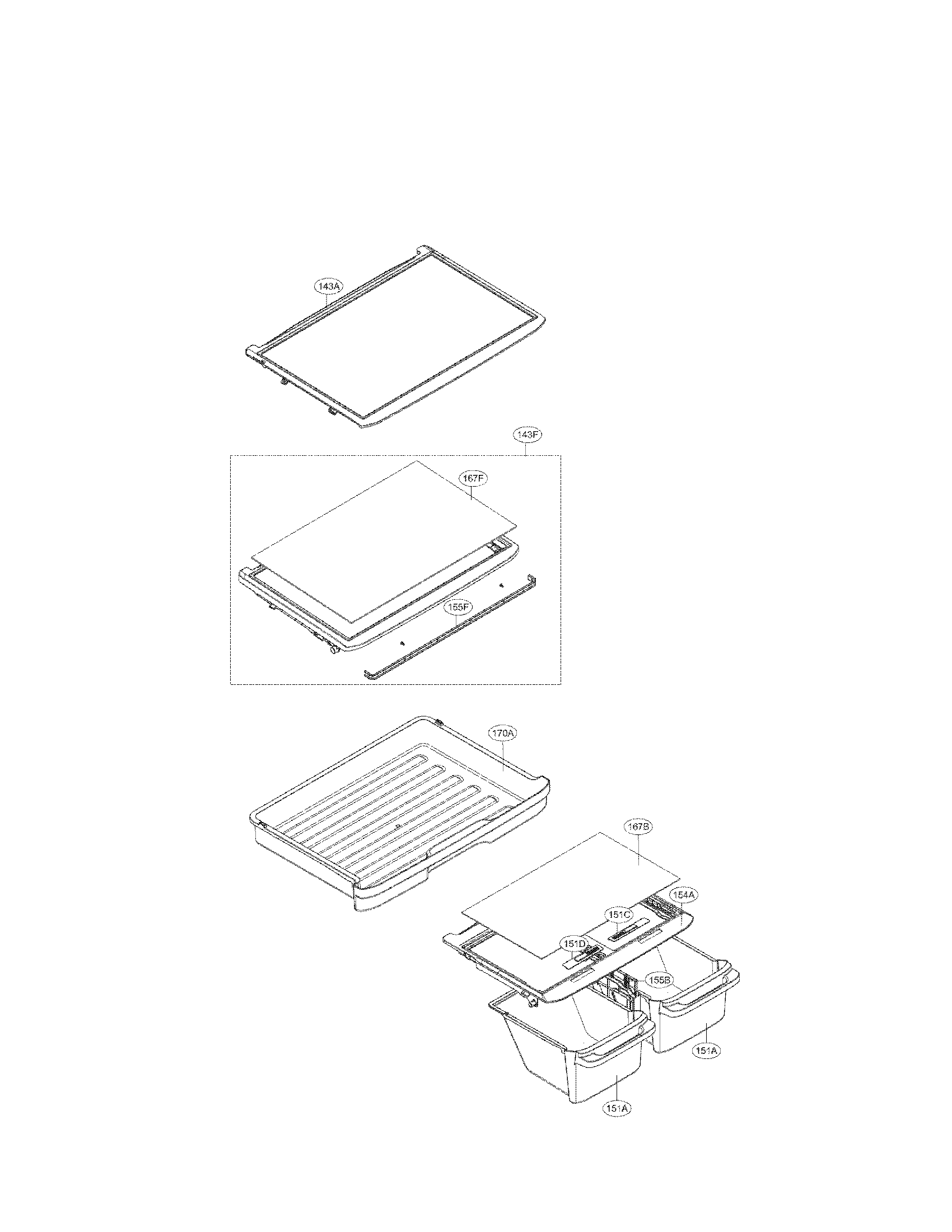

Refrigerator parts diagram

Refrigerator shelf

Part #AHT73514301

BEST SELLER
$93.03 |
6% OFF Phone Price : $99.03
In Stock
Refrigerator Door Hinge Bushing 4984JJ3003A
#286A

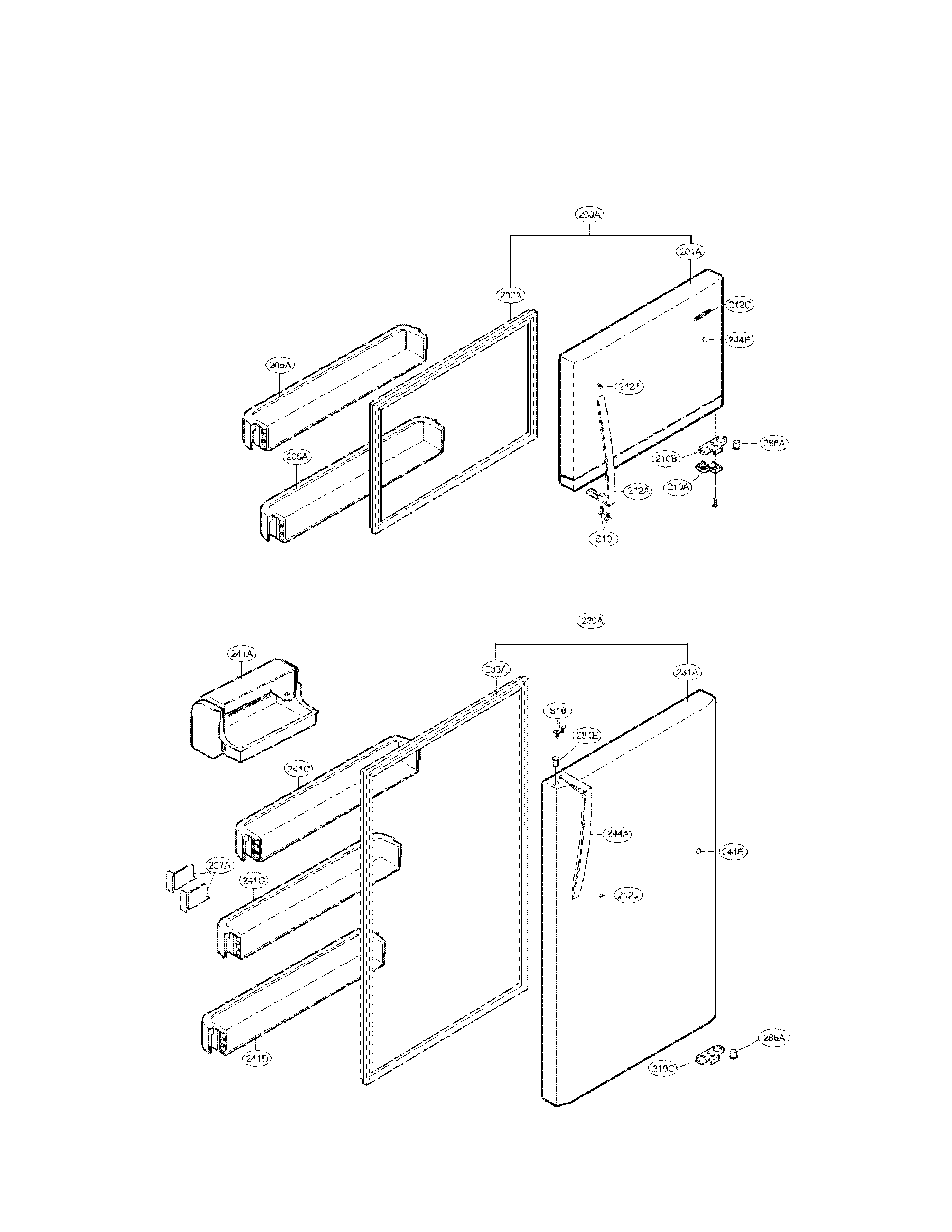

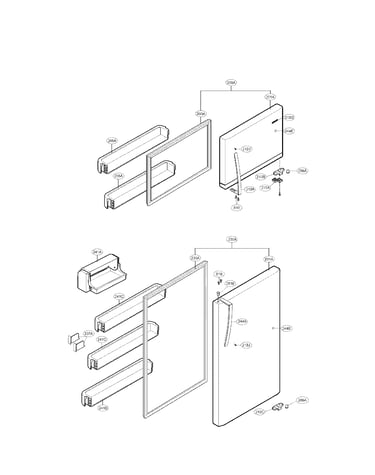

Door parts diagram

Refrigerator door hinge bushing

Part #4984JJ3003A

BEST SELLER
$11.62 |
15% OFF Phone Price : $13.62
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Aju55759301, Aju55759302, Aju73292404) AJU55759303
Refrigerator water inlet valve assembly (replaces aju55759301, aju55759302, aju73292404)

Part #AJU55759303

BEST SELLER
$62.67 |
9% OFF Phone Price : $68.67
In Stock
Refrigerator Water Inlet Valve AJU73292404
#619C

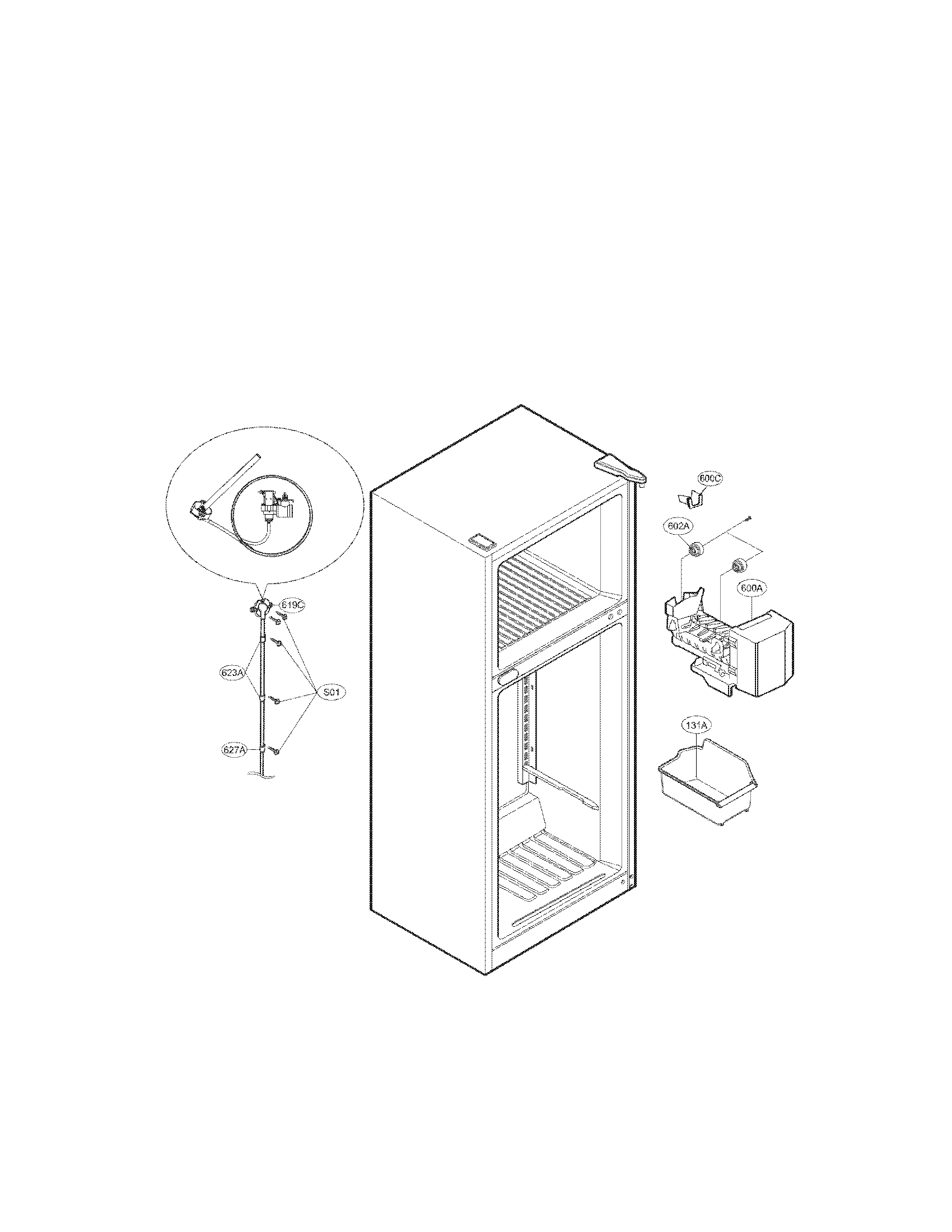

Ice maker parts diagram

Refrigerator water inlet valve

Part #AJU73292404

Replaced by #AJU55759303

?
Manufacturer substitution
This part replaces AJU73292404. Substitute parts can look different from the original.
BEST SELLER
$62.67 |
9% OFF Phone Price : $68.67
In Stock
Refrigerator Air Damper Motor 4681JK1004A
#404A

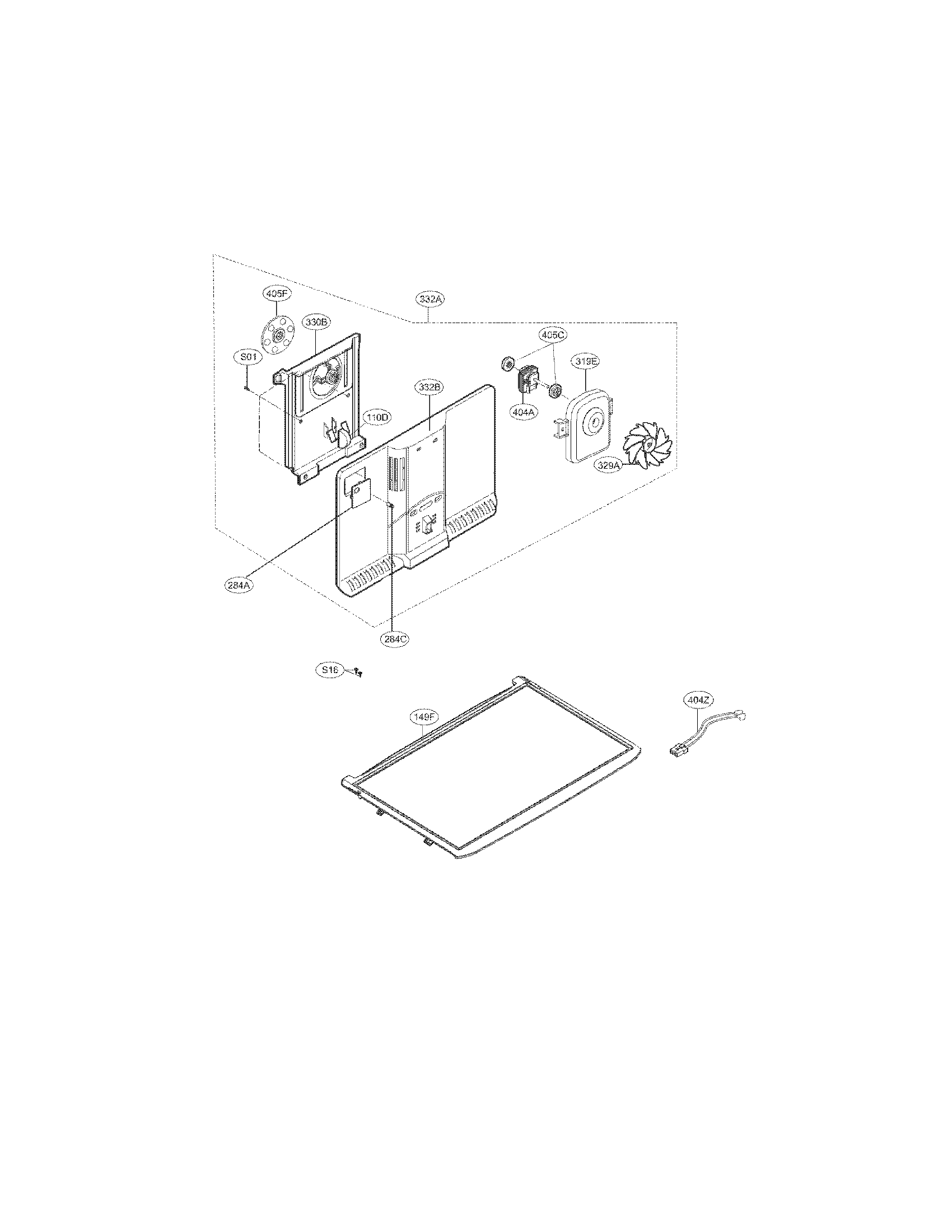

Freezer parts diagram

Refrigerator air damper motor

Part #4681JK1004A

Replaced by #4681JB1029H

?
Manufacturer substitution
This part replaces 4681JK1004A. Substitute parts can look different from the original.
BEST SELLER
$76.72 |
7% OFF Phone Price : $82.72
In Stock
Refrigerator Harness Assembly EAD62043201
#903D

Case parts diagram

Refrigerator harness assembly

Part #EAD62043201

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces EAD62043201. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A
#314A

Case parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Door Closer (replaces 4620jj2009b, Mjb61990601) MJB63029901
#210A

Door parts diagram

Refrigerator door closer (replaces 4620jj2009b, mjb61990601)

Part #MJB63029901

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
