Model # UH70815 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70815 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Clip 440003990
#5

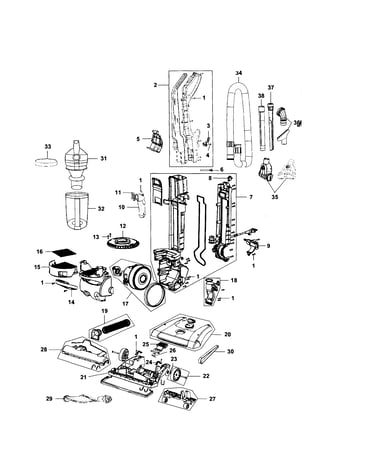

Main assy diagram

Clip

Part #440003990

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Base Cover Assembly 440003982
#21

Main assy diagram

Vacuum base cover assembly

Part #440003982

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 440003992
#8

Main assy diagram

Vacuum on/off switch

Part #440003992

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wand 500170001
#38

Main assy diagram

Vacuum wand

Part #500170001

The manufacturer no longer makes this part, and there's no substitute part

Housing 440003981
#28

Main assy diagram

Housing

Part #440003981

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Adapter 303832001
#18

Main assy diagram

Vacuum hose adapter

Part #303832001

The manufacturer no longer makes this part, and there's no substitute part

Handle 440003976
#2

Main assy diagram

Handle

Part #440003976

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 522305001
#37

Main assy diagram

Vacuum crevice tool

Part #522305001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 440003986
#22

Main assy diagram

Vacuum wheel

Part #440003986

The manufacturer no longer makes this part, and there's no substitute part

Panel 440003977
#7

Main assy diagram

Panel

Part #440003977

The manufacturer no longer makes this part, and there's no substitute part
