Model # GTH21KCXACC Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE GTH21KCXACC top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

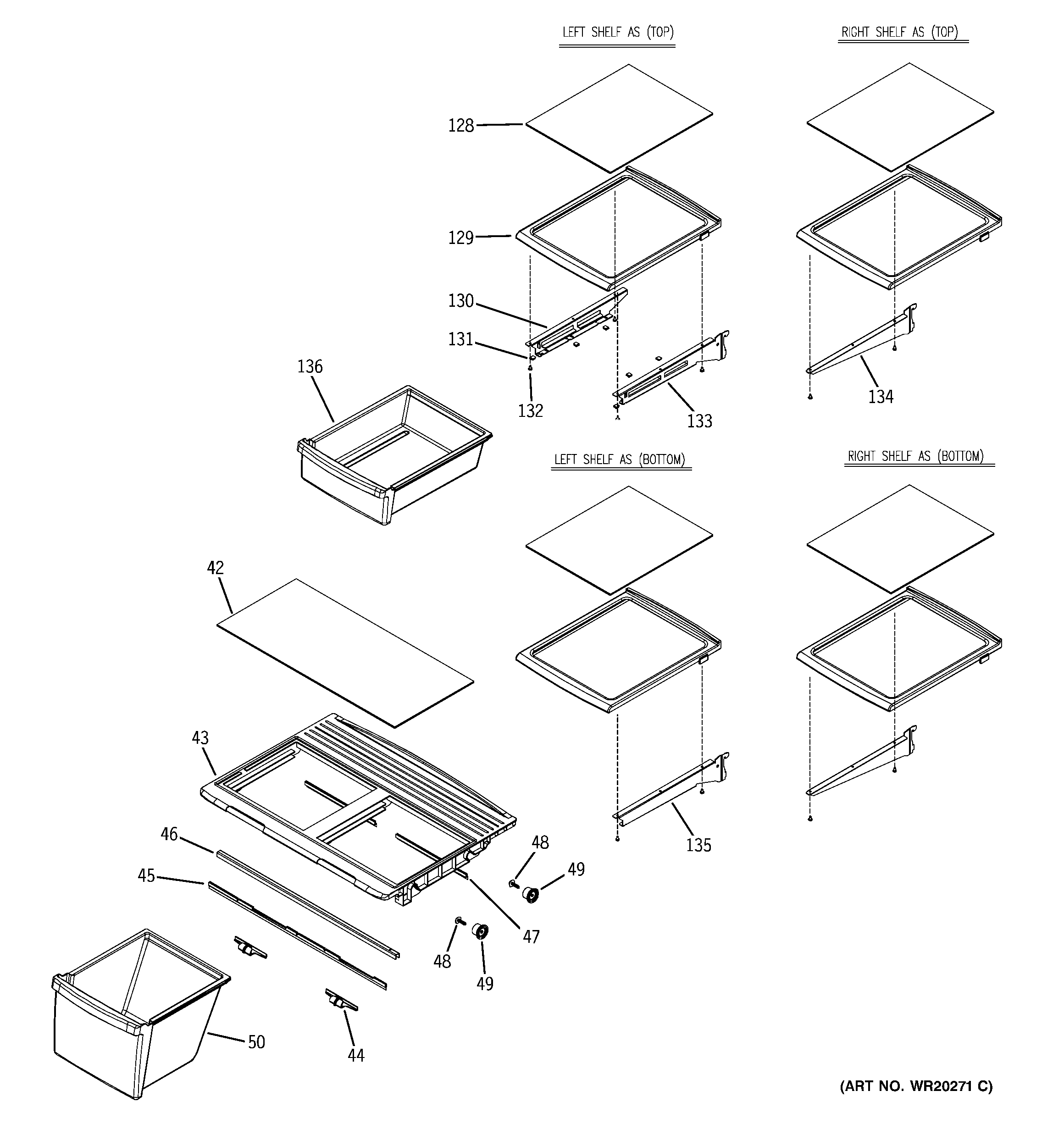

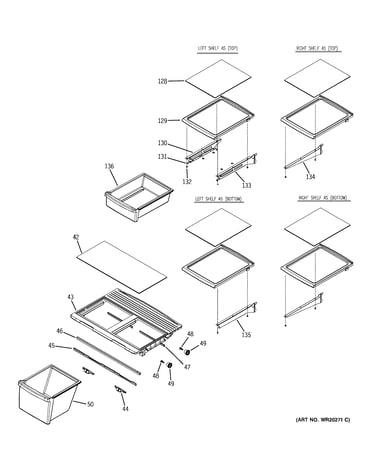

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Electronic I WR30X10061
#820

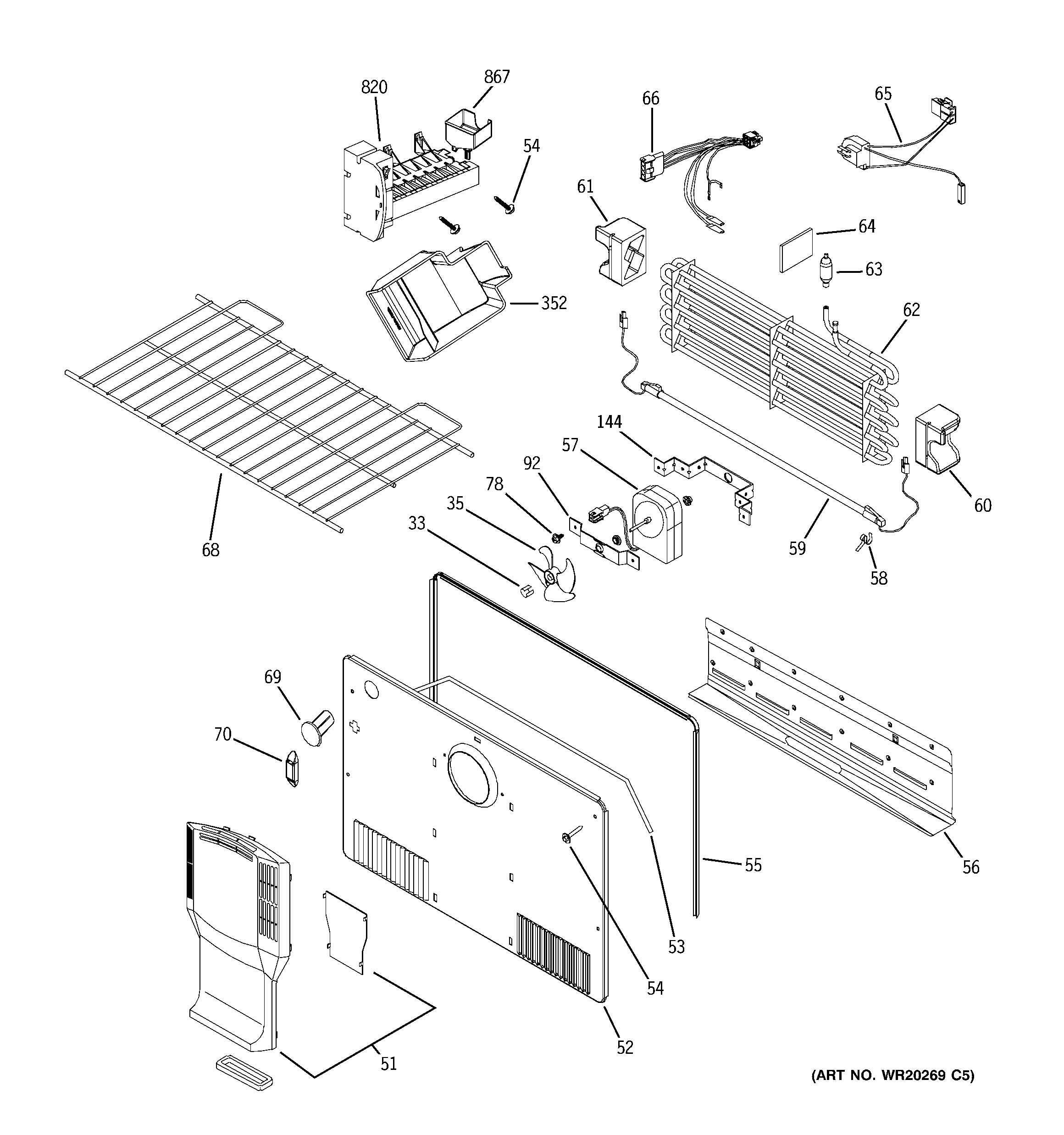

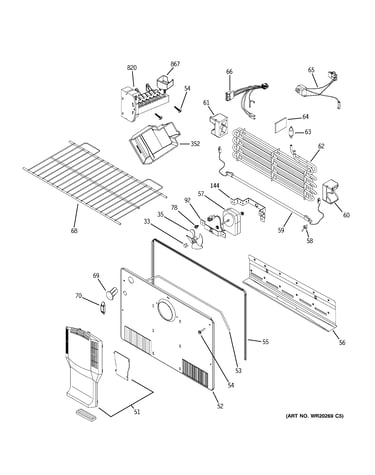

Freezer section diagram

Electronic i

Part #WR30X10061

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10061. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Refrigerator Lamp Assembly WR02X12530
#110

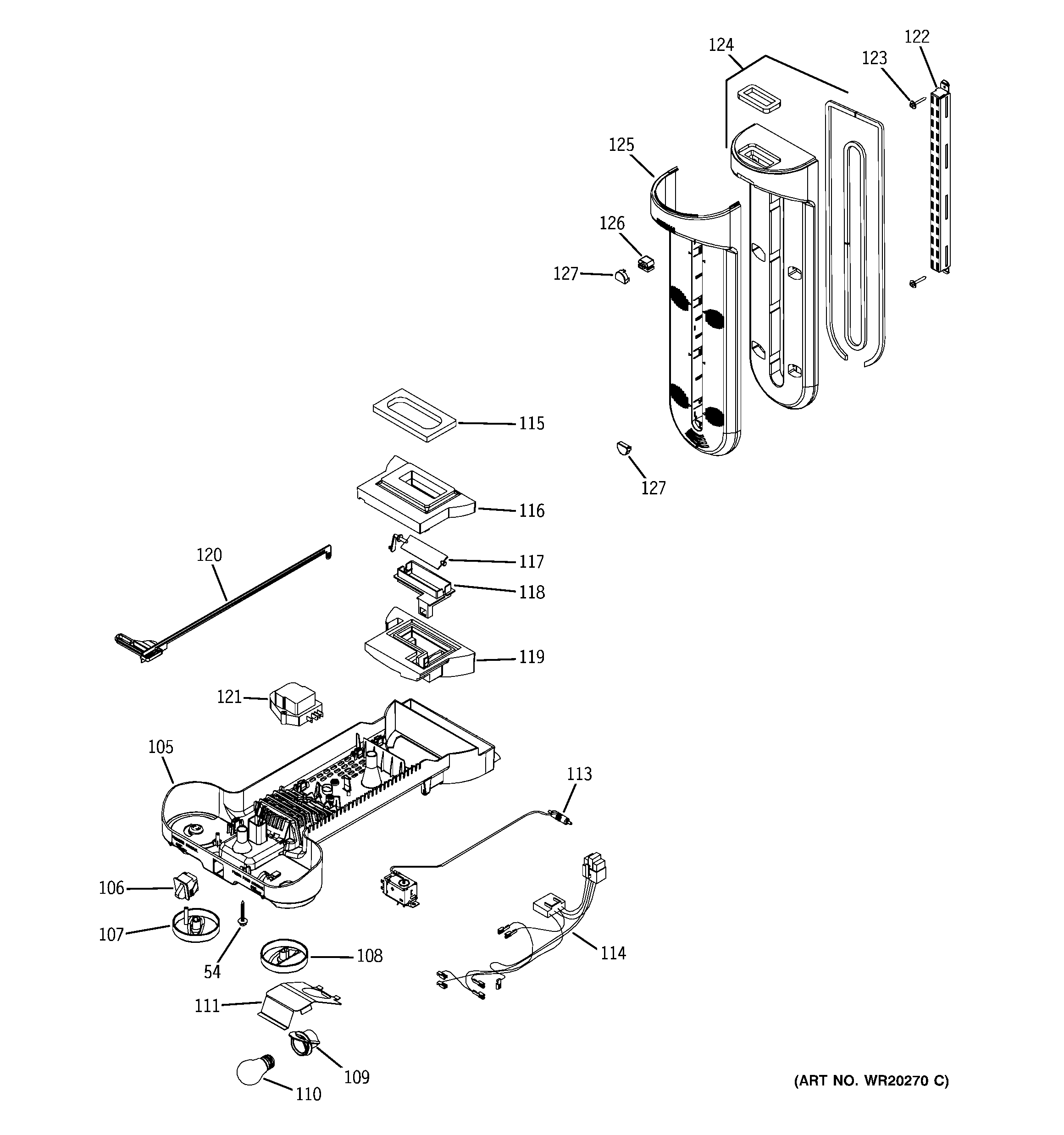

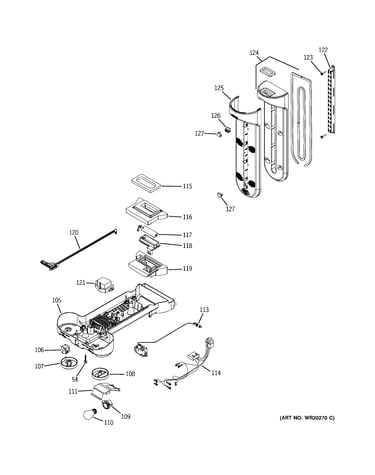

Fresh food section diagram

Refrigerator lamp assembly

Part #WR02X12530

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12530. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Water Valve WR57X10075
#155

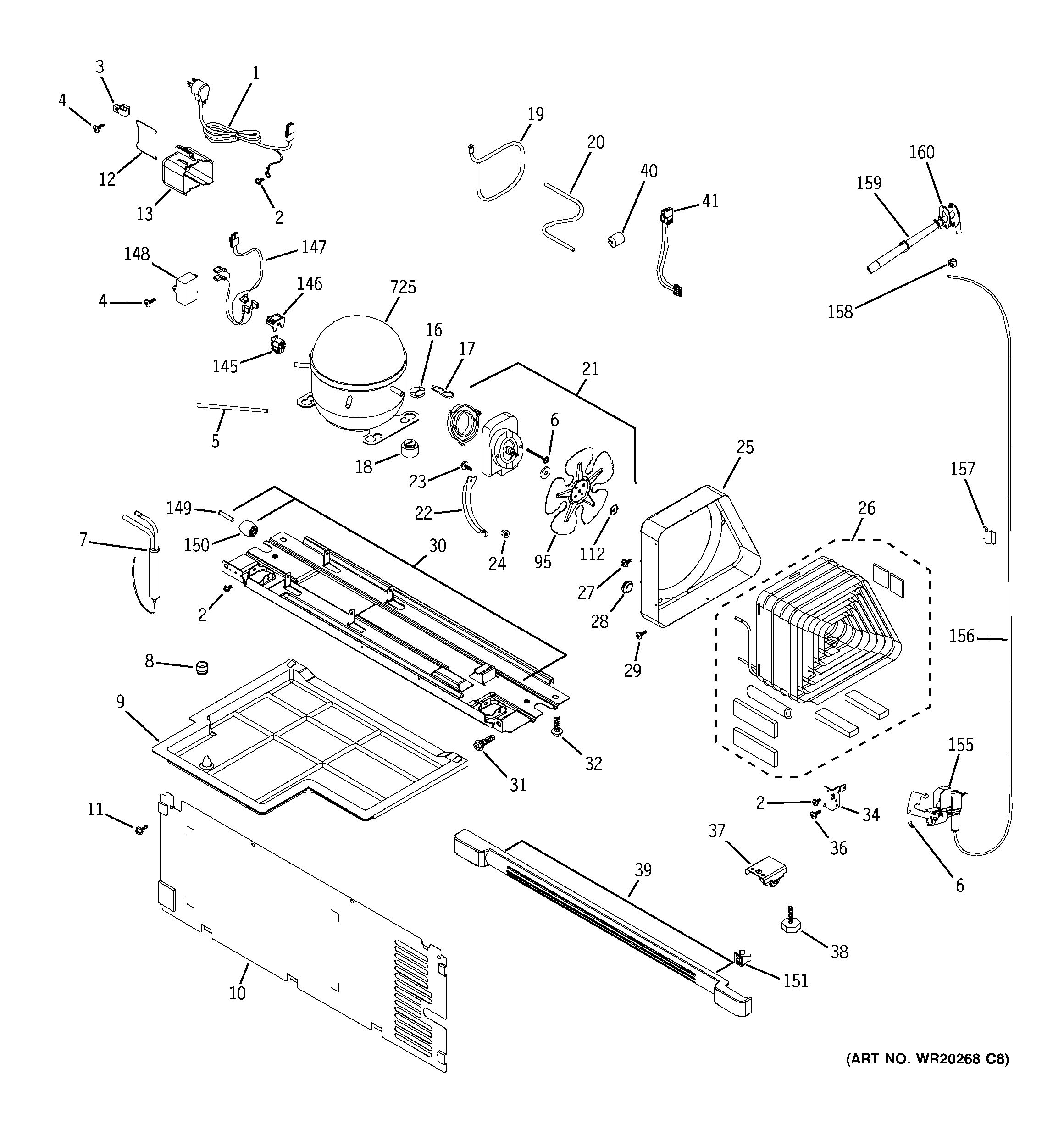

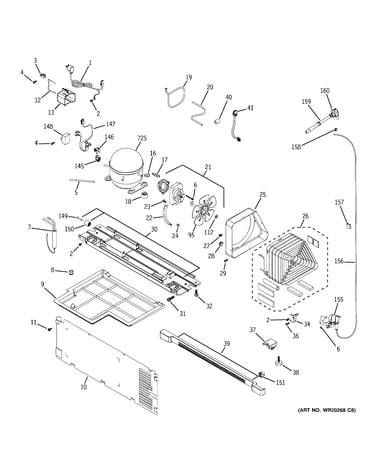

Unit parts diagram

Water valve

Part #WR57X10075

Replaced by #WR57X10033

?
Manufacturer substitution
This part replaces WR57X10075. Substitute parts can look different from the original.
BEST SELLER
$39.92 |
13% OFF Phone Price : $45.92
In Stock
Motor Fz Asm WR60X10244
#57

Freezer section diagram

Motor fz asm

Part #WR60X10244

Replaced by #WR60X26085

?
Manufacturer substitution
This part replaces WR60X10244. Substitute parts can look different from the original.
$101.91 |
11% OFF Phone Price : $113.91
In Stock
Refrigerator Special Screw WR01X10717
#142

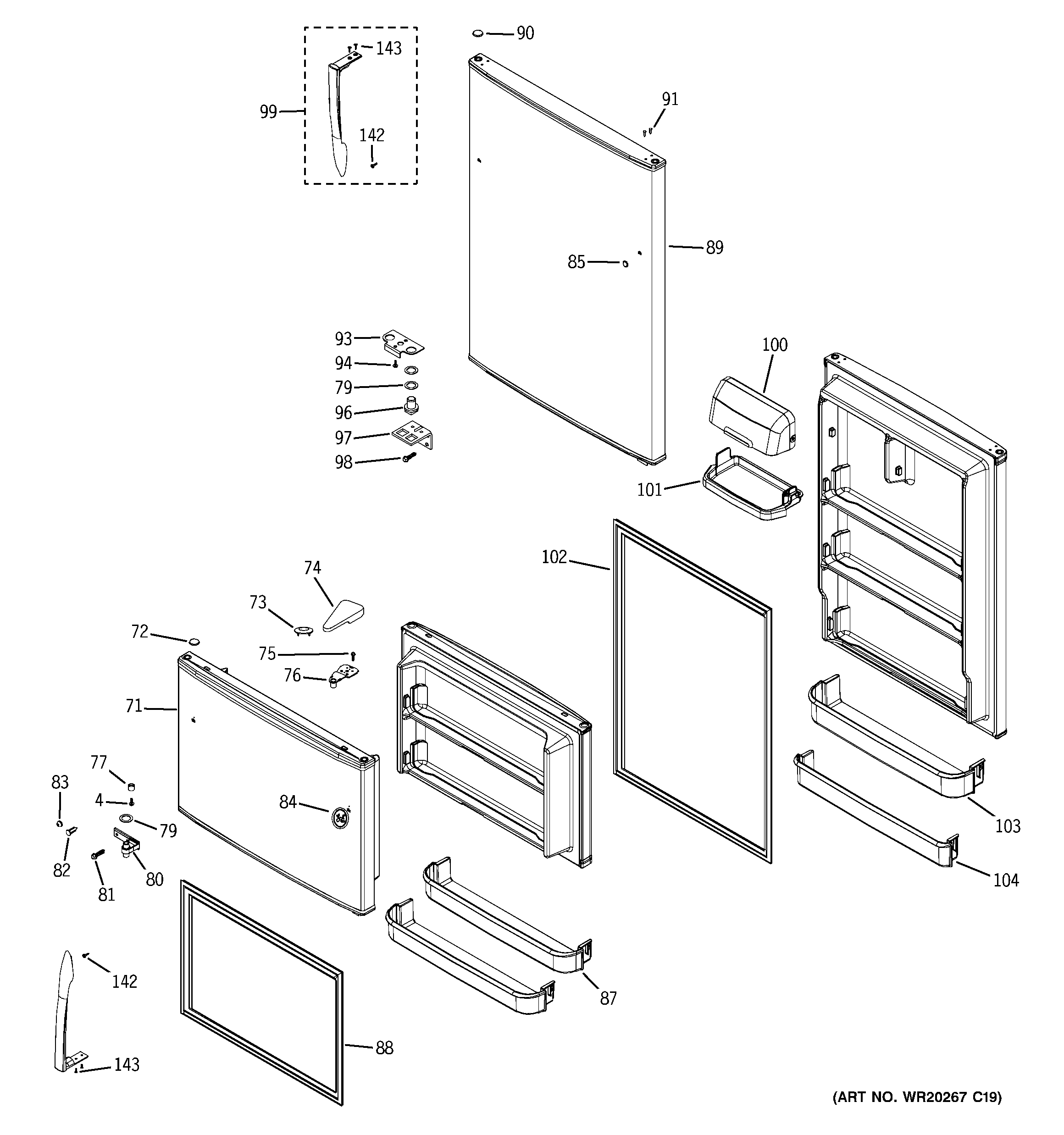

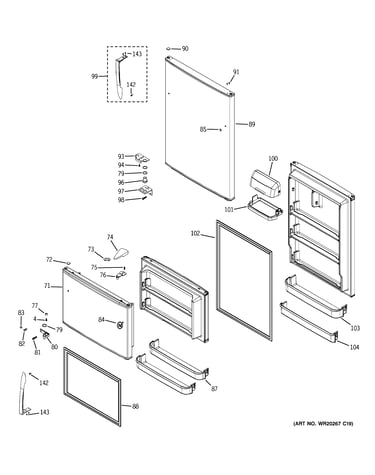

Doors diagram

Refrigerator special screw

Part #WR01X10717

Replaced by #WR01X10450

?
Manufacturer substitution
This part replaces WR01X10717. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Freezer Caster WR02X12541
#150

Unit parts diagram

Refrigerator freezer caster

Part #WR02X12541

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Gasket Louve WR14X10241
#55

Freezer section diagram

Gasket louve

Part #WR14X10241

$35.25 |
15% OFF Phone Price : $41.25
In Stock
Special Grip WR01X10716
#143

Doors diagram

Special grip

Part #WR01X10716

This item is not returnable
$5.00
In Stock
Ge Harness Luvr WR23X10565
#66

Freezer section diagram

Ge harness luvr

Part #WR23X10565

$38.99
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10710
#79

Doors diagram

Refrigerator door hinge nylon washer

Part #WR01X10710

$7.88 |
11% OFF Phone Price : $8.88
In Stock
