Lawn & Garden Engine

Model # XT173-3225-EA Official Kohler engine

Here are the diagrams and repair parts for Official Kohler XT173-3225-EA engine, as well as links to manuals and error code tables, if available.

By Schematic

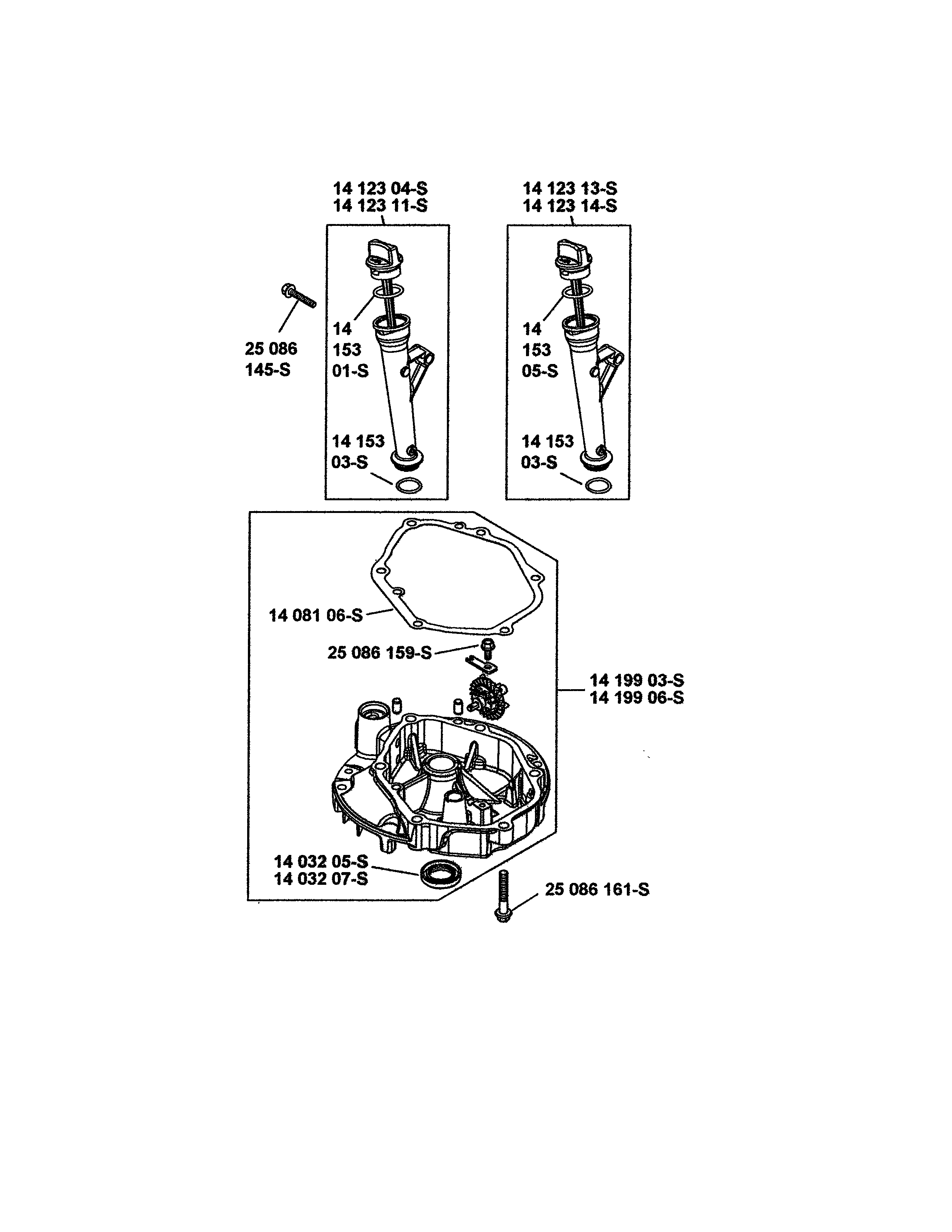

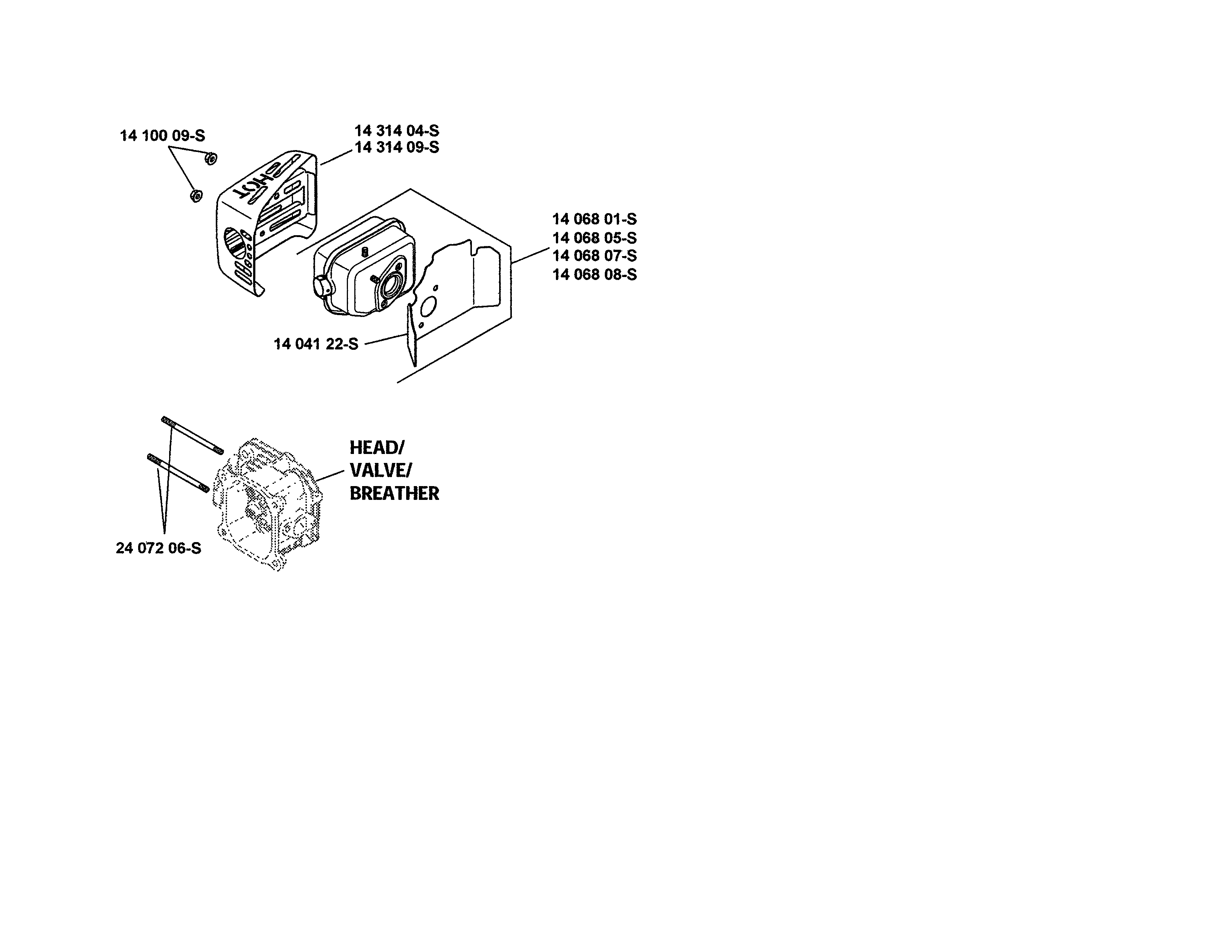

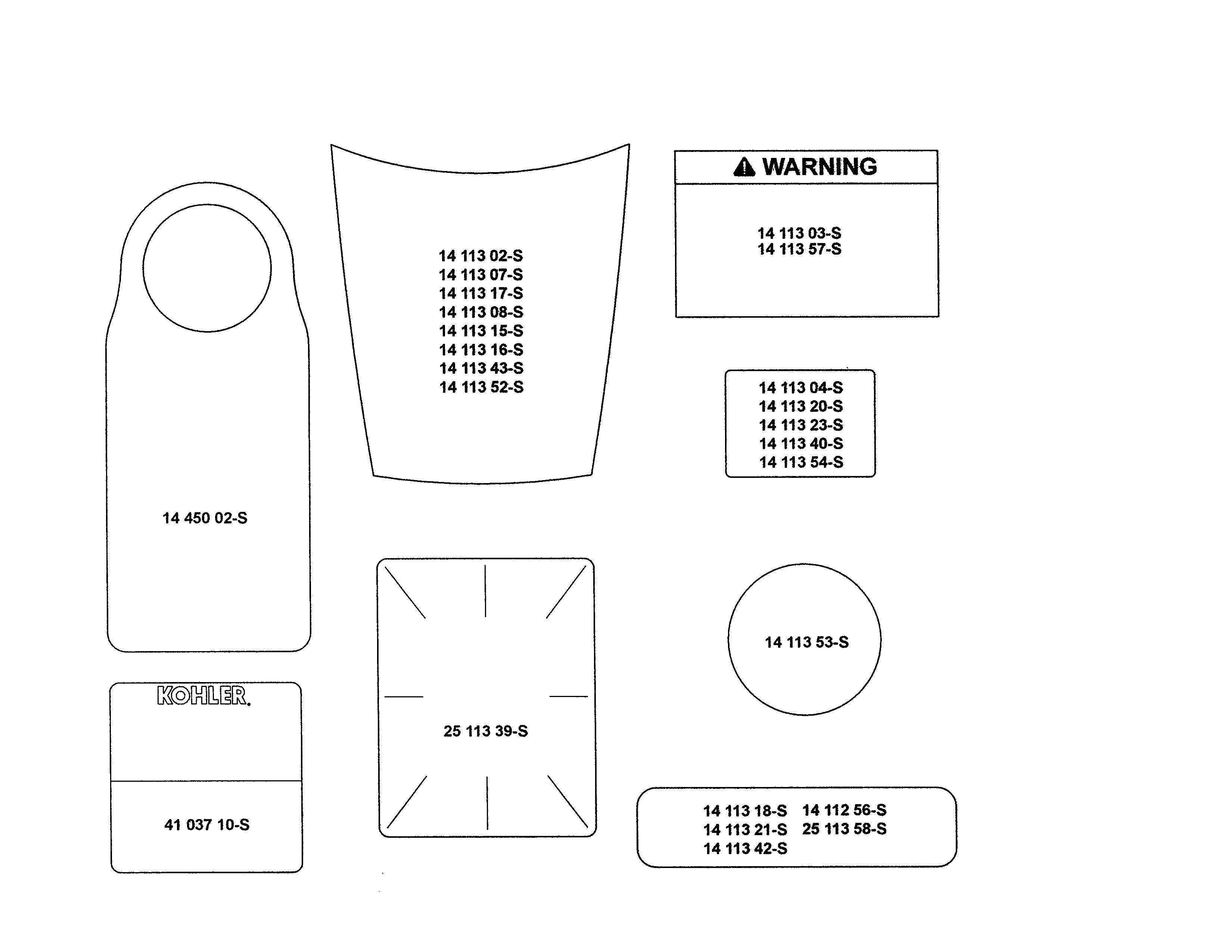

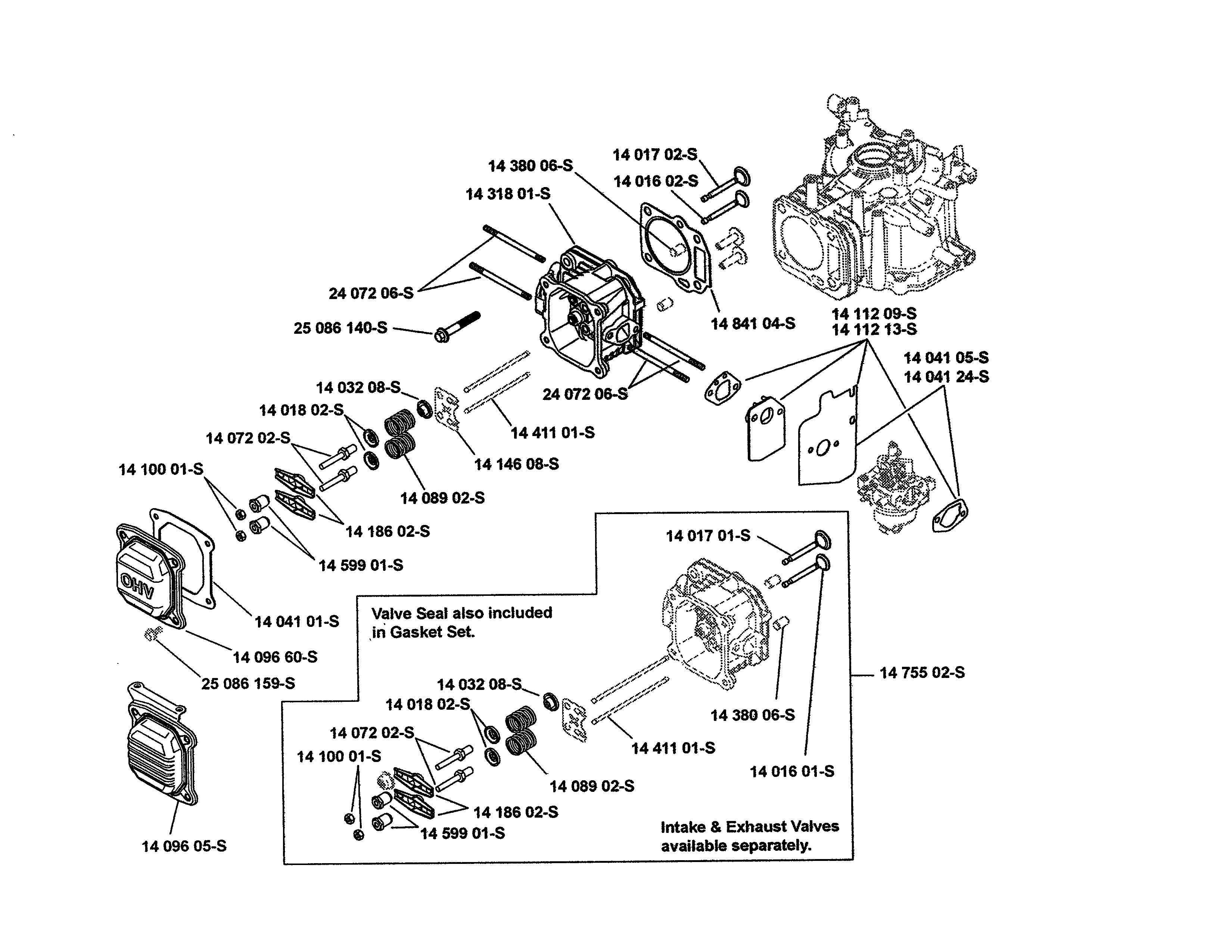

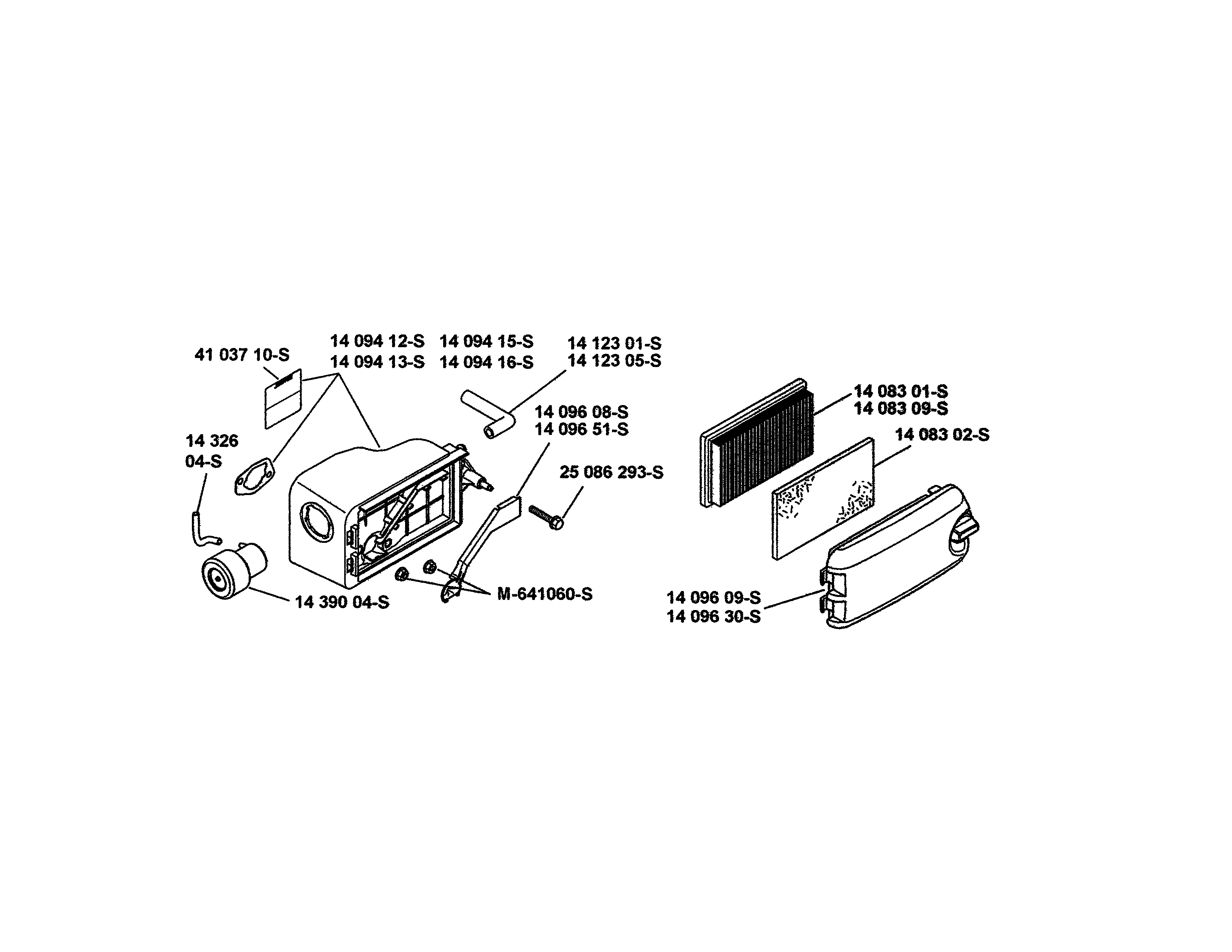

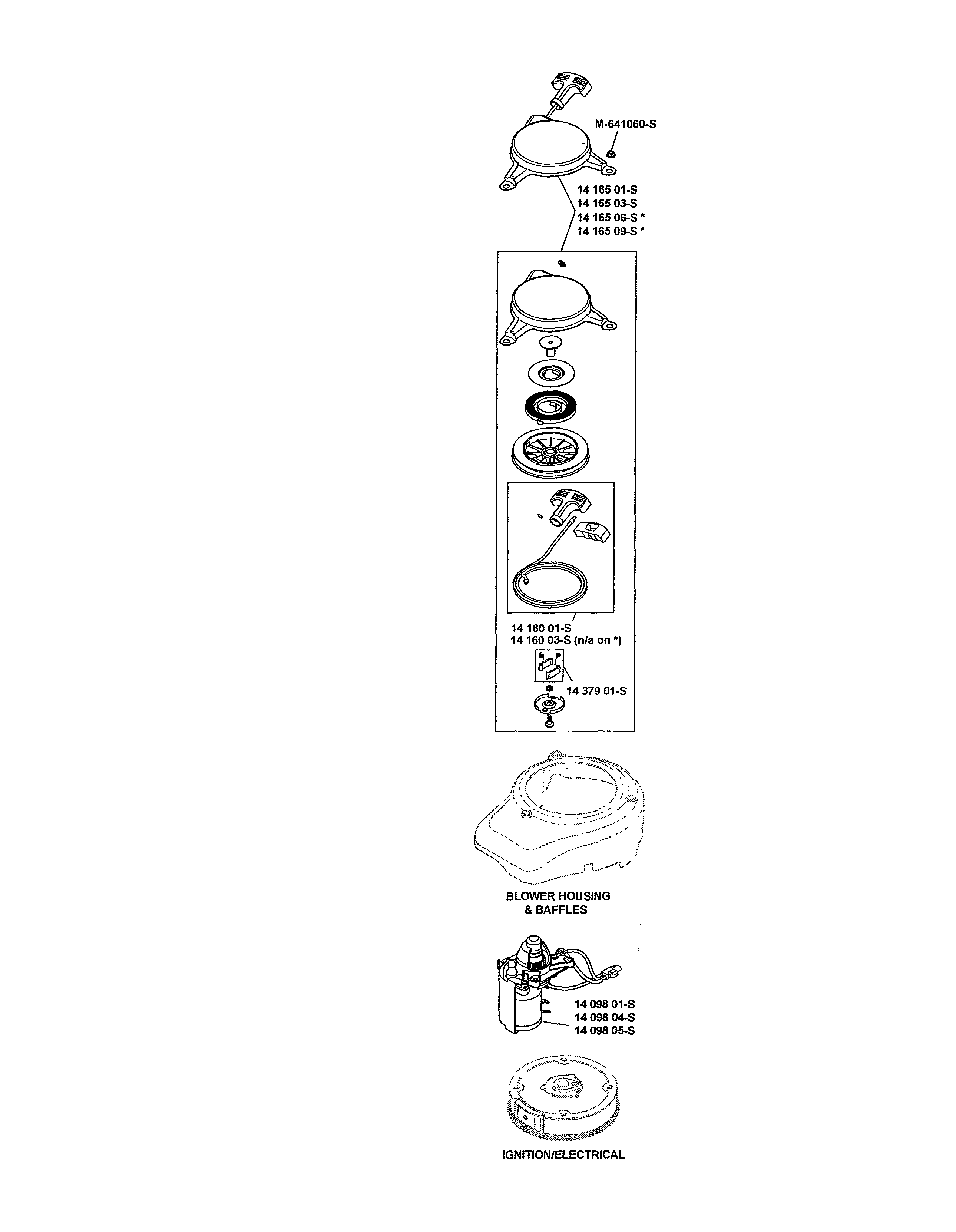

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
XT173-3225-EA Engine

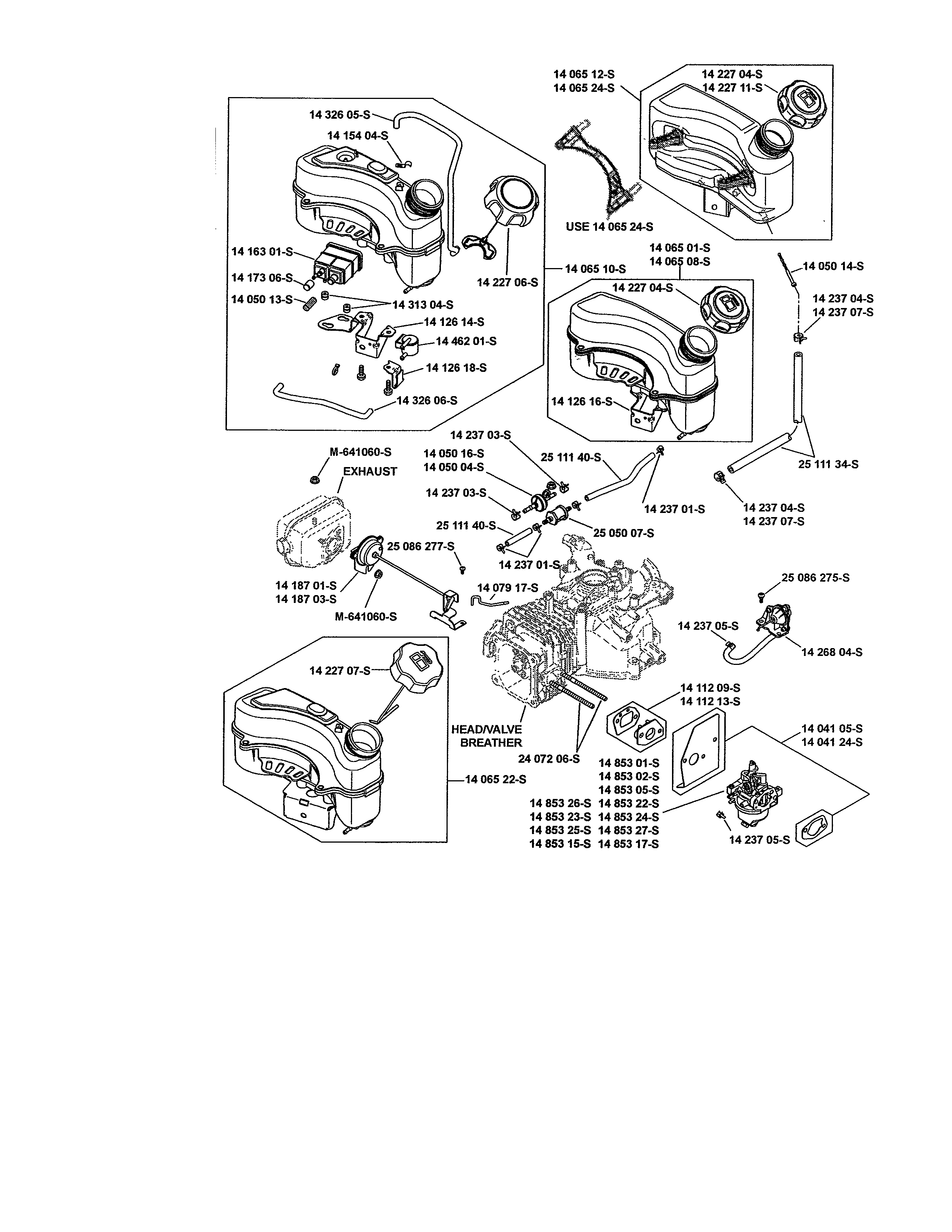

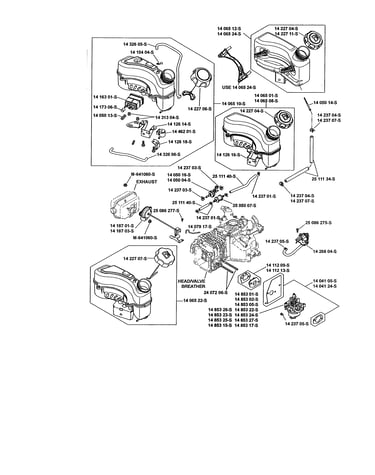

Fuel Filter 14-050-04-S
#1405004-S

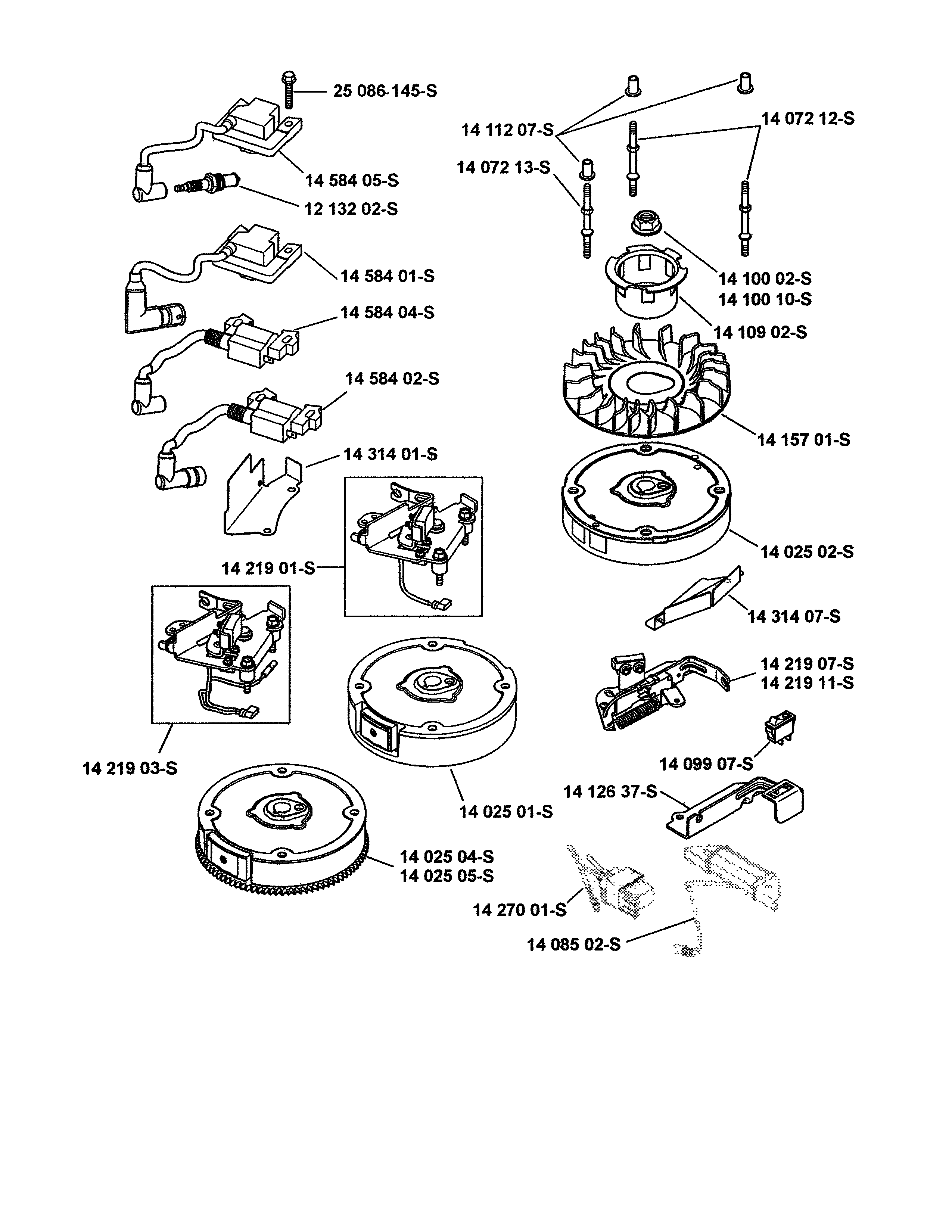

Ignition/electrical diagram

Fuel filter

Part #14-050-04-S

Replaced by #25-050-07-S

?
Manufacturer substitution
This part replaces 14-050-04-S. Substitute parts can look different from the original.
This item is not returnable
$11.59
15% OFF Phone Price : $13.59
In Stock
Lawn & Garden Equipment Engine Governor Spring 14-089-14-S
#1408914-S

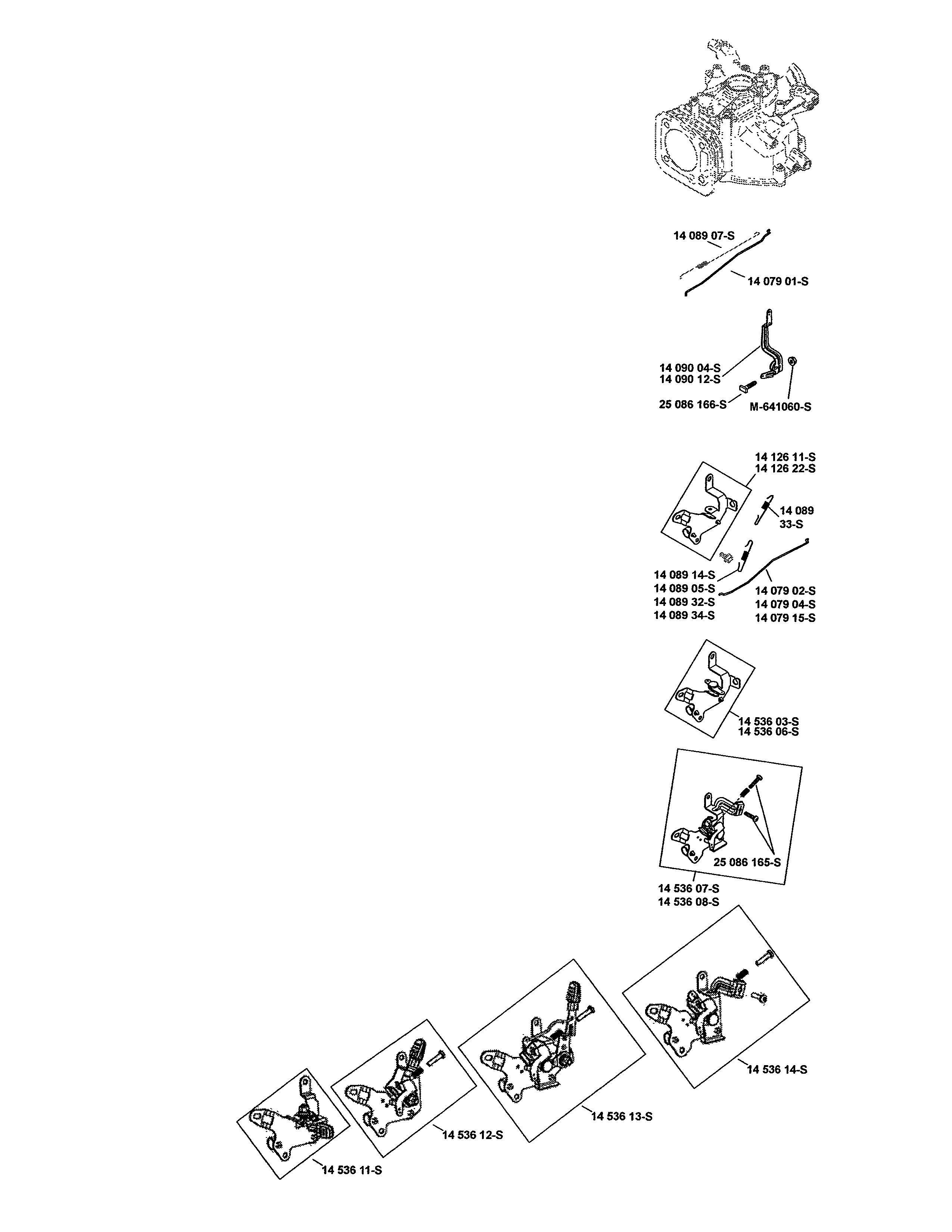

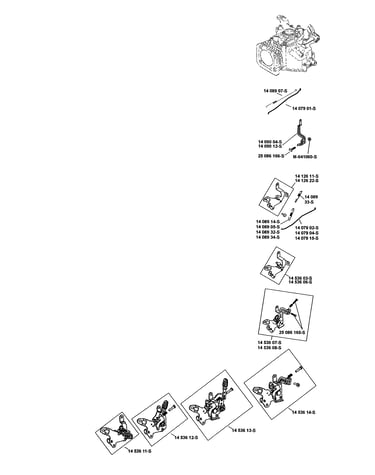

Engine controls diagram

Lawn & garden equipment engine governor spring

Part #14-089-14-S

This item is not returnable
$7.82
11% OFF Phone Price : $8.82
In Stock
Lawn & Garden Equipment Engine Spacer 14-112-07-S
#1411207-S

Ignition/electrical diagram

Lawn & garden equipment engine spacer

Part #14-112-07-S

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Ignition Coil 14-584-05-S
#1458405-S

Ignition/electrical diagram

Lawn & garden equipment engine ignition coil

Part #14-584-05-S

$52.19
10% OFF Phone Price : $58.19
In Stock
Lawn & Garden Equipment Engine Nut M-641060-S
Lawn & garden equipment engine nut

Part #M-641060-S

This item is not returnable
In Stock
Control Assembly 14-126-22-S
#1412622-S

Engine controls diagram

Control assembly

Part #14-126-22-S

In Stock
Lawn & Garden Equipment Engine Flywheel Key 14-340-01-S
#1434001-S

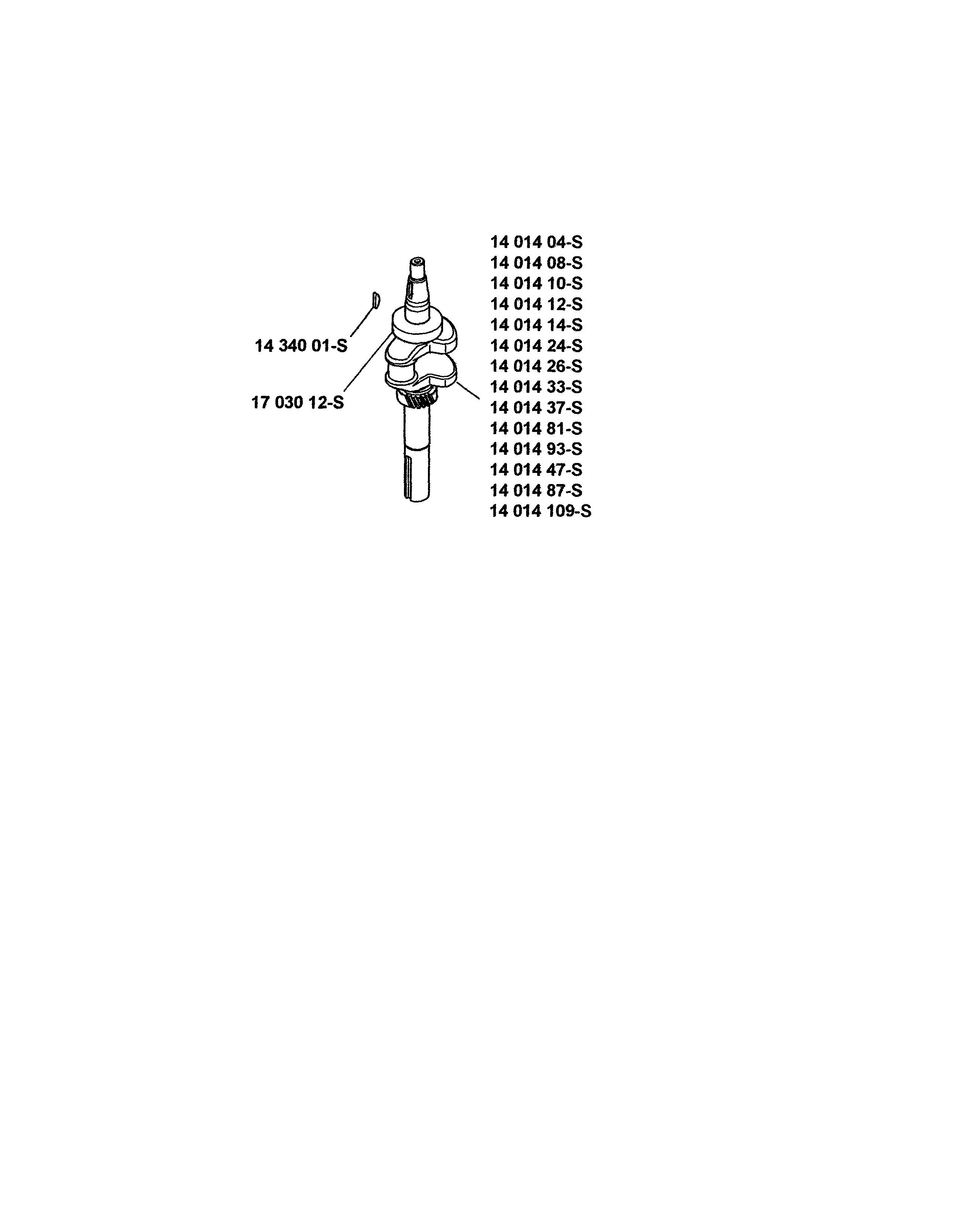

Crankshaft diagram

Lawn & garden equipment engine flywheel key

Part #14-340-01-S

This item is not returnable
In Stock
Stud 14-072-12-S
#1407212-S

Ignition/electrical diagram

Stud

Part #14-072-12-S

Replaced by #14-072-26-S

?
Manufacturer substitution
This part replaces 14-072-12-S. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn & Garden Equipment Engine Screw 25-086-167-S
#25086167-S

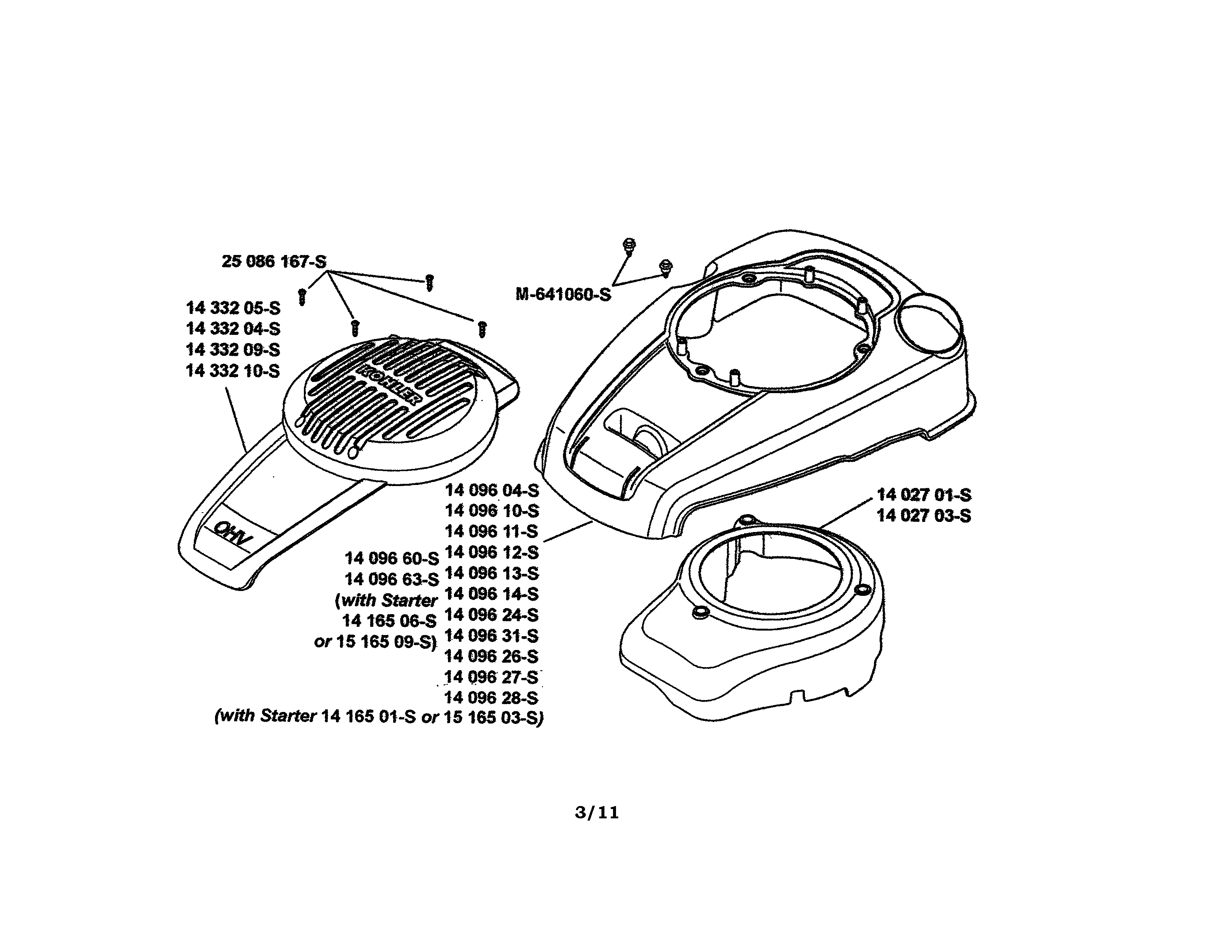

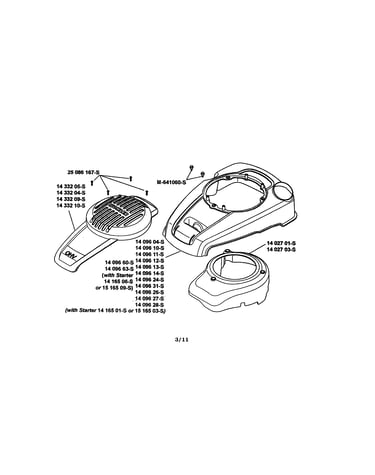

Blower housing/baffles diagram

Lawn & garden equipment engine screw

Part #25-086-167-S

This item is not returnable
In Stock
Connecting Rod 14-067-01-S
#1406701-S

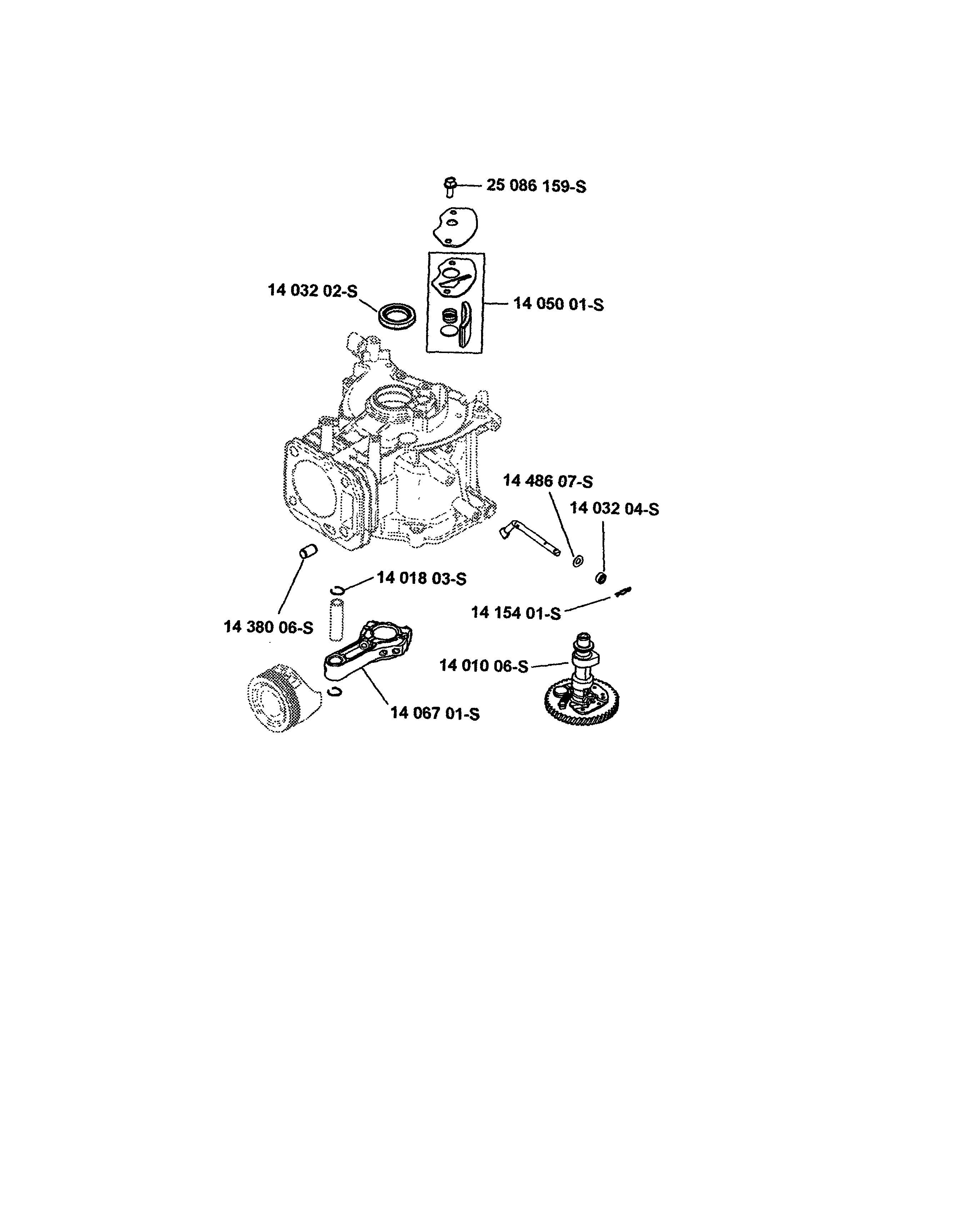

Crankcase diagram

Connecting rod

Part #14-067-01-S

In Stock
