Model # ASYW36TRDFA1 Official GE room a/c

Here are the diagrams and repair parts for Official GE ASYW36TRDFA1 room a/c, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
ASYW36TRDFA1 ROOM A/C
Drain Hose WJ53X23032
#8

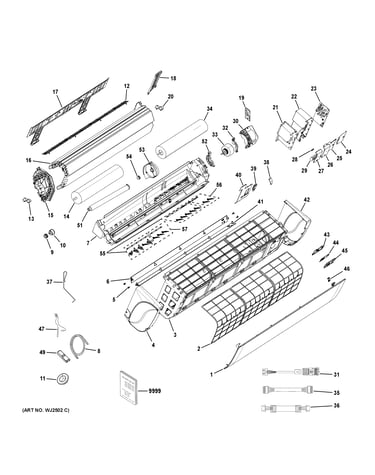

Room air conditioner diagram

Drain hose

Part #WJ53X23032

$15.49
In Stock
Swing Motor WJ94X22786
#13

Room air conditioner diagram

Swing motor

Part #WJ94X22786

$38.53
In Stock
Cross Flow F WJ73X22780
#34

Room air conditioner diagram

Cross flow f

Part #WJ73X22780

$54.80
In Stock
Cross Flow Fan Bearing Cover WJ73X23050
#10

Room air conditioner diagram

Cross flow fan bearing cover

Part #WJ73X23050

$9.23
In Stock
Power Cable Cover Board WJ76X23057
#28

Room air conditioner diagram

Power cable cover board

Part #WJ76X23057

$14.74
In Stock
Cross Flow F WJ73X22781
#14

Room air conditioner diagram

Cross flow f

Part #WJ73X22781

$50.58
In Stock
Air Filter WJ85X22778
#2

Room air conditioner diagram

Air filter

Part #WJ85X22778

$15.89
In Stock
Cross Flow F WJ73X22749
#9

Room air conditioner diagram

Cross flow f

Part #WJ73X22749

Replaced by #WJ73X23028

?
Manufacturer substitution
This part replaces WJ73X22749. Substitute parts can look different from the original.
$12.04 |
14% OFF Phone Price : $14.04
In Stock
Indoor Motor WJ94X22784
#33

Room air conditioner diagram

Indoor motor

Part #WJ94X22784

Replaced by #WJ94X23054

?
Manufacturer substitution
This part replaces WJ94X22784. Substitute parts can look different from the original.
$148.09 |
7% OFF Phone Price : $160.09
In Stock
Temperature Sensor WJ26X23593
#47

Room air conditioner diagram

Temperature sensor

Part #WJ26X23593

Replaced by #WJ26X23042

?
Manufacturer substitution
This part replaces WJ26X23593. Substitute parts can look different from the original.
$16.47 |
11% OFF Phone Price : $18.47
In Stock
