Amana
Countertop Microwave

Model # 2036.104 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 2036104 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

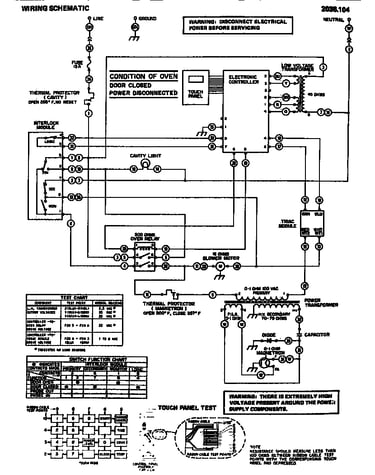

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |

Rtv Sealant M13D2
#14B

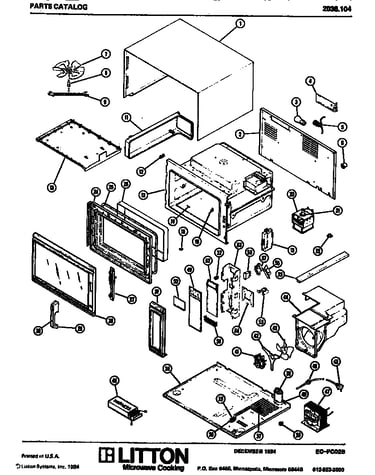

Microwave parts diagram

Rtv sealant

Part #M13D2

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Bracket M20D63
#40A

Microwave parts diagram

Capacitor bracket

Part #M20D63

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Blade M35D44
#7

Microwave parts diagram

Stirrer blade

Part #M35D44

The manufacturer no longer makes this part, and there's no substitute part

Screw Holder Mtg. M1D329
#36B

Microwave parts diagram

Screw holder mtg.

Part #M1D329

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Triac Mtg. M8D288
#56A

Microwave parts diagram

Bracket, triac mtg.

Part #M8D288

The manufacturer no longer makes this part, and there's no substitute part

Screw Transformer Mtg. M1D479
#47B

Microwave parts diagram

Screw transformer mtg.

Part #M1D479

The manufacturer no longer makes this part, and there's no substitute part

Stand Off M2D232
#6A

Microwave parts diagram

Stand off

Part #M2D232

The manufacturer no longer makes this part, and there's no substitute part

Screw Door Mounting - Top M1D899
#28B

Microwave parts diagram

Screw door mounting - top

Part #M1D899

The manufacturer no longer makes this part, and there's no substitute part

Rivet Insulator Mtg. M1D608
#34C

Microwave parts diagram

Rivet insulator mtg.

Part #M1D608

The manufacturer no longer makes this part, and there's no substitute part

Blower Duct Assembly M65D283
#44A

Microwave parts diagram

Blower duct assembly

Part #M65D283

The manufacturer no longer makes this part, and there's no substitute part
