Model # JPK36BNXWES00 Official Jenn-Air 36" panel kit

Here are the diagrams and repair parts for Official Jenn-Air JPK36BNXWES00 36" panel kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Fc Door Panel W10222265A
#2

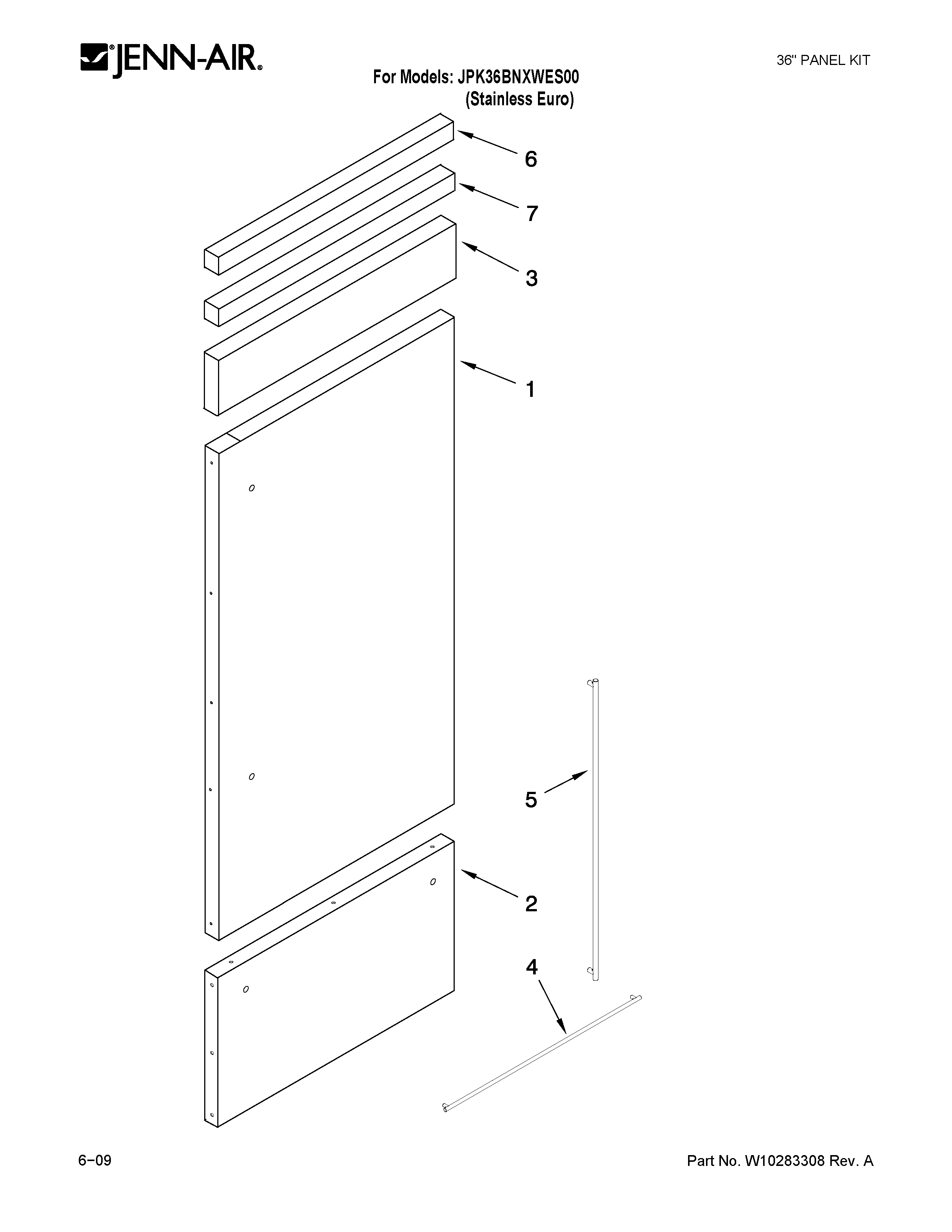

Panel kit parts diagram

Fc door panel

Part #W10222265A

Replaced by #W10768126

?
Manufacturer substitution
This part replaces W10222265A. Substitute parts can look different from the original.
$906.31
In Stock
Refrigerator Grille Panel W10222275A
#3

Panel kit parts diagram

Refrigerator grille panel

Part #W10222275A

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Handle 12850910A
#5

Panel kit parts diagram

Refrigerator handle

Part #12850910A

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Lower Vent Grill W10234158A
#7

Panel kit parts diagram

Refrigerator lower vent grill

Part #W10234158A

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Upper Vent Grill W10234162A
#6

Panel kit parts diagram

Refrigerator upper vent grill

Part #W10234162A

The manufacturer no longer makes this part, and there's no substitute part

Rc Door Panel W10222261A
#1

Panel kit parts diagram

Rc door panel

Part #W10222261A

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Handle 12850906A
#4

Panel kit parts diagram

Refrigerator handle

Part #12850906A

The manufacturer no longer makes this part, and there's no substitute part
