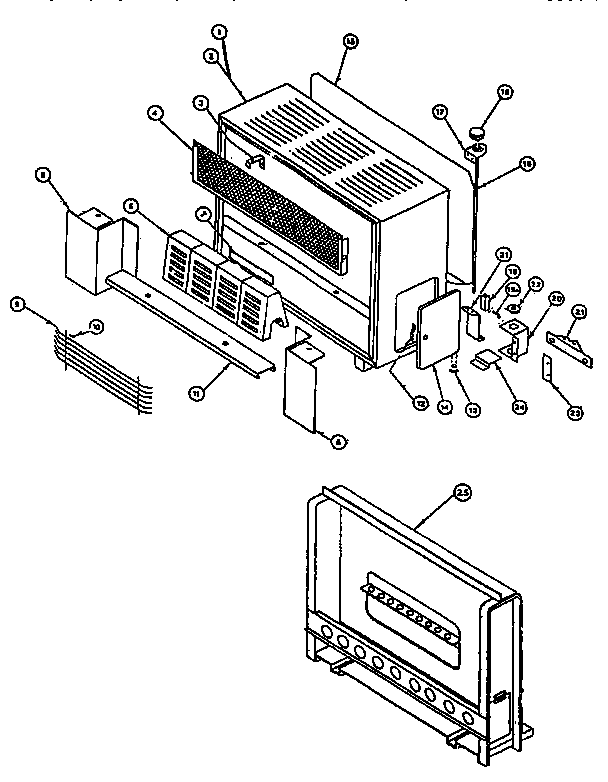

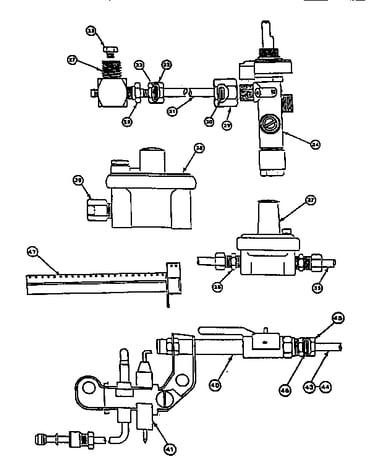

Model # 693357930 Official Kenmore room heater

Here are the diagrams and repair parts for Official Kenmore 693357930 room heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Pilot Tube 108178-G7

#35

All parts diagram

Pilot tube

Part #108178-G7

The manufacturer no longer makes this part, and there's no substitute part

Orifice 1387-G37

#26

All parts diagram

Orifice

Part #1387-G37

The manufacturer no longer makes this part, and there's no substitute part

Valve Nut 108172-G3

#22

All parts diagram

Valve nut

Part #108172-G3

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 106913-G1

#16

All parts diagram

Control knob

Part #106913-G1

The manufacturer no longer makes this part, and there's no substitute part

Regltr Suprt 108192-G4

#24

All parts diagram

Regltr suprt

Part #108192-G4

The manufacturer no longer makes this part, and there's no substitute part

Retainer Clp 1954-G1

#12

All parts diagram

Retainer clp

Part #1954-G1

The manufacturer no longer makes this part, and there's no substitute part

Pilot Lp 108171-G1

#40

All parts diagram

Pilot lp

Part #108171-G1

The manufacturer no longer makes this part, and there's no substitute part

Adapter 108176-G1

#27

All parts diagram

Adapter

Part #108176-G1

The manufacturer no longer makes this part, and there's no substitute part

Adapter Rod 108257-G1

#19

All parts diagram

Adapter rod

Part #108257-G1

The manufacturer no longer makes this part, and there's no substitute part

Nut 9/16 108172-G2

#29

All parts diagram

Nut 9/16

Part #108172-G2

The manufacturer no longer makes this part, and there's no substitute part
