Canister Vacuum

Model # 1162632080 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162632080 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for1162632080 Vacuum Cleaners

  • Vacuum Receptacle Assembly 4147243
    #24

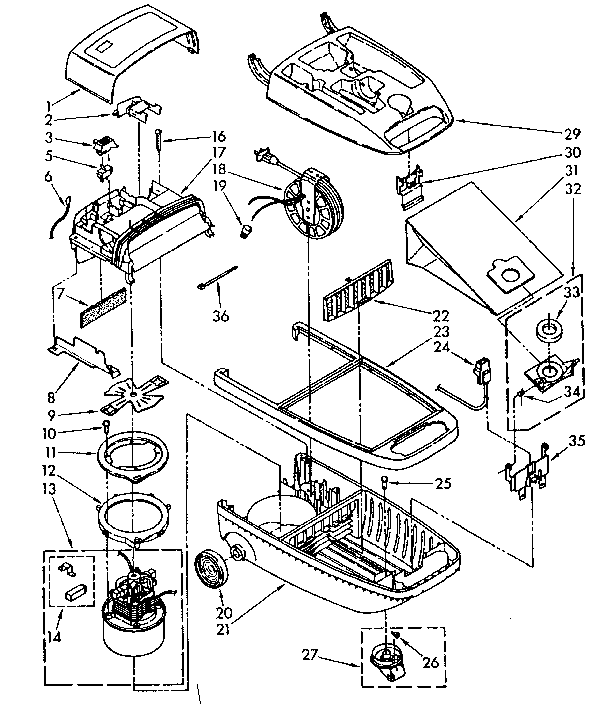

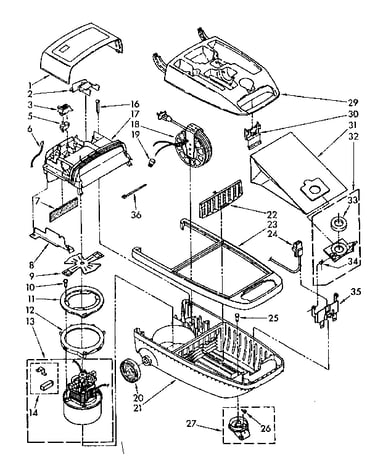

    Vacuum cleaner diagram

    Vacuum receptacle assembly

    Part #4147243

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire 706521
    #6

    Vacuum cleaner diagram

    Wire

    Part #706521

    The manufacturer no longer makes this part, and there's no substitute part

  • Dust Brush 4147113
    #18

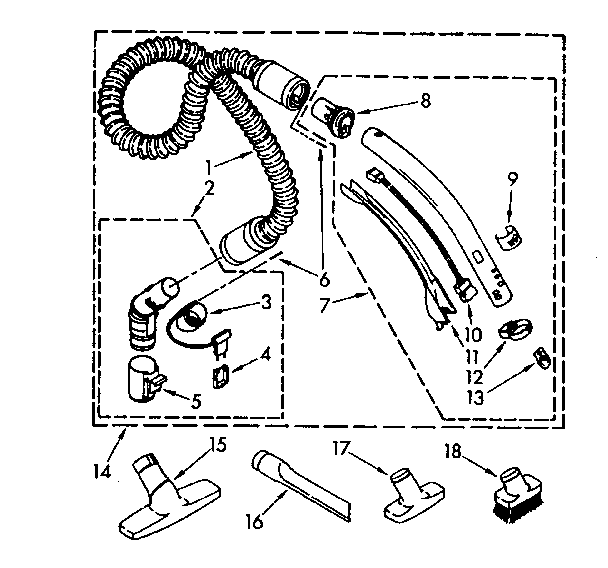

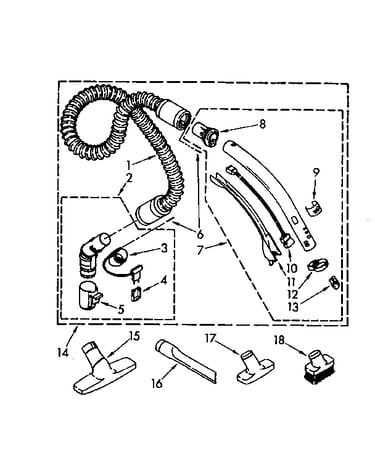

    Hose and attachment diagram

    Dust brush

    Part #4147113

    The manufacturer no longer makes this part, and there's no substitute part

  • Mounting Bag 676246
    #32

    Vacuum cleaner diagram

    Mounting bag

    Part #676246

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Switch Button 4147278
    #3

    Vacuum cleaner diagram

    Vacuum switch button

    Part #4147278

    The manufacturer no longer makes this part, and there's no substitute part

  • Handle Assembly 4147146
    #7

    Hose and attachment diagram

    Handle assembly

    Part #4147146

    The manufacturer no longer makes this part, and there's no substitute part

  • Dust Bag 706014
    #31

    Vacuum cleaner diagram

    Dust bag

    Part #706014

    The manufacturer no longer makes this part, and there's no substitute part

  • Canister Base 4147447
    #21

    Vacuum cleaner diagram

    Canister base

    Part #4147447

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring (silver) 706024
    #34

    Vacuum cleaner diagram

    Spring (silver)

    Part #706024

    The manufacturer no longer makes this part, and there's no substitute part

  • Suction Control 4147140
    #9

    Hose and attachment diagram

    Suction control

    Part #4147140

    The manufacturer no longer makes this part, and there's no substitute part
