Model # AMV5164BAW Official Amana microwave
Here are the diagrams and repair parts for Official Amana AMV5164BAW microwave, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

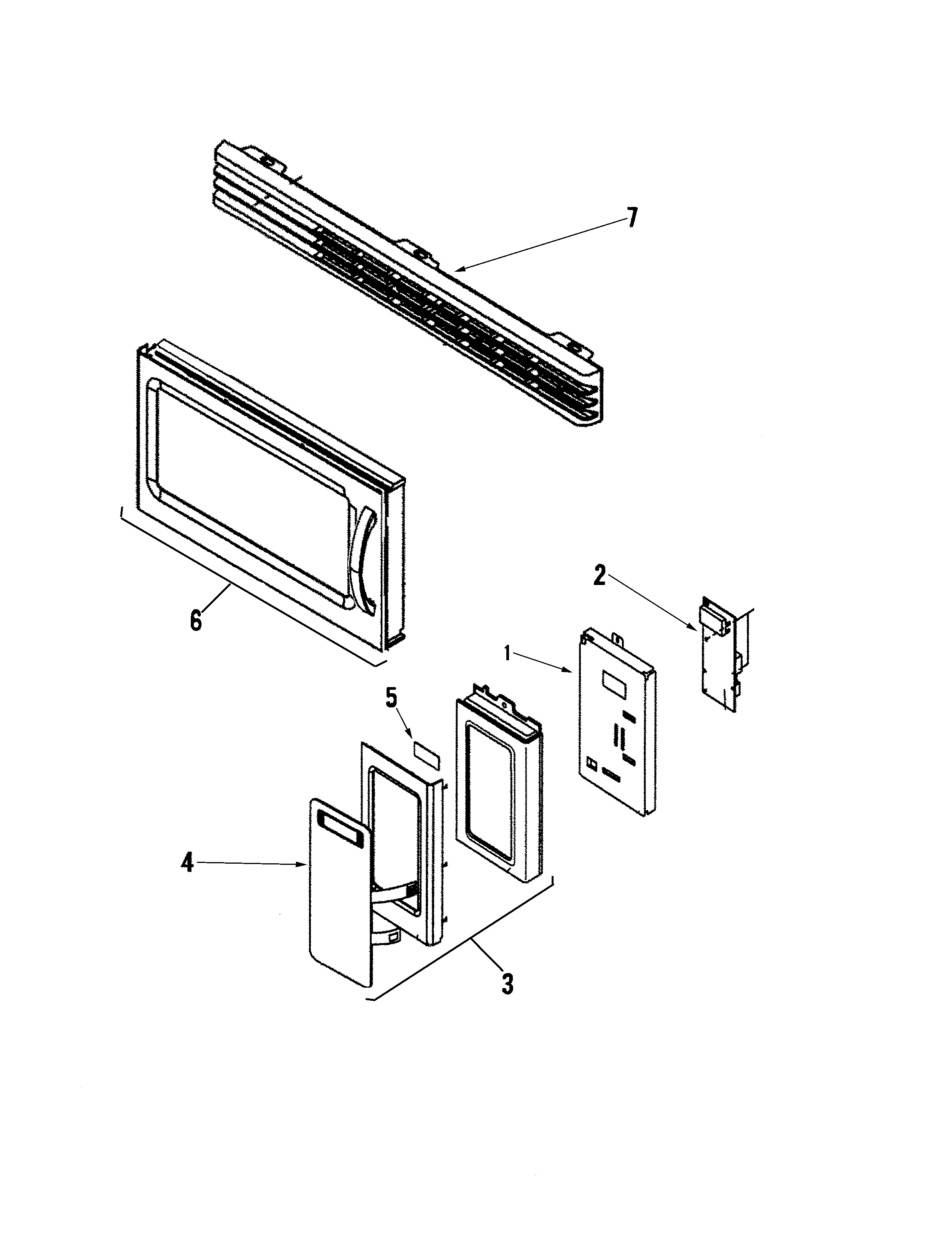

SELECT DIAGRAM
Browse Parts for
AMV5164BAW Microwave
#16

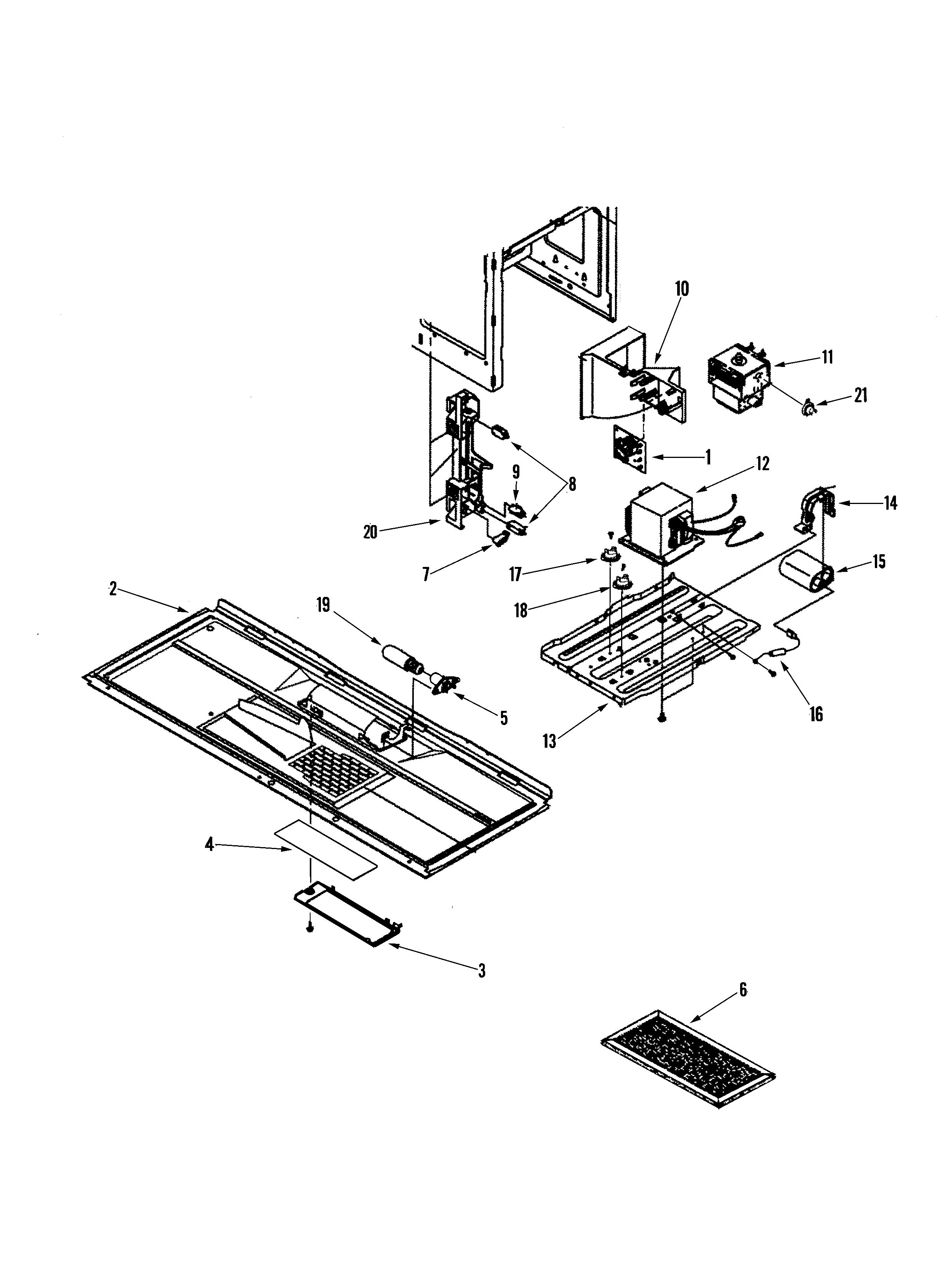

Base/internal controls diagram
Diode
Part #0402-001554
Replaced by #DE91-70063D
?
Manufacturer substitution
This part replaces 0402-001554. Substitute parts can look different from the original.
$22.16 |
21% OFF Phone Price : $28.16
In Stock
#20
Base/internal controls diagram
Interlock
Part #DE96-00414A
Replaced by #DE96-00414A
?
Manufacturer substitution
This part replaces DE96-00414A. Substitute parts can look different from the original.
$54.86 |
10% OFF Phone Price : $60.86
Back Order
#6

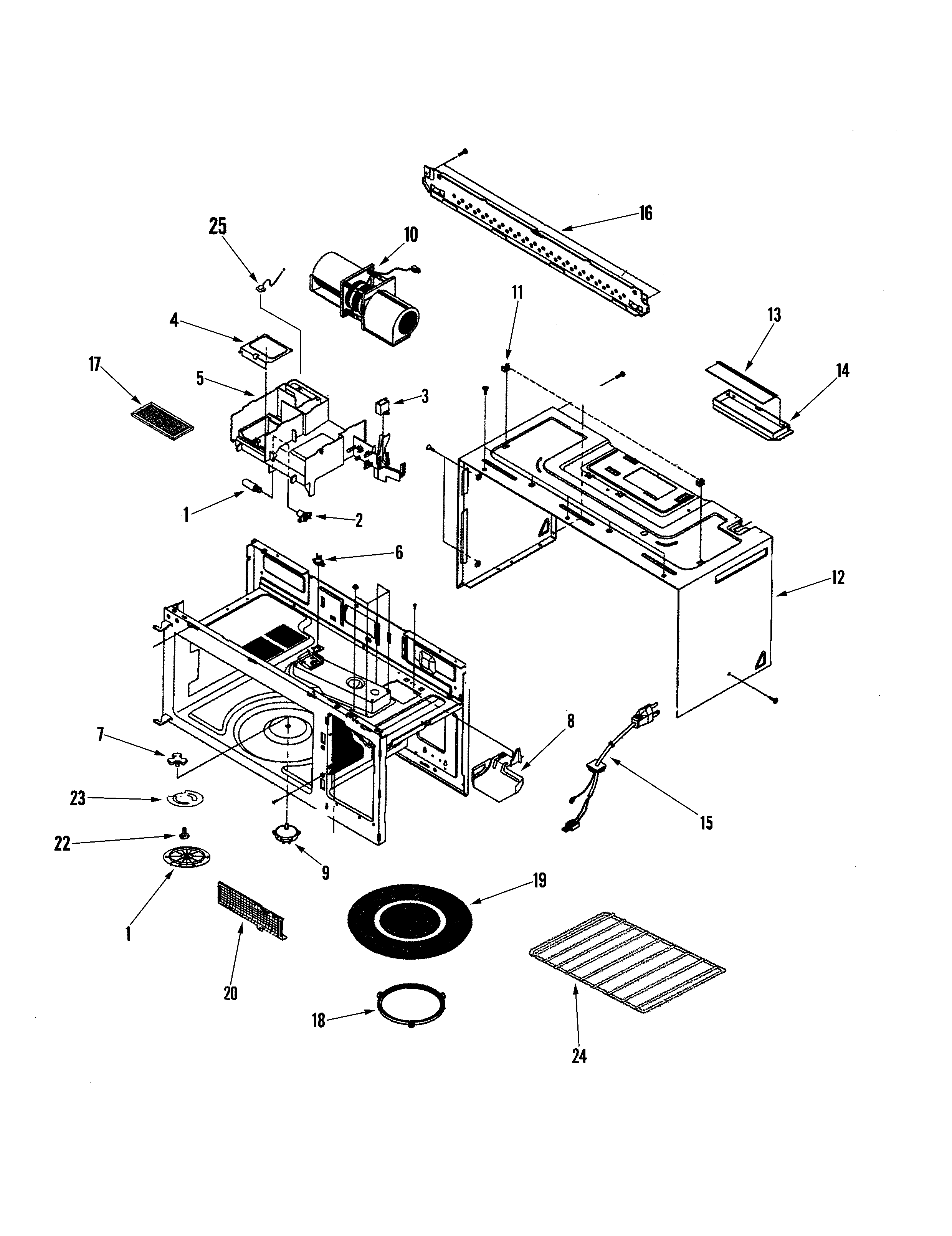

Body/cavity/blower motor diagram
Thermostat
Part #DE47-20007A
Replaced by #DE47-20007B
?
Manufacturer substitution
This part replaces DE47-20007A. Substitute parts can look different from the original.
$14.75 |
12% OFF Phone Price : $16.75
In Stock
#11
Base/internal controls diagram
Microwave magnetron
Part #W10126786
Replaced by #WPW10126786
?
Manufacturer substitution
This part replaces W10126786. Substitute parts can look different from the original.
$169.74 |
7% OFF Phone Price : $181.74
In Stock
#1
Base/internal controls diagram
Microwave noise filter assembly
Part #DE96-00400A
$64.95 |
8% OFF Phone Price : $70.95
In Stock
#21
Base/internal controls diagram
Thermostat
Part #DE47-20059A
Replaced by #DE47-20059B
?
Manufacturer substitution
This part replaces DE47-20059A. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
#7
Base/internal controls diagram
Microwave door interlock switch lever (replaces de66-90106a)
Part #DE66-90106B
This item is not returnable
$2.70 |
27% OFF Phone Price : $3.70
In Stock
Microwave light socket
Part #DE47-00006A
Replaced by #DE47-00006A
?
Manufacturer substitution
This part replaces DE47-00006A. Substitute parts can look different from the original.
This item is not returnable
$20.98 |
22% OFF Phone Price : $26.98
In Stock
#14
Body/cavity/blower motor diagram
Microwave vent damper
Part #DE72-40022A
Replaced by #DE72-40022A
?
Manufacturer substitution
This part replaces DE72-40022A. Substitute parts can look different from the original.
This item is not returnable
$20.38 |
23% OFF Phone Price : $26.38
In Stock
#4A
Supplemental information diagram
Microwave mounting bolt
Part #DE60-20022A
This item is not returnable
$2.65 |
27% OFF Phone Price : $3.65
In Stock
