Model # 10141730 Official Kenmore electric counter insert

Here are the diagrams and repair parts for Official Kenmore 10141730 electric counter insert, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Medallion 40543

#NI

All parts diagram

Medallion

Part #40543

The manufacturer no longer makes this part, and there's no substitute part

Reflect Pan 31197
#7

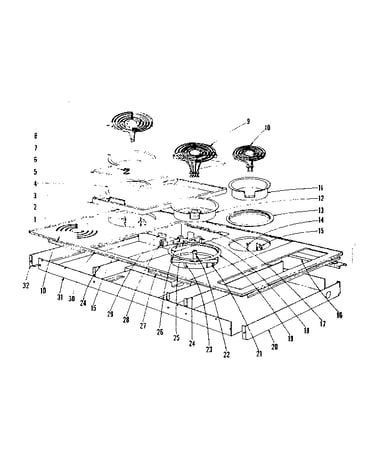

Cook top section diagram

Reflect pan

Part #31197

The manufacturer no longer makes this part, and there's no substitute part

Reflect Pan 31194
#11

Cook top section diagram

Reflect pan

Part #31194

The manufacturer no longer makes this part, and there's no substitute part

Pilot Bulb 39126
#40

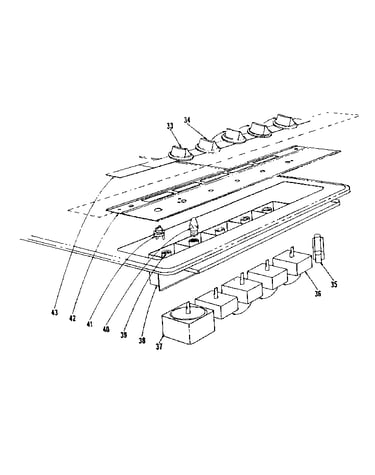

Switch section diagram

Pilot bulb

Part #39126

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block 37079
#21

Cook top section diagram

Terminal block

Part #37079

The manufacturer no longer makes this part, and there's no substitute part

Pan Reflector 34136
#12

Cook top section diagram

Pan reflector

Part #34136

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block 37092
#15

Cook top section diagram

Terminal block

Part #37092

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Nameplate 36227

#NI

All parts diagram

Cooktop nameplate

Part #36227

The manufacturer no longer makes this part, and there's no substitute part

Switch 40615
#36

Switch section diagram

Switch

Part #40615

The manufacturer no longer makes this part, and there's no substitute part

Counter 41599
#30C

Cook top section diagram

Counter

Part #41599

The manufacturer no longer makes this part, and there's no substitute part
