Model # 21A-634F063 Official Troybilt tiller

Here are the diagrams and repair parts for Official Troybilt 21A-634F063 tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

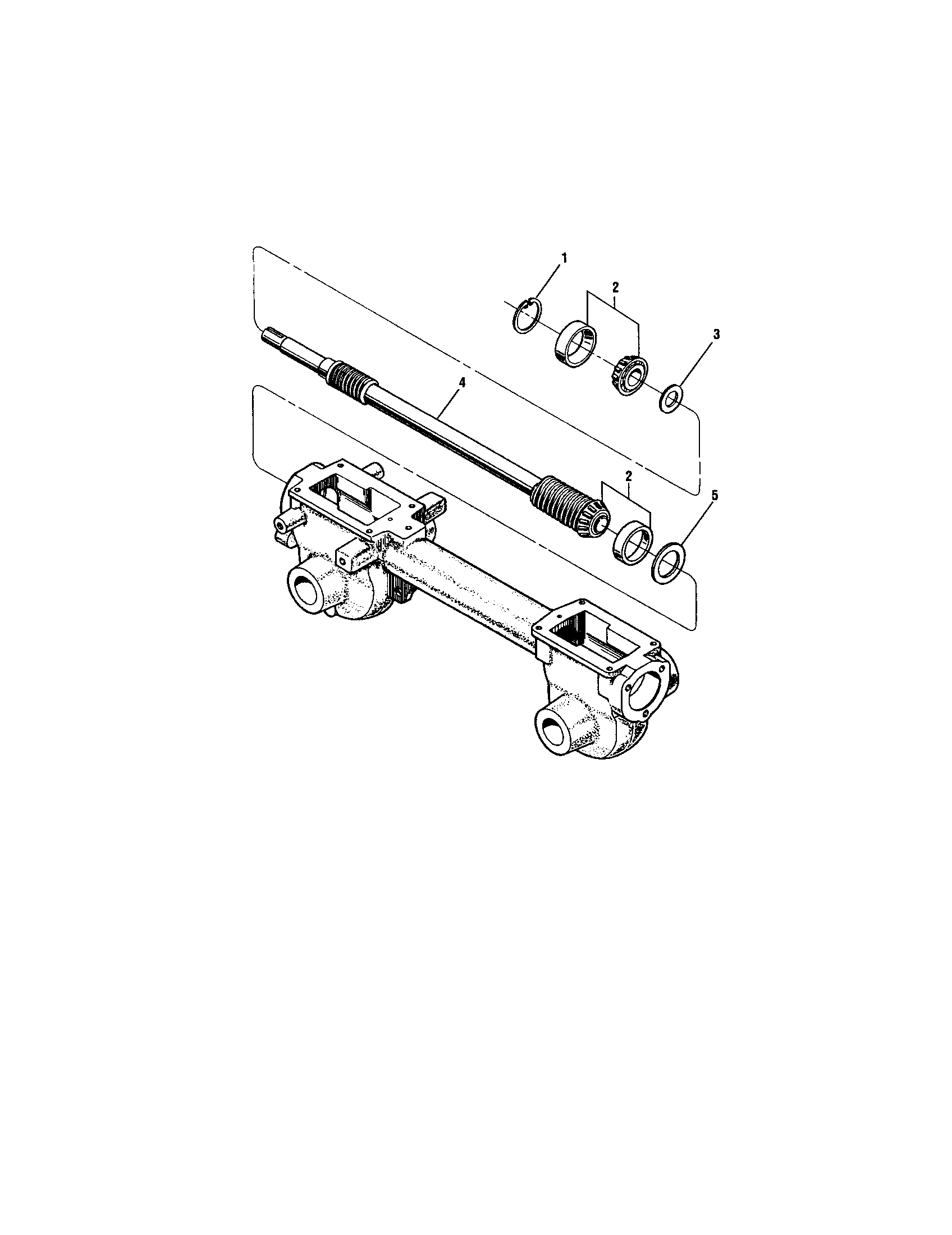

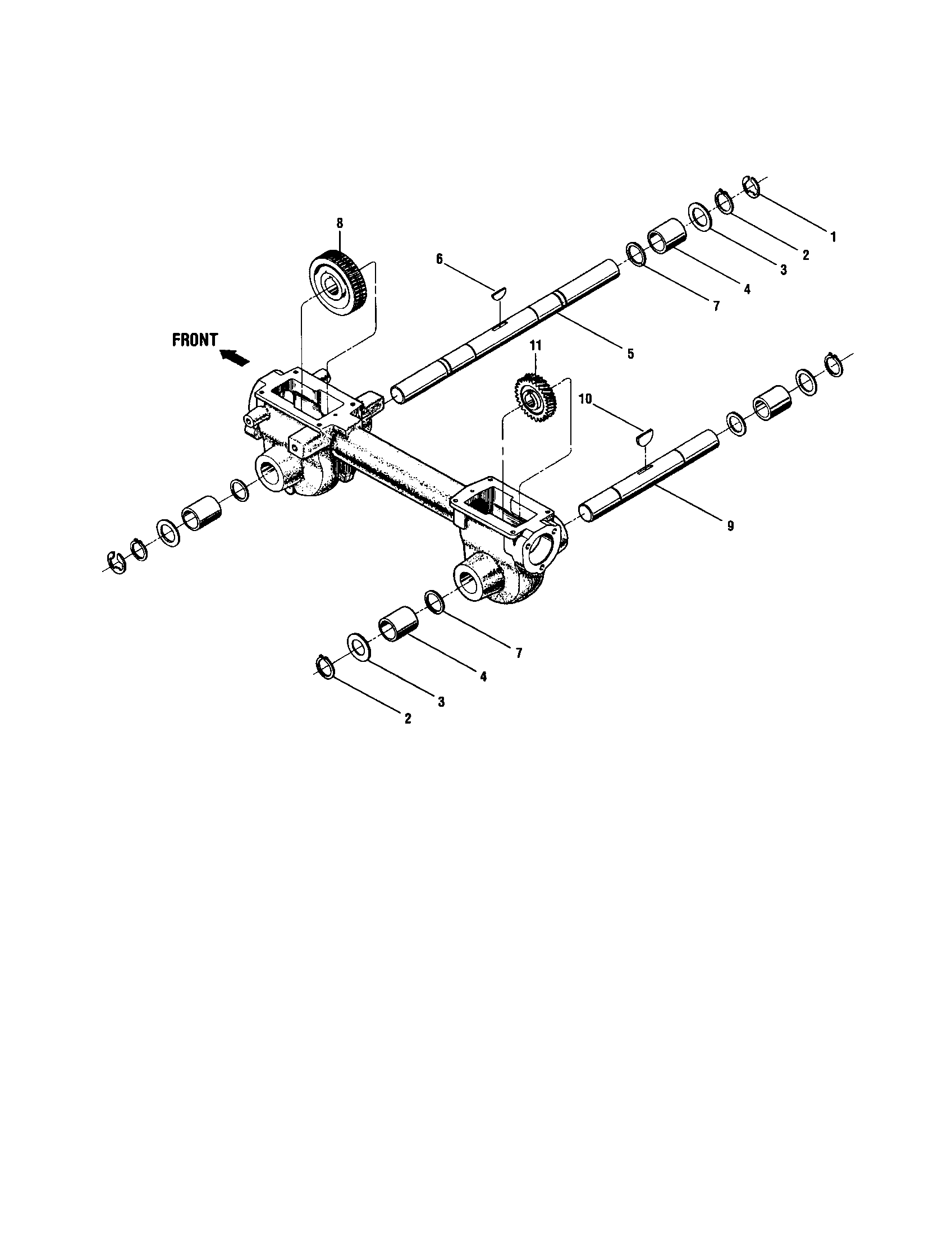

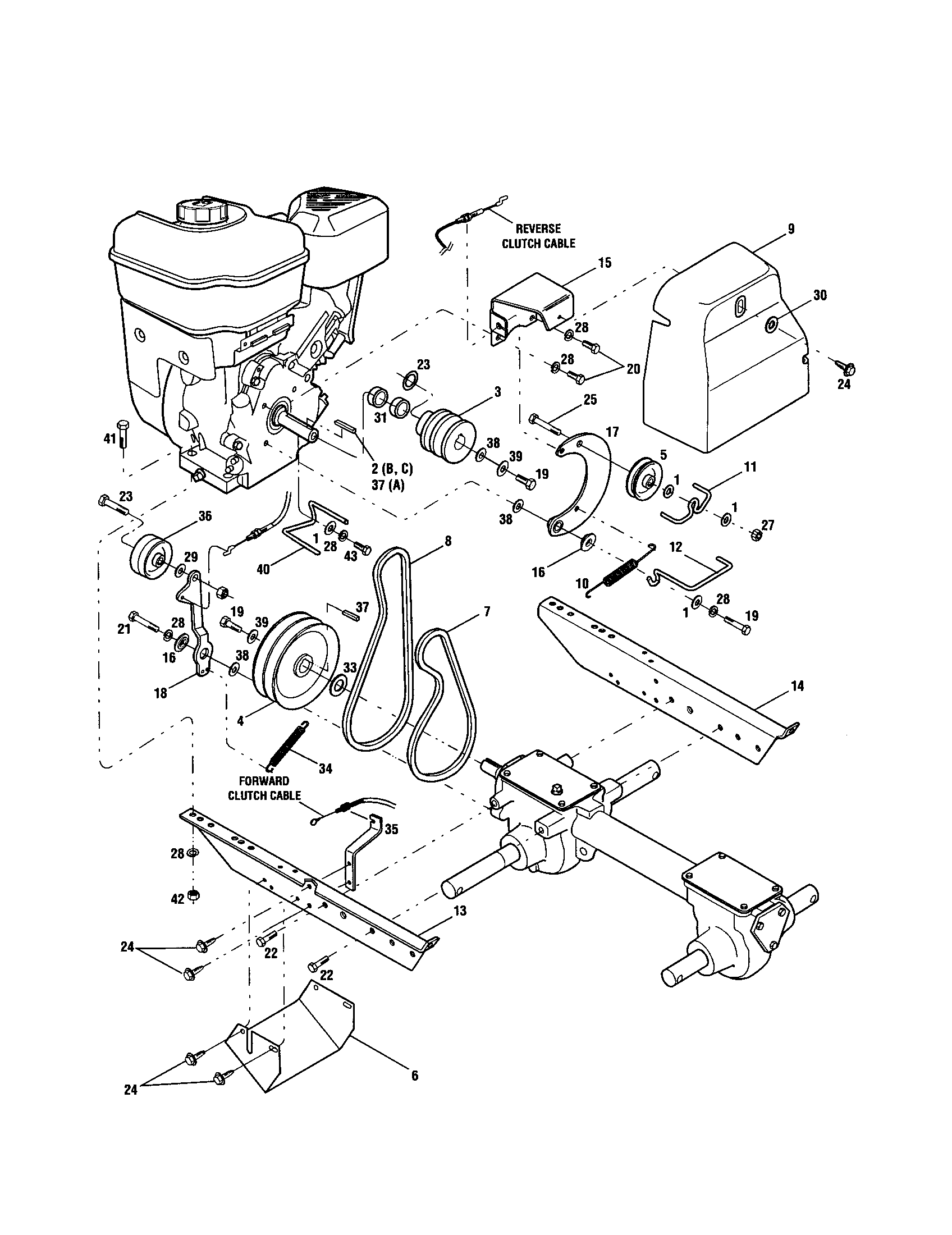

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Lock Washer 736-0119
Lock washer

Part #736-0119

Replaced by #936-0119

?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Ryobi Lawn Tractor Bolt (replaces 01000369, 1509-091, 1509-117, 153015, 706-10123-20, 706-501277-1, 710-0342, 910-3005) 710-3005
#1

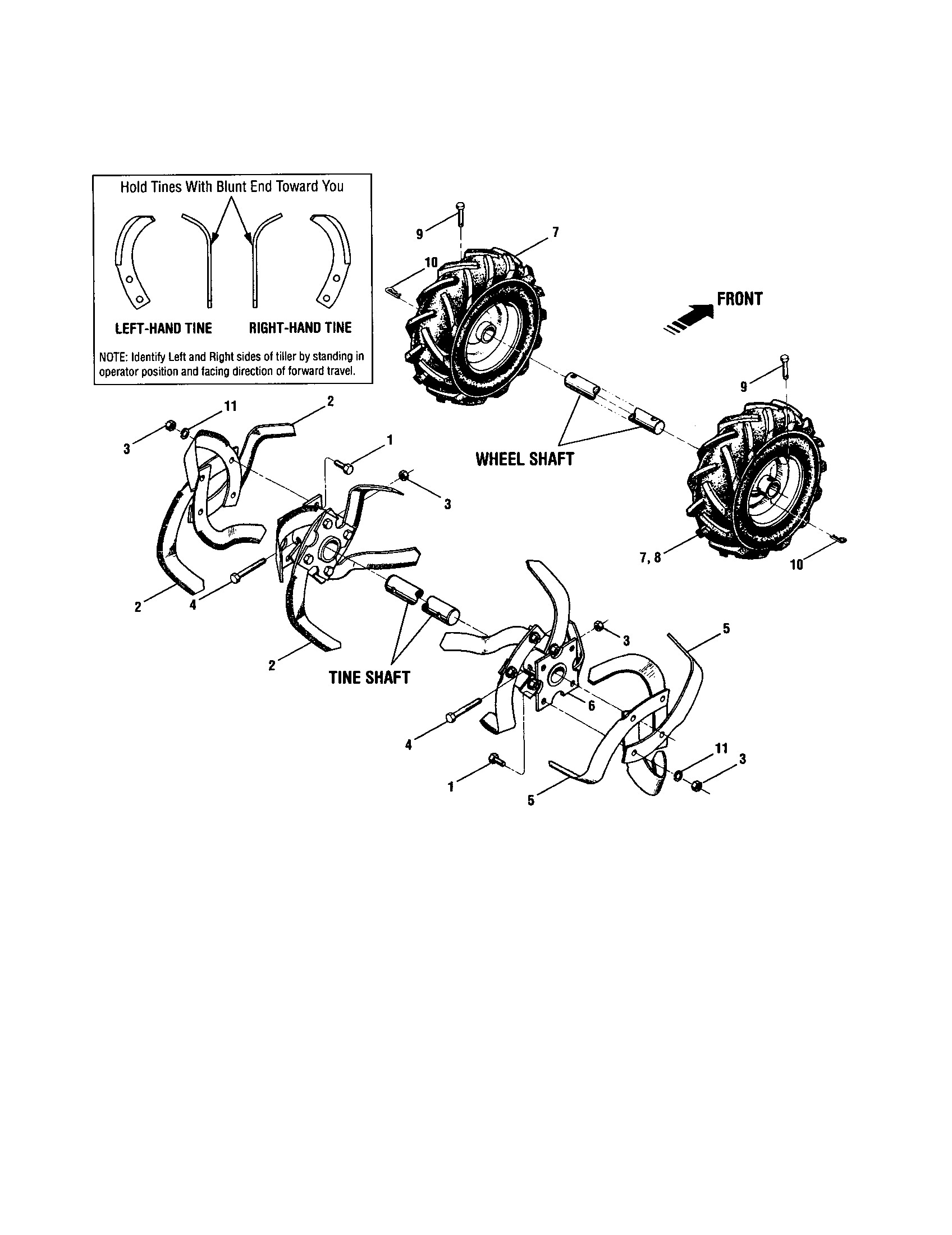

Wheels/tires/tine holder diagram

Ryobi lawn tractor bolt (replaces 01000369, 1509-091, 1509-117, 153015, 706-10123-20, 706-501277-1, 710-0342, 910-3005)

Part #710-3005

This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Lawn Tractor Hex Bolt 710-3008
Lawn tractor hex bolt

Part #710-3008

This item is not returnable
$4.62 |
18% OFF Phone Price : $5.62
In Stock
Lawn & Garden Equipment Cable Tie 725-0157
#13

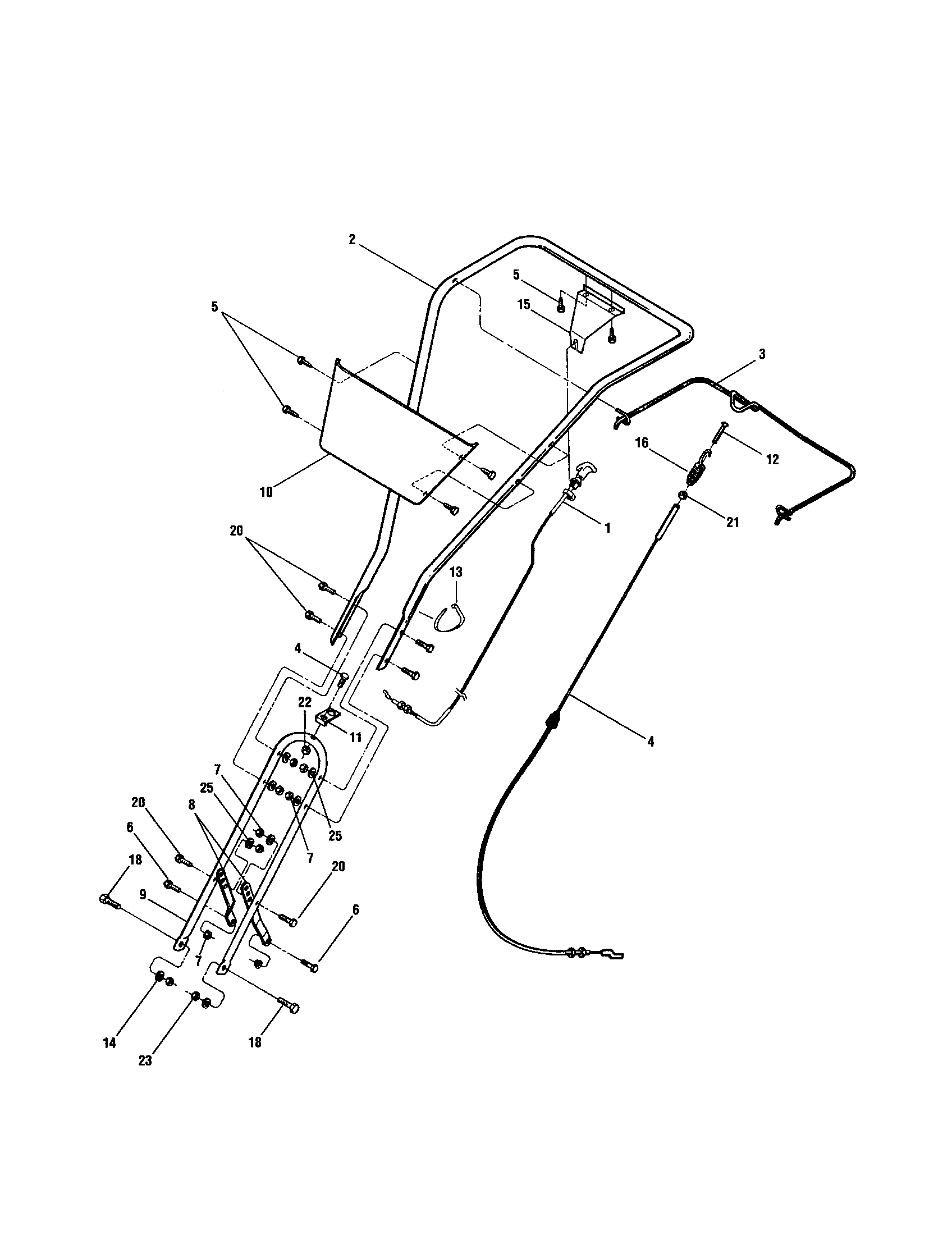

Handlebar/cable diagram

Lawn & garden equipment cable tie

Part #725-0157

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 725-0157. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Ace Lawn & Garden Equipment Flange Lock Nut 712-3004A
#7

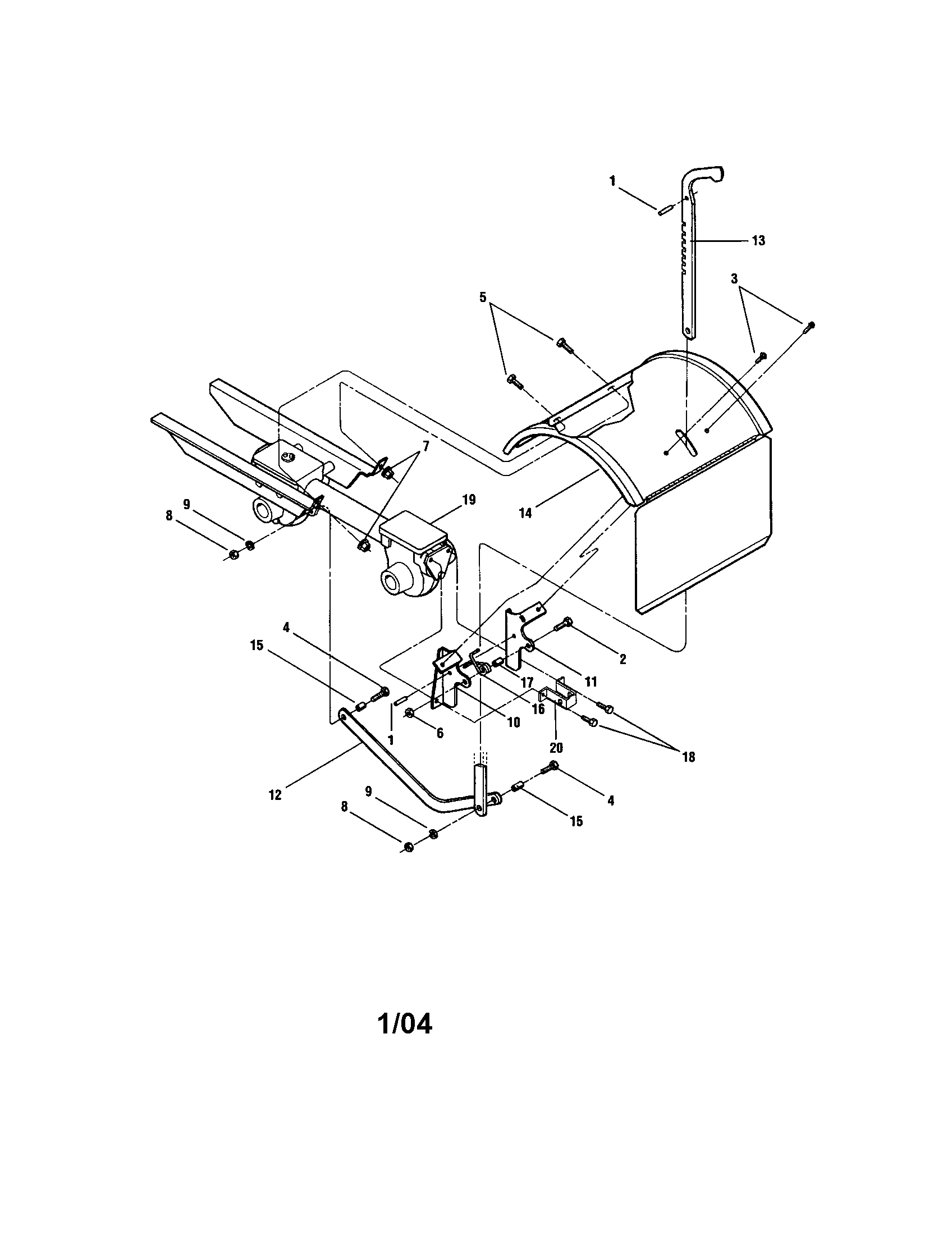

Tine hood/drag bar diagram

Ace lawn & garden equipment flange lock nut

Part #712-3004A

This item is not returnable
$4.92 |
17% OFF Phone Price : $5.92
In Stock
Tiller Worm Shaft Oil Seal 921-04030
#7

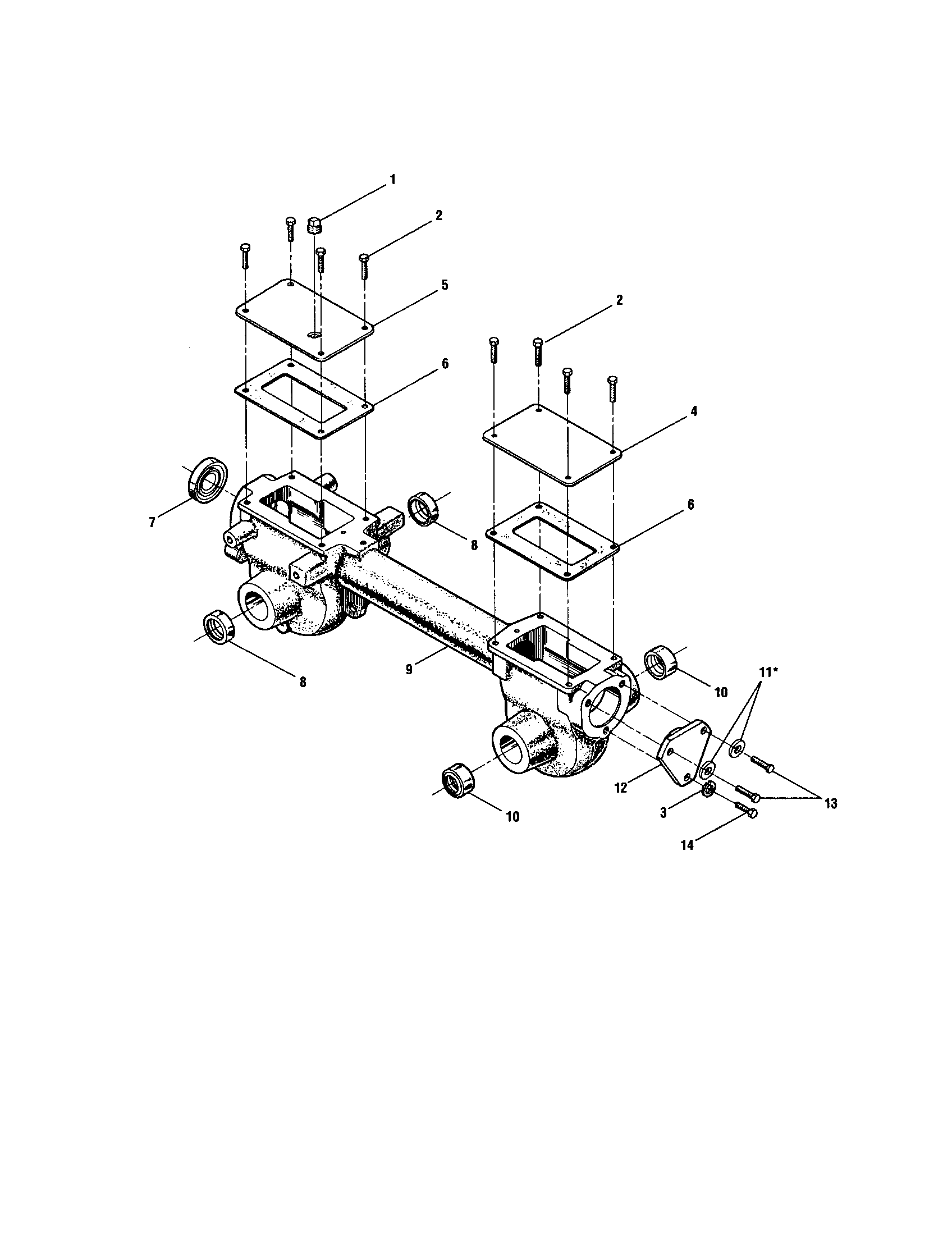

Transmission housing diagram

Tiller worm shaft oil seal

Part #921-04030

This item is not returnable
$15.89 |
11% OFF Phone Price : $17.89
In Stock
Shield GW-55024
#14A

Tine hood/drag bar diagram

Shield

Part #GW-55024

Replaced by #686-04076A-0638

?
Manufacturer substitution
This part replaces GW-55024. Substitute parts can look different from the original.
$108.40
In Stock
Bolo Tine GW-50049-01
#2

Wheels/tires/tine holder diagram

Bolo tine

Part #GW-50049-01

Replaced by #742-04226-0637

?
Manufacturer substitution
This part replaces GW-50049-01. Substitute parts can look different from the original.
$22.79 |
21% OFF Phone Price : $28.79
In Stock
Hex Nut 712-0121
#21

Handlebar/cable diagram

Hex nut

Part #712-0121

This item is not returnable
$7.43
In Stock
