Model # G24PCW4 Official Frigidaire gas range - 5995203113

Here are the diagrams and repair parts for Official Frigidaire G24PCW4 gas range - 5995203113, as well as links to manuals and error code tables, if available.

By Schematic
By Part

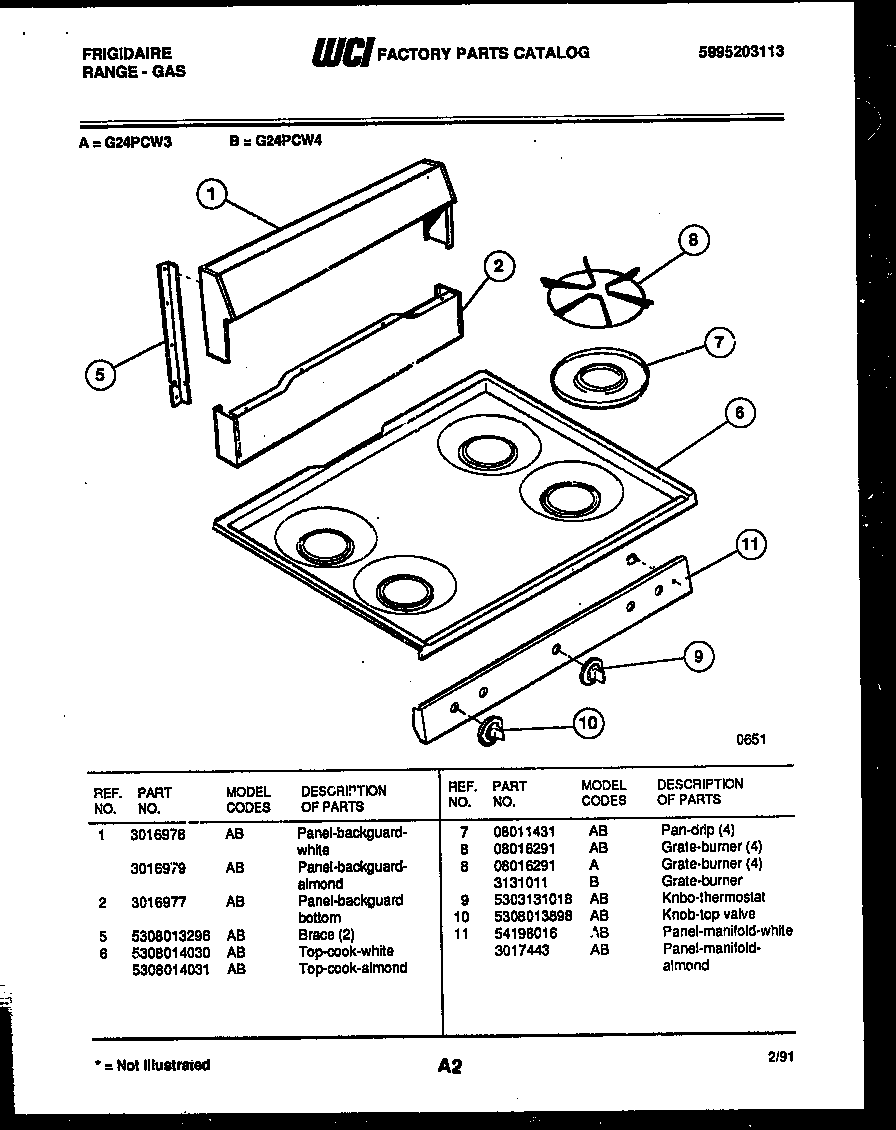

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
G24PCW4 Ranges
Nut 3051038
Nut

Part #3051038

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3051038. Substitute parts can look different from the original.
This item is not returnable
$19.01 |
10% OFF Phone Price : $21.01
In Stock
Range Pressure Regulator 5308007974
#1

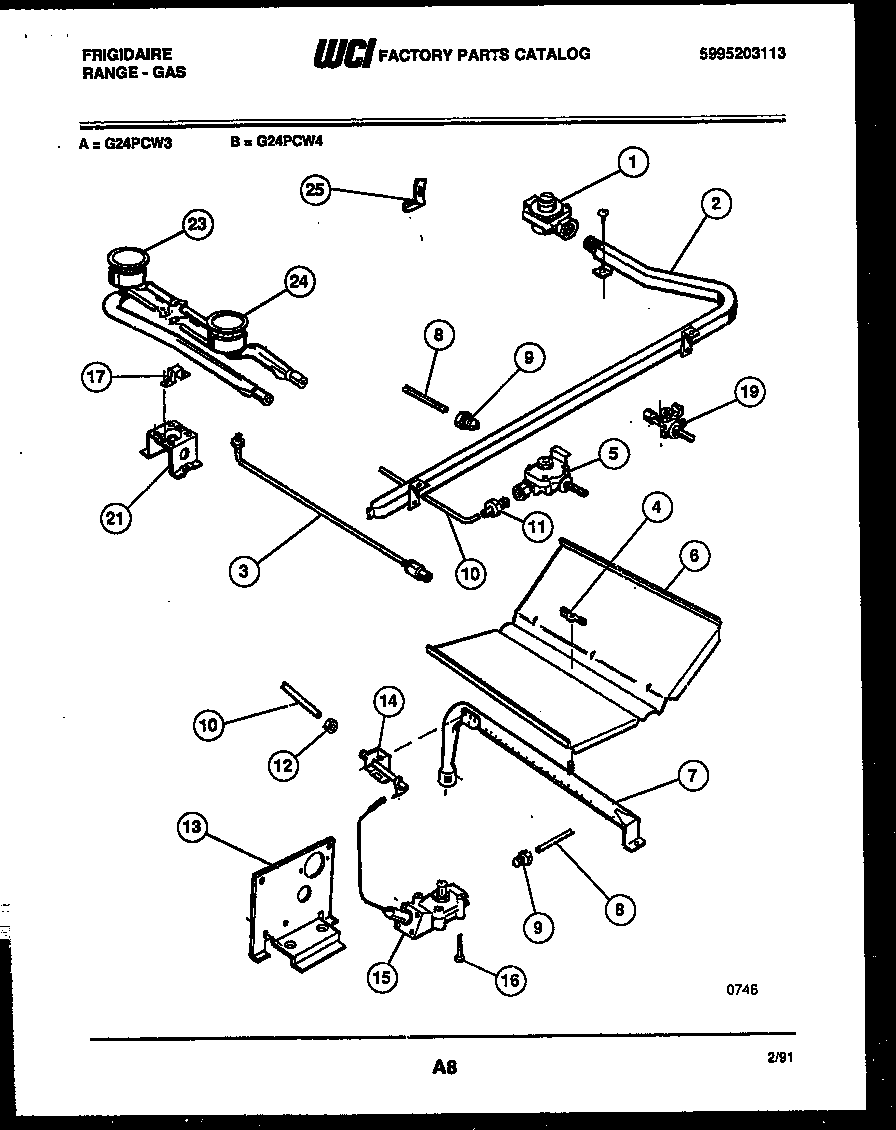

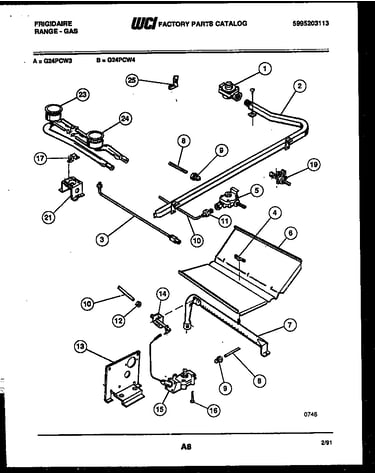

Burner, manifold and gas control diagram

Range pressure regulator

Part #5308007974

$204.95 |
6% OFF Phone Price : $216.95
In Stock
Screw 5303051043
Screw

Part #5303051043

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 5303051043. Substitute parts can look different from the original.
$15.60
In Stock
Thermostat 5308013927
#5

Burner, manifold and gas control diagram

Thermostat

Part #5308013927

The manufacturer no longer makes this part, and there's no substitute part

Oven Hinge 5303204672
#8

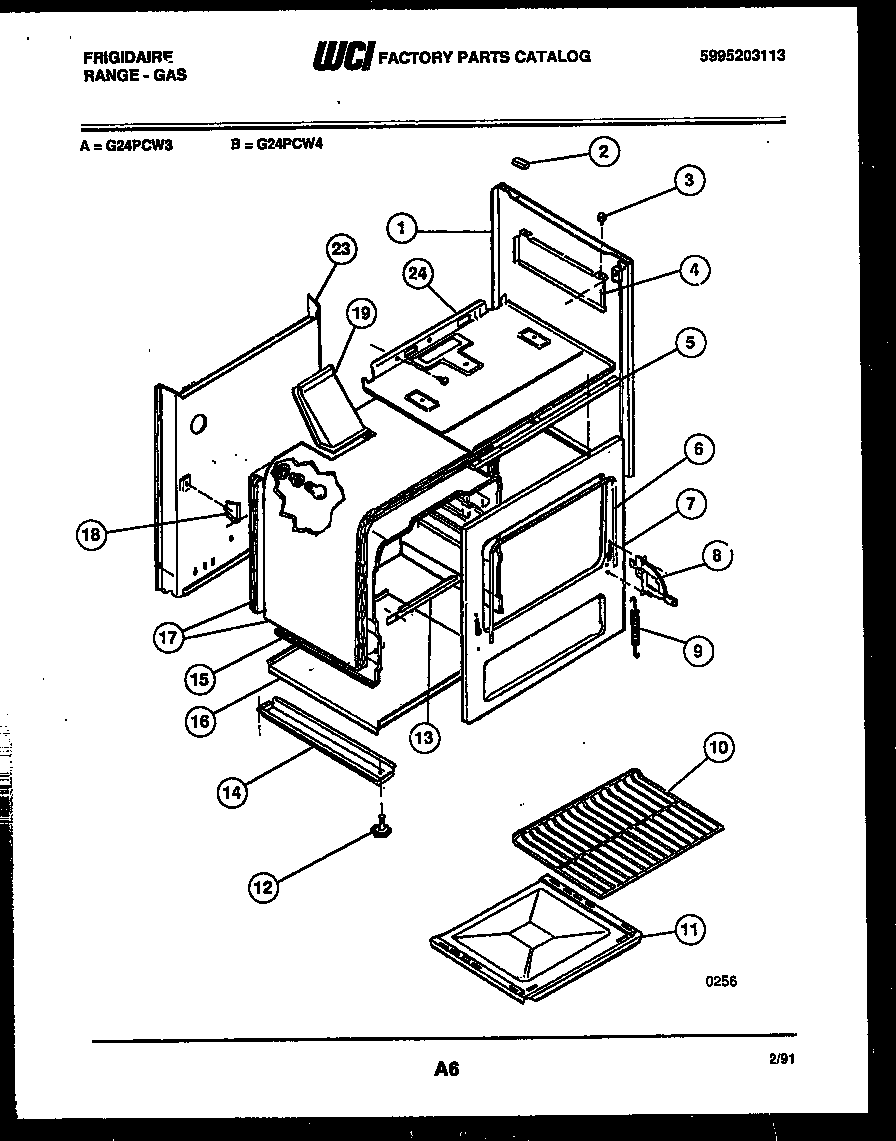

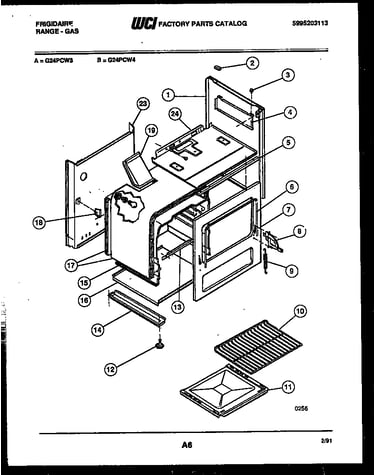

Body parts diagram

Oven hinge

Part #5303204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 5303204672. Substitute parts can look different from the original.
$101.55 |
11% OFF Phone Price : $113.55
In Stock
Level Bolt 5303210257
#12

Body parts diagram

Level bolt

Part #5303210257

Replaced by #318175503

?
Manufacturer substitution
This part replaces 5303210257. Substitute parts can look different from the original.
This item is not returnable
$18.83
In Stock
Insulation 3017184
#10

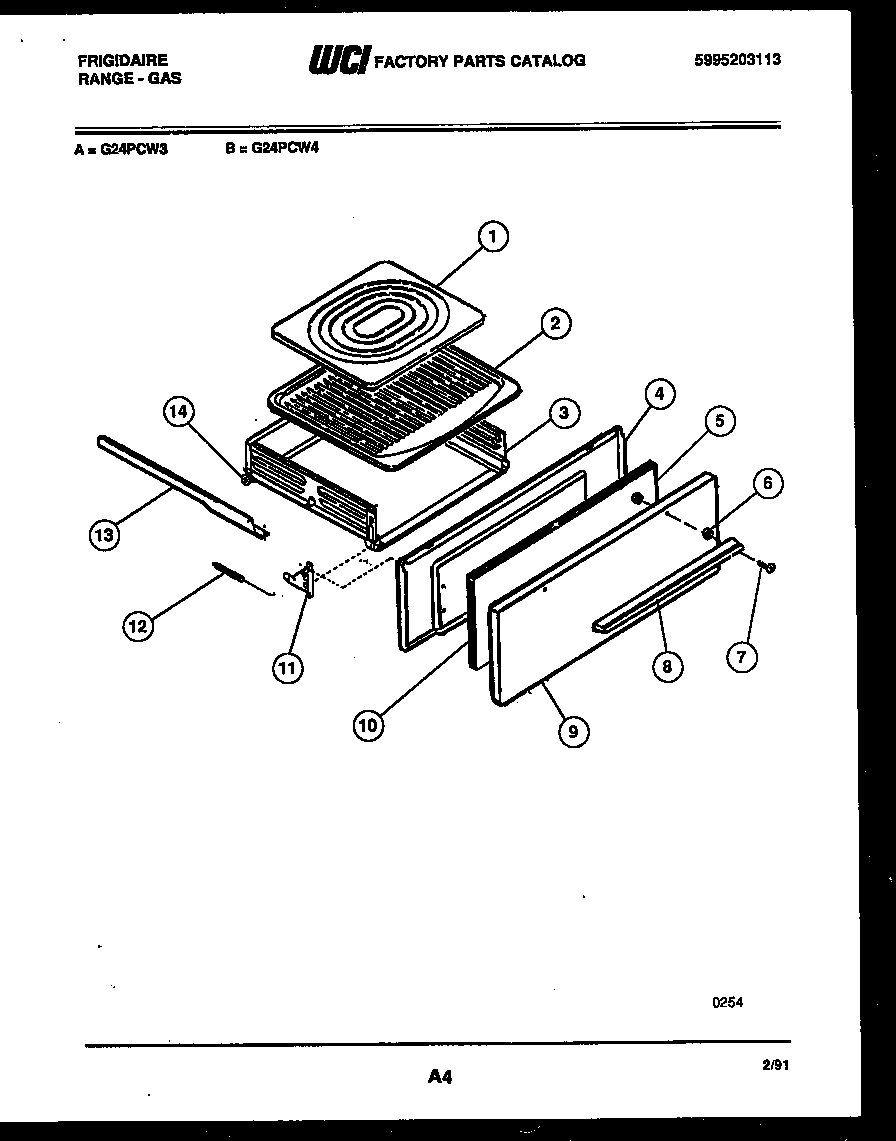

Broiler drawer parts diagram

Insulation

Part #3017184

The manufacturer no longer makes this part, and there's no substitute part

Panel 08014268
#7

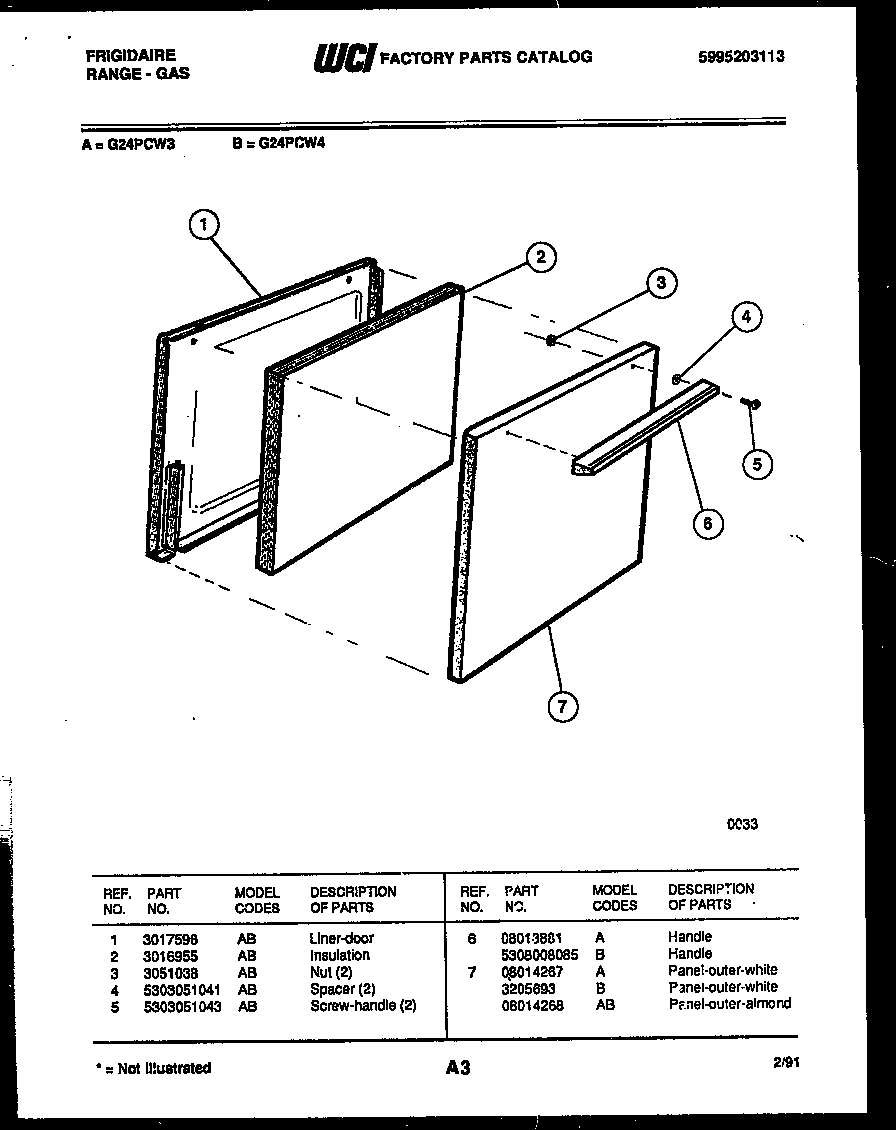

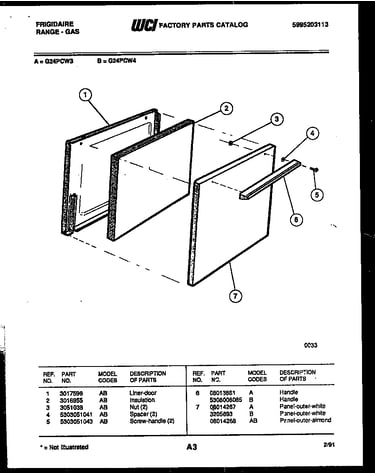

Door parts diagram

Panel

Part #08014268

The manufacturer no longer makes this part, and there's no substitute part

Baffle 5303131061
#6

Burner, manifold and gas control diagram

Baffle

Part #5303131061

The manufacturer no longer makes this part, and there's no substitute part

Panel 08014053
#9

Broiler drawer parts diagram

Panel

Part #08014053

The manufacturer no longer makes this part, and there's no substitute part
