GE
Countertop Microwave

Model # JE740GW03 Official GE microwave

Here are the diagrams and repair parts for Official GE JE740GW03 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Switch WB24X0801
#1445

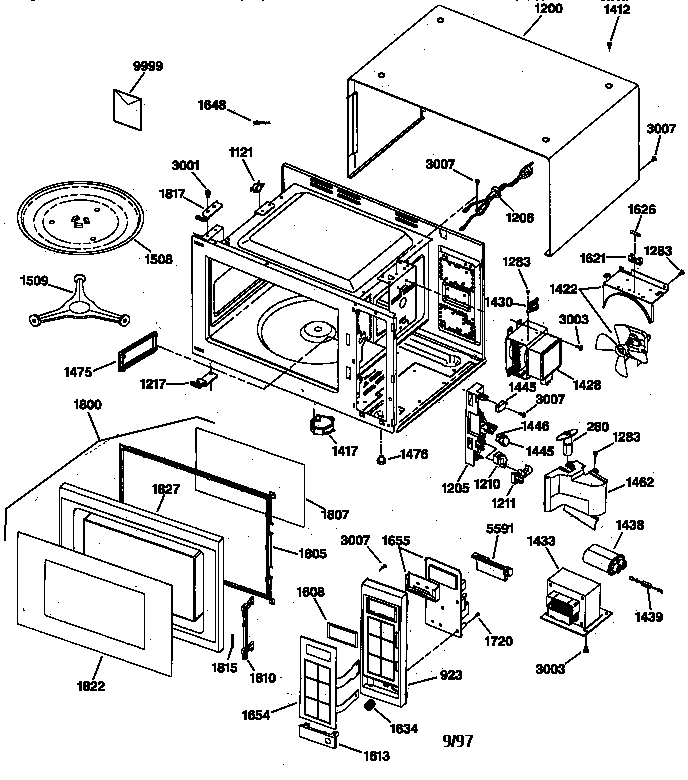

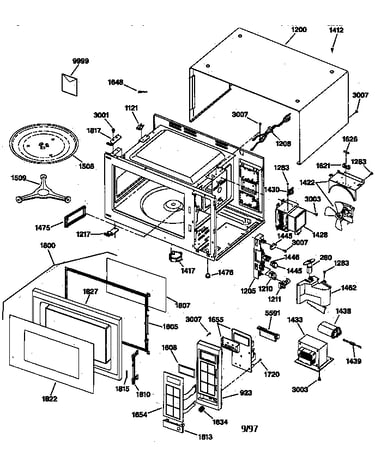

Microwave parts diagram

Switch

Part #WB24X0801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Switch WB24X0800
#1446

Microwave parts diagram

Switch

Part #WB24X0800

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0800. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Diode WB27X10072
#1439

Microwave parts diagram

Diode

Part #WB27X10072

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X10072. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Lamp WB36X0904
#280

Microwave parts diagram

Lamp

Part #WB36X0904

Replaced by #WB36X10194

?
Manufacturer substitution
This part replaces WB36X0904. Substitute parts can look different from the original.
$36.47 |
14% OFF Phone Price : $42.47
In Stock
Fuse WB27X0619
#1626

Microwave parts diagram

Fuse

Part #WB27X0619

Replaced by #WB27X7

?
Manufacturer substitution
This part replaces WB27X0619. Substitute parts can look different from the original.
$7.83 |
11% OFF Phone Price : $8.83
In Stock
Je 740 Gw Ww 49-8738
#9999B

Microwave parts diagram

Je 740 gw ww

Part #49-8738

$8.49
In Stock
Magnetron WB27X0706
#1428

Microwave parts diagram

Magnetron

Part #WB27X0706

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw WB01X1436
#3003

Microwave parts diagram

Washer screw

Part #WB01X1436

Replaced by #WB01X10084

?
Manufacturer substitution
This part replaces WB01X1436. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Hinge WB14X0188
#1817

Microwave parts diagram

Hinge

Part #WB14X0188

The manufacturer no longer makes this part, and there's no substitute part

Choke WB55X0958
#1827

Microwave parts diagram

Choke

Part #WB55X0958

The manufacturer no longer makes this part, and there's no substitute part
