Weber
Gas Grill

Model # 7271001 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber 7271001 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Hardware 81802
#NI

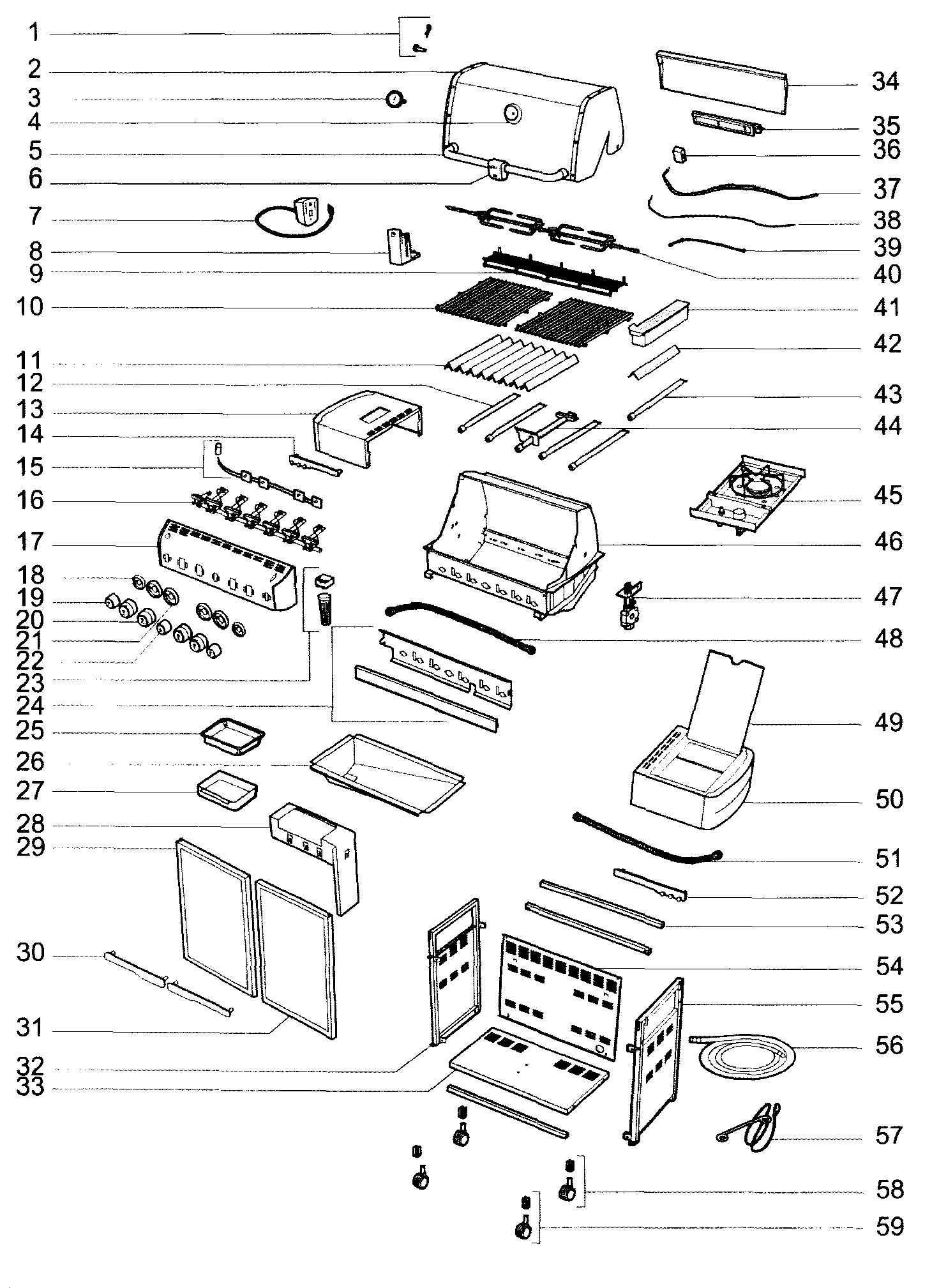

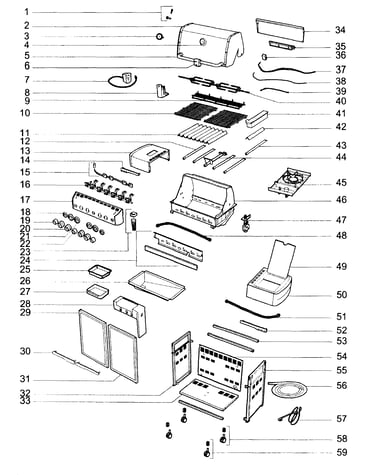

Grill parts diagram

Hardware

Part #81802

The manufacturer no longer makes this part, and there's no substitute part

Swing Basket 70191
#9

Grill parts diagram

Swing basket

Part #70191

The manufacturer no longer makes this part, and there's no substitute part

Drip Tray 70363
#26

Grill parts diagram

Drip tray

Part #70363

The manufacturer no longer makes this part, and there's no substitute part

Smoker Box 70381
#41

Grill parts diagram

Smoker box

Part #70381

The manufacturer no longer makes this part, and there's no substitute part

Hose 70371
#51

Grill parts diagram

Hose

Part #70371

The manufacturer no longer makes this part, and there's no substitute part

Sear Brnr Tube 70865
#44

Grill parts diagram

Sear brnr tube

Part #70865

The manufacturer no longer makes this part, and there's no substitute part

Holder 70349
#52

Grill parts diagram

Holder

Part #70349

The manufacturer no longer makes this part, and there's no substitute part

Heat Shield 70873
#24

Grill parts diagram

Heat shield

Part #70873

The manufacturer no longer makes this part, and there's no substitute part

Grate 70372
#10

Grill parts diagram

Grate

Part #70372

The manufacturer no longer makes this part, and there's no substitute part

Hardware 88067
#16A

Grill parts diagram

Hardware

Part #88067

The manufacturer no longer makes this part, and there's no substitute part
