Tappan
Gas Range

Model # 30-2232-23-01 Official Tappan gas range - 5995220778

Here are the diagrams and repair parts for Official Tappan 30-2232-23-01 gas range - 5995220778, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

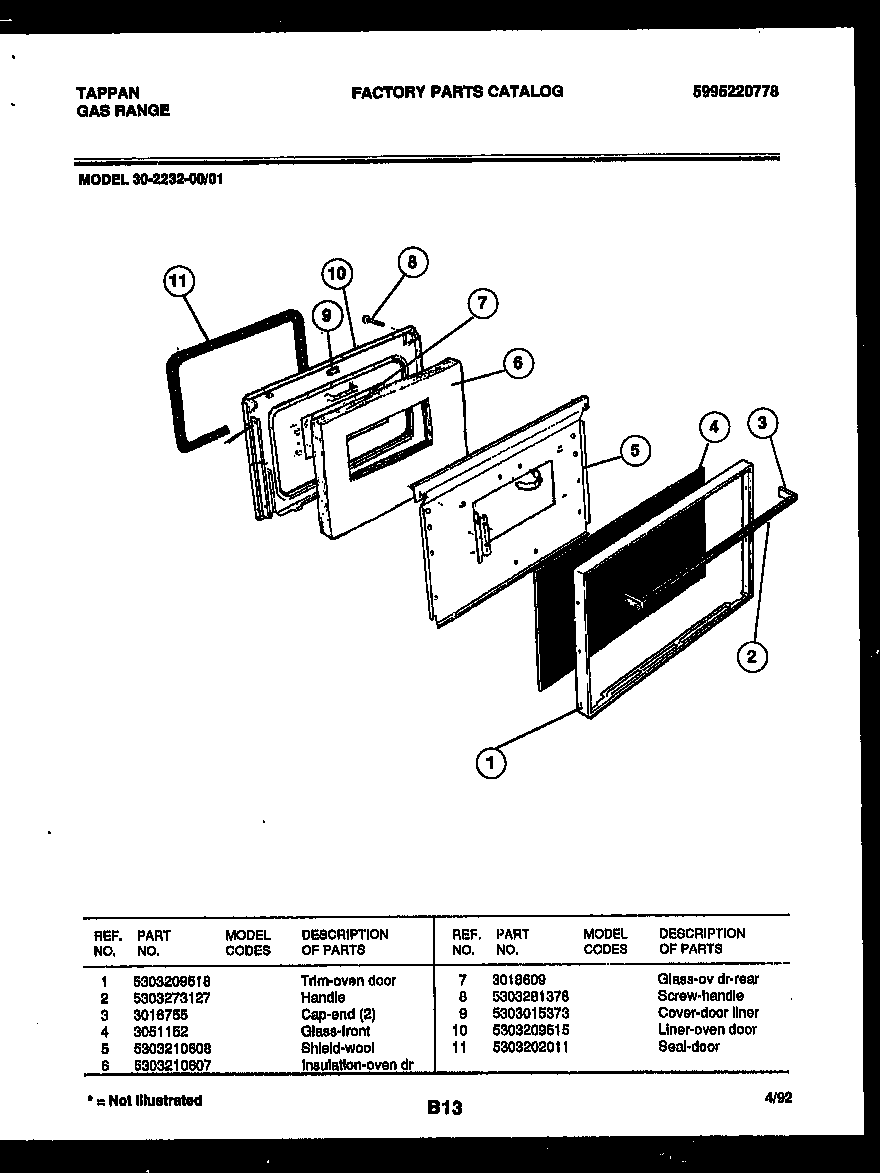

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Igniter 5303131300
#2

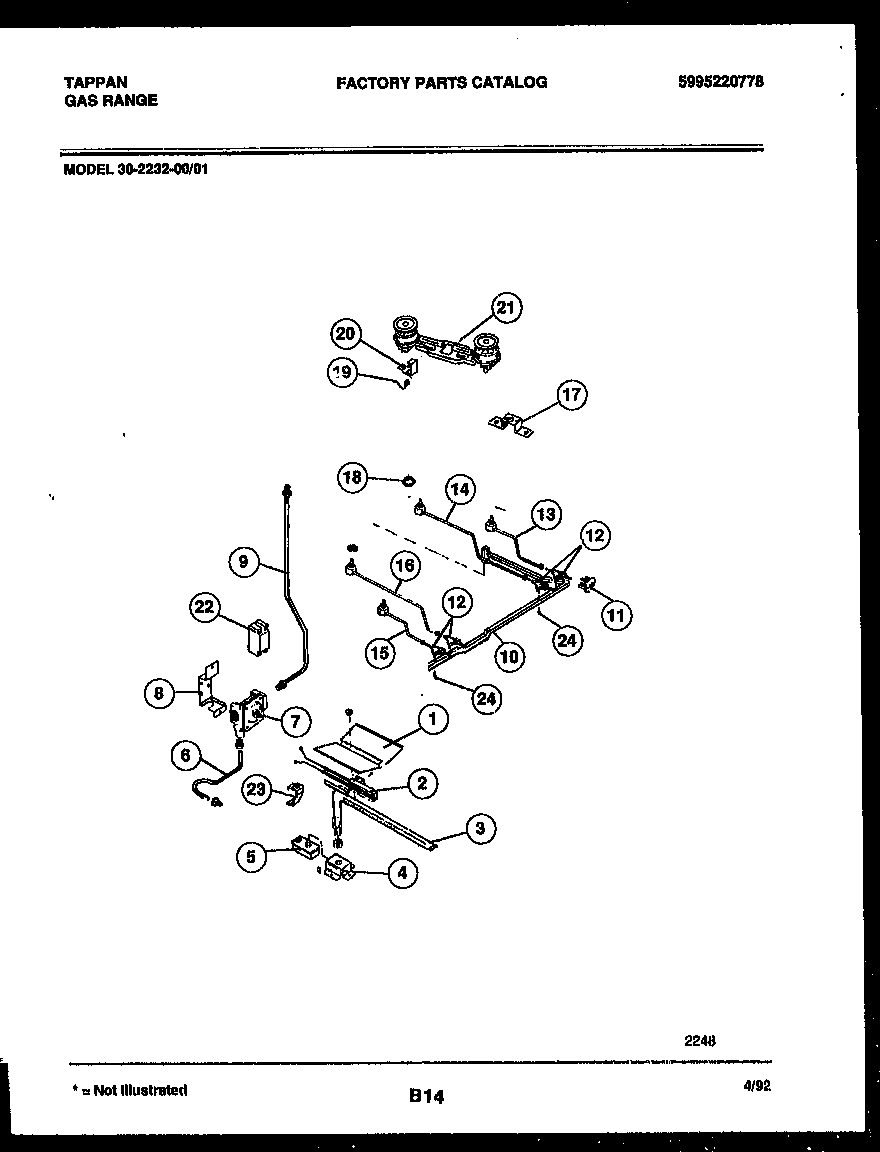

Burner, manifold and gas control diagram

Igniter

Part #5303131300

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5303131300. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Lamp 5303208582
#4

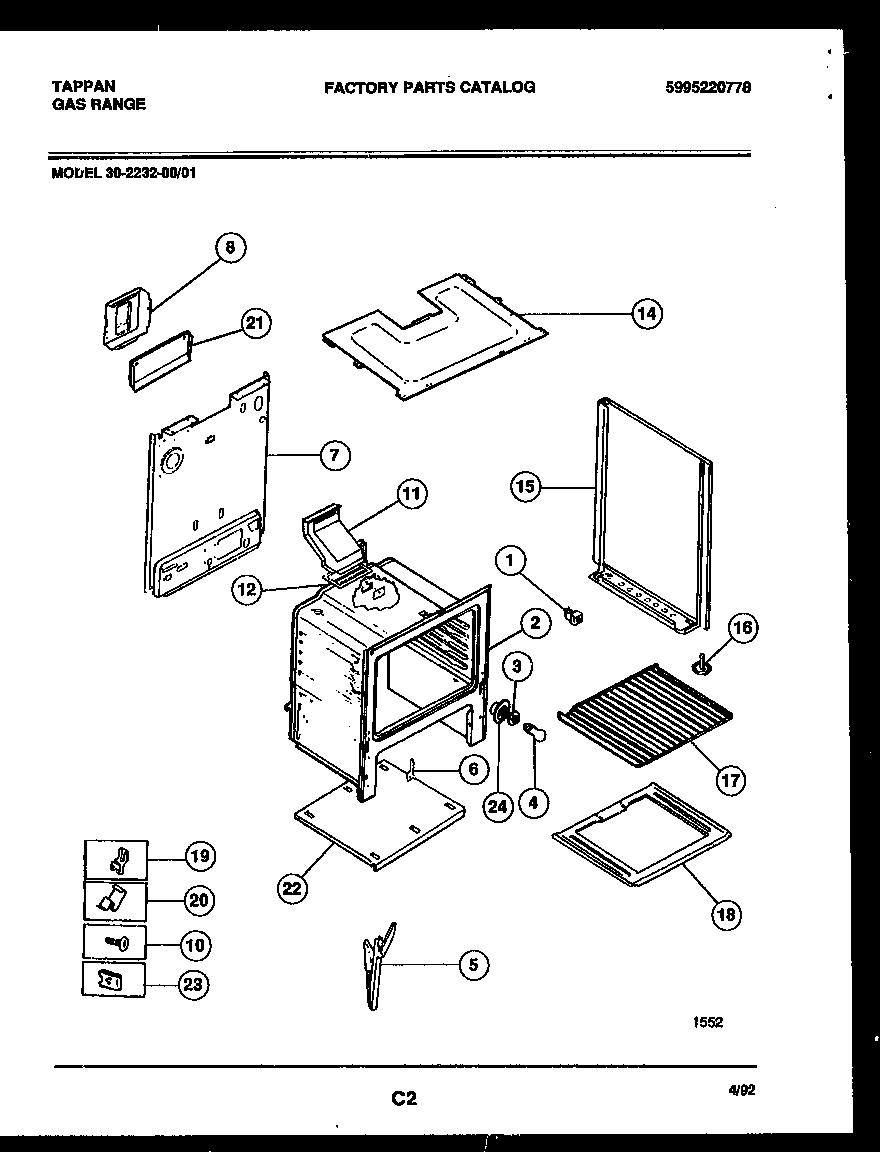

Body parts diagram

Lamp

Part #5303208582

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303208582. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Cord 3202006

#NI

All parts diagram

Cord

Part #3202006

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 3202006. Substitute parts can look different from the original.
$29.60 |
17% OFF Phone Price : $35.60
In Stock
Screw 5303280382
#12B

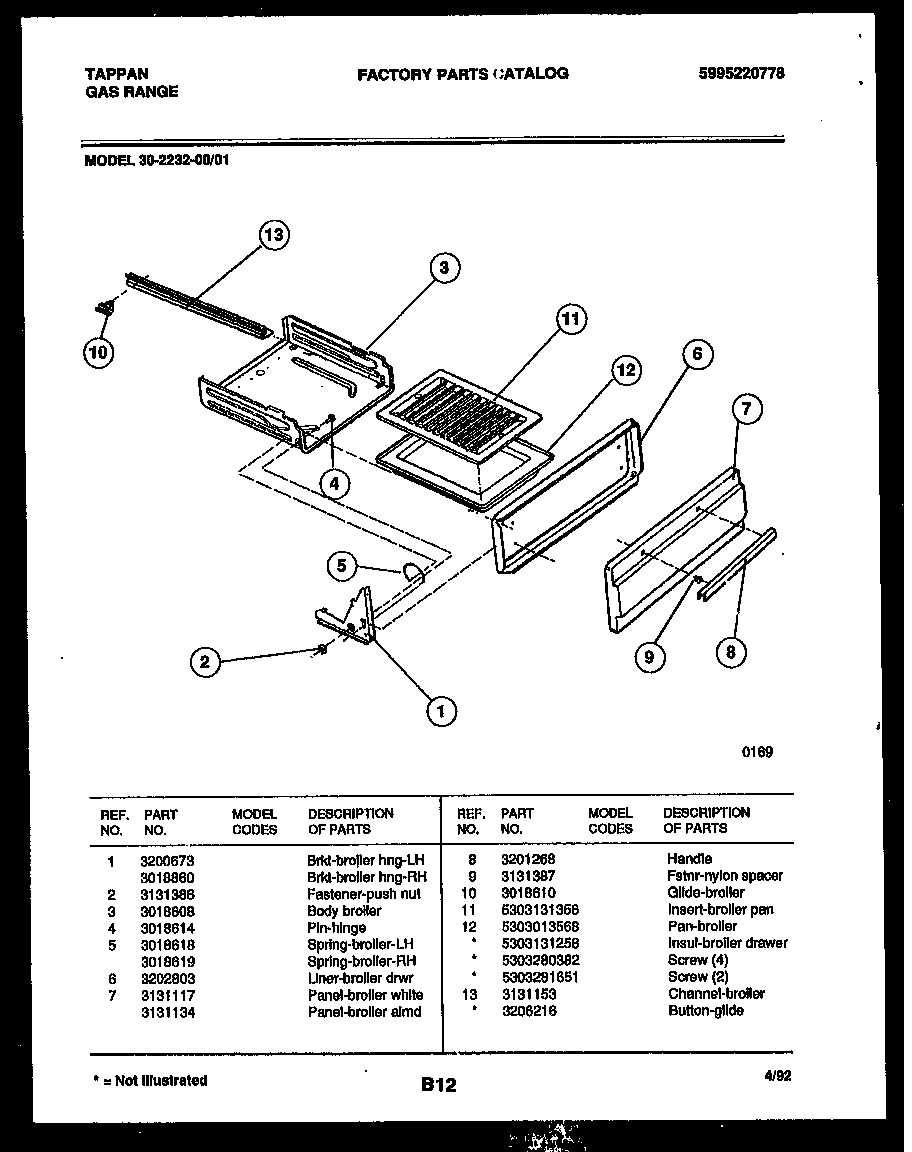

Broiler drawer parts diagram

Screw

Part #5303280382

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 5303280382. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Range Screw 3131732
#10

Body parts diagram

Range screw

Part #3131732

Replaced by #316282700

?
Manufacturer substitution
This part replaces 3131732. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Tubing 5303271611
#6

Burner, manifold and gas control diagram

Tubing

Part #5303271611

Replaced by #316065006

?
Manufacturer substitution
This part replaces 5303271611. Substitute parts can look different from the original.
$89.17 |
6% OFF Phone Price : $95.17
In Stock
Grate 5303012700
#8

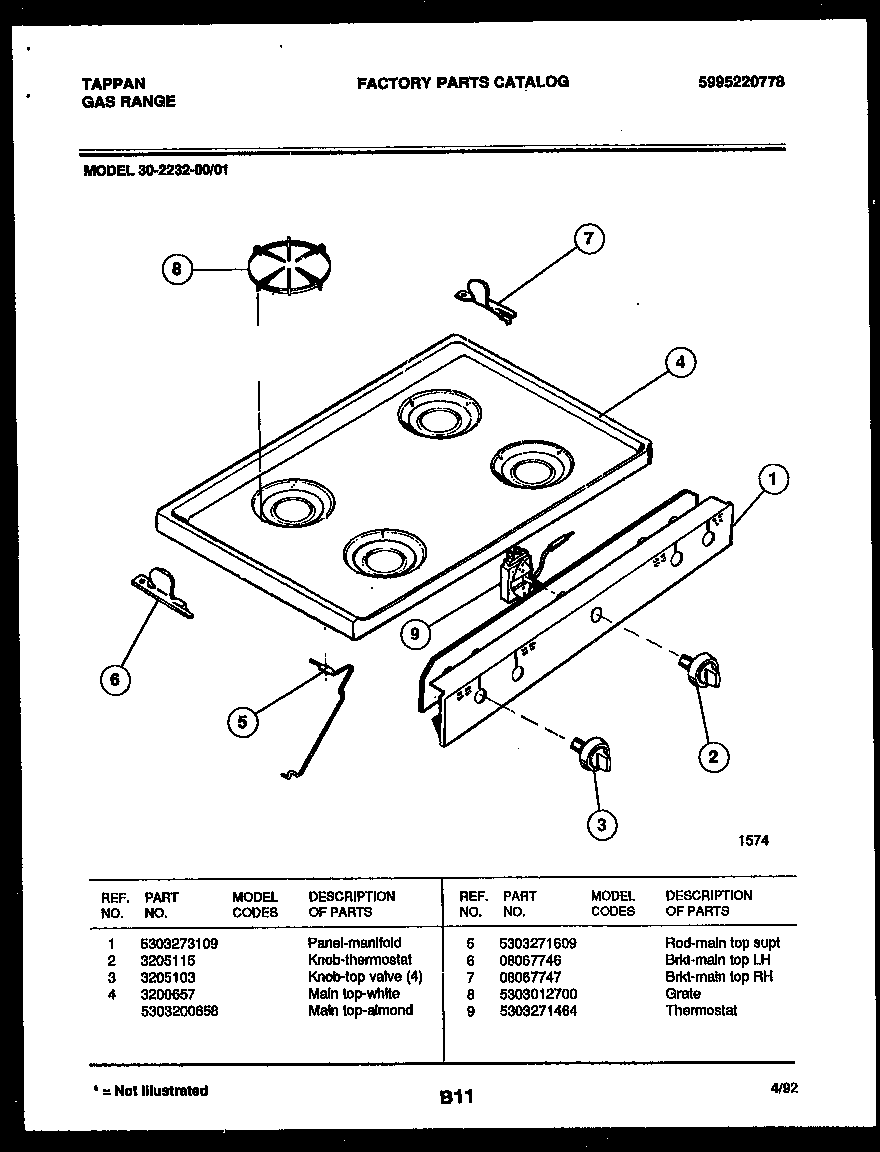

Cooktop parts diagram

Grate

Part #5303012700

Replaced by #316055800

?
Manufacturer substitution
This part replaces 5303012700. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Gasket 08067965
#12

Body parts diagram

Gasket

Part #08067965

Replaced by #316542102

?
Manufacturer substitution
This part replaces 08067965. Substitute parts can look different from the original.
$12.51 |
14% OFF Phone Price : $14.51
In Stock
Bumper 3131903
#21A

Body parts diagram

Bumper

Part #3131903

$47.29
In Stock
Plate Instruction 5303274449
#5

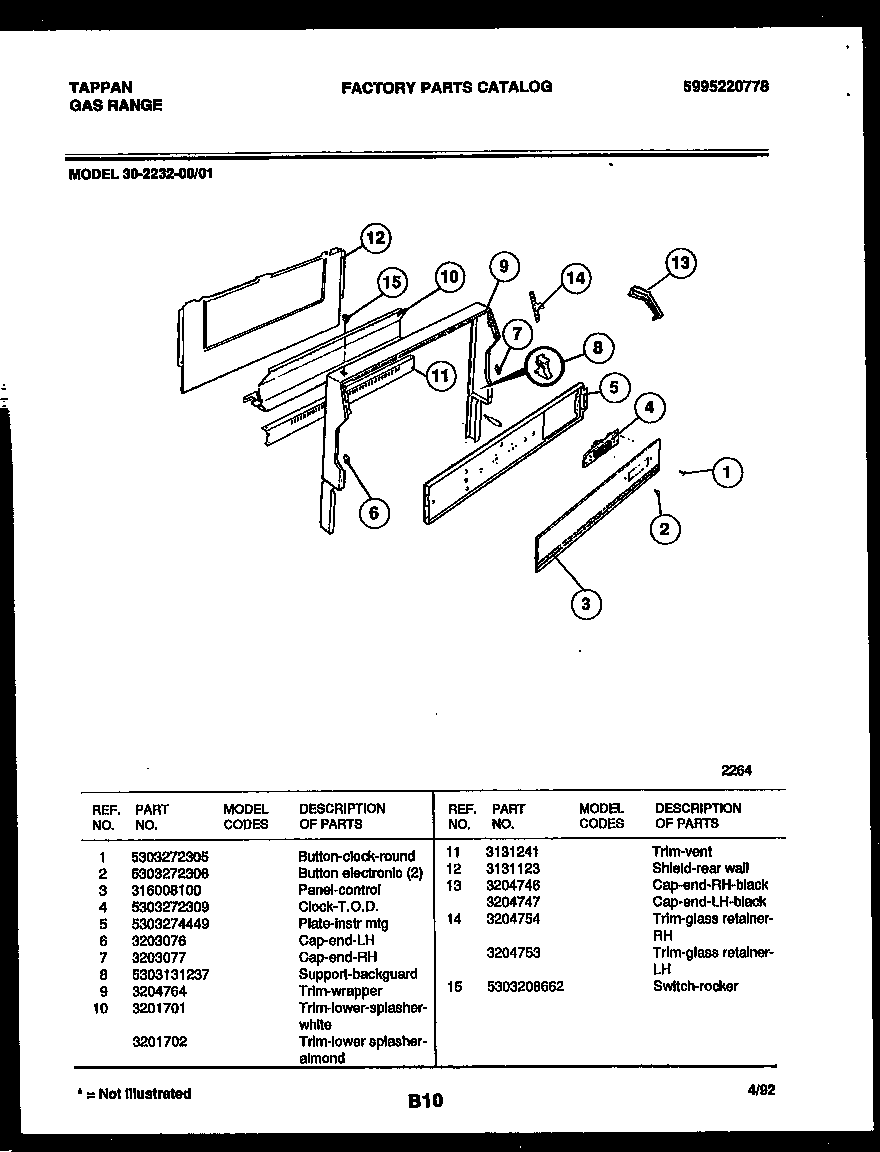

Backguard diagram

Plate instruction

Part #5303274449

$9.99
In Stock
