Craftsman
Front-Engine Lawn Tractor

Model # 247203774 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 247203774 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

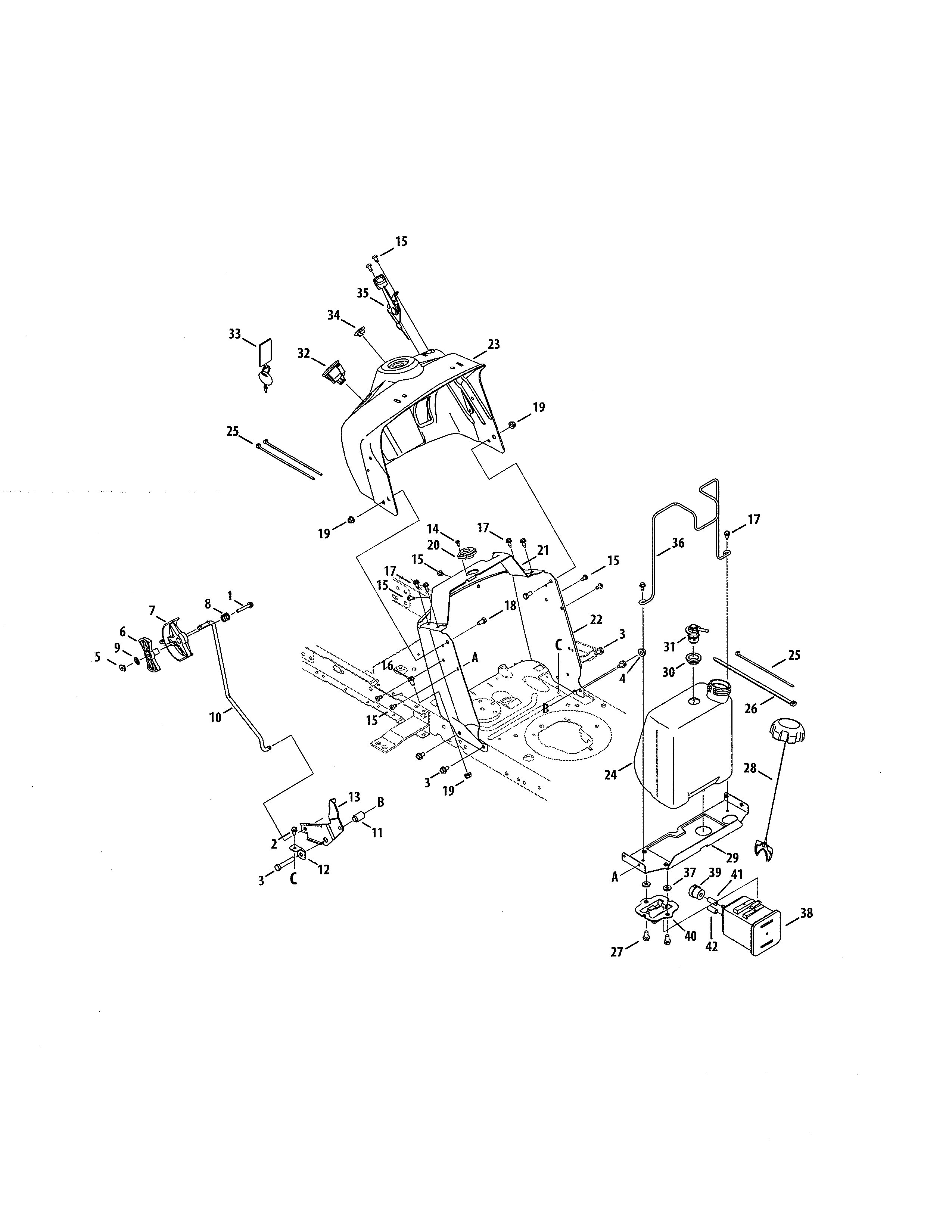

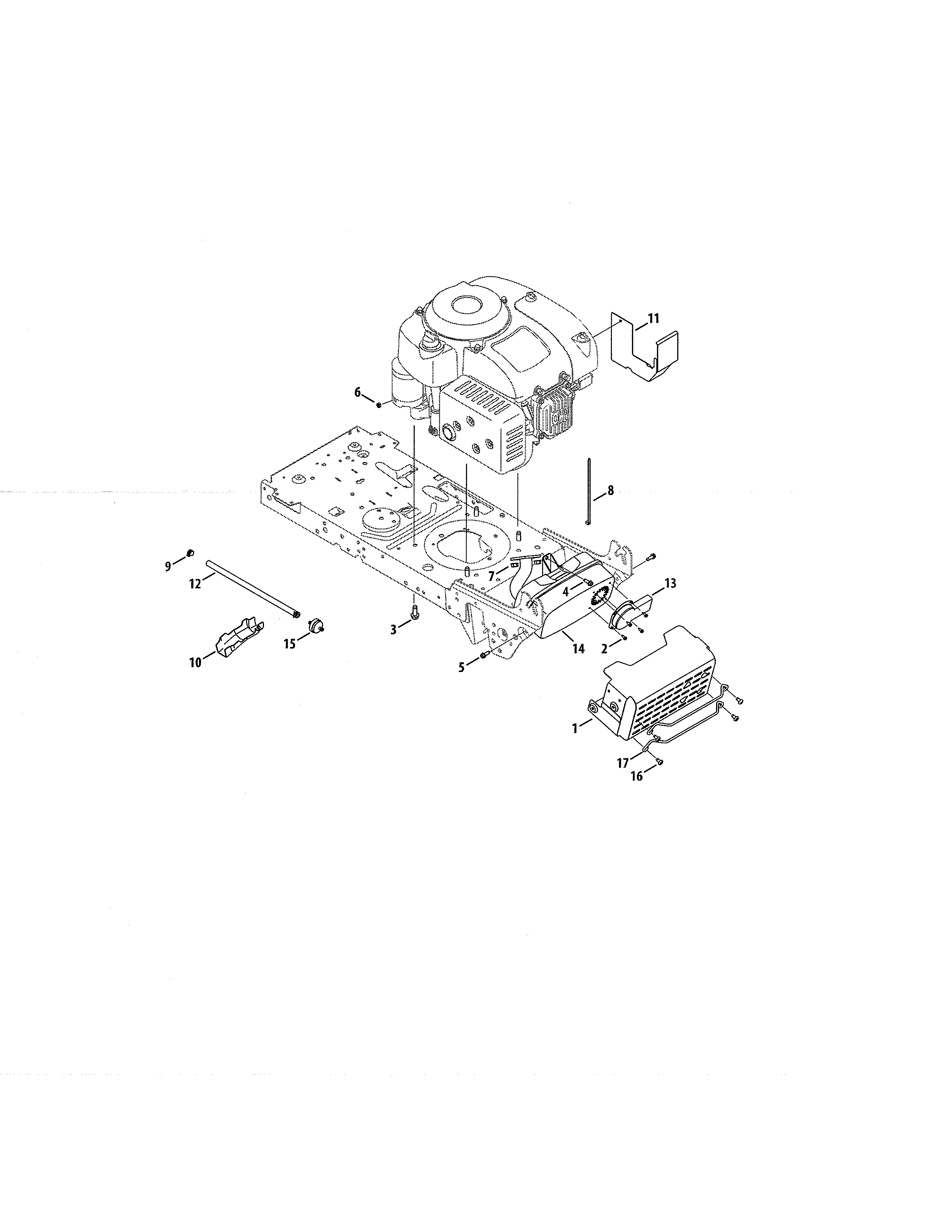

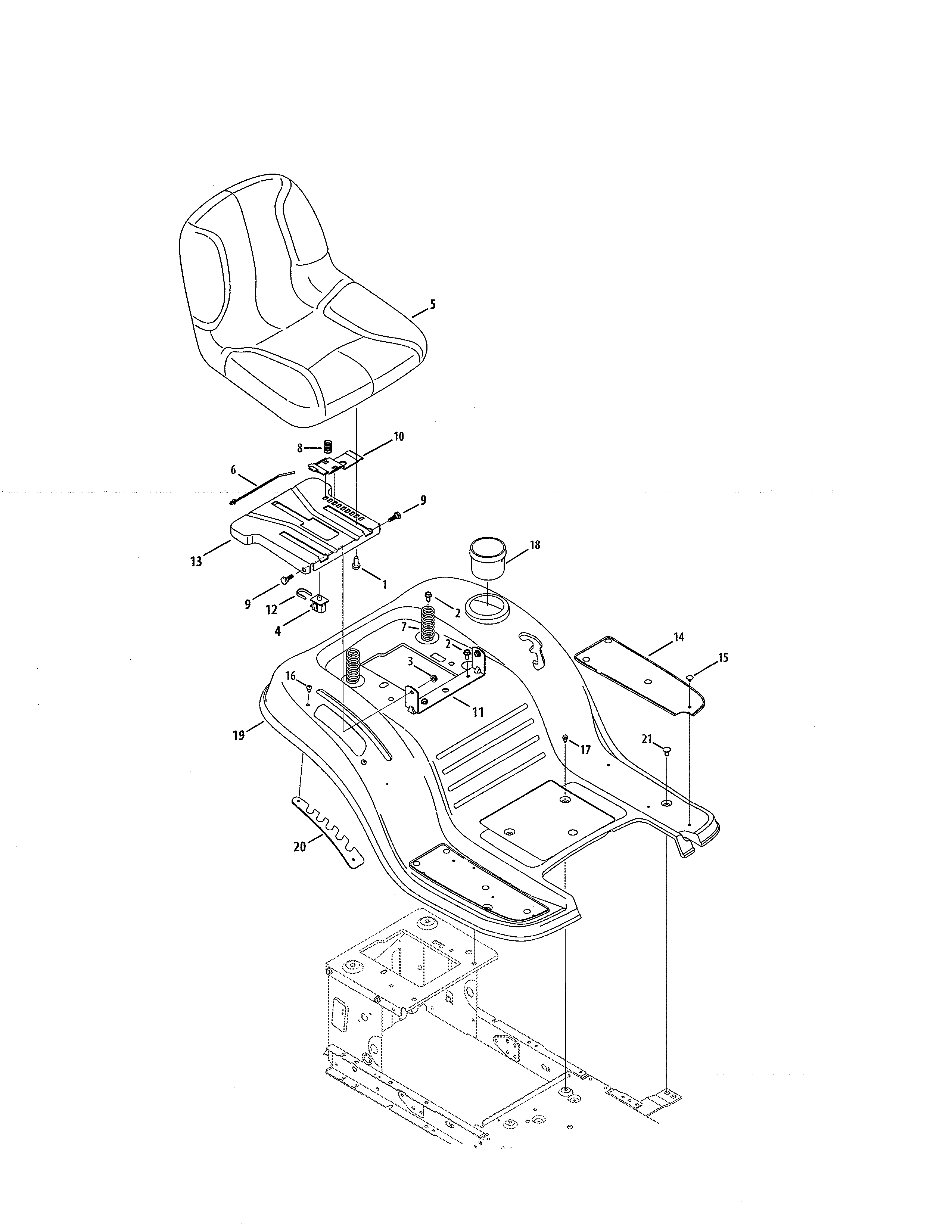

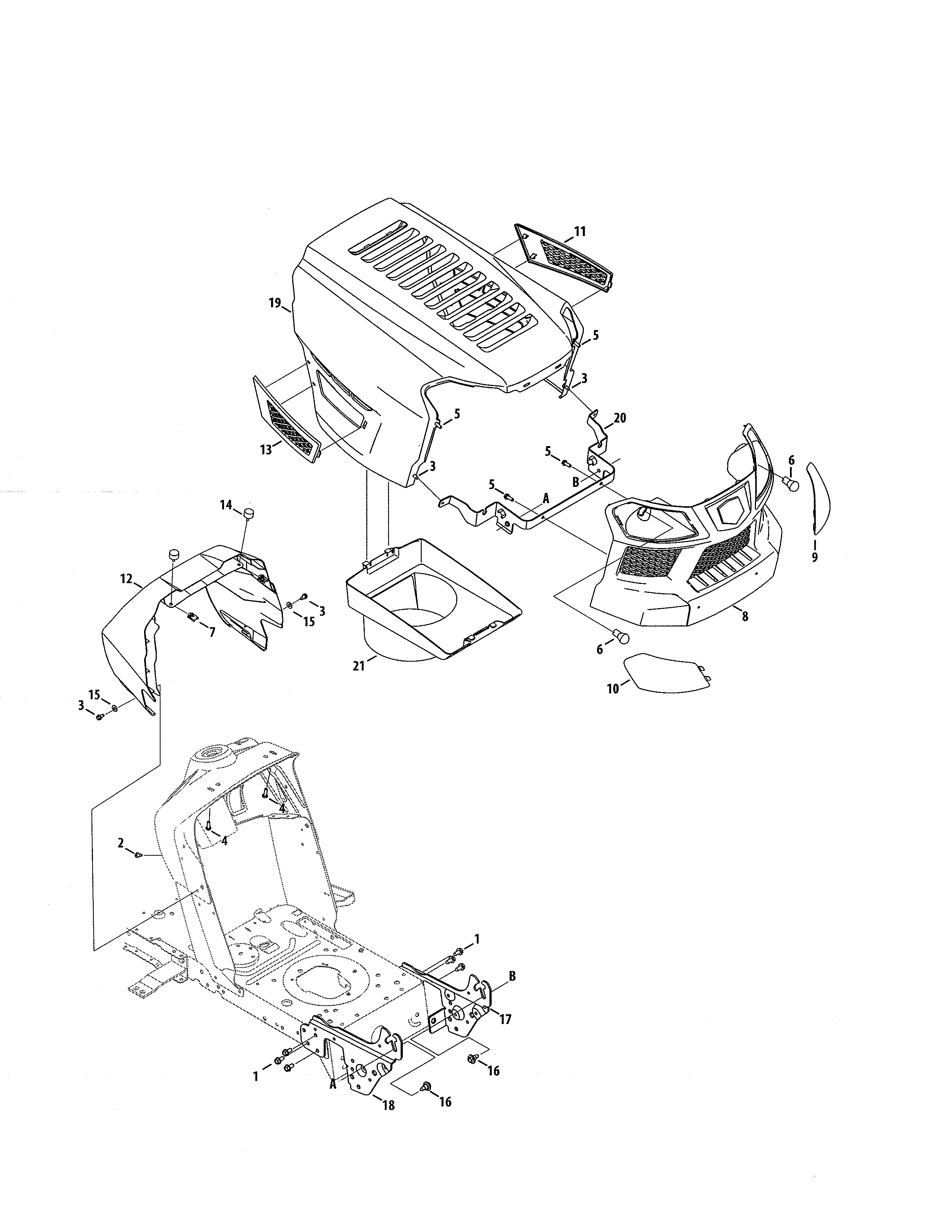

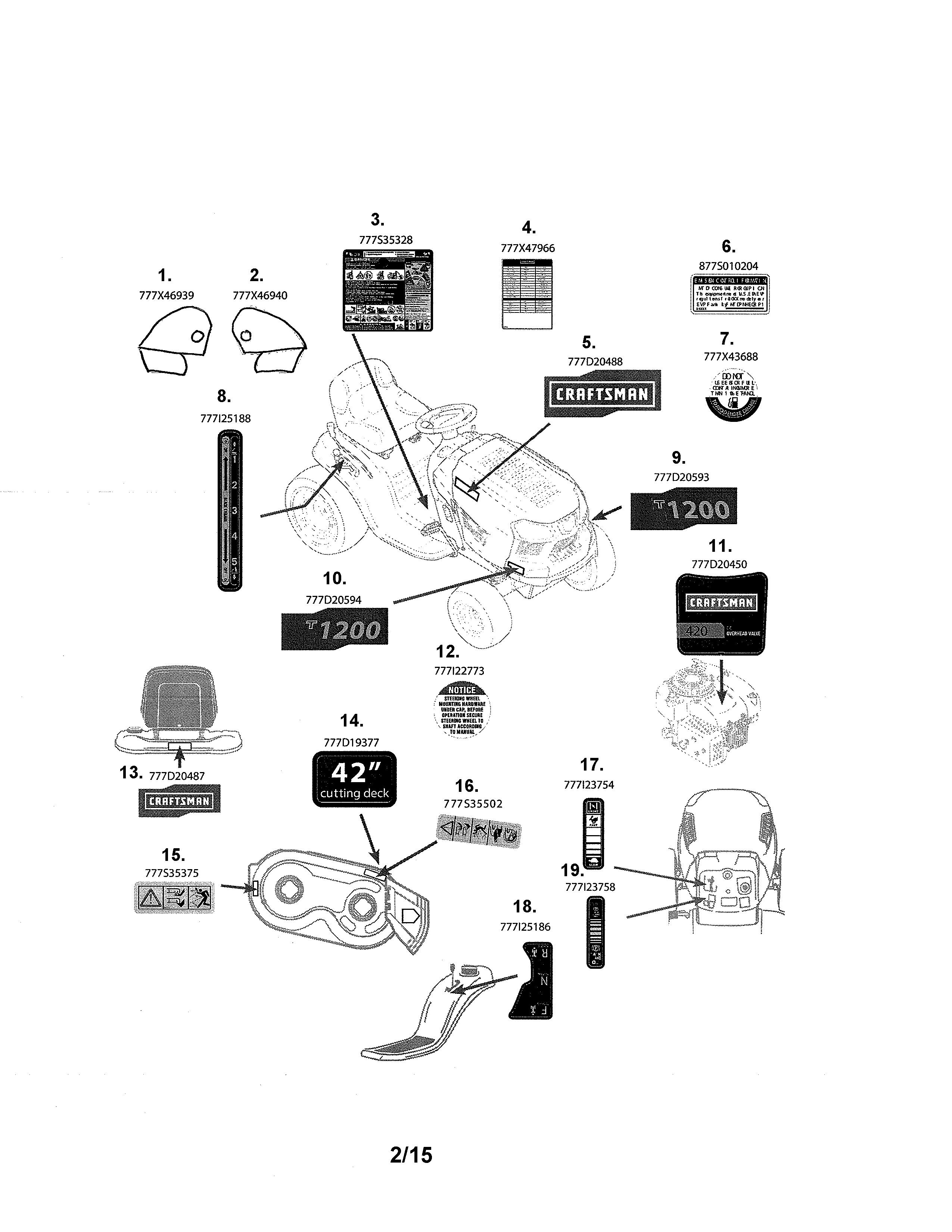

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 488 parts  |
Lawn Tractor 42-in Deck Bagging Blade 942-04308
#33

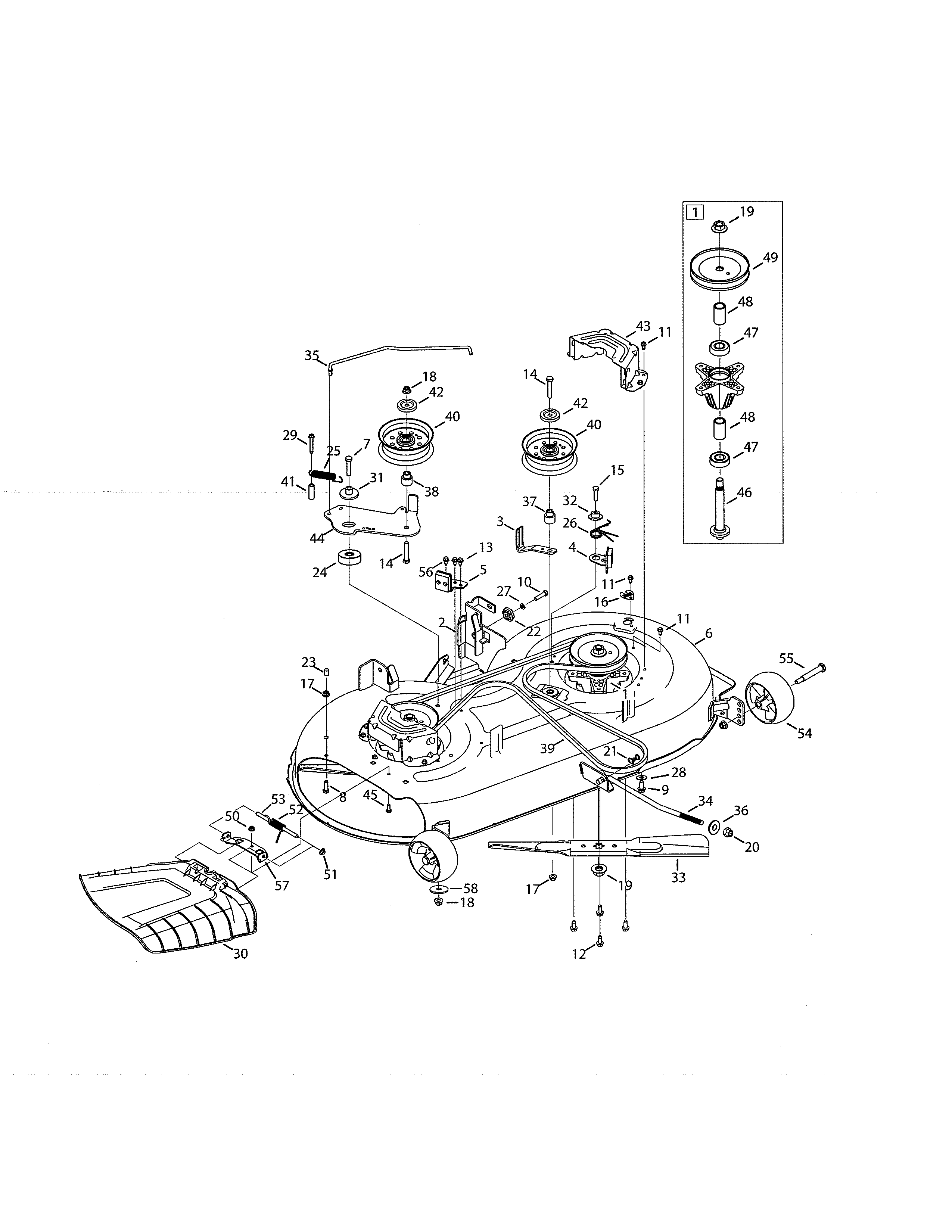

Deck/spindle assembly diagram

Lawn tractor 42-in deck bagging blade

Part #942-04308

Replaced by #942-04308A

?
Manufacturer substitution
This part replaces 942-04308. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.76 |
17% OFF Phone Price : $34.76
In Stock
Lawn Tractor Ground Drive Belt, 2/3 X 90-4/5-in (replaces 754-0467a, 954-0467) 954-0467A
#61

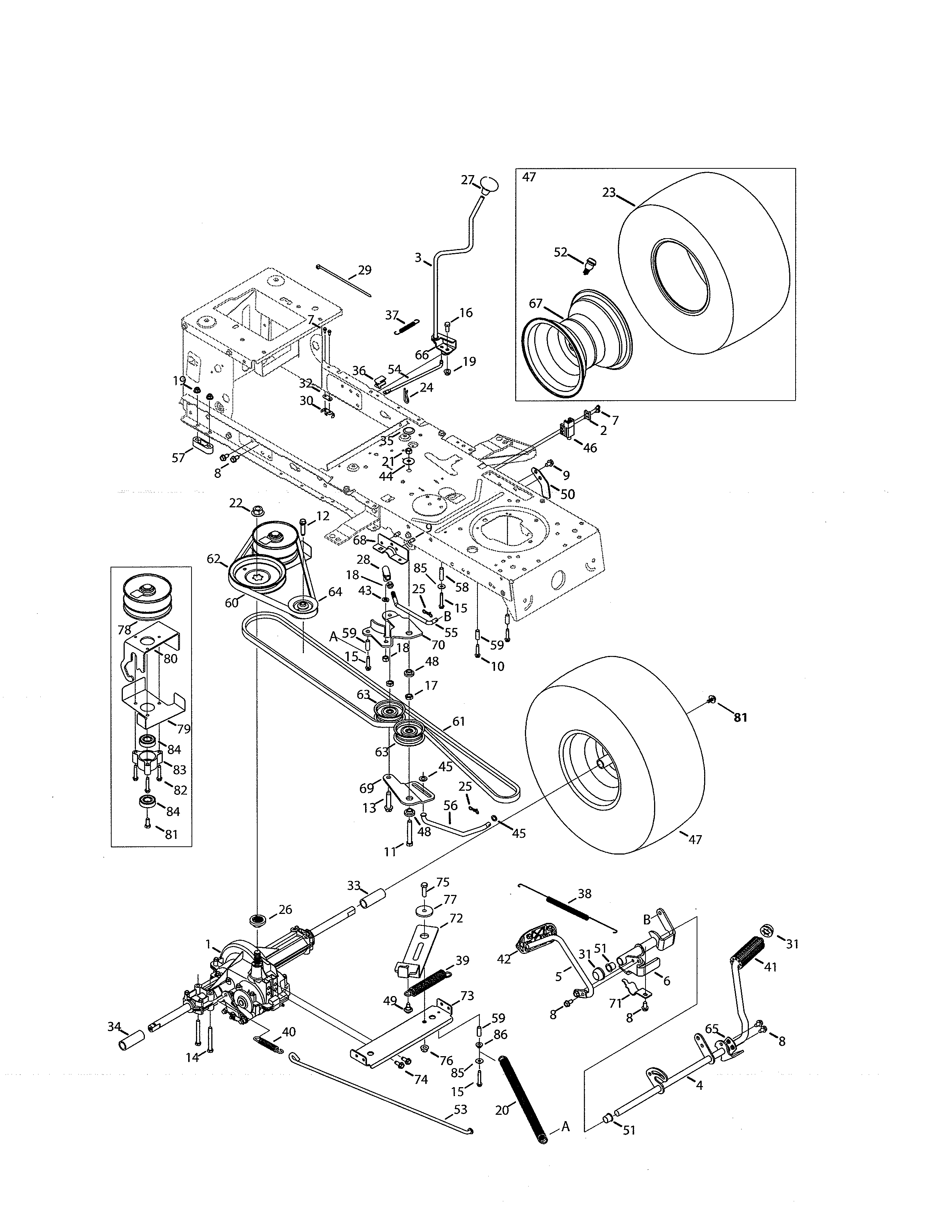

Transmission/wheel assembly diagram

Lawn tractor ground drive belt, 2/3 x 90-4/5-in (replaces 754-0467a, 954-0467)

Part #954-0467A

Replaced by #490-501-Y035

?
Manufacturer substitution
This part replaces 954-0467A. Substitute parts can look different from the original.
BEST SELLER
$44.61 |
12% OFF Phone Price : $50.61
In Stock
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.53 |
18% OFF Phone Price : $5.53
In Stock
Ace Lawn & Garden Equipment Self-tapping Bolt, 5/16-18 X 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, Gw-7101260) 710-1260A
Ace lawn & garden equipment self-tapping bolt, 5/16-18 x 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, gw-7101260)

Part #710-1260A

BEST SELLER
This item is not returnable
$4.34 |
19% OFF Phone Price : $5.34
In Stock
Yard Machines Lawn & Garden Equipment Nut 712-04064
Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Lawn Tractor Gauge Wheel 734-04155
#54

Deck/spindle assembly diagram

Lawn tractor gauge wheel

Part #734-04155

BEST SELLER
$23.42 |
20% OFF Phone Price : $29.42
In Stock
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Lawn Tractor Steering Shaft 938-05078
#15

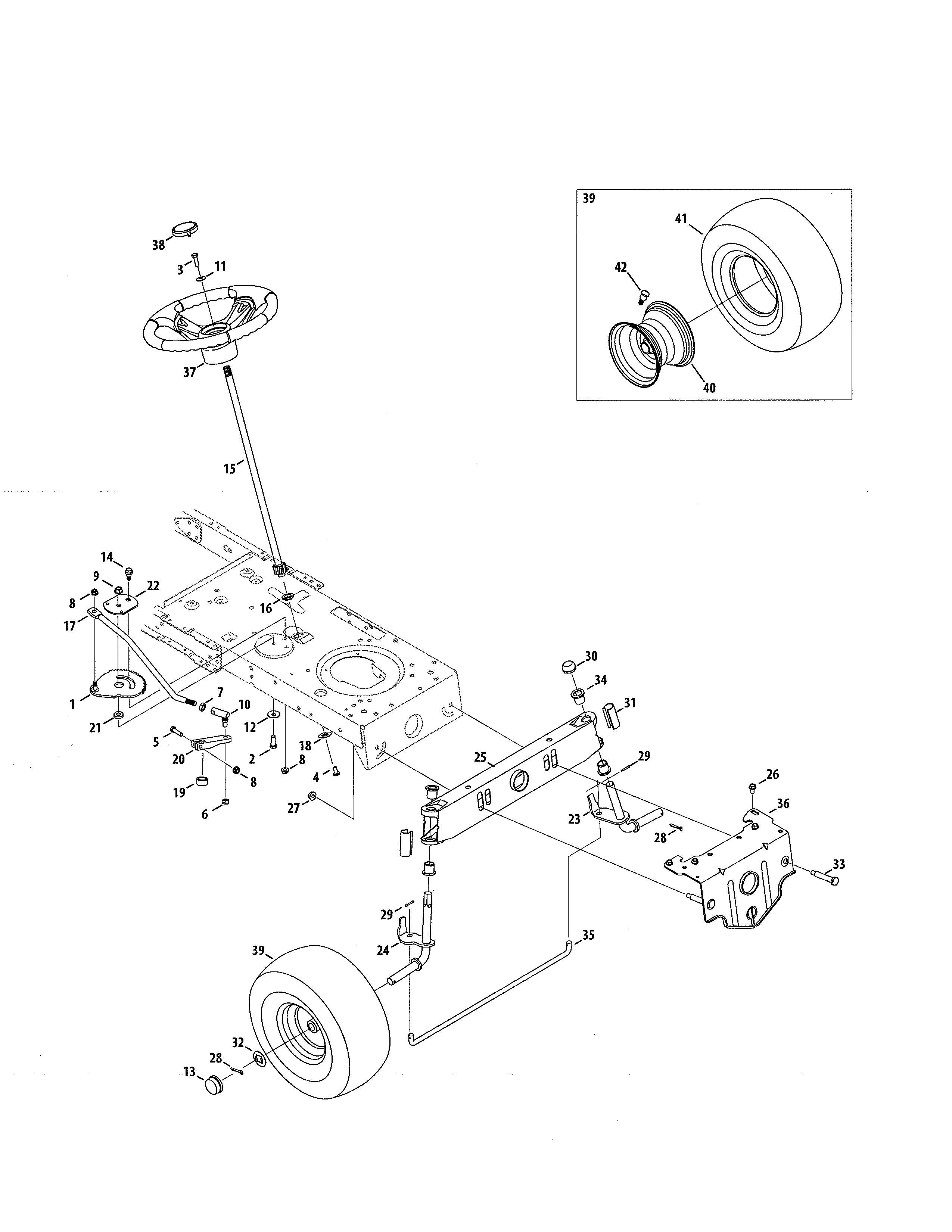

Steering diagram

Lawn tractor steering shaft

Part #938-05078

Replaced by #738P07154

?
Manufacturer substitution
This part replaces 938-05078. Substitute parts can look different from the original.
BEST SELLER
$58.56 |
9% OFF Phone Price : $64.56
In Stock
Lawn Tractor Deflector Shield 631-04354B
#30

Deck/spindle assembly diagram

Lawn tractor deflector shield

Part #631-04354B

Replaced by #631-04354C

?
Manufacturer substitution
This part replaces 631-04354B. Substitute parts can look different from the original.
BEST SELLER
$44.49 |
12% OFF Phone Price : $50.49
In Stock
Lawn Tractor Starter Solenoid 725-06153
#23

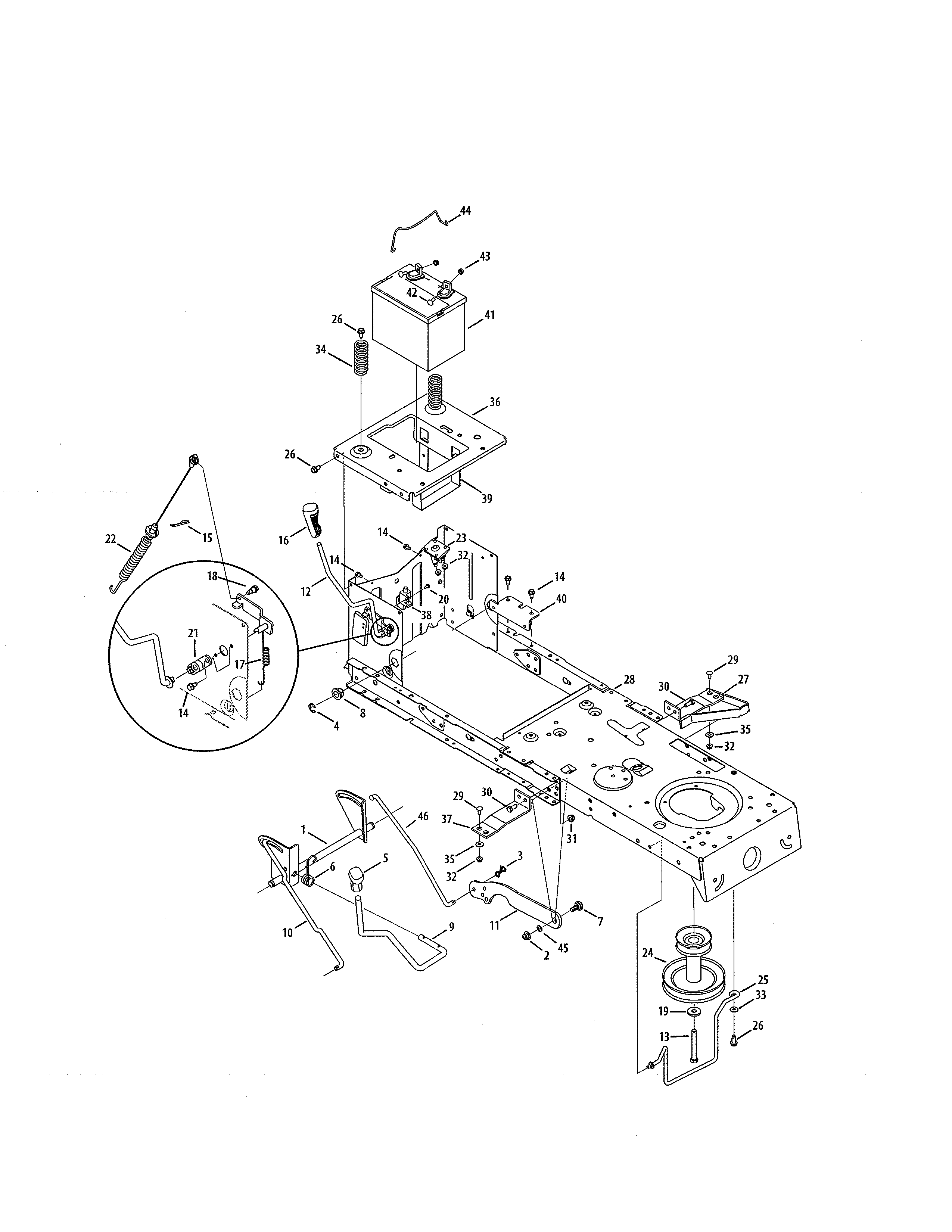

Battery/frame diagram

Lawn tractor starter solenoid

Part #725-06153

Replaced by #725-06153A

?
Manufacturer substitution
This part replaces 725-06153. Substitute parts can look different from the original.
BEST SELLER
$42.97 |
12% OFF Phone Price : $48.97
In Stock
