Craftsman
Walk-Behind Mower

Model # 13197775 Official Craftsman 22" self-propelled rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 13197775 22" self-propelled rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

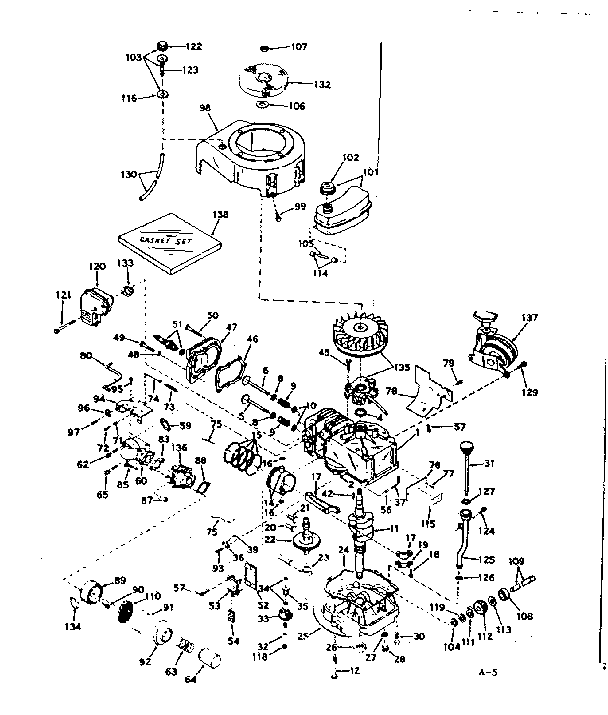

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 280 parts  |
Washer 52160
#60

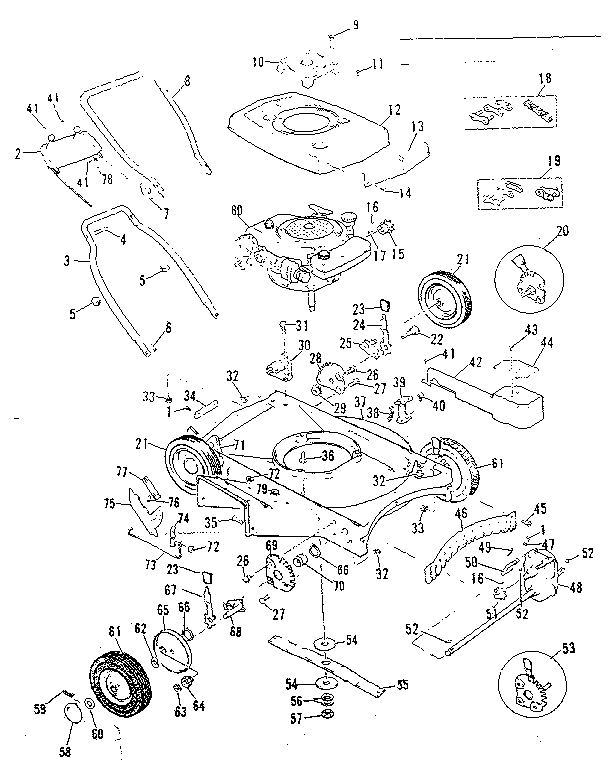

Mower deck diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Screw 55187
#26

Mower deck diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Husqvarna Lawn & Garden Equipment Washer (replaces 532057079, 5320570-79) 57079
#9

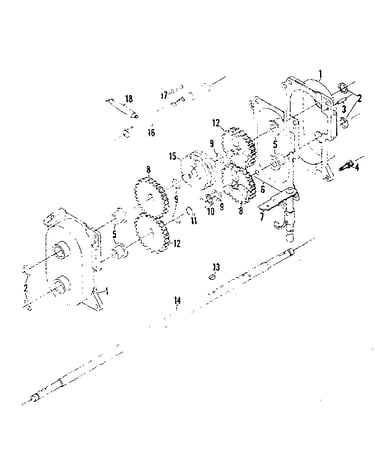

Gear case assembly diagram

Husqvarna lawn & garden equipment washer (replaces 532057079, 5320570-79)

Part #57079

Replaced by #532057079

?
Manufacturer substitution
This part replaces 57079. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Lawn Tractor Transaxle Wheel Axle Oil Seal 57072
#2

Gear case assembly diagram

Lawn tractor transaxle wheel axle oil seal

Part #57072

Replaced by #532057072

?
Manufacturer substitution
This part replaces 57072. Substitute parts can look different from the original.
$8.54
In Stock
Link, Repair Kit Inc Offset Link & Connecting Link 60472
#19

Mower deck diagram

Link, repair kit inc offset link & connecting link

Part #60472

The manufacturer no longer makes this part, and there's no substitute part

Hair Pin Cotter 455563
#6

Mower deck diagram

Hair pin cotter

Part #455563

The manufacturer no longer makes this part, and there's no substitute part

Handle - Upper 58294
#8

Mower deck diagram

Handle - upper

Part #58294

The manufacturer no longer makes this part, and there's no substitute part

Cable Clip 57107
#47

Mower deck diagram

Cable clip

Part #57107

The manufacturer no longer makes this part, and there's no substitute part

Wheel Mounting Bracket Assembly 56682
#25

Mower deck diagram

Wheel mounting bracket assembly

Part #56682

The manufacturer no longer makes this part, and there's no substitute part

Gear Case Assembly (see Illus. Right Side) 57065
#48

Mower deck diagram

Gear case assembly (see illus. right side)

Part #57065

The manufacturer no longer makes this part, and there's no substitute part
