Model # IVE82302 Official Inglis 30" electric freestanding range

Here are the diagrams and repair parts for Official Inglis IVE82302 30" electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

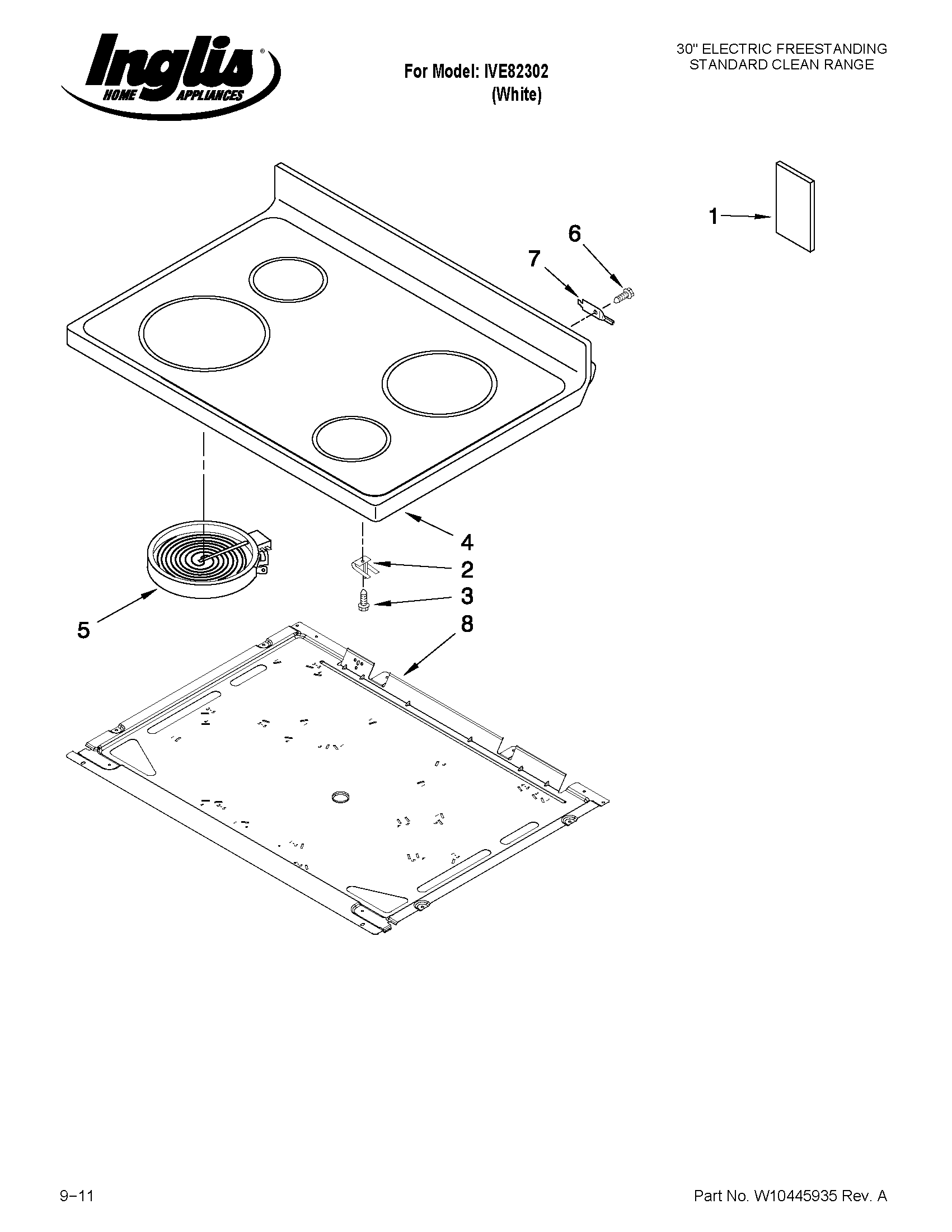

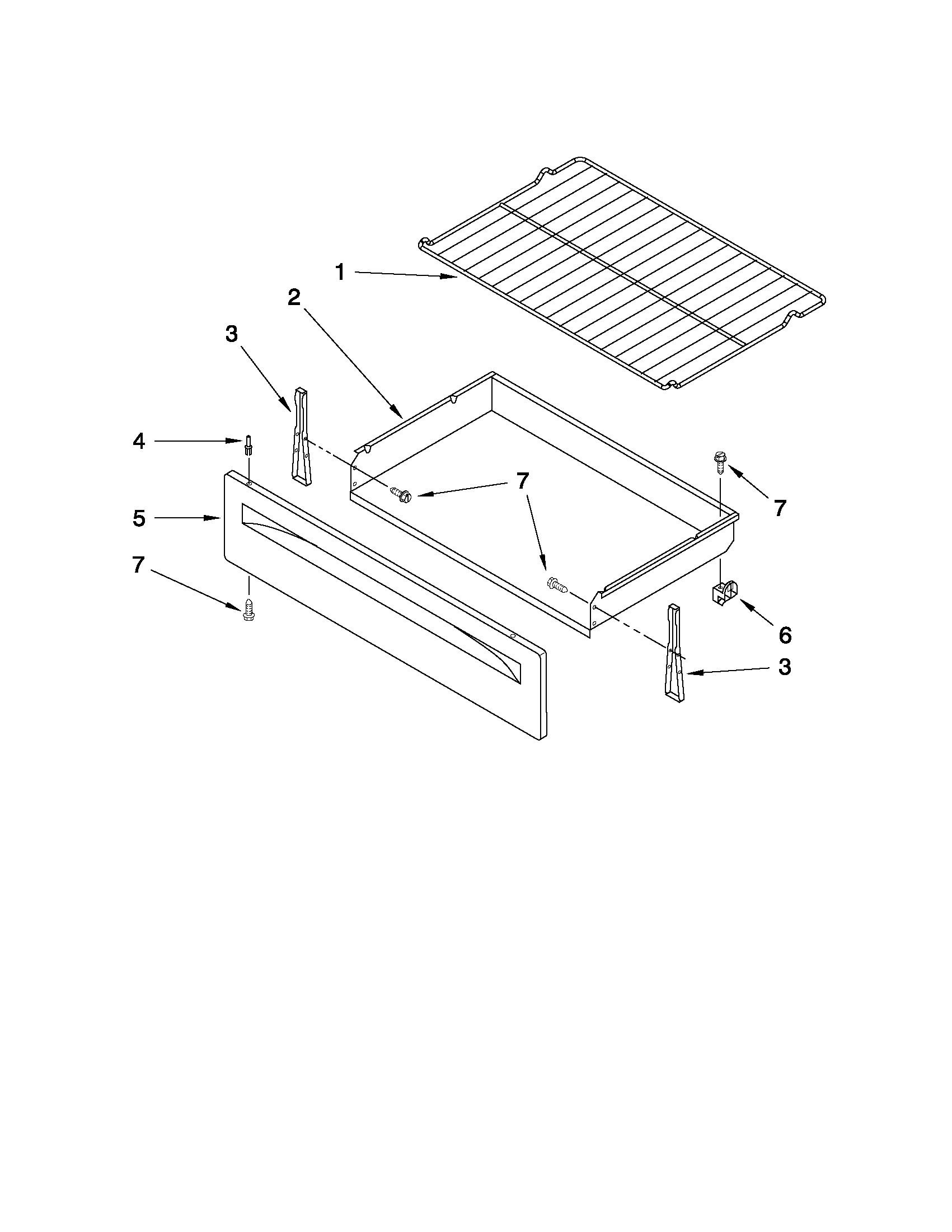

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Light Bulb 311255
#25

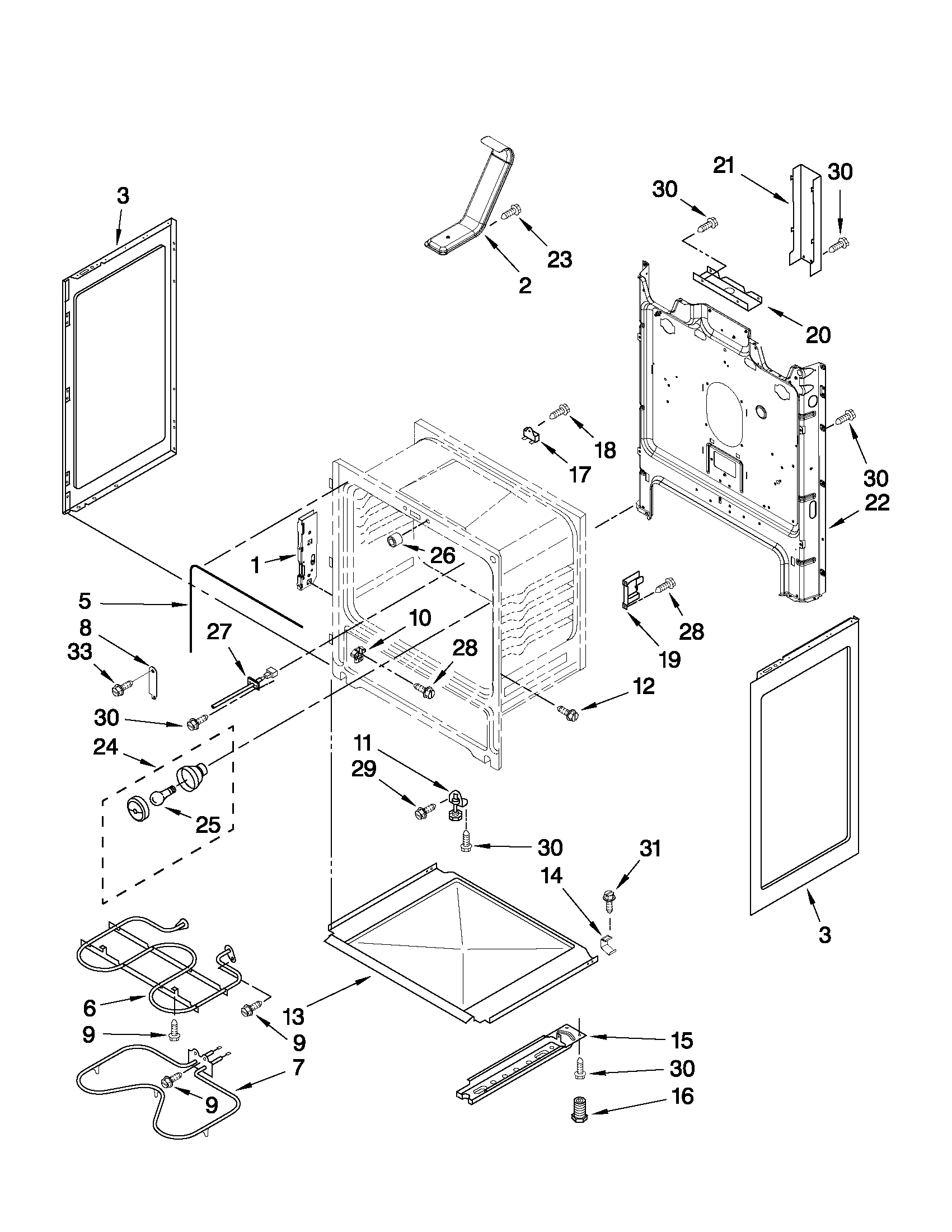

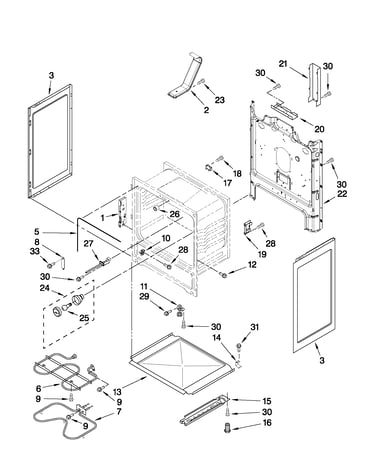

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Oven Temperature Sensor W10181986
#27

Chassis parts diagram

Range oven temperature sensor

Part #W10181986

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces W10181986. Substitute parts can look different from the original.
BEST SELLER
$63.08 |
9% OFF Phone Price : $69.08
In Stock
Range Dual Surface Element Control Switch W10434452
#4B

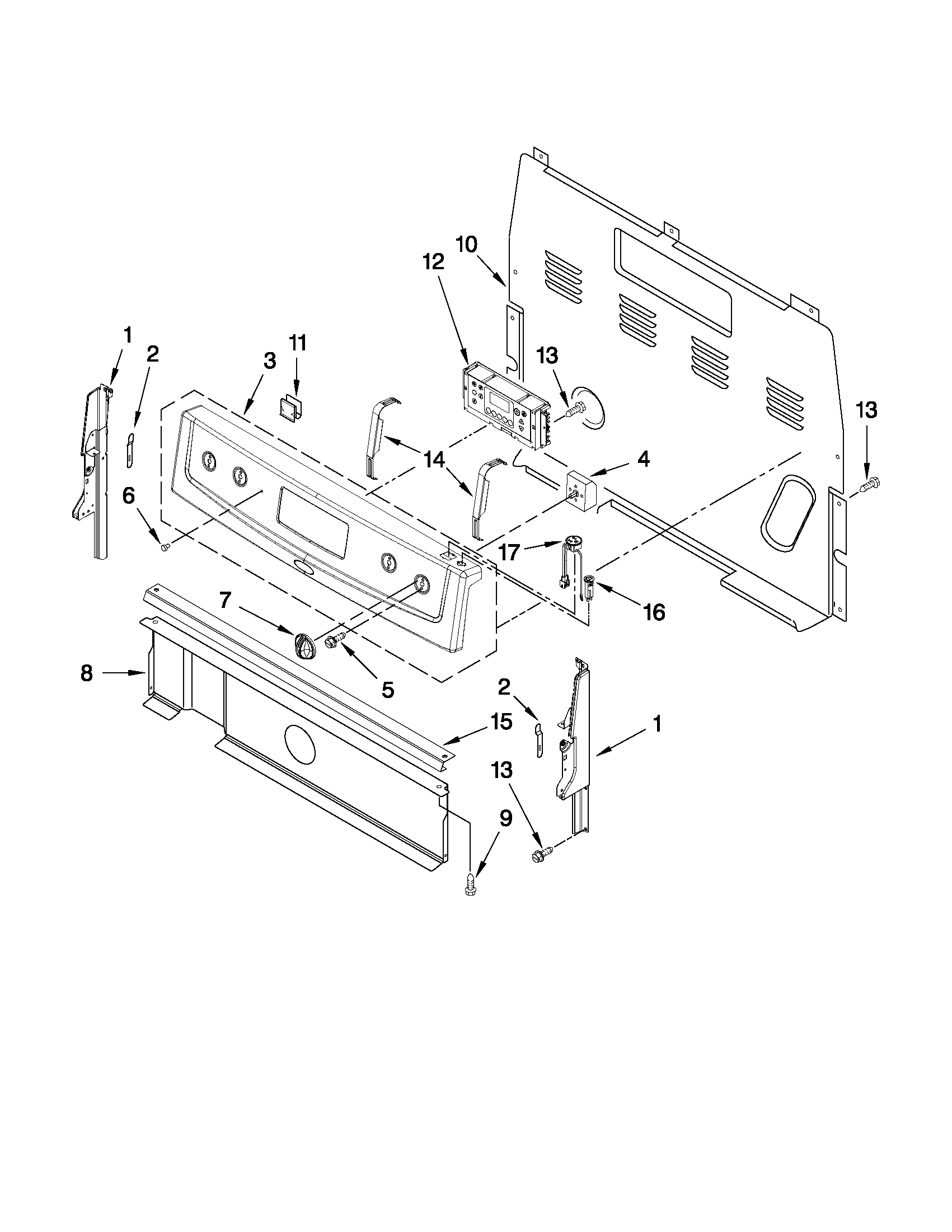

Control panel parts diagram

Range dual surface element control switch

Part #W10434452

Replaced by #WPW10434452

?
Manufacturer substitution
This part replaces W10434452. Substitute parts can look different from the original.
BEST SELLER
$65.24 |
8% OFF Phone Price : $71.24
In Stock
Infinite Switch (silver) 3148951
#4A

Control panel parts diagram

Infinite switch (silver)

Part #3148951

Replaced by #WP3149404

?
Manufacturer substitution
This part replaces 3148951. Substitute parts can look different from the original.
BEST SELLER
$37.74 |
14% OFF Phone Price : $43.74
In Stock
Polish 3191048
#NI

Optional parts (not included) diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Safety Thermostat 3196548
#17

Chassis parts diagram

Range safety thermostat

Part #3196548

Replaced by #WP3196548

?
Manufacturer substitution
This part replaces 3196548. Substitute parts can look different from the original.
BEST SELLER
$23.64 |
20% OFF Phone Price : $29.64
In Stock
Range Surface Element Control Switch 3148953
#4

Control panel parts diagram

Range surface element control switch

Part #3148953

Replaced by #WP3148953

?
Manufacturer substitution
This part replaces 3148953. Substitute parts can look different from the original.
BEST SELLER
$50.48 |
11% OFF Phone Price : $56.48
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Oven Door Hinge W10299227
#8

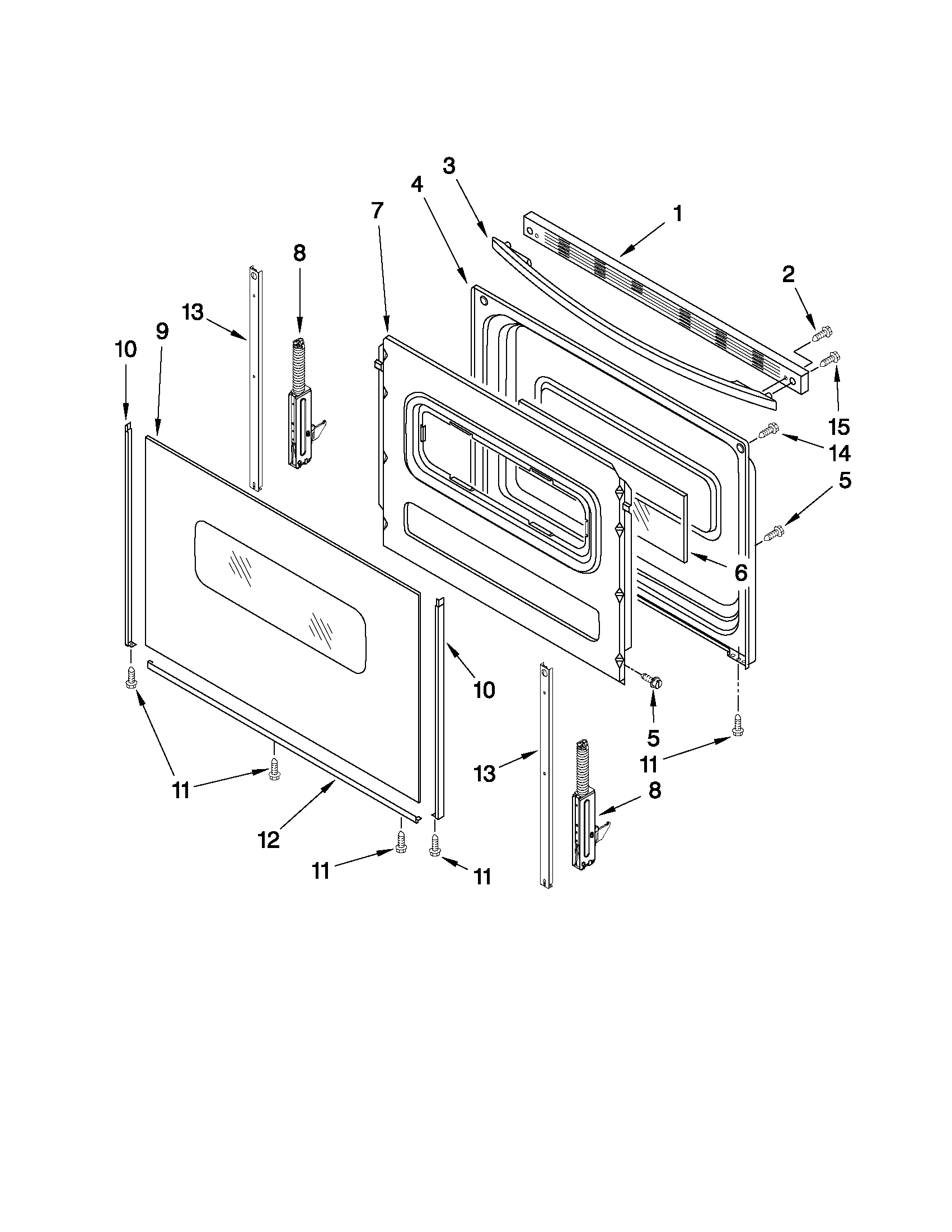

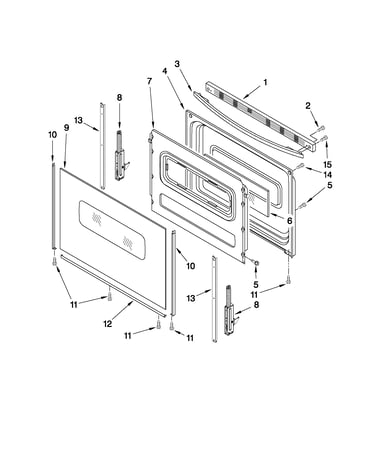

Door parts diagram

Range oven door hinge

Part #W10299227

Replaced by #WPW10299227

?
Manufacturer substitution
This part replaces W10299227. Substitute parts can look different from the original.
BEST SELLER
$37.44 |
14% OFF Phone Price : $43.44
In Stock
