Amana
Gas Cooktop

Model # AKS3050CC-PAKS3050CC1 Official Amana gas cooktop

Here are the diagrams and repair parts for Official Amana AKS3050CC-PAKS3050CC1 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

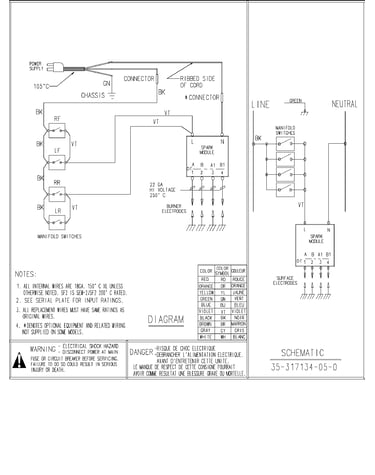

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Cooktop Igniter 0316773
#7

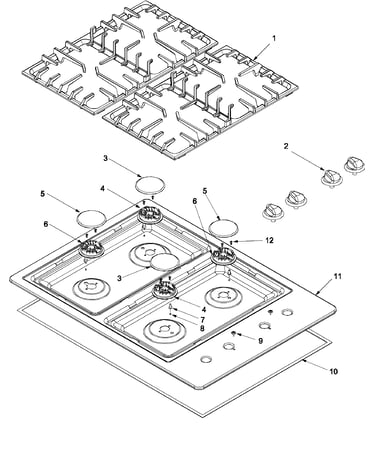

Main top diagram

Cooktop igniter

Part #0316773

The manufacturer no longer makes this part, and there's no substitute part

Manifold Pipe 77001070
#13

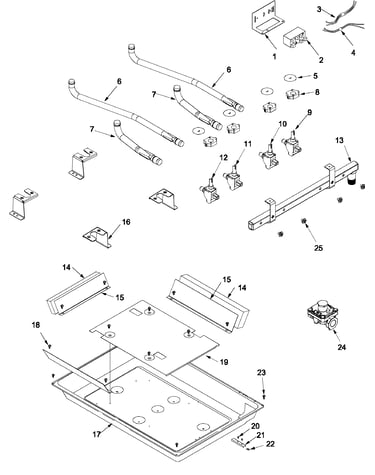

Burner box diagram

Manifold pipe

Part #77001070

Replaced by #77001070

?
Manufacturer substitution
This part replaces 77001070. Substitute parts can look different from the original.
$19.36
In Stock
Cap 31782501MB
#5

Main top diagram

Cap

Part #31782501MB

The manufacturer no longer makes this part, and there's no substitute part

12k Burn Cap 31782701MB
#3

Main top diagram

12k burn cap

Part #31782701MB

The manufacturer no longer makes this part, and there's no substitute part

Screw 31750320
#12

Main top diagram

Screw

Part #31750320

Replaced by #WPY04100059

?
Manufacturer substitution
This part replaces 31750320. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Knob 31905432W
#2B

Main top diagram

Knob

Part #31905432W

The manufacturer no longer makes this part, and there's no substitute part

Pipe Joint Sealing Compound (qty Ar) 31909101
#29

Burner box diagram

Pipe joint sealing compound (qty ar)

Part #31909101

The manufacturer no longer makes this part, and there's no substitute part

Spark Module 31962701
#2

Burner box diagram

Spark module

Part #31962701

The manufacturer no longer makes this part, and there's no substitute part

Venturi, Right (qty 2) 31899601
#7

Burner box diagram

Venturi, right (qty 2)

Part #31899601

The manufacturer no longer makes this part, and there's no substitute part

Insulation Burner Box-trs (qty 3) 31974701
#14

Burner box diagram

Insulation burner box-trs (qty 3)

Part #31974701

The manufacturer no longer makes this part, and there's no substitute part
