Countertop Microwave

Model # QVM7167RN8SS Official GE microwave

Here are the diagrams and repair parts for Official GE QVM7167RN8SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

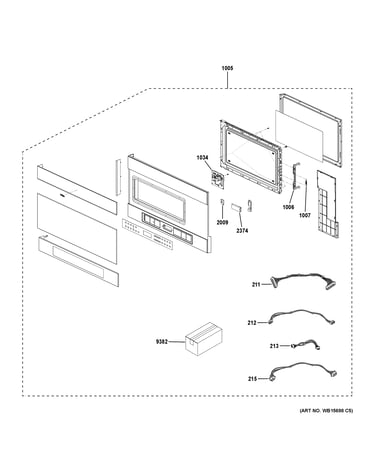

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Microwave Primary Interlock Switch (replaces Wb24x10029, Wb24x10113) WB24X10047
#4002

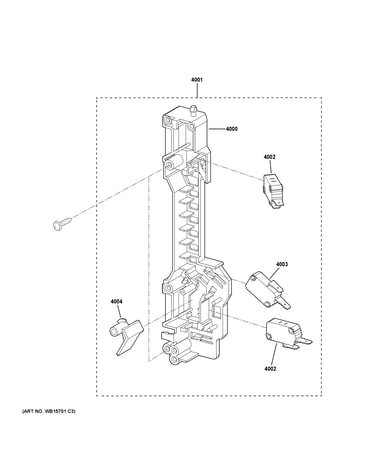

Latch board parts diagram

Microwave primary interlock switch (replaces wb24x10029, wb24x10113)

Part #WB24X10047

BEST SELLER
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Microwave Thermostat WB20X10048
#5116

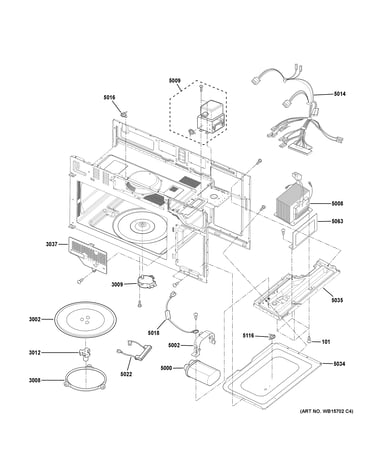

Interior parts (1) diagram

Microwave thermostat

Part #WB20X10048

BEST SELLER
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Hi Capacitor WB27X11011
#5000

Interior parts (1) diagram

Hi capacitor

Part #WB27X11011

BEST SELLER
$68.29 |
8% OFF Phone Price : $74.29
In Stock
Fuse Asm WB27X35672
#5022

Interior parts (1) diagram

Fuse asm

Part #WB27X35672

BEST SELLER
$35.93
In Stock
Microwave Fuse WB27X25389
#5001

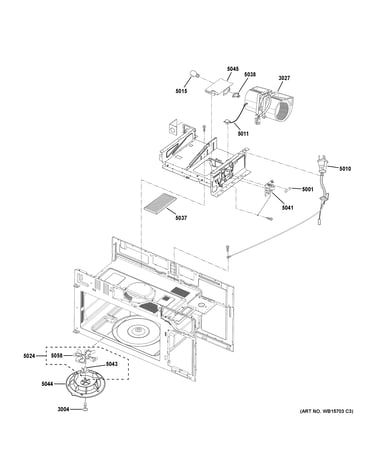

Interior parts (2) diagram

Microwave fuse

Part #WB27X25389

BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Thermostat WB18X35517
#5016

Interior parts (1) diagram

Thermostat

Part #WB18X35517

BEST SELLER
$21.03
In Stock
Halogen Lamp WB25X25393
#3028

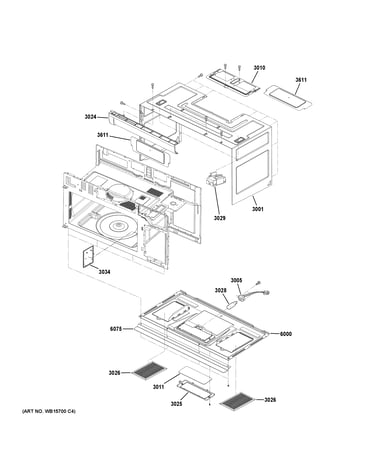

Oven cavity parts diagram

Halogen lamp

Part #WB25X25393

Replaced by #WB08X10057

?
Manufacturer substitution
This part replaces WB25X25393. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
Motor WB26X10226
#3009

Interior parts (1) diagram

Motor

Part #WB26X10226

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Microwave Mounting Plate (replaces Wb56x10669) WB56X35363
#6008

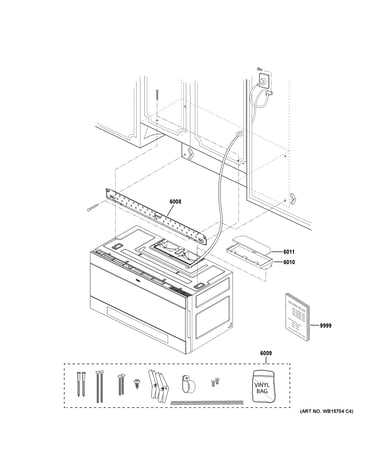

Installation parts diagram

Microwave mounting plate (replaces wb56x10669)

Part #WB56X35363

This item is not returnable
$20.80 |
22% OFF Phone Price : $26.80
In Stock
Microwave Grease Filter WB02X35491
#3026

Oven cavity parts diagram

Microwave grease filter

Part #WB02X35491

This item is not returnable
$8.80 |
10% OFF Phone Price : $9.80
In Stock
