Whirlpool
Microwave/Hood Combo

Model # WMH32519HT6 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool WMH32519HT6 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

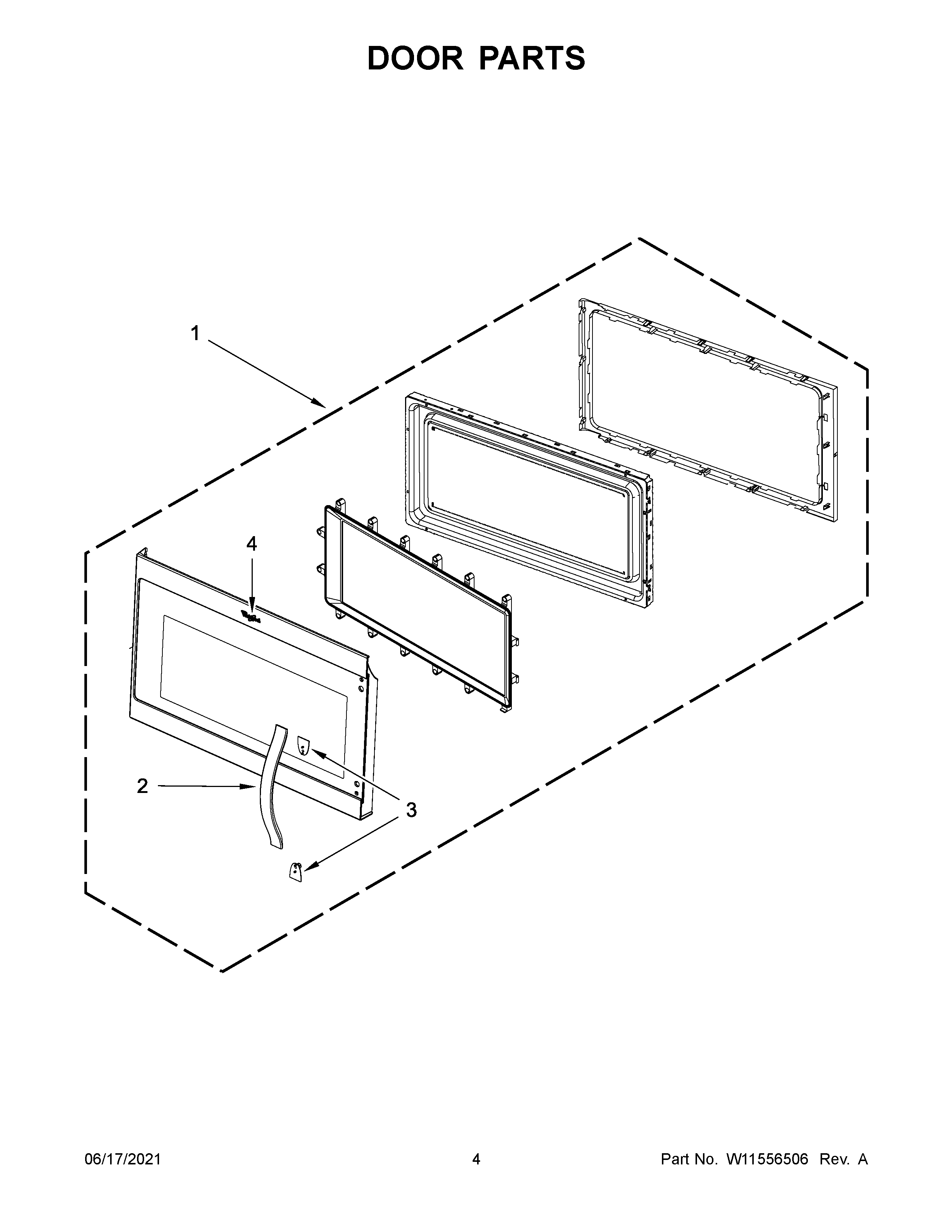

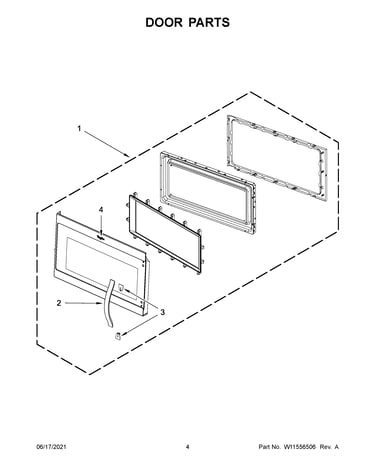

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Gaoxin-hvd C W11222648
#22

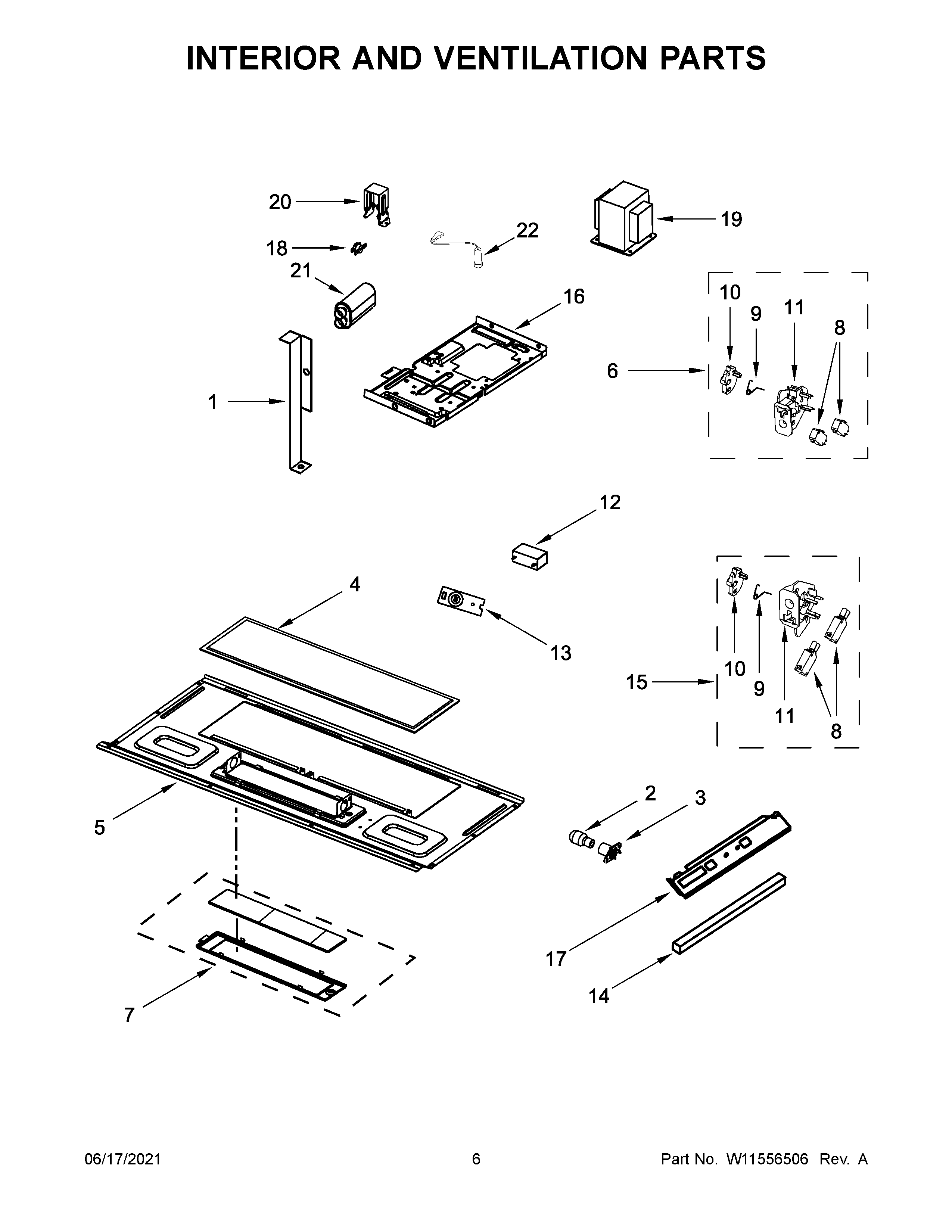

Interior and ventilation parts diagram

Gaoxin-hvd c

Part #W11222648

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Lamp Assembly 4393681
#3

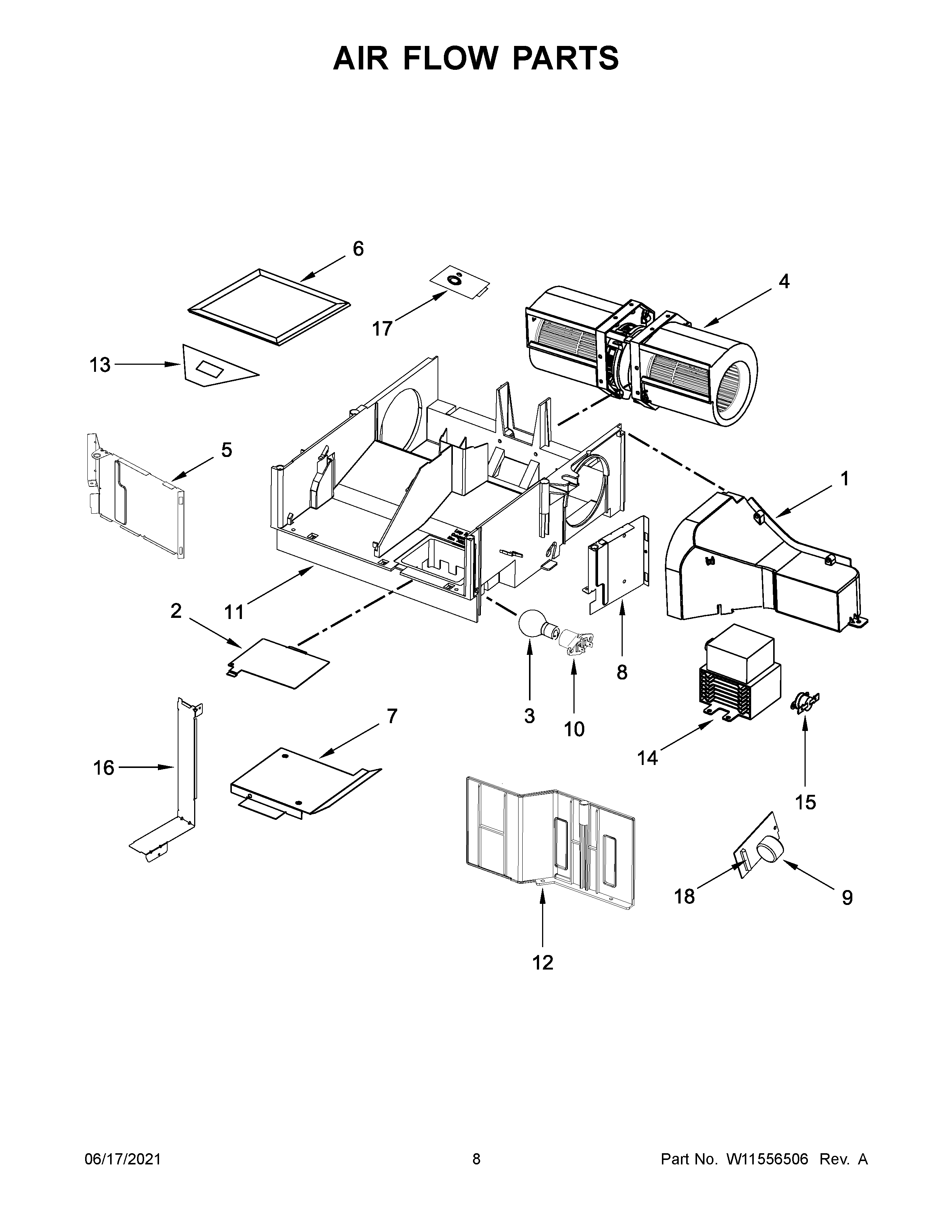

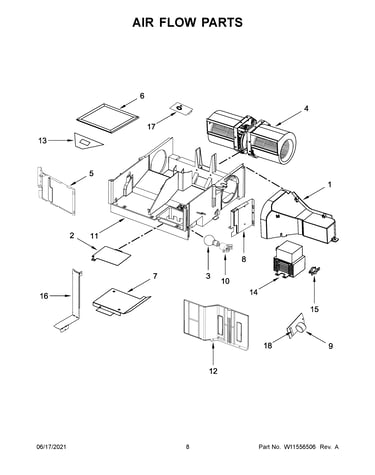

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Microwave/hood Light Bulb 8206232
#2

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Microwave Light Socket W10210871
#3

Interior and ventilation parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Pcba, Appliance Control Unit W11221415
#5

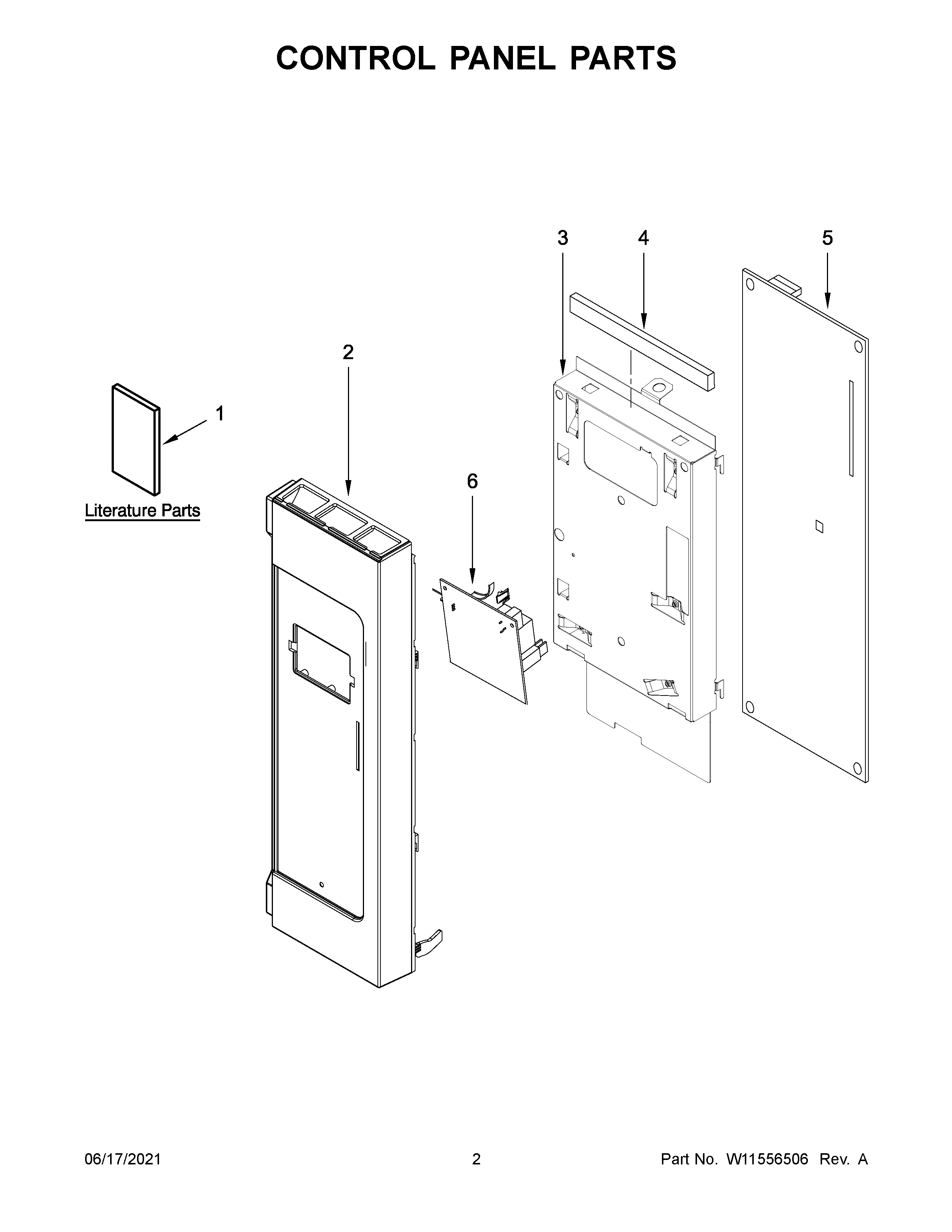

Control panel parts diagram

Pcba, appliance control unit

Part #W11221415

Replaced by #W11342846

?
Manufacturer substitution
This part replaces W11221415. Substitute parts can look different from the original.
BEST SELLER
$158.24 |
7% OFF Phone Price : $170.24
In Stock
Turntable Gl W11335034
#3

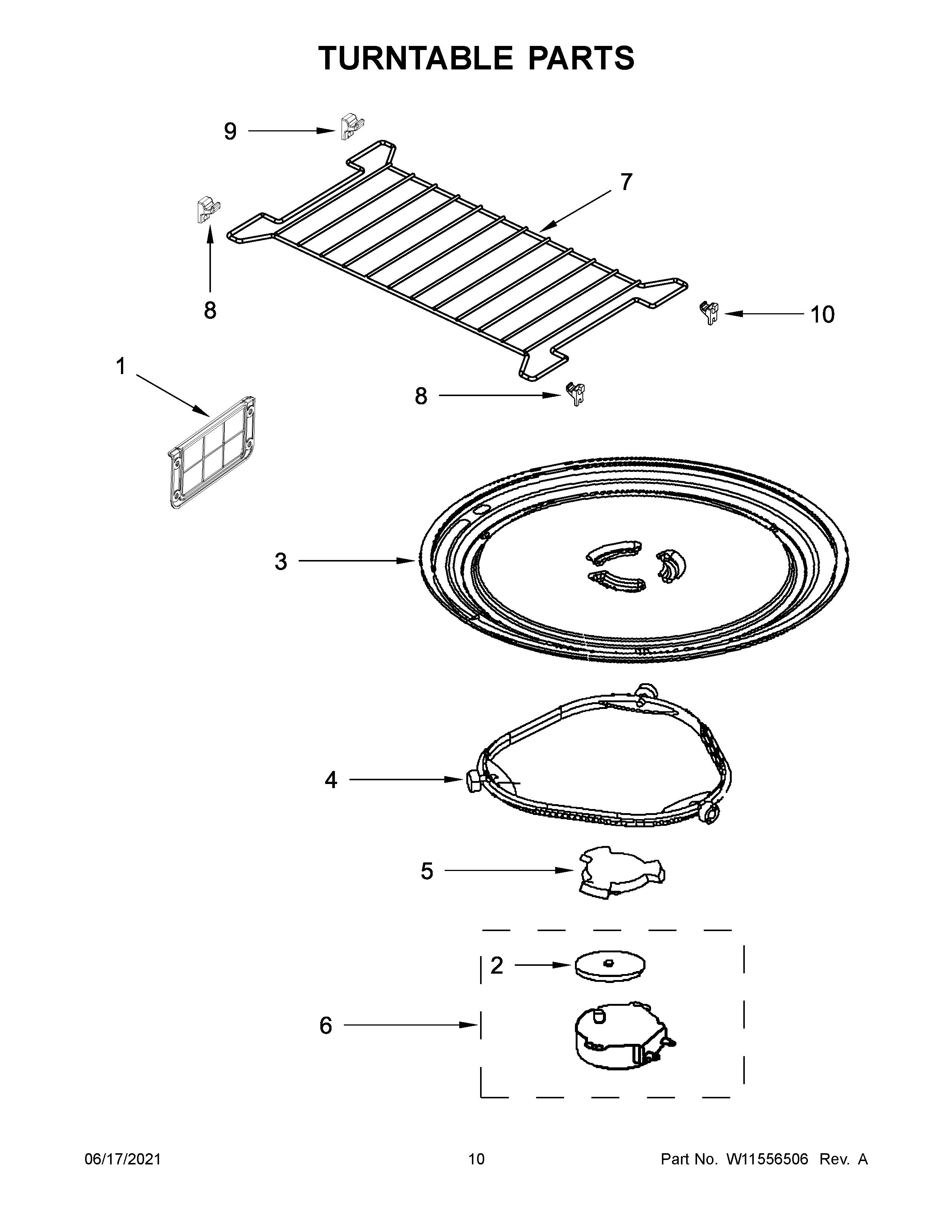

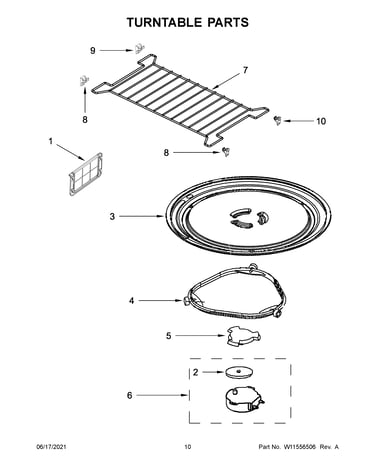

Turntable parts diagram

Turntable gl

Part #W11335034

Replaced by #W11367904

?
Manufacturer substitution
This part replaces W11335034. Substitute parts can look different from the original.
$57.69 |
9% OFF Phone Price : $63.69
In Stock
Microwave/hood Filter W10531156
#9

Air flow parts diagram

Microwave/hood filter

Part #W10531156

Replaced by #WPW10531156

?
Manufacturer substitution
This part replaces W10531156. Substitute parts can look different from the original.
$31.13
In Stock
Microwave Installation Hardware Kit (replaces W10811221) W10821385
#NI

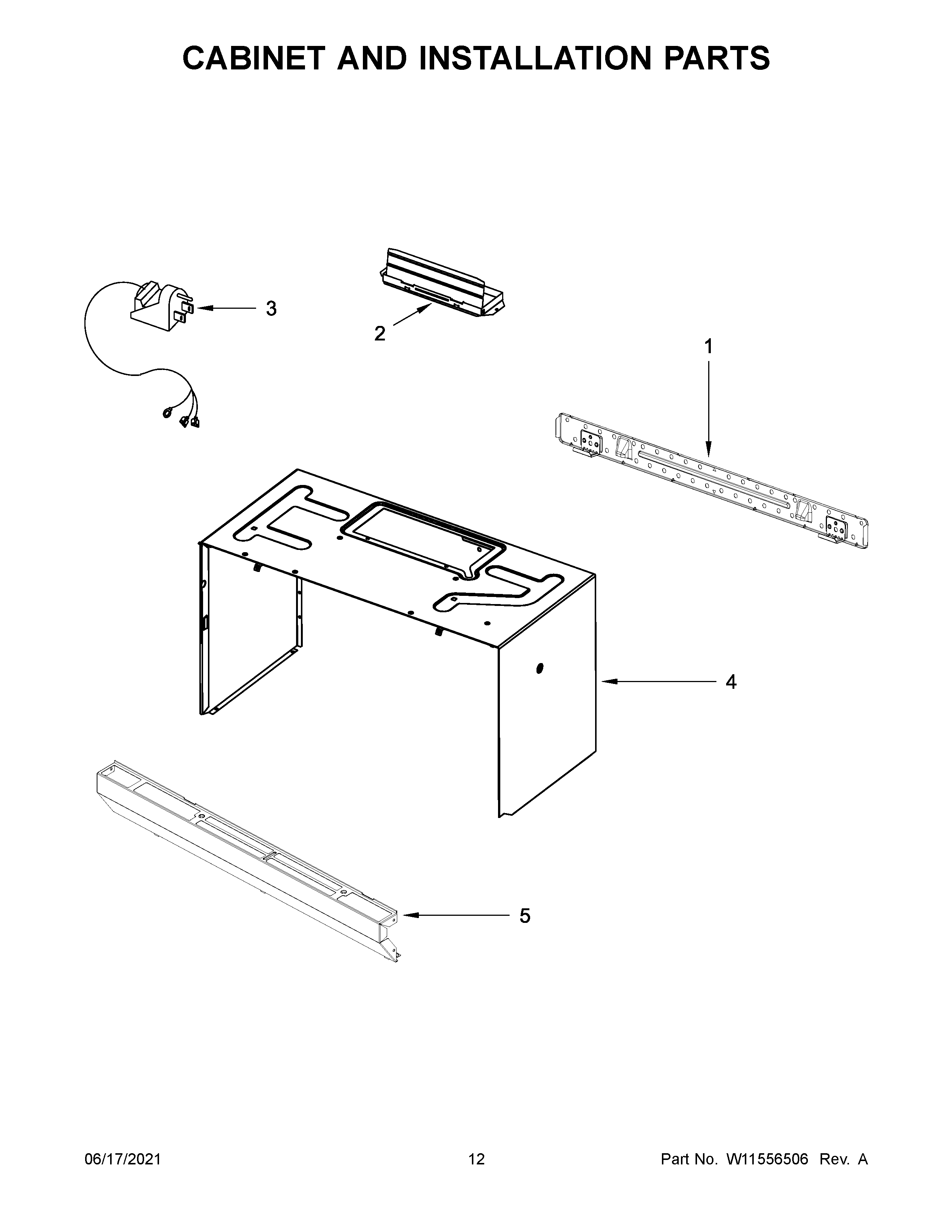

Cabinet and installation parts diagram

Microwave installation hardware kit (replaces w10811221)

Part #W10821385

$52.18 |
10% OFF Phone Price : $58.18
In Stock
Charcole Fil W10845250
#6

Air flow parts diagram

Charcole fil

Part #W10845250

Replaced by #W10892387

?
Manufacturer substitution
This part replaces W10845250. Substitute parts can look different from the original.
This item is not returnable
$13.22 |
13% OFF Phone Price : $15.22
In Stock
