Tappan
Electric Wall Oven

Model # 11-2969-00-05 Official Tappan wall oven - 5995238564

Here are the diagrams and repair parts for Official Tappan 11-2969-00-05 wall oven - 5995238564, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

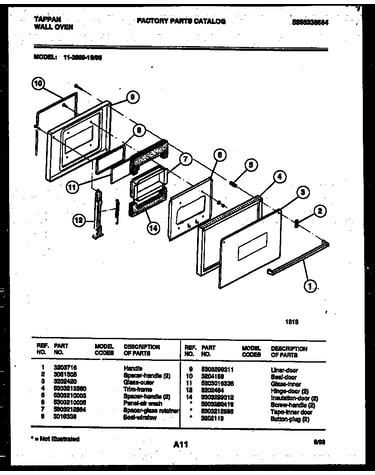

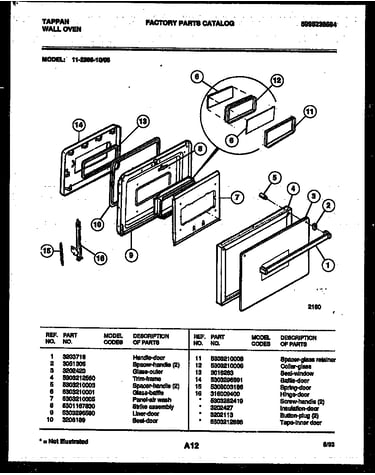

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Bulb 3201908
Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Cover 3201911
Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Range Broil Element 5303016247
Range broil element

Part #5303016247

$163.62 |
7% OFF Phone Price : $175.62
In Stock
Liner-oven A 5303296958
#1

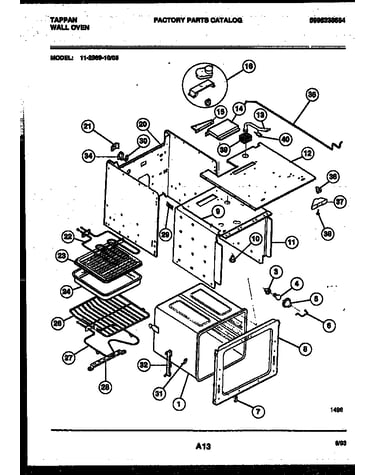

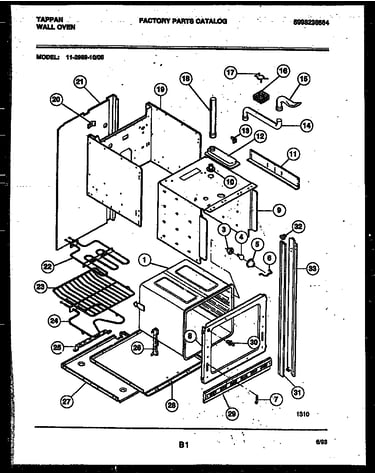

Body parts diagram

Liner-oven a

Part #5303296958

$99.49
In Stock
Duct 3016324
#12

Body parts diagram

Duct

Part #3016324

$16.99
In Stock
Wall Oven Door Hinge Receiver 3201631
Wall oven door hinge receiver

Part #3201631

$114.40
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616

#NI

All parts diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Wall Oven Door Switch 5301314211
#30

Body parts diagram

Wall oven door switch

Part #5301314211

$64.33 |
9% OFF Phone Price : $70.33
In Stock
Oven Rack 5303299367
#26

Body parts diagram

Oven rack

Part #5303299367

Replaced by #318345216

?
Manufacturer substitution
This part replaces 5303299367. Substitute parts can look different from the original.
$78.17 |
7% OFF Phone Price : $84.17
In Stock
Block 5306563359
#23

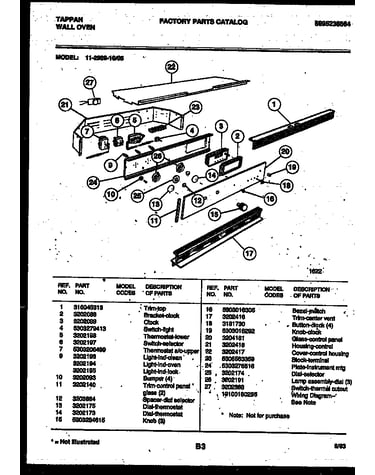

Control panel diagram

Block

Part #5306563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
$9.64 |
9% OFF Phone Price : $10.64
In Stock
