Craftsman
Radial Arm Saw

Model # 11319770 Official Craftsman 10" radial saw

Here are the diagrams and repair parts for Official Craftsman 11319770 10" radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

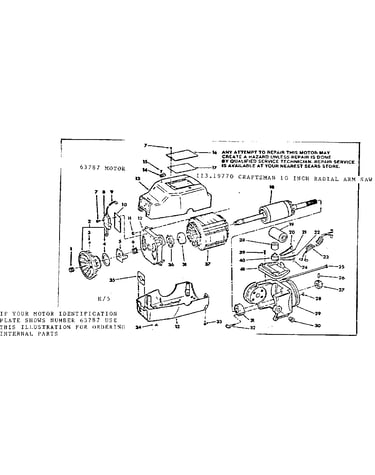

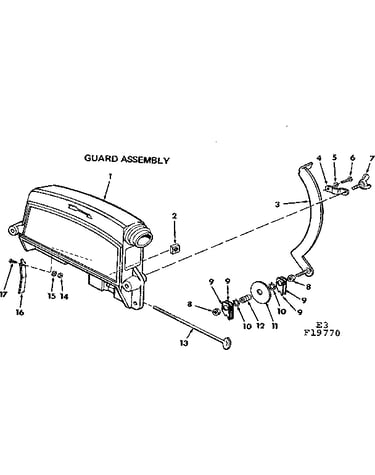

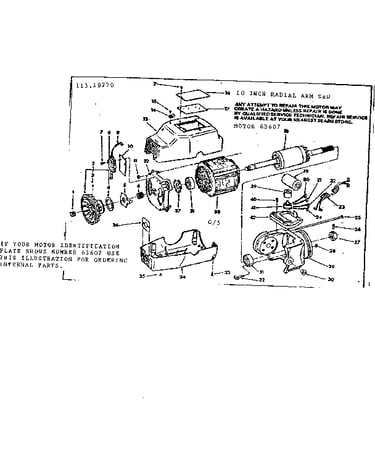

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Hex Nut STD541250
#11

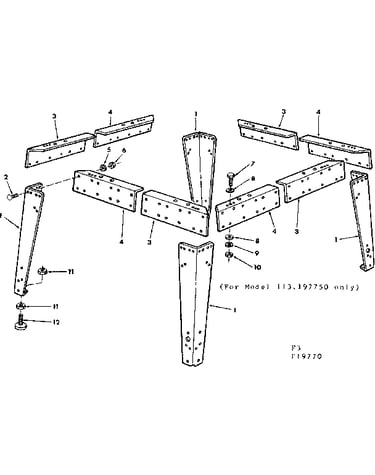

Leg set diagram

Hex nut

Part #STD541250

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table Spacer Board 63429
#22

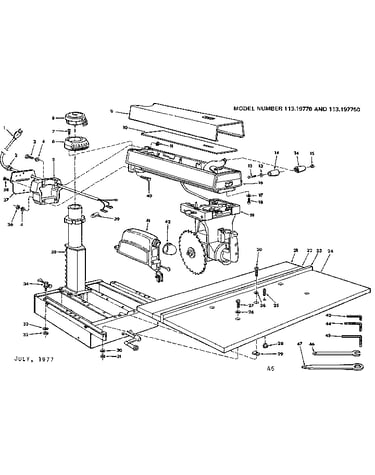

Unit diagram

Radial arm saw table spacer board

Part #63429

The manufacturer no longer makes this part, and there's no substitute part

Emerson Screw 9421628
#50

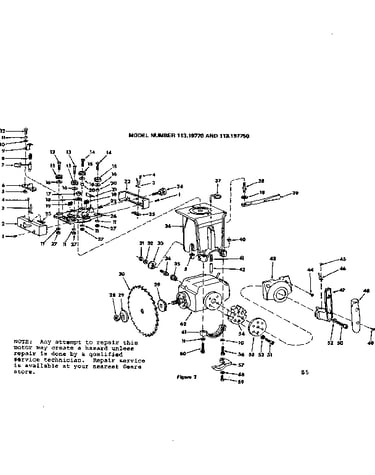

Yoke assembly diagram

Emerson screw

Part #9421628

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Wrench 63683
#44

Unit diagram

Radial arm saw hex wrench

Part #63683

The manufacturer no longer makes this part, and there's no substitute part

Support, Left 63609
#19

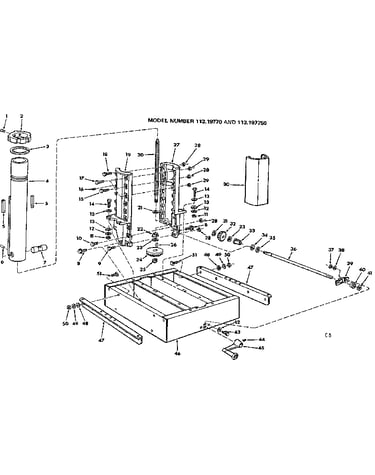

Base assembly diagram

Support, left

Part #63609

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 133477
Machine screw

Part #133477

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Push Nut, 3/8-in 60240
#19

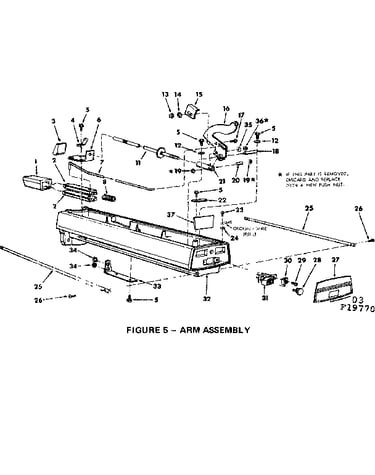

Arm assembly diagram

Radial arm saw push nut, 3/8-in

Part #60240

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#28

Yoke assembly diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Nut 120399
Radial arm saw hex nut

Part #120399

The manufacturer no longer makes this part, and there's no substitute part

Pan Head Screw 436594
#12

Unit diagram

Pan head screw

Part #436594

The manufacturer no longer makes this part, and there's no substitute part
