Model # 63077942011 Official Kenmore Elite dishwasher

Here are the diagrams and repair parts for Official Kenmore Elite 63077942011 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

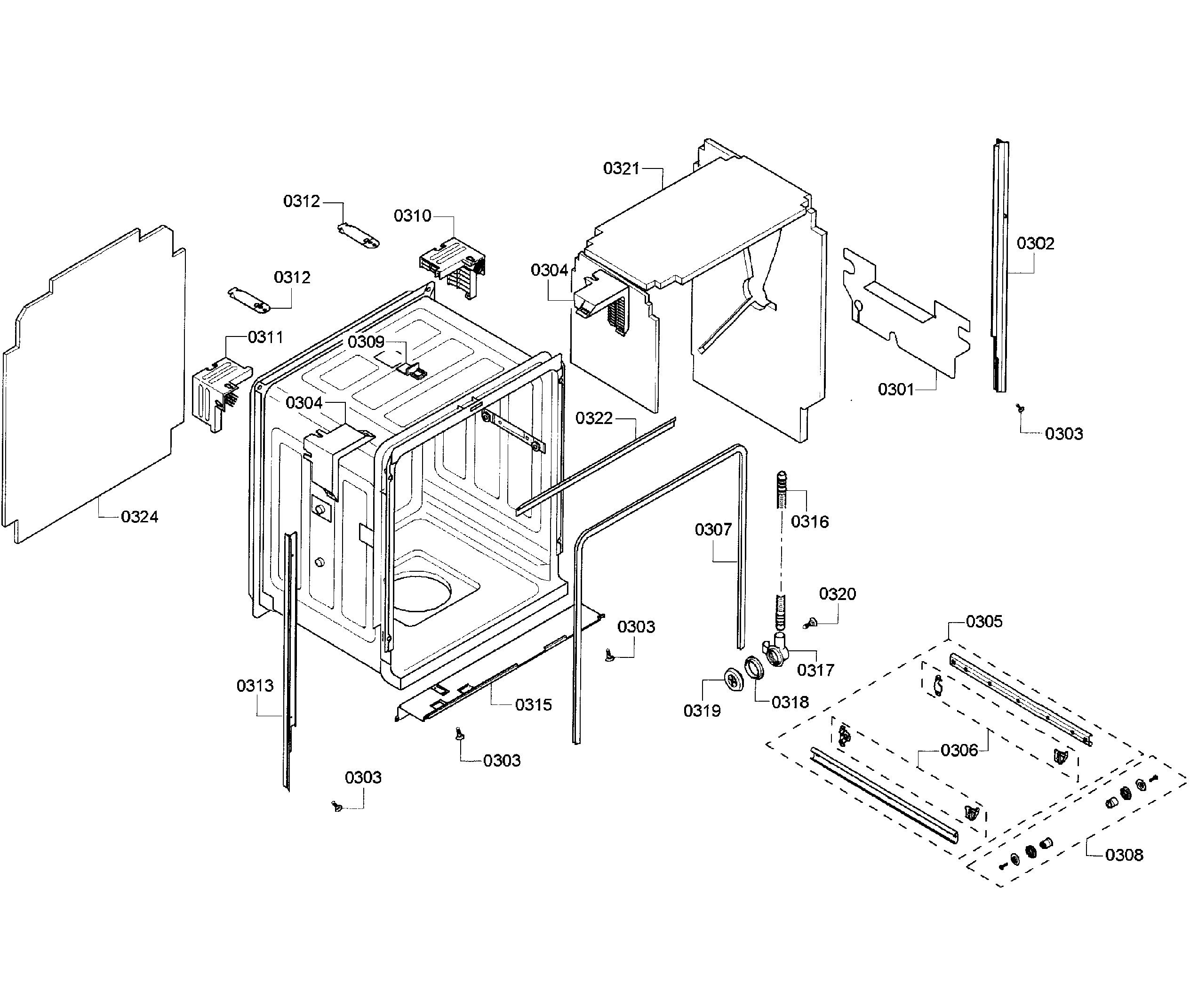

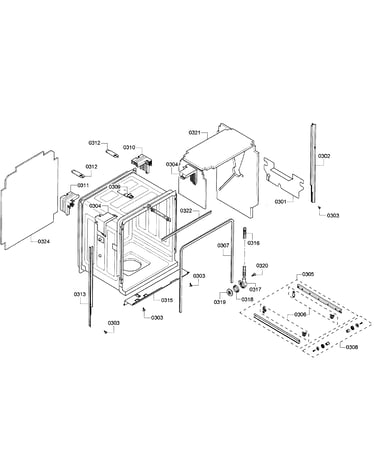

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Drain Pump 642239
#417

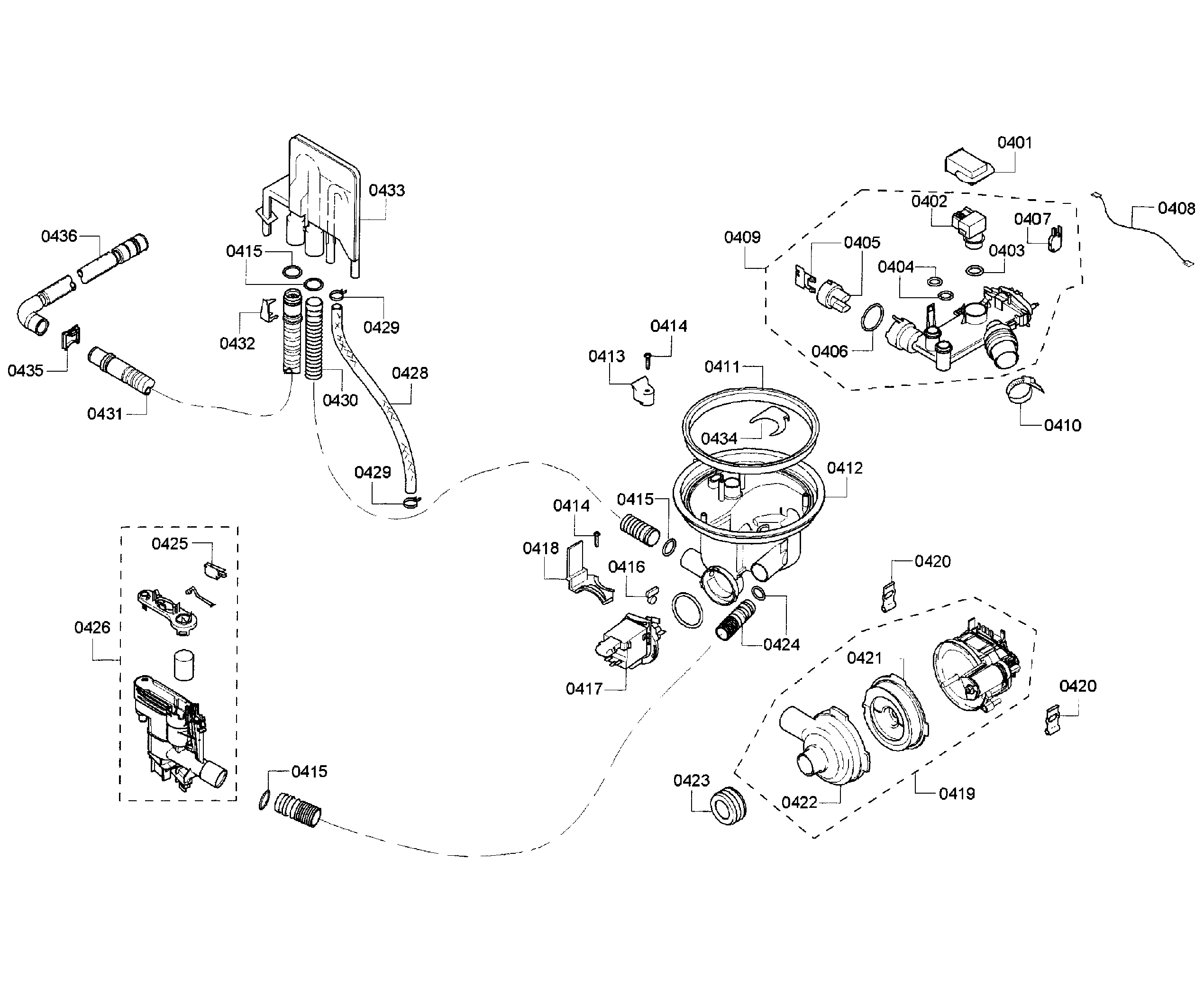

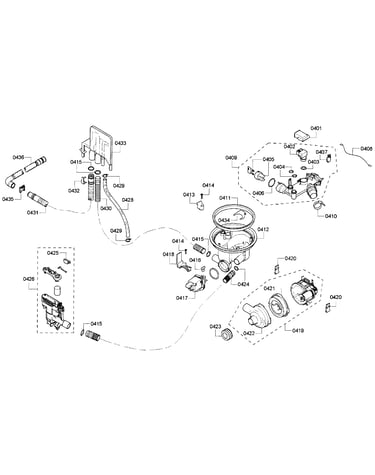

Pump assy diagram

Drain pump

Part #642239

Replaced by #00642239

?
Manufacturer substitution
This part replaces 642239. Substitute parts can look different from the original.
BEST SELLER
$126.36 |
9% OFF Phone Price : $138.36
In Stock
Dishwasher Recirculation Pump Assembly 442548
#419

Pump assy diagram

Dishwasher recirculation pump assembly

Part #442548

Replaced by #00442548

?
Manufacturer substitution
This part replaces 442548. Substitute parts can look different from the original.
BEST SELLER
$236.57 |
5% OFF Phone Price : $248.57
In Stock
Door Seal 432490
#203

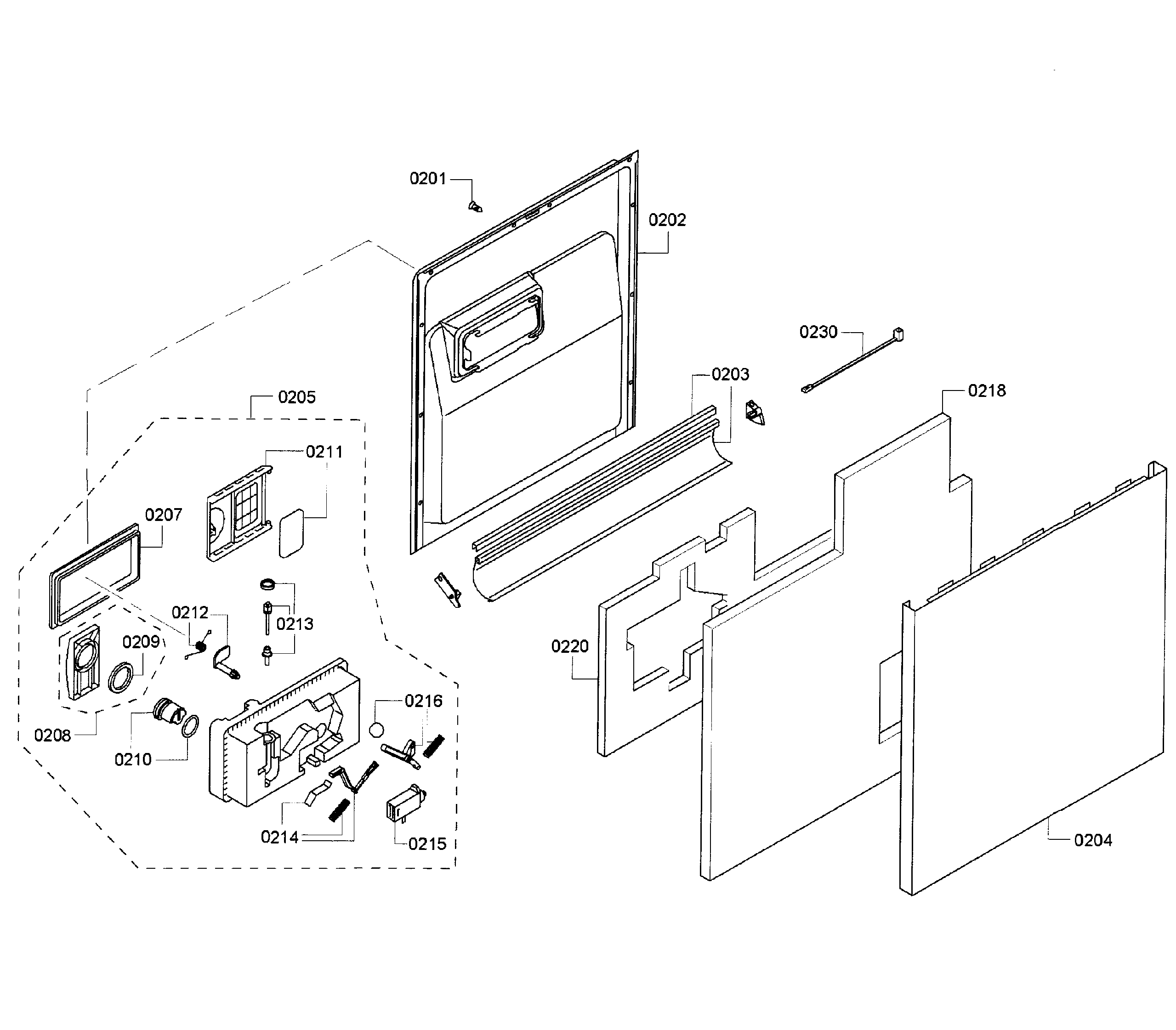

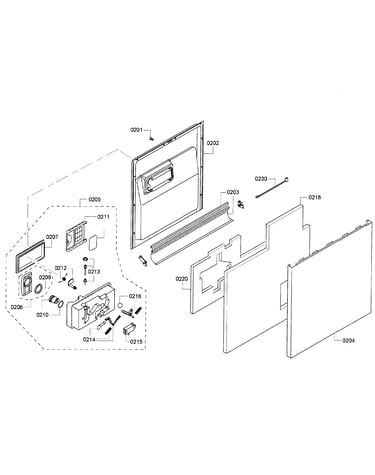

Door assy diagram

Door seal

Part #432490

Replaced by #00432490

?
Manufacturer substitution
This part replaces 432490. Substitute parts can look different from the original.
BEST SELLER
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Dishwasher Water Inlet Valve 263833
#433

Pump assy diagram

Dishwasher water inlet valve

Part #263833

Replaced by #00263833

?
Manufacturer substitution
This part replaces 263833. Substitute parts can look different from the original.
$124.53 |
9% OFF Phone Price : $136.53
In Stock
Holder 616990
#608

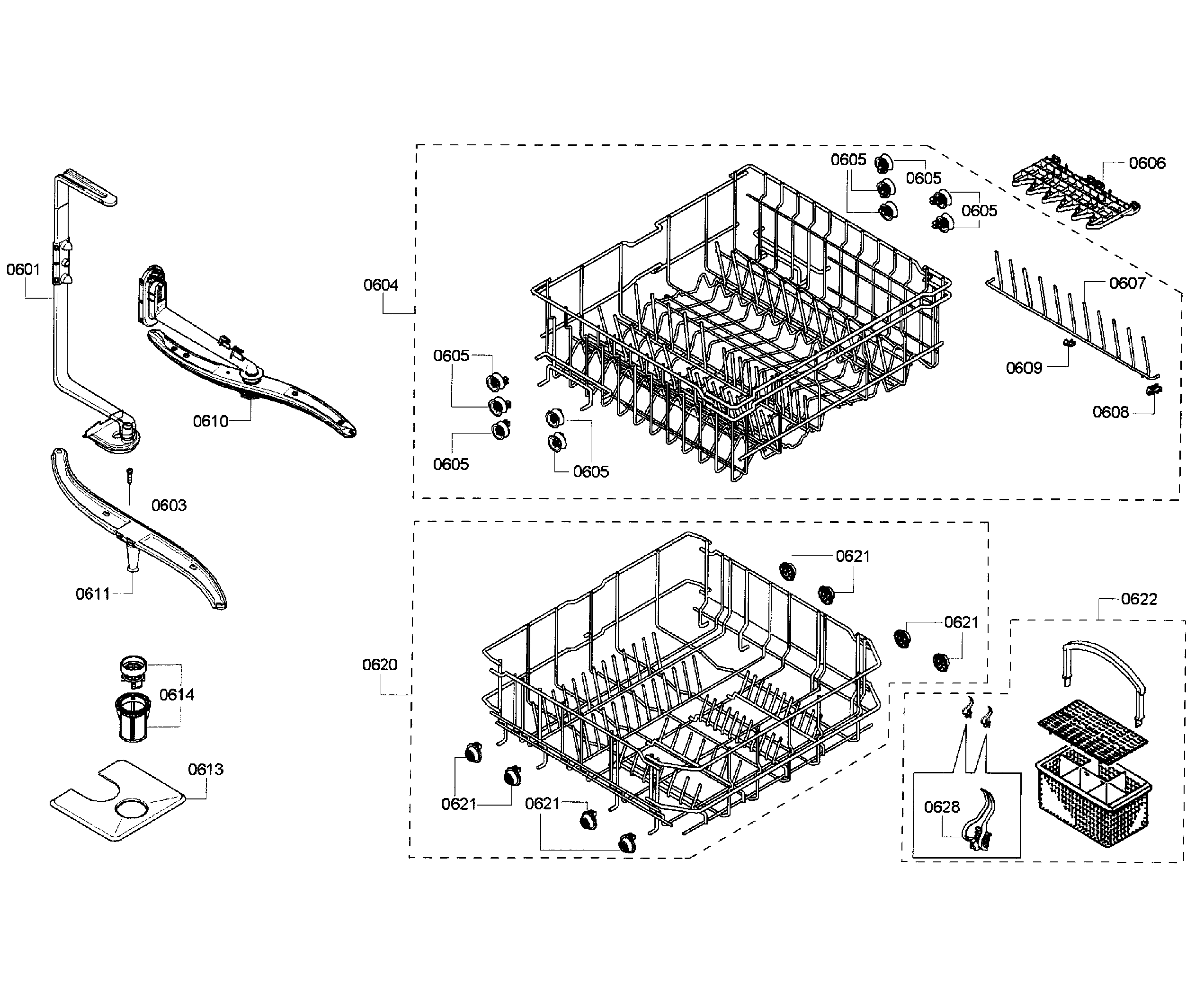

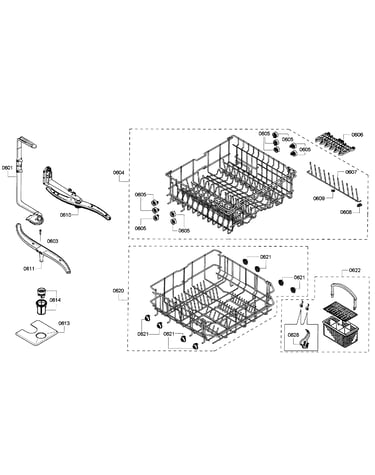

Baskets diagram

Holder

Part #616990

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Screw 151703
#201

Door assy diagram

Dishwasher screw

Part #151703

Replaced by #00151703

?
Manufacturer substitution
This part replaces 151703. Substitute parts can look different from the original.
This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Bearing 165296
#504

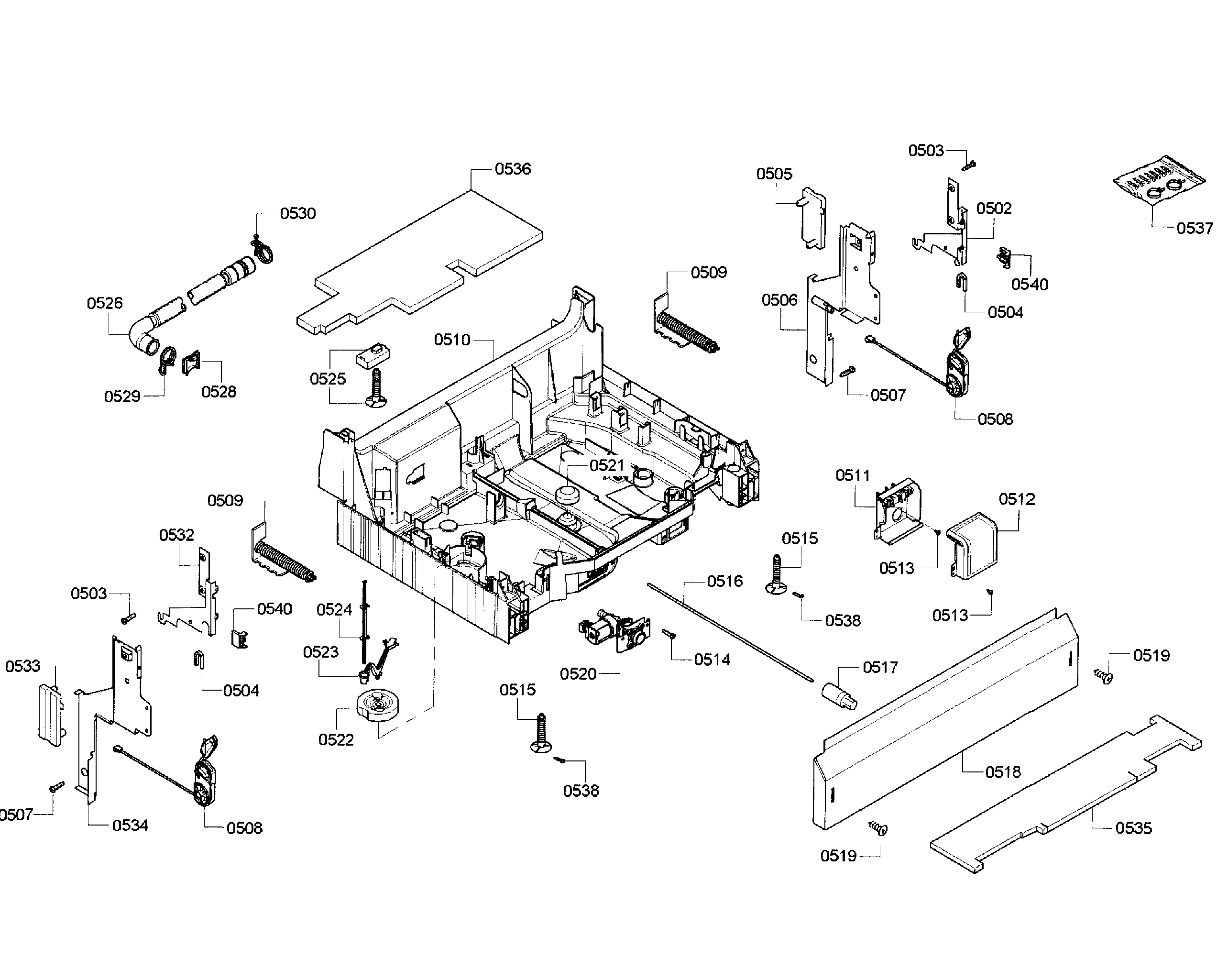

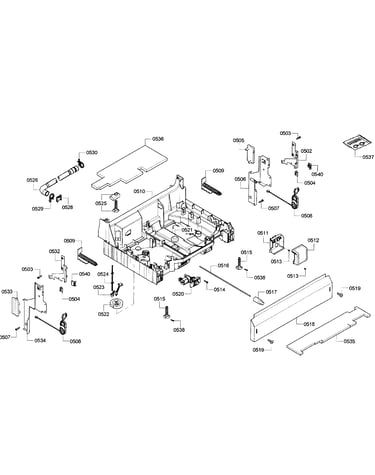

Base assy diagram

Bearing

Part #165296

Replaced by #00165296

?
Manufacturer substitution
This part replaces 165296. Substitute parts can look different from the original.
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Holder 616989
#609

Baskets diagram

Holder

Part #616989

Replaced by #00616989

?
Manufacturer substitution
This part replaces 616989. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dishwasher On/off Switch 424410

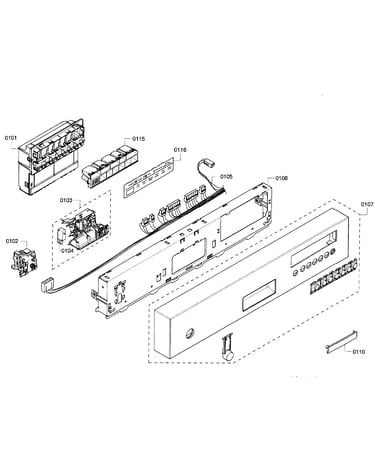

#102

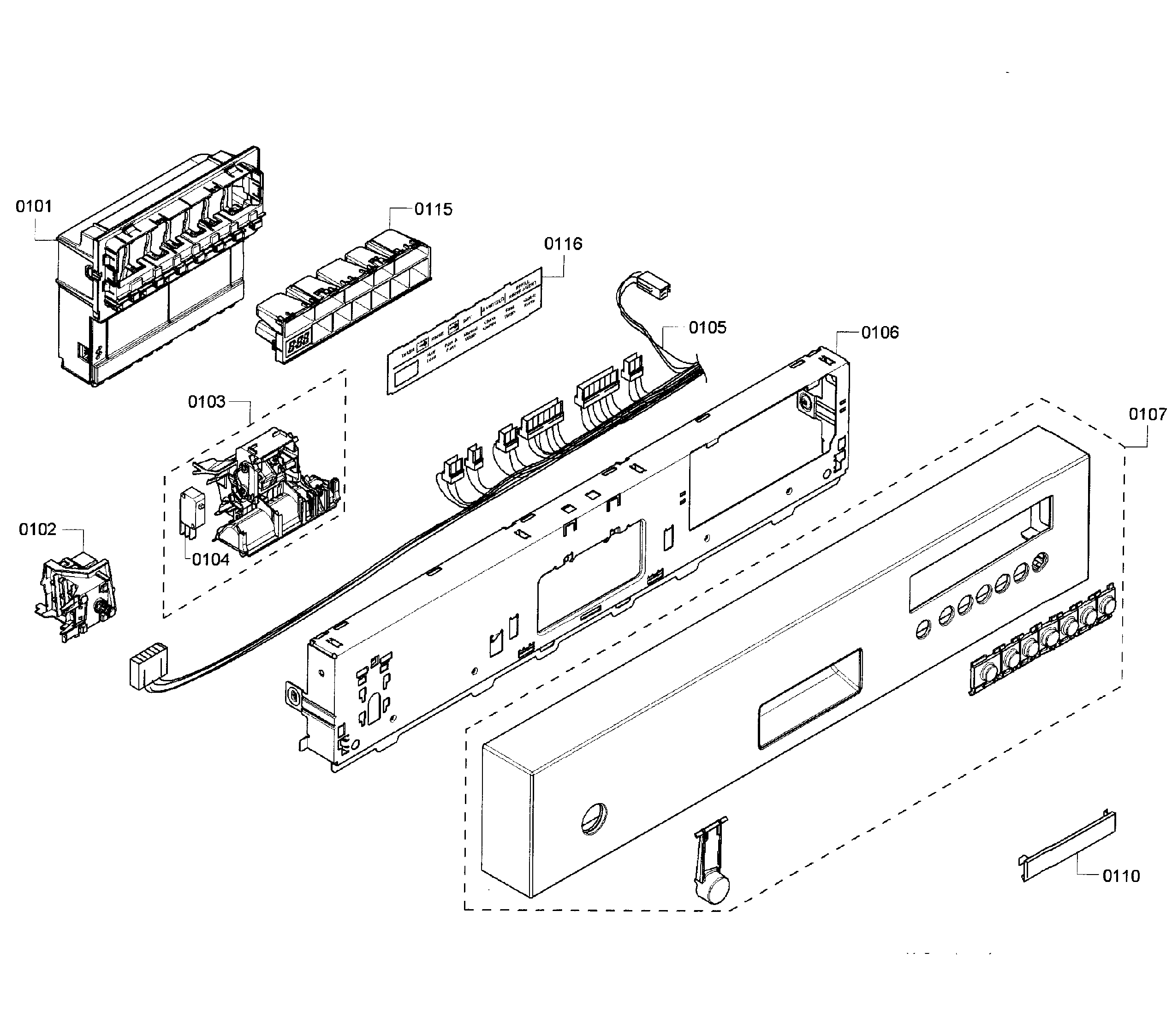

Control panel diagram

Dishwasher on/off switch

Part #424410

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Drain Hose 668109
#431

Pump assy diagram

Dishwasher drain hose

Part #668109

Replaced by #00668109

?
Manufacturer substitution
This part replaces 668109. Substitute parts can look different from the original.
$45.19 |
12% OFF Phone Price : $51.19
In Stock
