Amana
Gas Range

Model # SBL39AA Official Amana heater range - a & b series

Here are the diagrams and repair parts for Official Amana SBL39AA heater range - a & b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

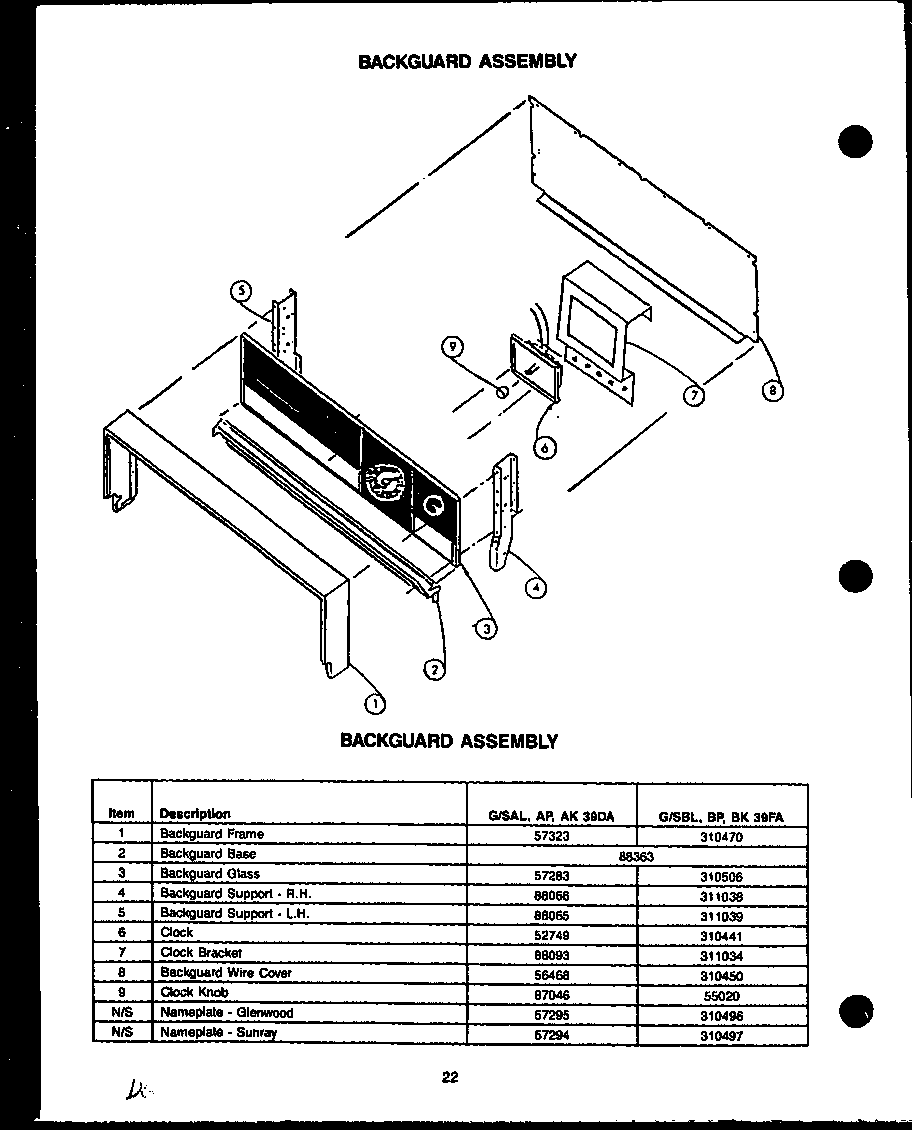

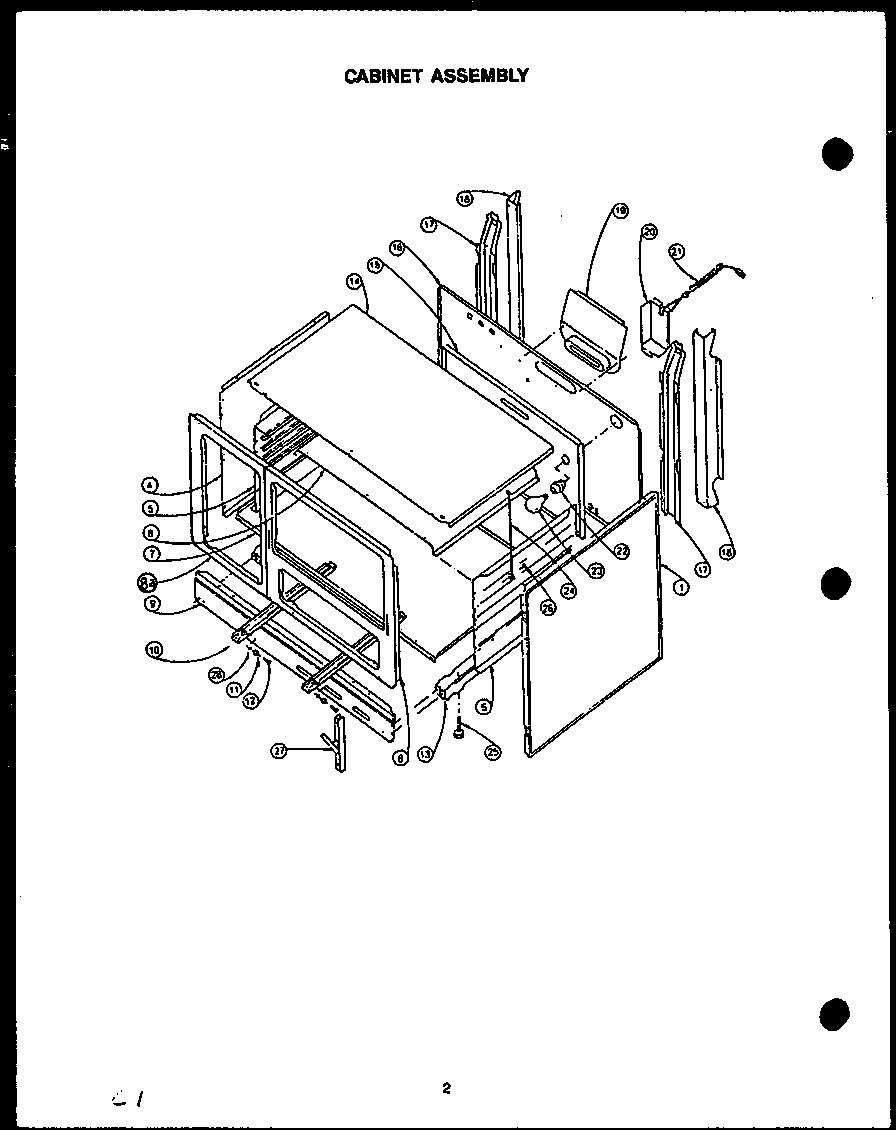

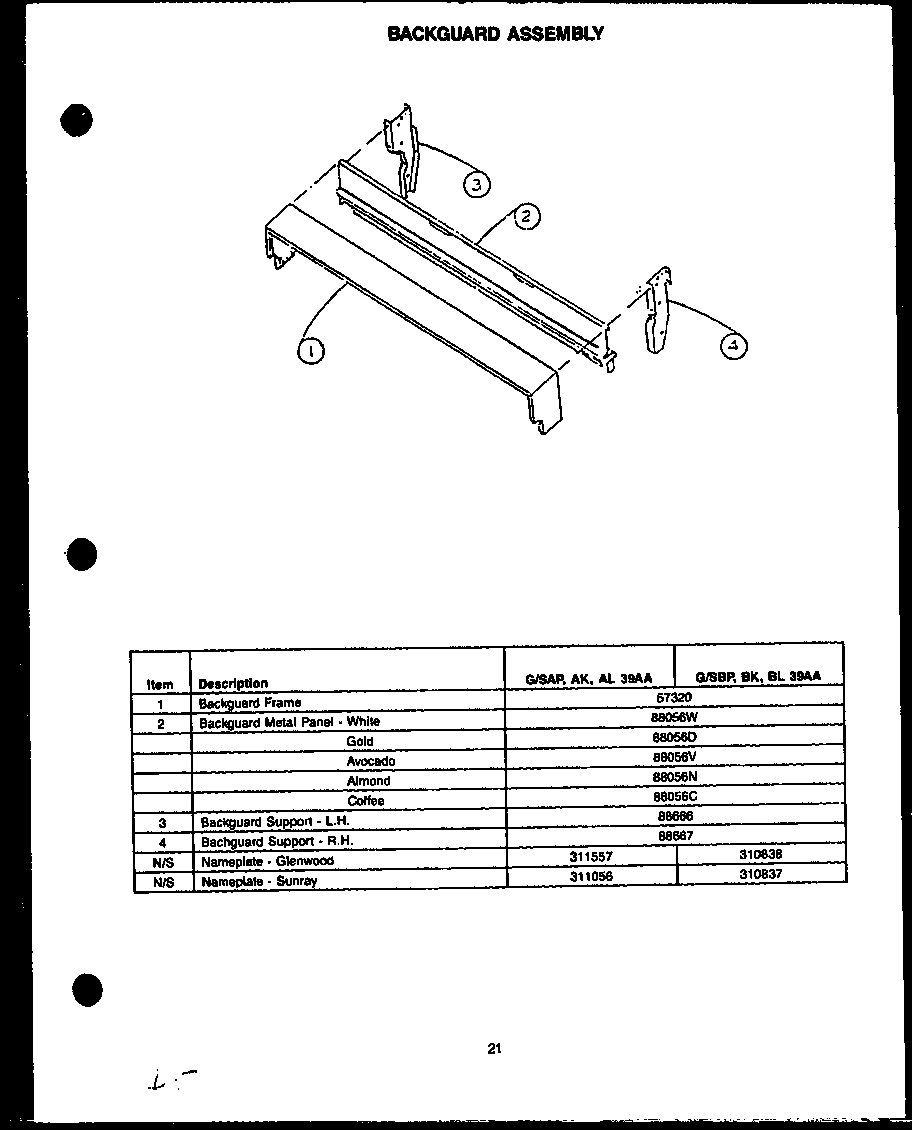

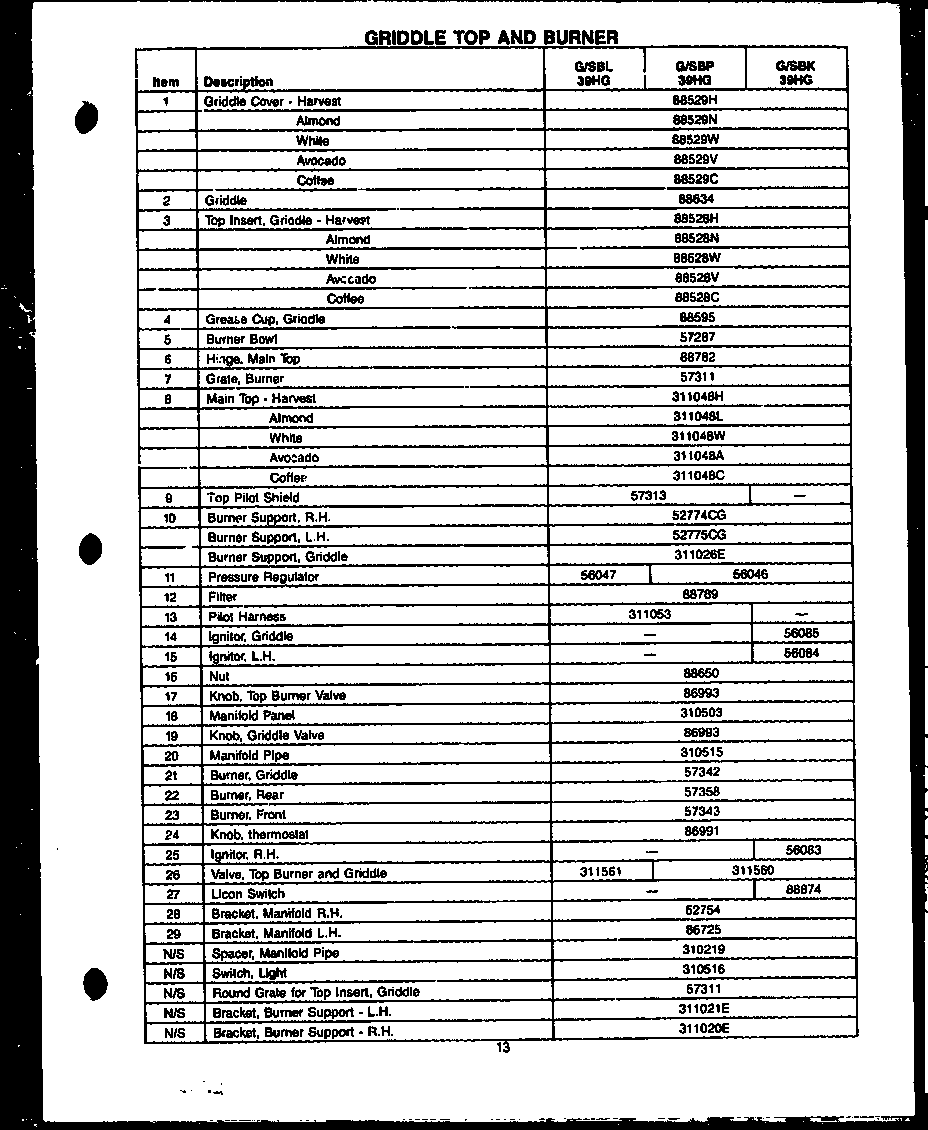

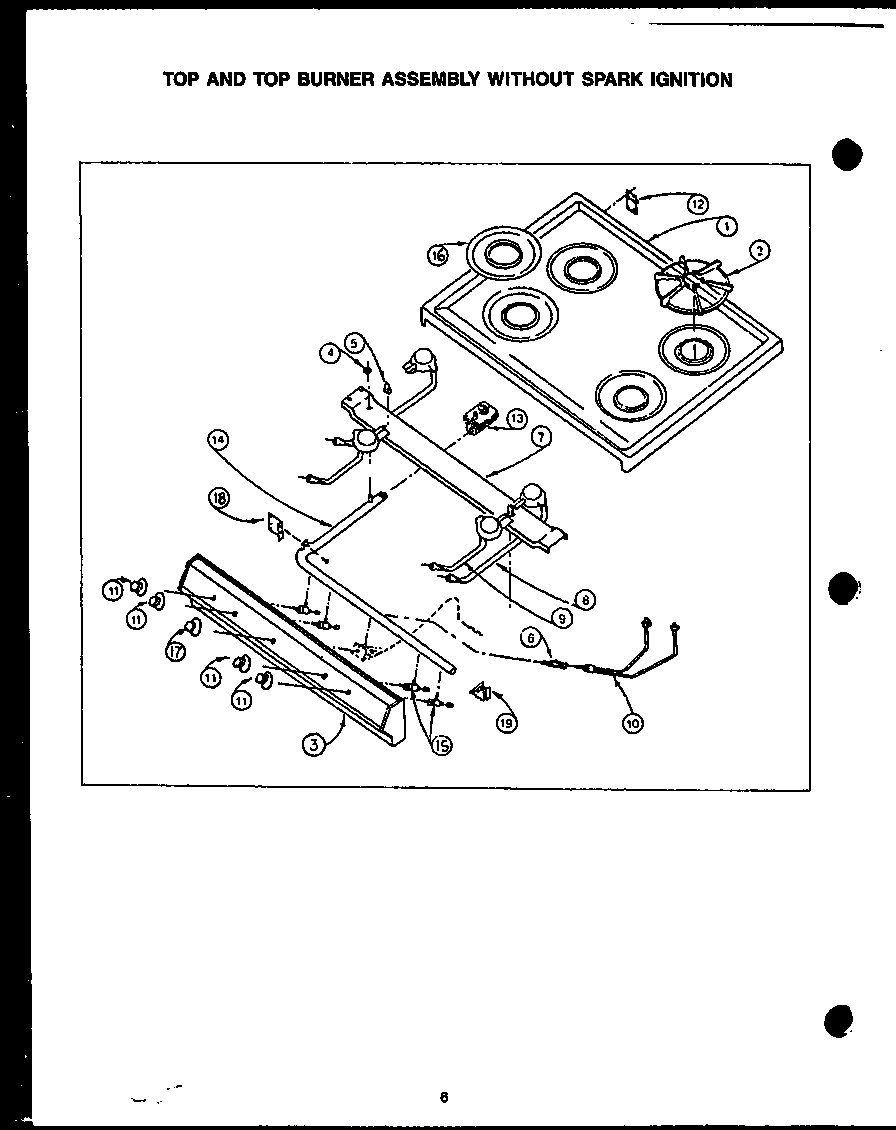

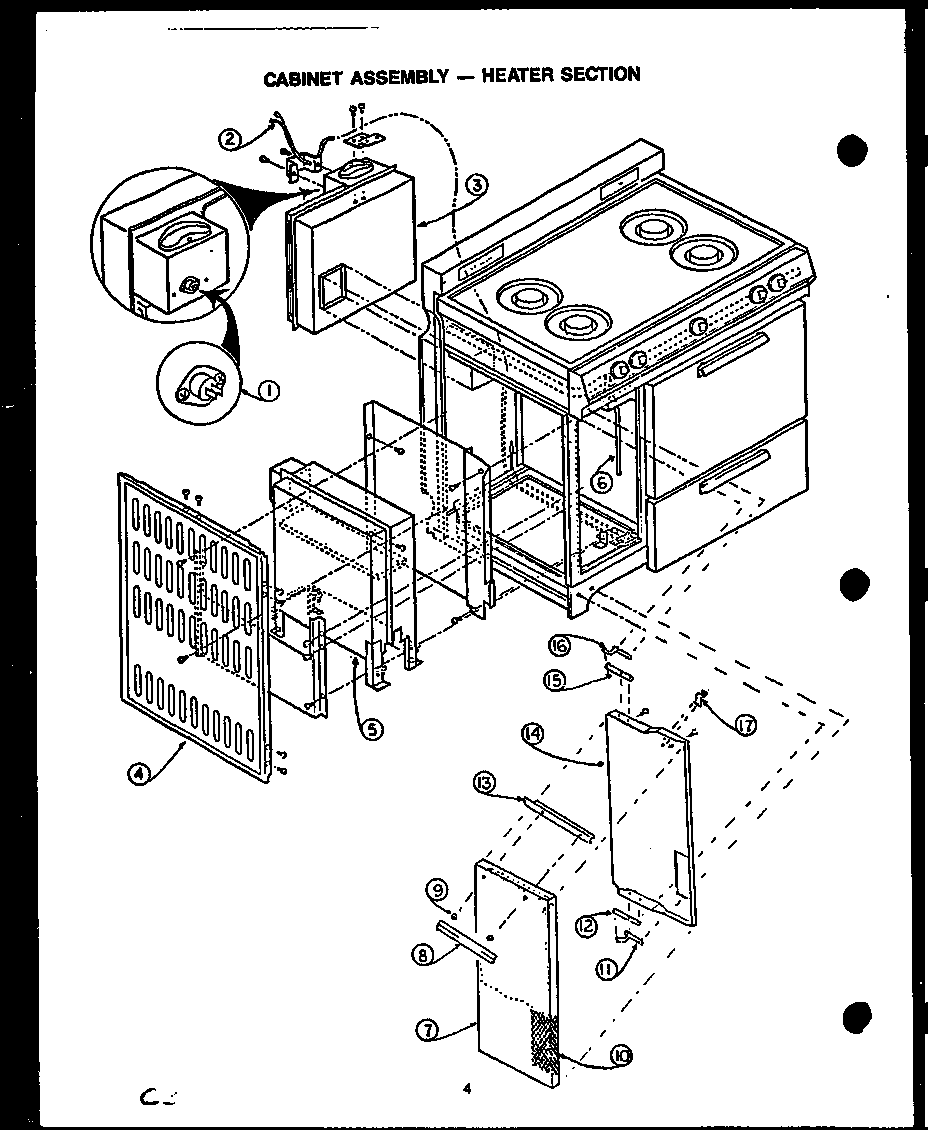

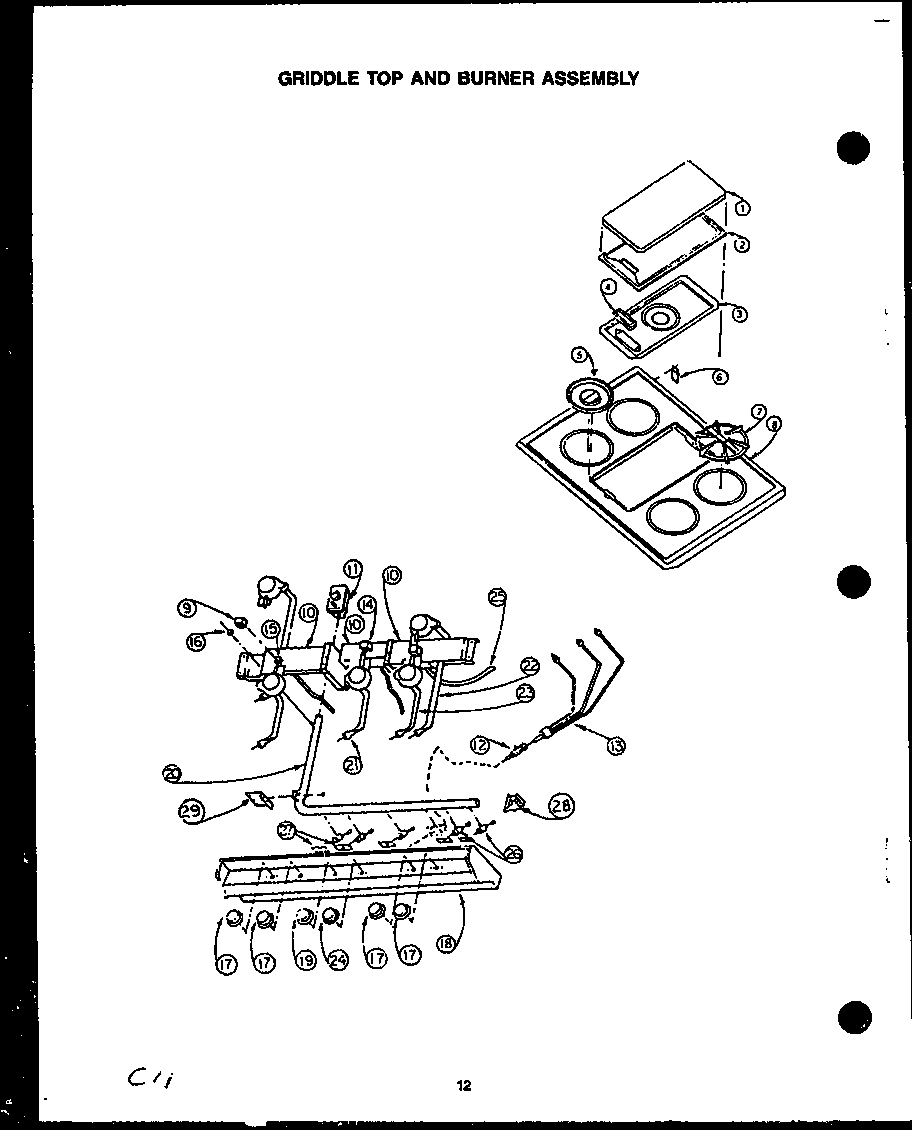

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |

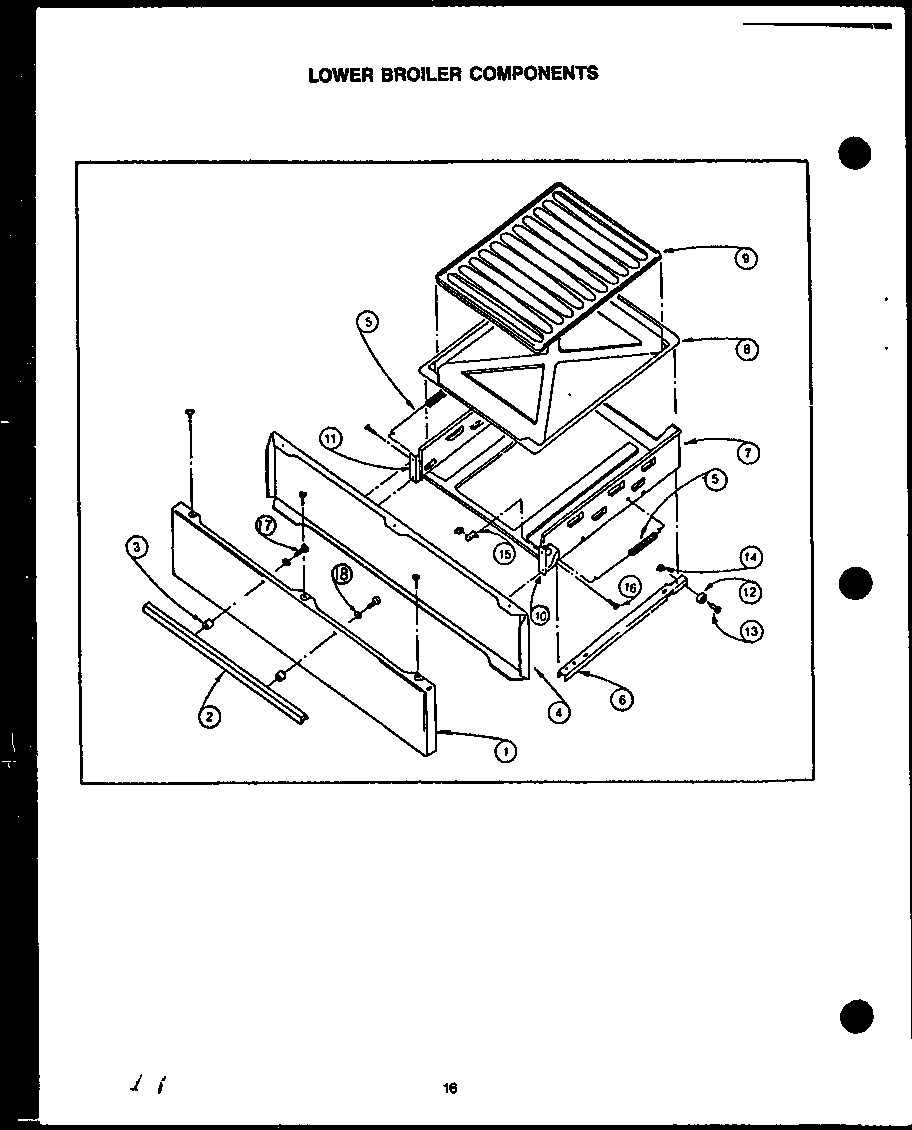

Screw, Broiler Door Handle 86728
Screw, broiler door handle

Part #86728

The manufacturer no longer makes this part, and there's no substitute part

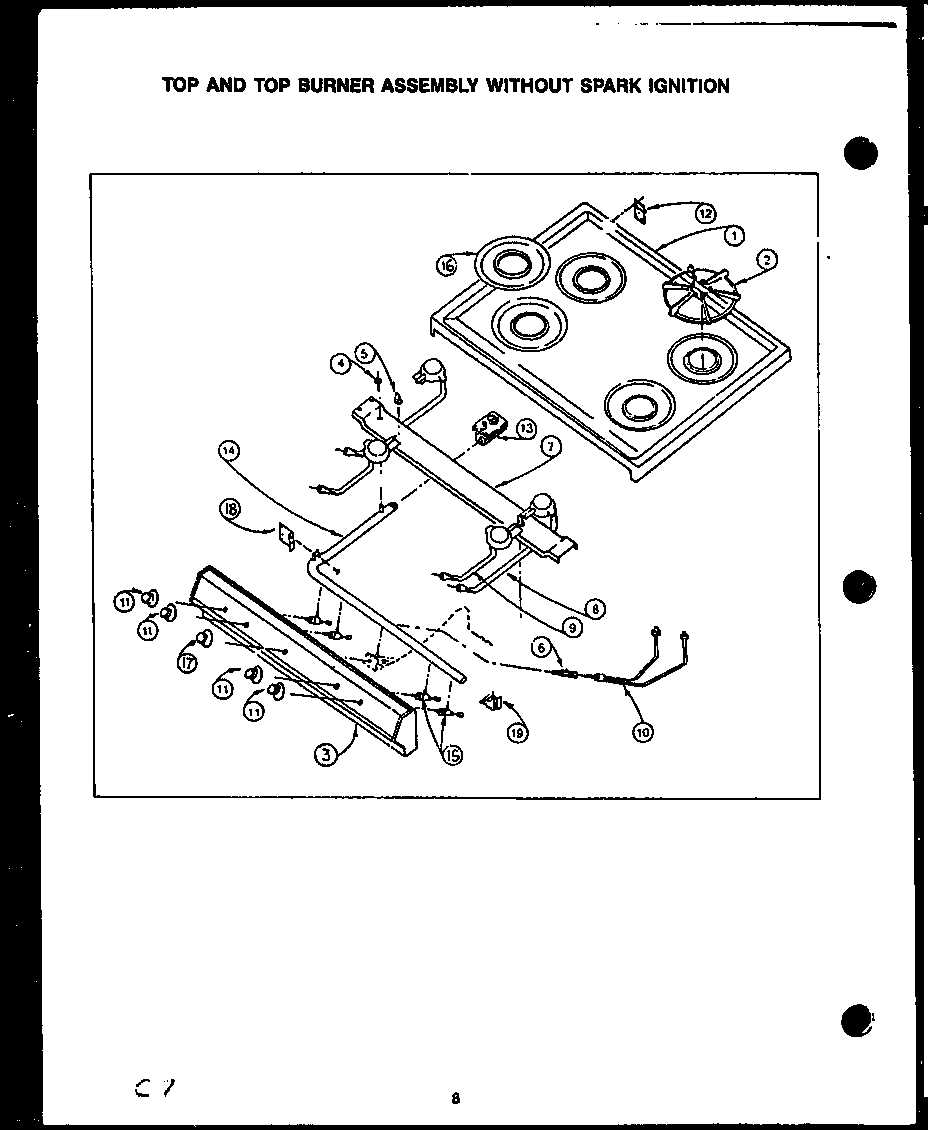

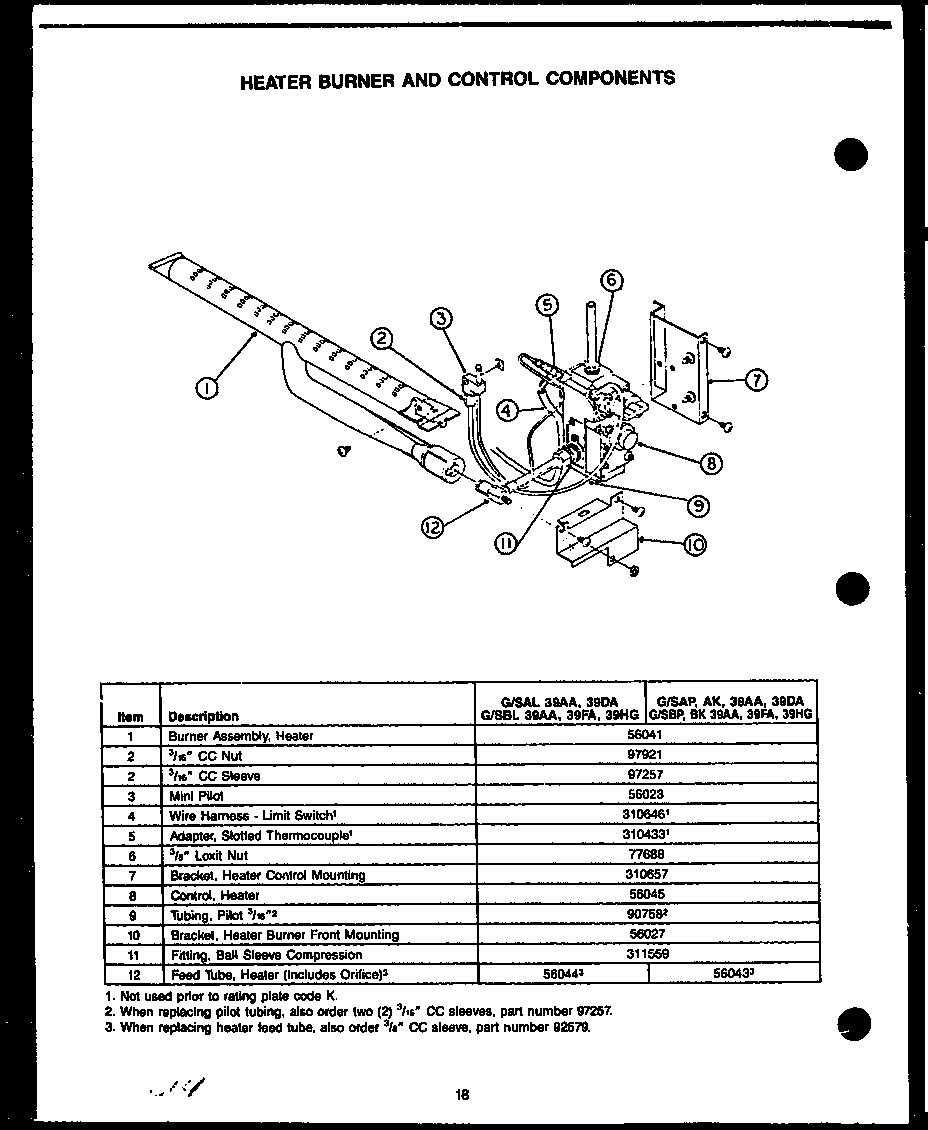

Tubing, Pilot 3/16" 2 90758
Tubing, pilot 3/16" 2

Part #90758

The manufacturer no longer makes this part, and there's no substitute part

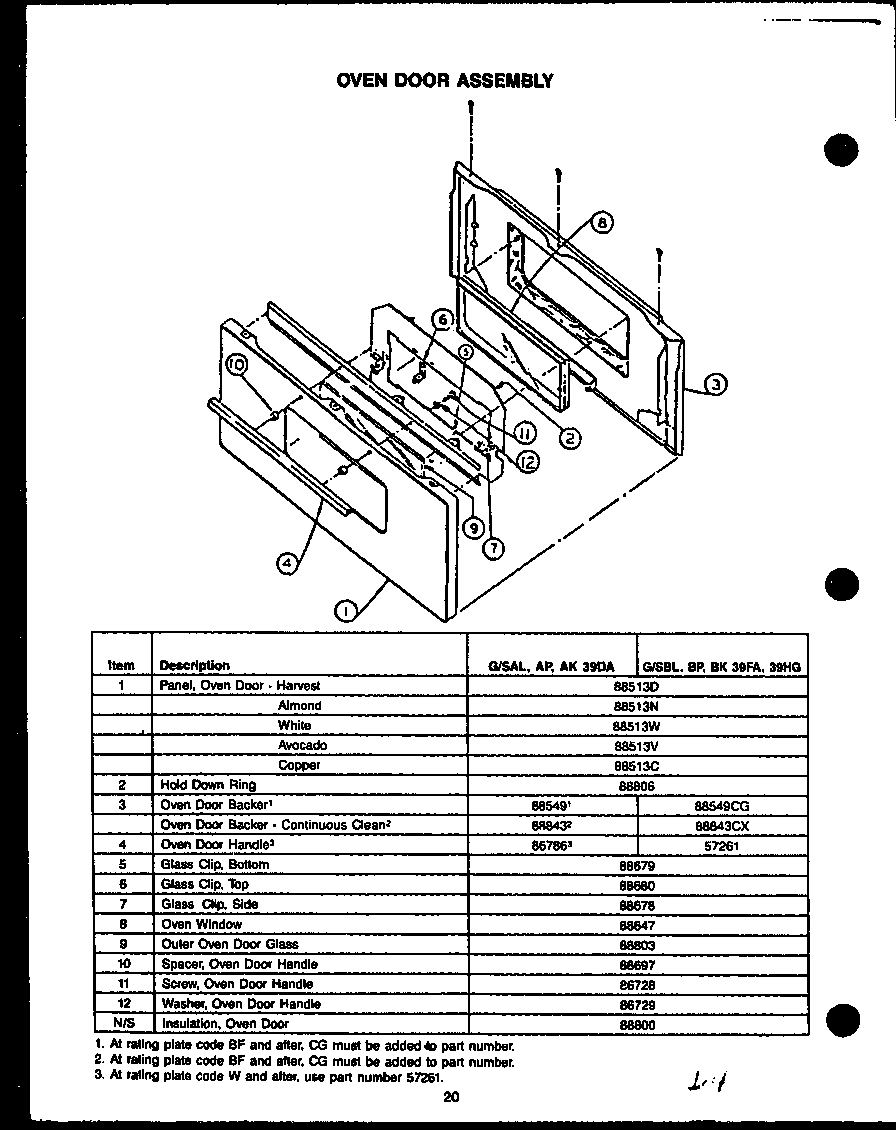

Glass Clip (top) 88680
Glass clip (top)

Part #88680

The manufacturer no longer makes this part, and there's no substitute part

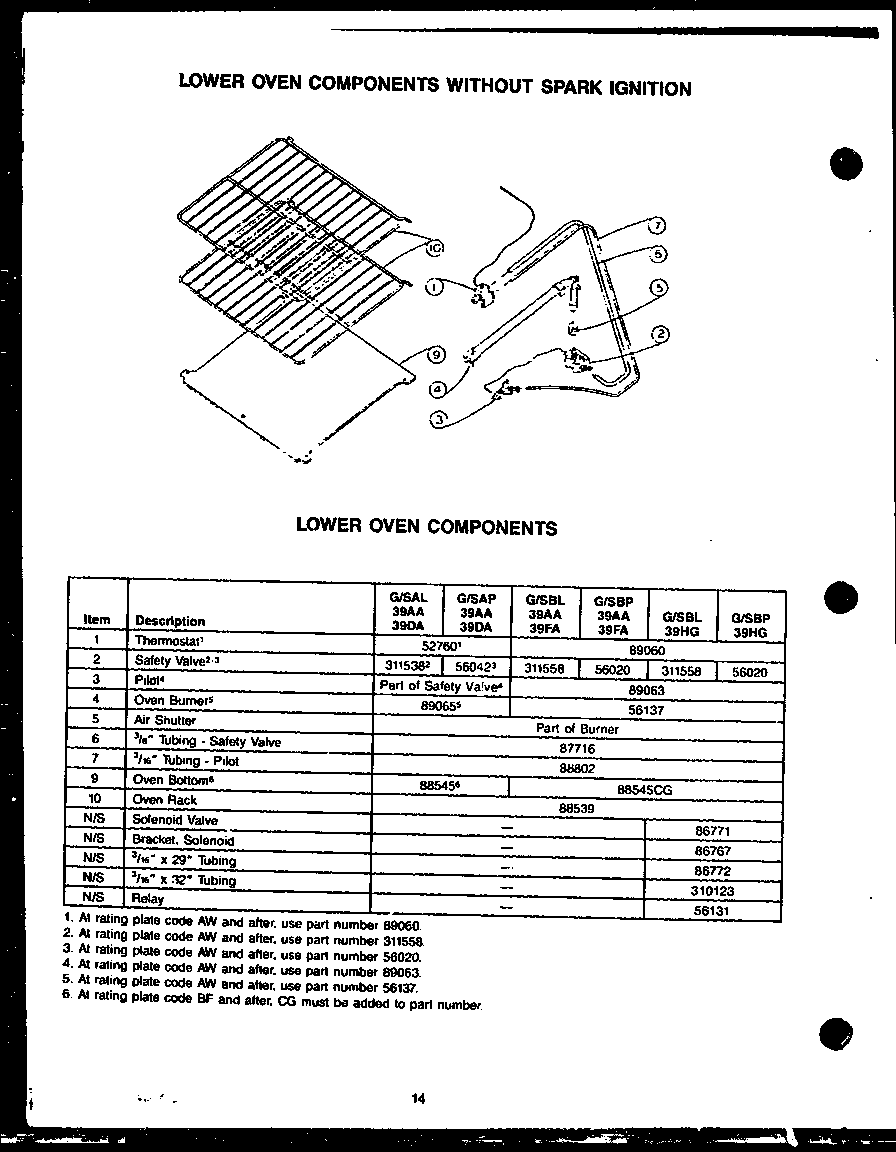

Oven Burner 56137
Oven burner

Part #56137

The manufacturer no longer makes this part, and there's no substitute part

Oven Igniter 86776
#11A

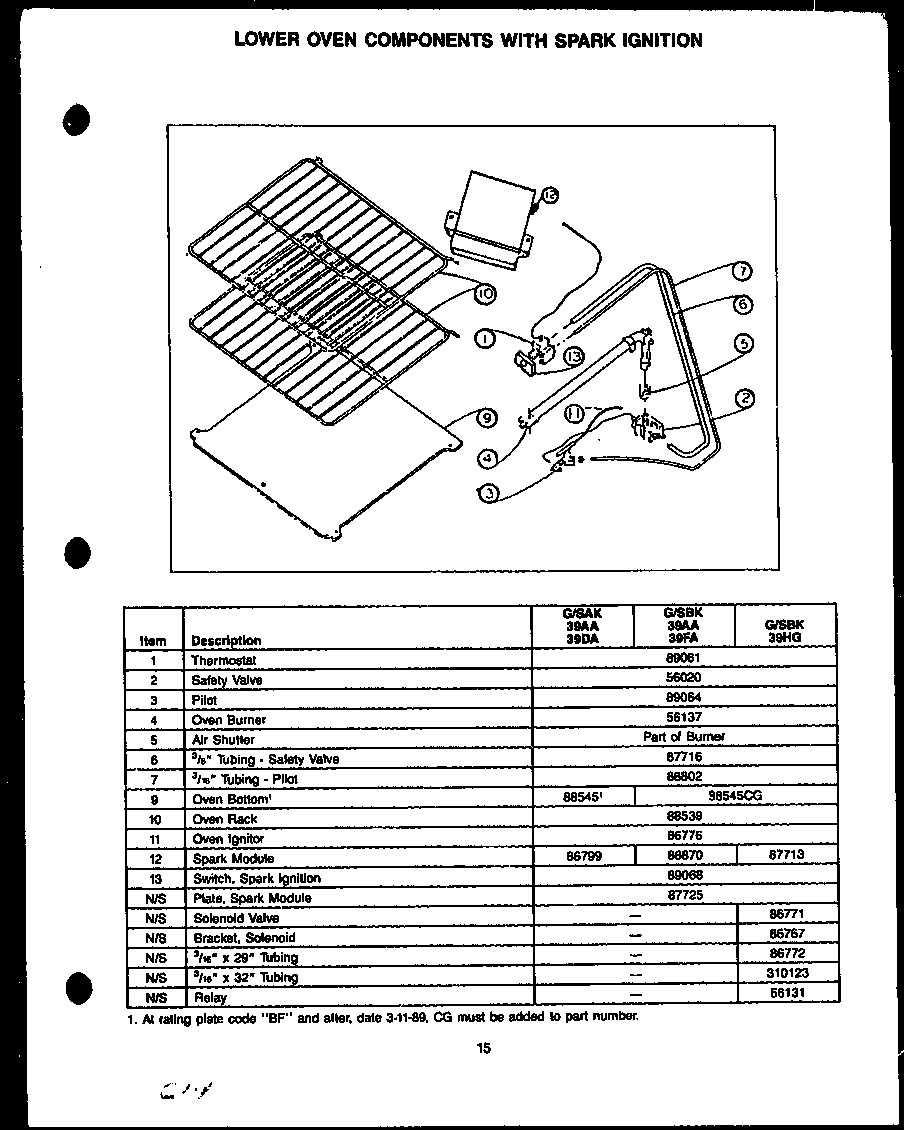

Lower oven components with spark ignition (gak39aa) (sak39aa) (gak39da) (sak39da) (gbk39aa) (sbk39aa) (gbk39fa) (sbk39fa) diagram

Oven igniter

Part #86776

The manufacturer no longer makes this part, and there's no substitute part

Panel, Oven Door - Harvest 88513D
Panel, oven door - harvest

Part #88513D

The manufacturer no longer makes this part, and there's no substitute part

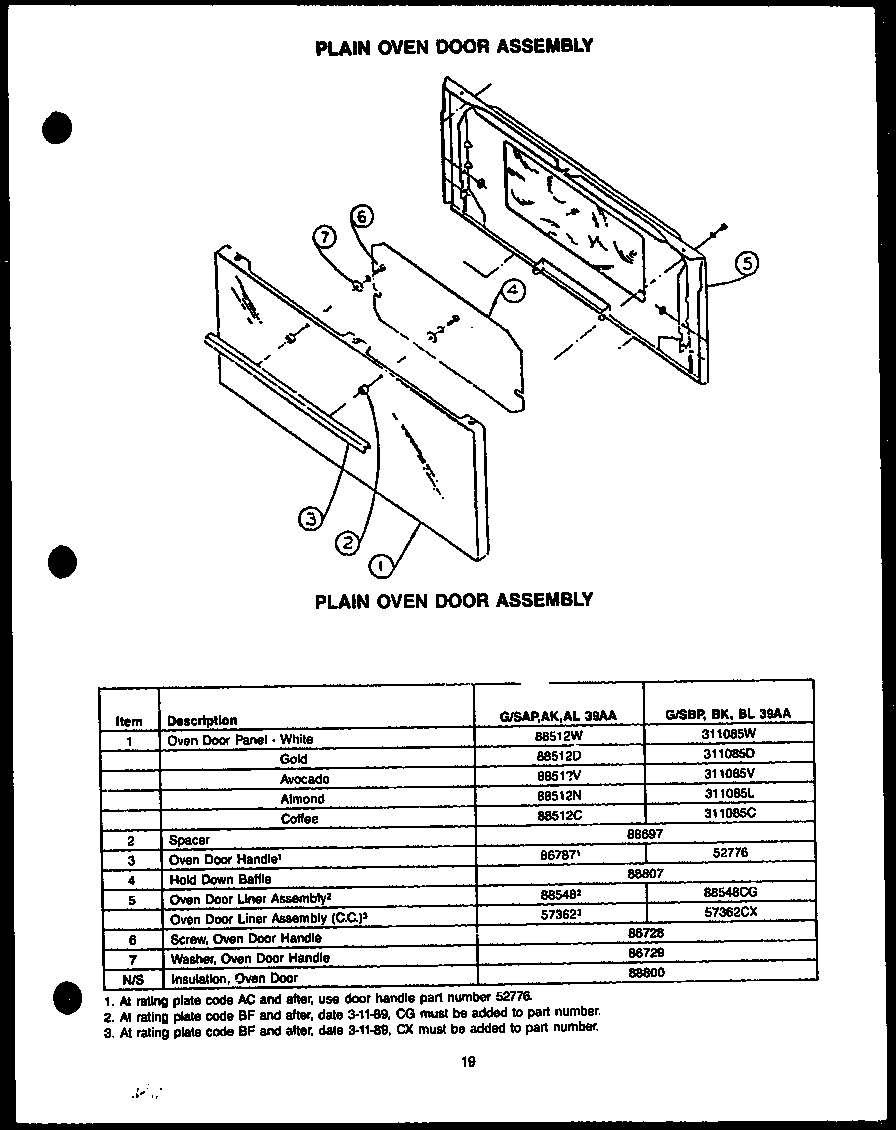

Panel, Oven Door - White 88513W
Panel, oven door - white

Part #88513W

The manufacturer no longer makes this part, and there's no substitute part

Rear Support 52743
Rear support

Part #52743

The manufacturer no longer makes this part, and there's no substitute part

Feed Tube, Heater (includes Orifice) (when Replacing Hea 56043
Feed tube, heater (includes orifice) (when replacing hea

Part #56043

The manufacturer no longer makes this part, and there's no substitute part

Hinge Arm, Top 88078
Hinge arm, top

Part #88078

The manufacturer no longer makes this part, and there's no substitute part
