Model # PDCE1NBYADBB Official GE bottom-mount refrigerator
Here are the diagrams and repair parts for Official GE PDCE1NBYADBB bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

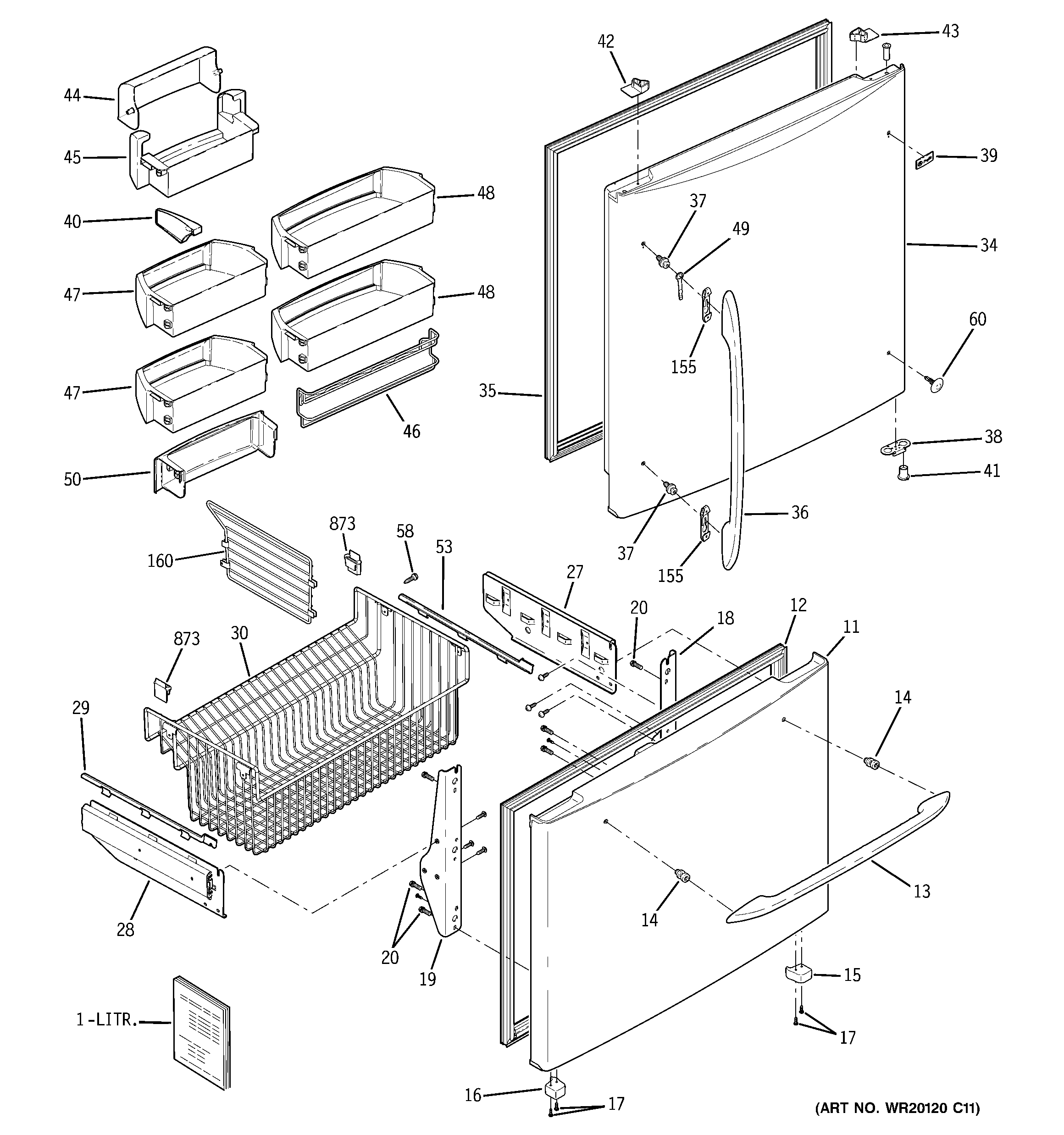

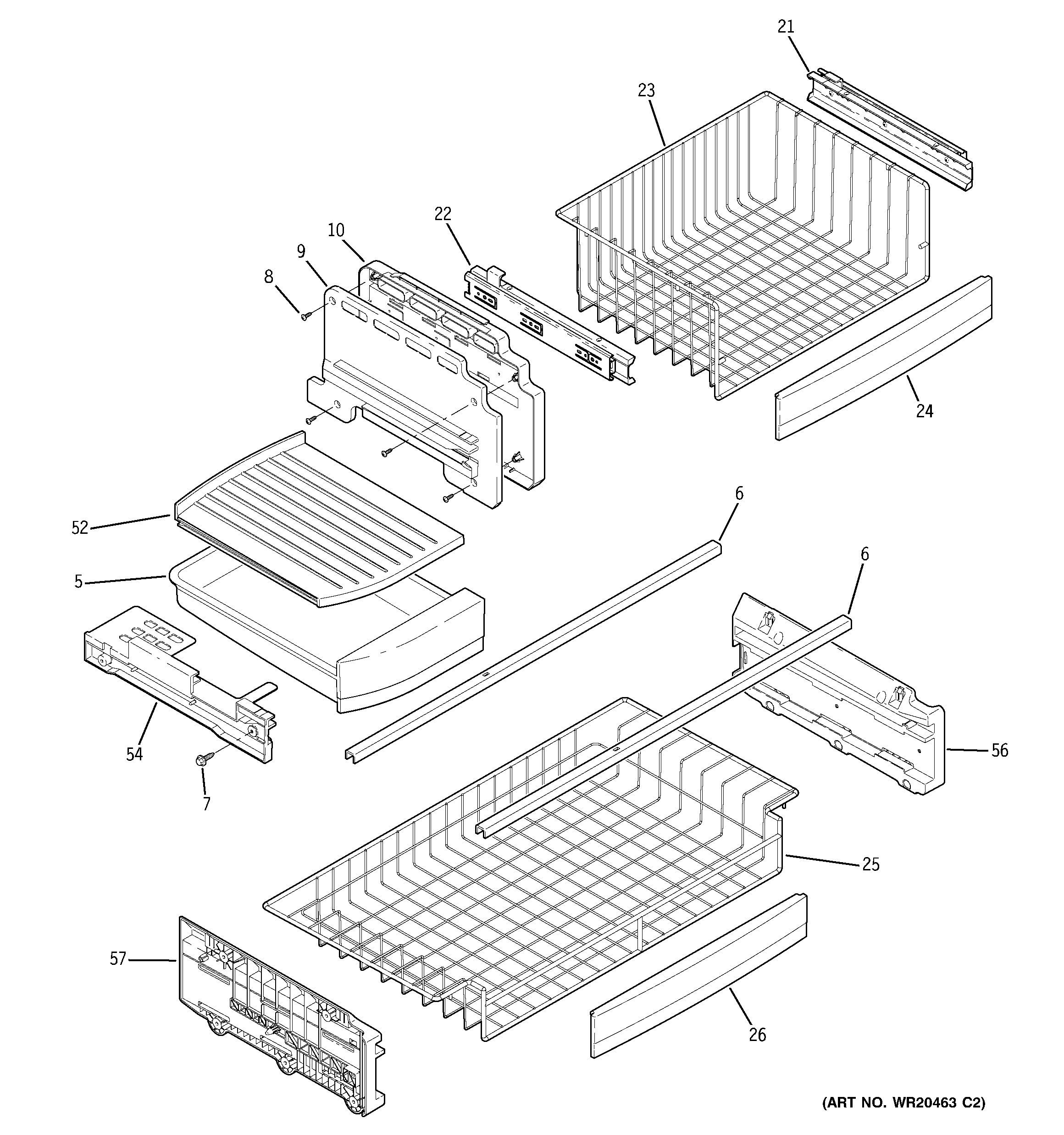

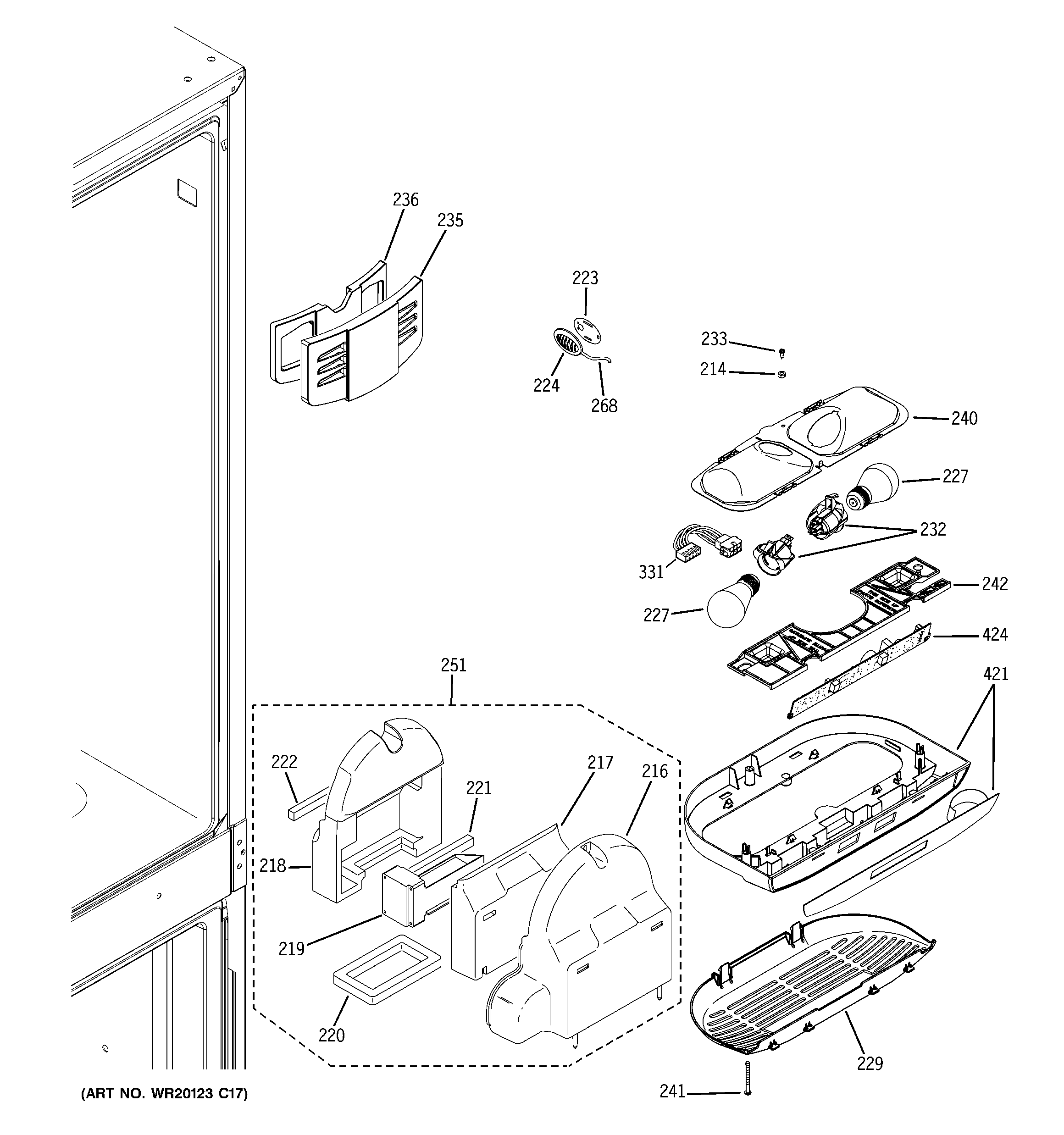

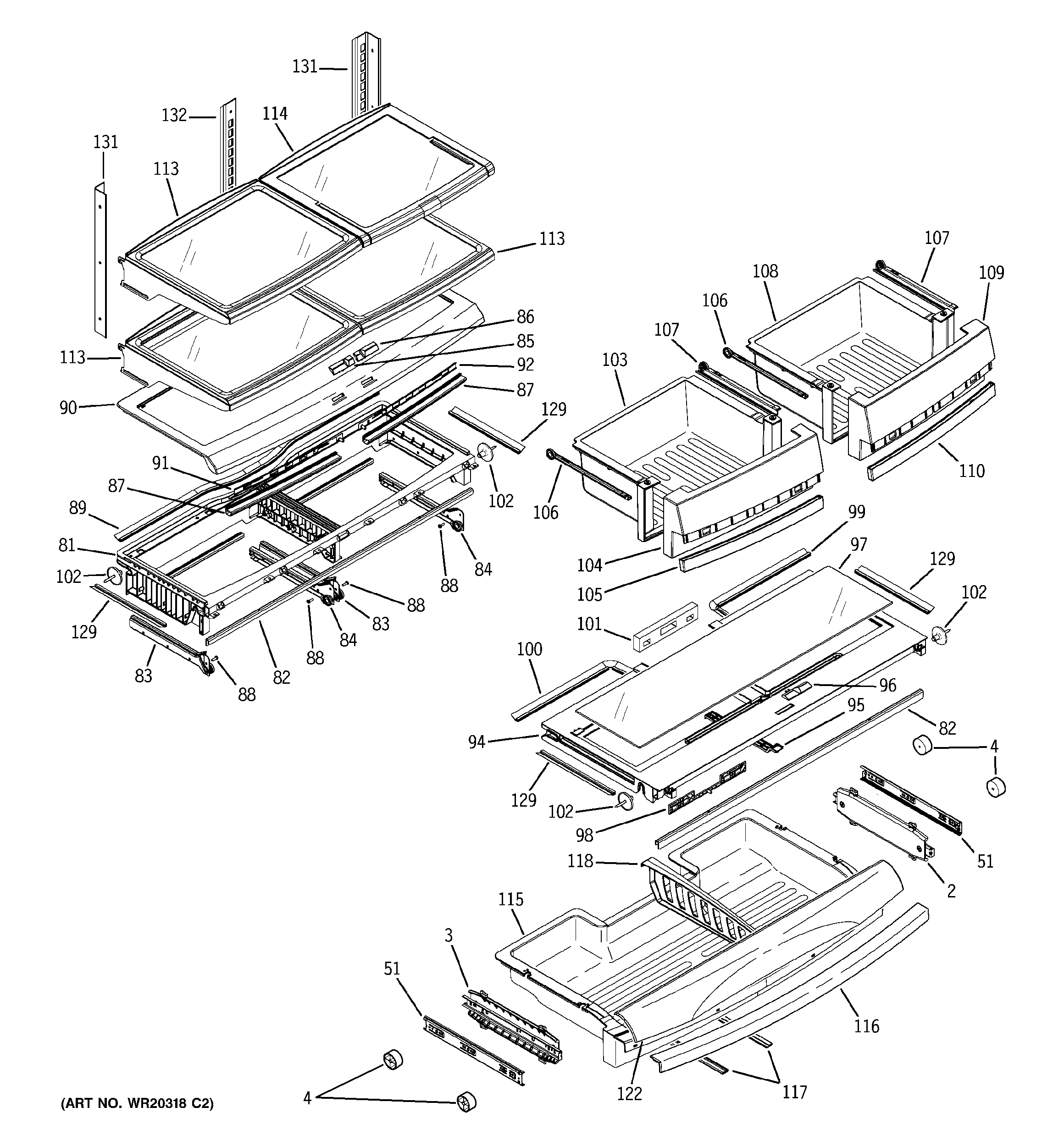

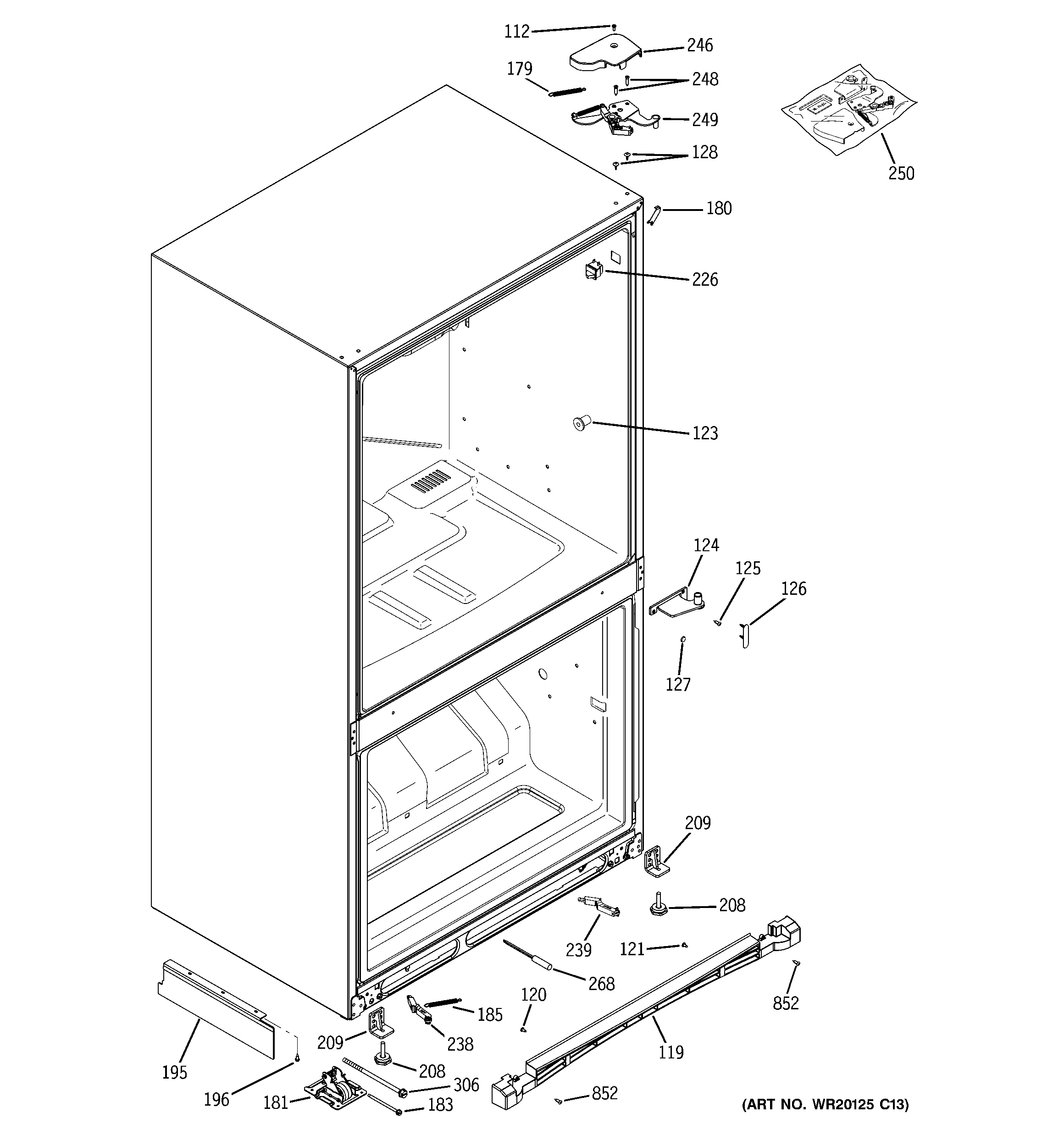

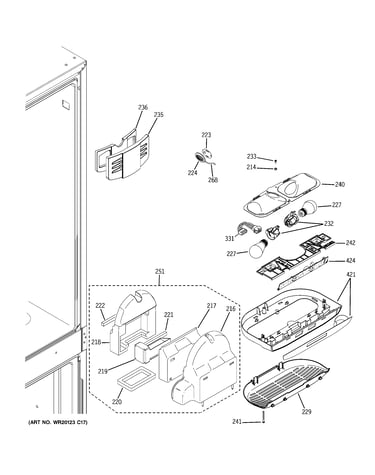

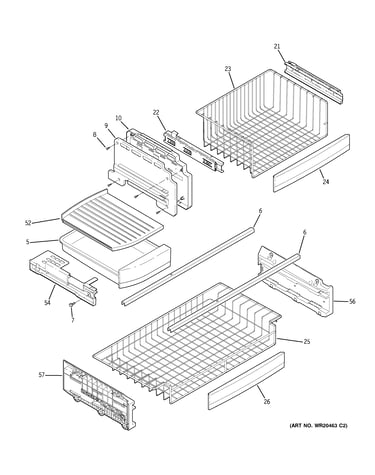

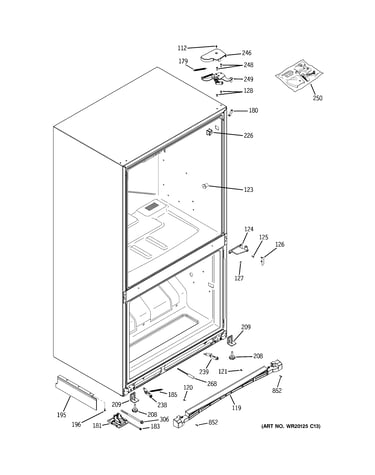

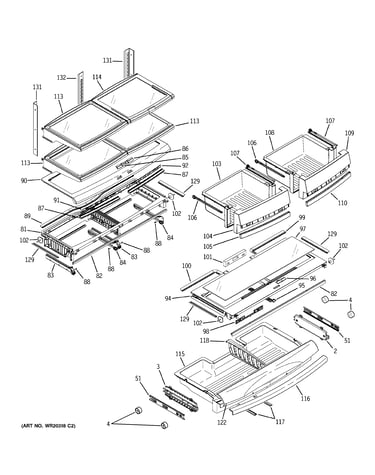

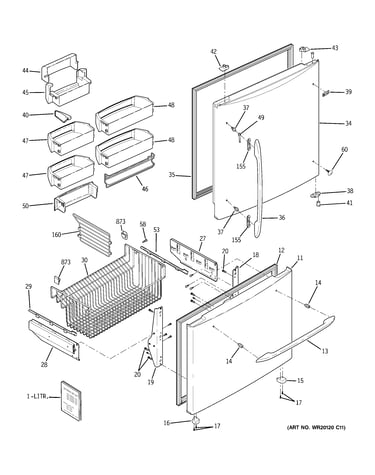

SELECT DIAGRAM
Browse Parts forPDCE1NBYADBB Refrigerators
- #740

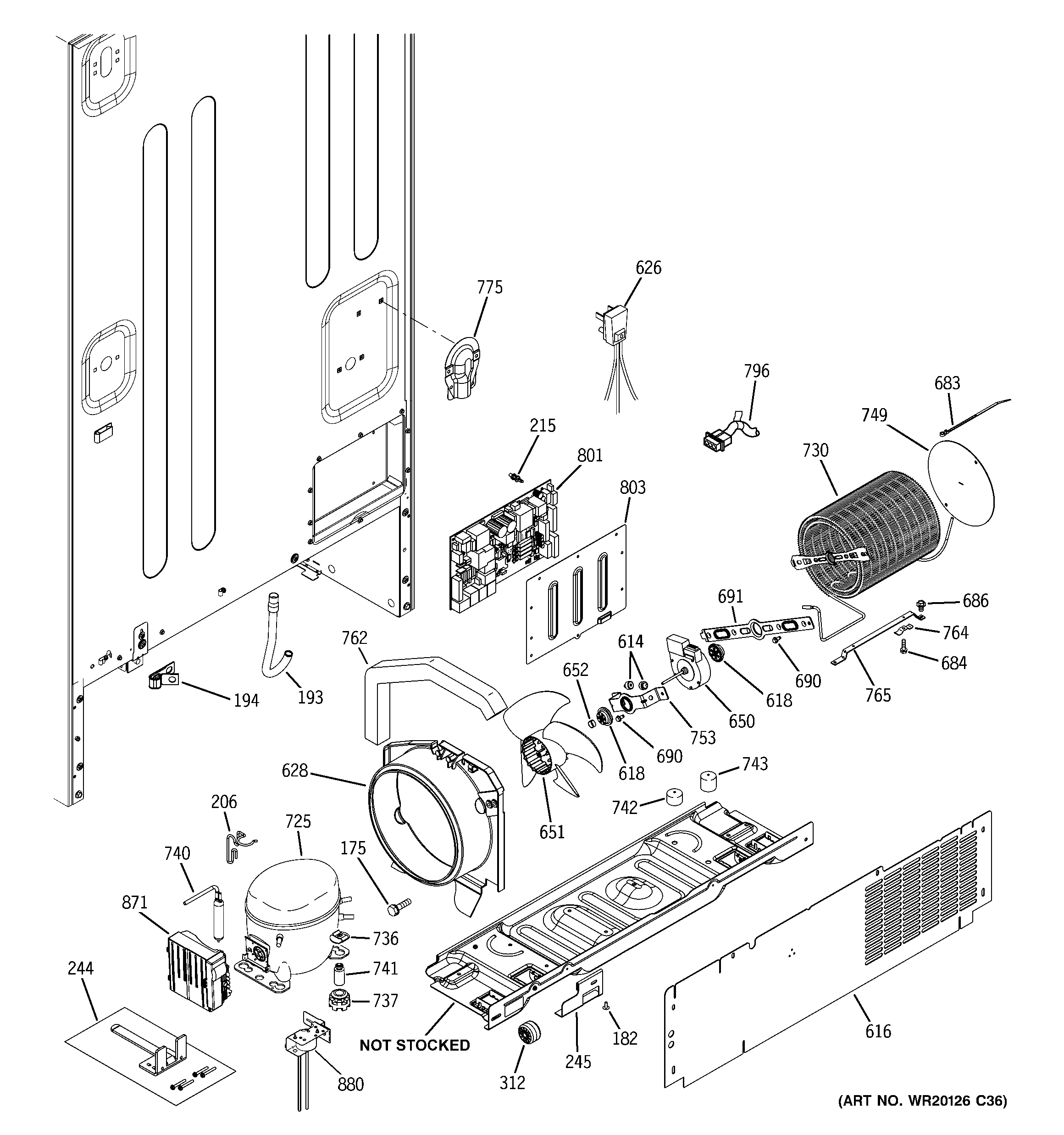

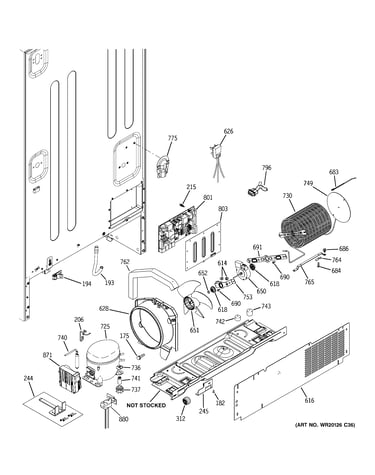

Machine compartment diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #266

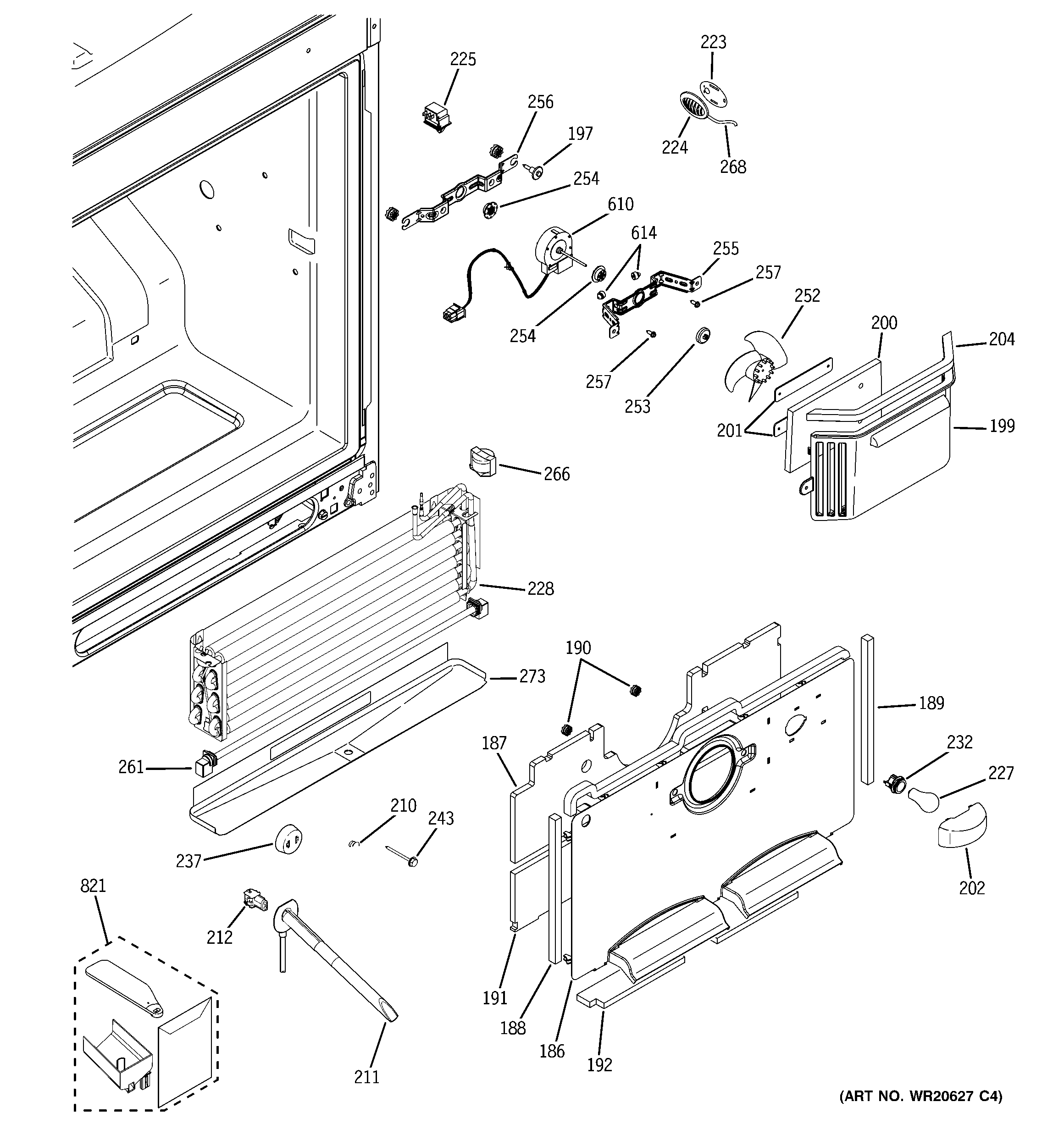

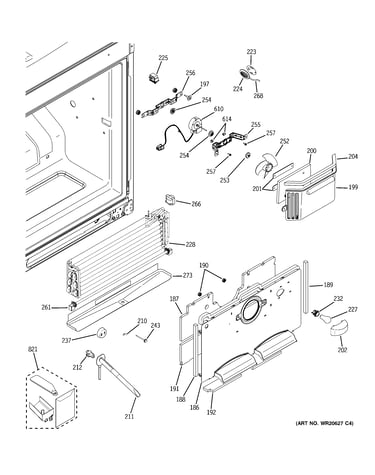

Freezer section diagram
Refrigerator defrost bi-metal thermostatPart #WR50X10069
This item is not returnable$21.64 |22% OFF Phone Price : $27.64In Stock - #252
Freezer section diagram
Refrigerator evaporator fan bladePart #WR60X10208
Replaced by #WR60X30922
?Manufacturer substitutionThis part replaces WR60X10208. Substitute parts can look different from the original.$79.66 |7% OFF Phone Price : $85.66In Stock - #725
Machine compartment diagram
Compressor vPart #WR87X10123
Replaced by #WR87X10111
?Manufacturer substitutionThis part replaces WR87X10123. Substitute parts can look different from the original.$735.57 |$12.00 OFF Phone Price : $747.57In Stock - #650
Machine compartment diagram
Condenser motorPart #WR60X10216
Replaced by #WR60X10209
?Manufacturer substitutionThis part replaces WR60X10216. Substitute parts can look different from the original.$60.17 |9% OFF Phone Price : $66.17In Stock - #651
Machine compartment diagram
Refrigerator condenser fan bladePart #WR60X10206
Replaced by #WR60X24484
?Manufacturer substitutionThis part replaces WR60X10206. Substitute parts can look different from the original.This item is not returnable$25.00 |19% OFF Phone Price : $31.00In Stock - #254
Freezer section diagram
Refrigerator evaporator fan motor grommetPart #WR02X12008
$37.82In Stock - #730
Machine compartment diagram
Ge profile refrigerator condenser coilPart #WR84X10022
$411.61 |$12.00 OFF Phone Price : $423.61In Stock - #225
Freezer section diagram
Refrigerator door switchPart #WR23X10179
Replaced by #WR23X21444
?Manufacturer substitutionThis part replaces WR23X10179. Substitute parts can look different from the original.This item is not returnable$9.15 |10% OFF Phone Price : $10.15In Stock - #193
Machine compartment diagram
Refrigerator drain tubePart #WR02X11426
This item is not returnable$15.00 |12% OFF Phone Price : $17.00In Stock
