Model # 106634181 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106634181 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

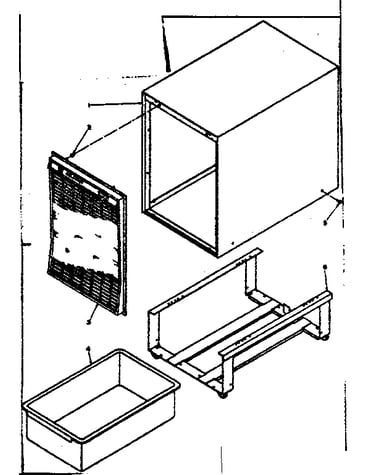

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Drier 43465
#34

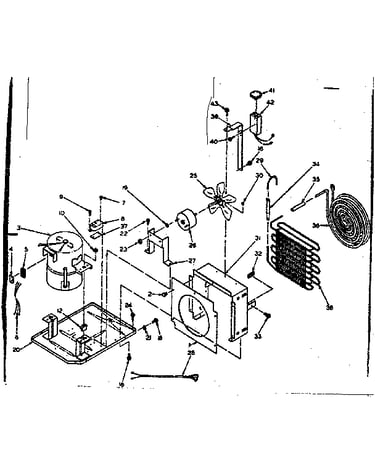

Unit parts diagram

Drier

Part #43465

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 43465. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Screw 487895
#33

Unit parts diagram

Screw

Part #487895

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487895. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 487869
#43

Unit parts diagram

Screw

Part #487869

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 487869. Substitute parts can look different from the original.
This item is not returnable
$5.85
In Stock
Compressor 463369
#3

Unit parts diagram

Compressor

Part #463369

The manufacturer no longer makes this part, and there's no substitute part

Base 472571
#20

Unit parts diagram

Base

Part #472571

The manufacturer no longer makes this part, and there's no substitute part

Screw, 10-32 X 1/2 488185
#22

Unit parts diagram

Screw, 10-32 x 1/2

Part #488185

The manufacturer no longer makes this part, and there's no substitute part

Washer 486855
#19

Unit parts diagram

Washer

Part #486855

The manufacturer no longer makes this part, and there's no substitute part

Service Cord 469422
#28

Unit parts diagram

Service cord

Part #469422

The manufacturer no longer makes this part, and there's no substitute part

Compressor & Components For Keys 3-12 634100
#44

Unit parts diagram

Compressor & components for keys 3-12

Part #634100

The manufacturer no longer makes this part, and there's no substitute part

Dampener 43993
#35

Unit parts diagram

Dampener

Part #43993

The manufacturer no longer makes this part, and there's no substitute part
