LCD Television

Model # LC-70LE845U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-70LE845U lcd television, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
LC-70LE845U Televisions
Rr Cabinet CCABBC054WJ31
#1

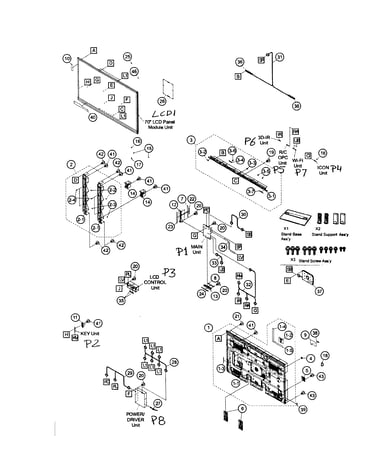

Cabinet parts diagram

Rr cabinet

Part #CCABBC054WJ31

The manufacturer no longer makes this part, and there's no substitute part

Pcb Icon DUNTKG014FM02
#P4

Cabinet parts diagram

Pcb icon

Part #DUNTKG014FM02

The manufacturer no longer makes this part, and there's no substitute part

Center Ang LANGKD468WJ3W
#2-1

Cabinet parts diagram

Center ang

Part #LANGKD468WJ3W

The manufacturer no longer makes this part, and there's no substitute part

Hole Cover GCOVAC576WJKZ
#4

Cabinet parts diagram

Hole cover

Part #GCOVAC576WJKZ

The manufacturer no longer makes this part, and there's no substitute part

Cord,ub QCNW-M537WJZZ
#33

Cabinet parts diagram

Cord,ub

Part #QCNW-M537WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Television Electronic Control Board DUNTKF961FM01
#P3

Cabinet parts diagram

Television electronic control board

Part #DUNTKF961FM01

The manufacturer no longer makes this part, and there's no substitute part

Remote Control RRMCGB005WJSA
#NI

Cabinet parts diagram

Remote control

Part #RRMCGB005WJSA

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb RUNTKA935WJQZ
#P8

Cabinet parts diagram

Power pcb

Part #RUNTKA935WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Bracket CANGKD525WJ31
#X2

Cabinet parts diagram

Television stand bracket

Part #CANGKD525WJ31

The manufacturer no longer makes this part, and there's no substitute part

Center Ang CANGKD468WJ31
#2

Cabinet parts diagram

Center ang

Part #CANGKD468WJ31

The manufacturer no longer makes this part, and there's no substitute part
