Model # 1165116090 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165116090 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

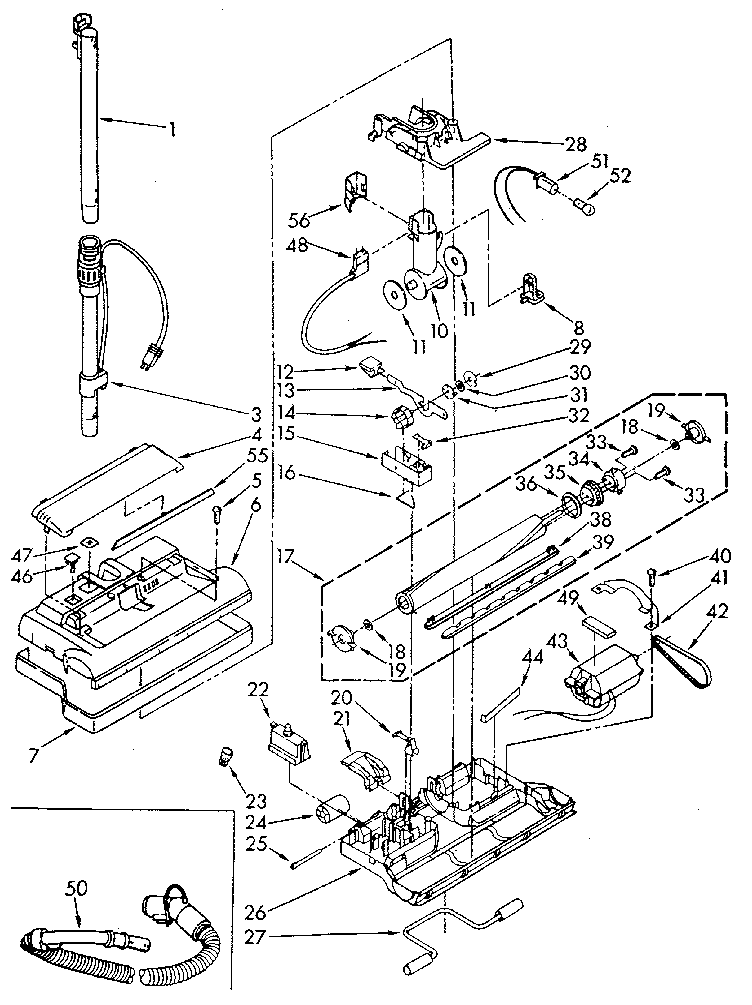

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Lens Bulb 747286
#55

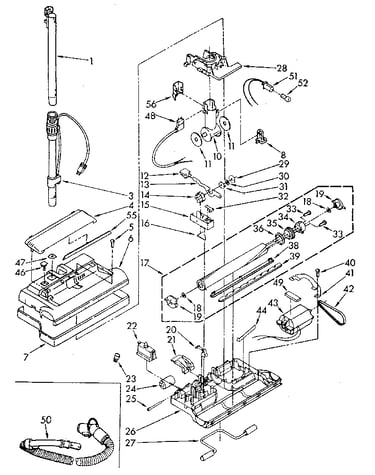

Power-mate diagram

Lens bulb

Part #747286

The manufacturer no longer makes this part, and there's no substitute part

Housng-blb 4155616
#4

Power-mate diagram

Housng-blb

Part #4155616

The manufacturer no longer makes this part, and there's no substitute part

Flange (black) 742031
#36

Power-mate diagram

Flange (black)

Part #742031

The manufacturer no longer makes this part, and there's no substitute part

Catch 722955
#31

Power-mate diagram

Catch

Part #722955

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Power-mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Axle (silver) 744029
#27

Power-mate diagram

Axle (silver)

Part #744029

The manufacturer no longer makes this part, and there's no substitute part

Extension Button 4155355
#46

Power-mate diagram

Extension button

Part #4155355

The manufacturer no longer makes this part, and there's no substitute part

Sprocket (black) 742506
#35

Power-mate diagram

Sprocket (black)

Part #742506

The manufacturer no longer makes this part, and there's no substitute part

Pad Pedal 747280
#12

Power-mate diagram

Pad pedal

Part #747280

The manufacturer no longer makes this part, and there's no substitute part
