Model # 52850130100 Official LXI television

Here are the diagrams and repair parts for Official LXI 52850130100 television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Knob 84-25338
#2

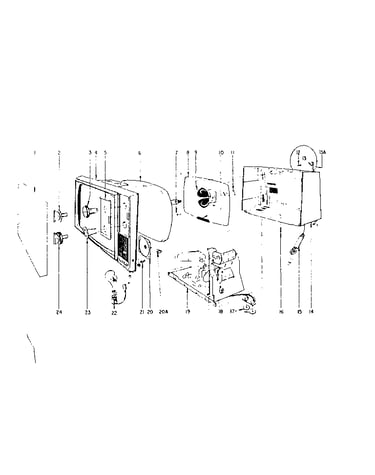

Cabinet parts diagram

Knob

Part #84-25338

The manufacturer no longer makes this part, and there's no substitute part

Spring 70-1027-0
#17A

Cabinet parts diagram

Spring

Part #70-1027-0

The manufacturer no longer makes this part, and there's no substitute part

Knob Kit Dia 52-3162-9
#23

Cabinet parts diagram

Knob kit dia

Part #52-3162-9

The manufacturer no longer makes this part, and there's no substitute part

Boot 28-551
#15A

Cabinet parts diagram

Boot

Part #28-551

The manufacturer no longer makes this part, and there's no substitute part

Kit Knob 52-3275-9
#3

Cabinet parts diagram

Kit knob

Part #52-3275-9

The manufacturer no longer makes this part, and there's no substitute part

Cook Top Side Trim Kit Spring 70-914-0
Cook top side trim kit spring

Part #70-914-0

The manufacturer no longer makes this part, and there's no substitute part

Inlay Dial 40-814-2
#24B

Cabinet parts diagram

Inlay dial

Part #40-814-2

The manufacturer no longer makes this part, and there's no substitute part

Uhf Knob Kit 90-1114
#24

Cabinet parts diagram

Uhf knob kit

Part #90-1114

The manufacturer no longer makes this part, and there's no substitute part

Earphone 33-8-2
#22

Cabinet parts diagram

Earphone

Part #33-8-2

The manufacturer no longer makes this part, and there's no substitute part

Yoke 80-82-4
#9

Cabinet parts diagram

Yoke

Part #80-82-4

The manufacturer no longer makes this part, and there's no substitute part
