DeWalt
Power Screwdriver

Model # DW269 TYPE 1 Official DeWalt screwdriver

Here are the diagrams and repair parts for Official DeWalt DW269-TYPE-1 screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Drill/driver Motor Brush 176846-04
#3

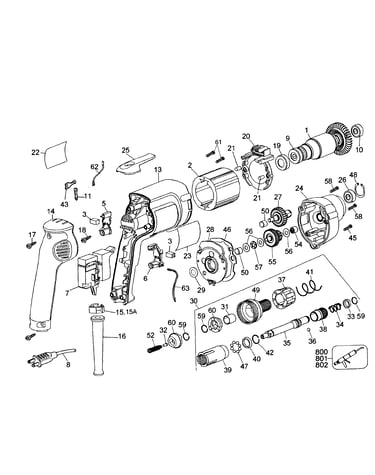

Screw driver assy diagram

Drill/driver motor brush

Part #176846-04

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 089210-00
#59

Screw driver assy diagram

Retaining ring

Part #089210-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 090866-00
#33

Screw driver assy diagram

Washer

Part #090866-00

The manufacturer no longer makes this part, and there's no substitute part

Clamp 176833-00
#115

Screw driver assy diagram

Clamp

Part #176833-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Bearing 090626-00
#31

Screw driver assy diagram

Sleeve bearing

Part #090626-00

The manufacturer no longer makes this part, and there's no substitute part

Baffle 176811-00
#20

Screw driver assy diagram

Baffle

Part #176811-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Sleeve 949721-03
#19

Screw driver assy diagram

Black & decker sleeve

Part #949721-03

The manufacturer no longer makes this part, and there's no substitute part

Grease N017298
#NI

Screw driver assy diagram

Grease

Part #N017298

The manufacturer no longer makes this part, and there's no substitute part

Clutch 96558-04
#60

Screw driver assy diagram

Clutch

Part #96558-04

The manufacturer no longer makes this part, and there's no substitute part

Spindle 176712-00SV
#27

Screw driver assy diagram

Spindle

Part #176712-00SV

The manufacturer no longer makes this part, and there's no substitute part
