Model # 80462068A Official Ikea electric cooktop

Here are the diagrams and repair parts for Official Ikea 80462068A electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Error Codes

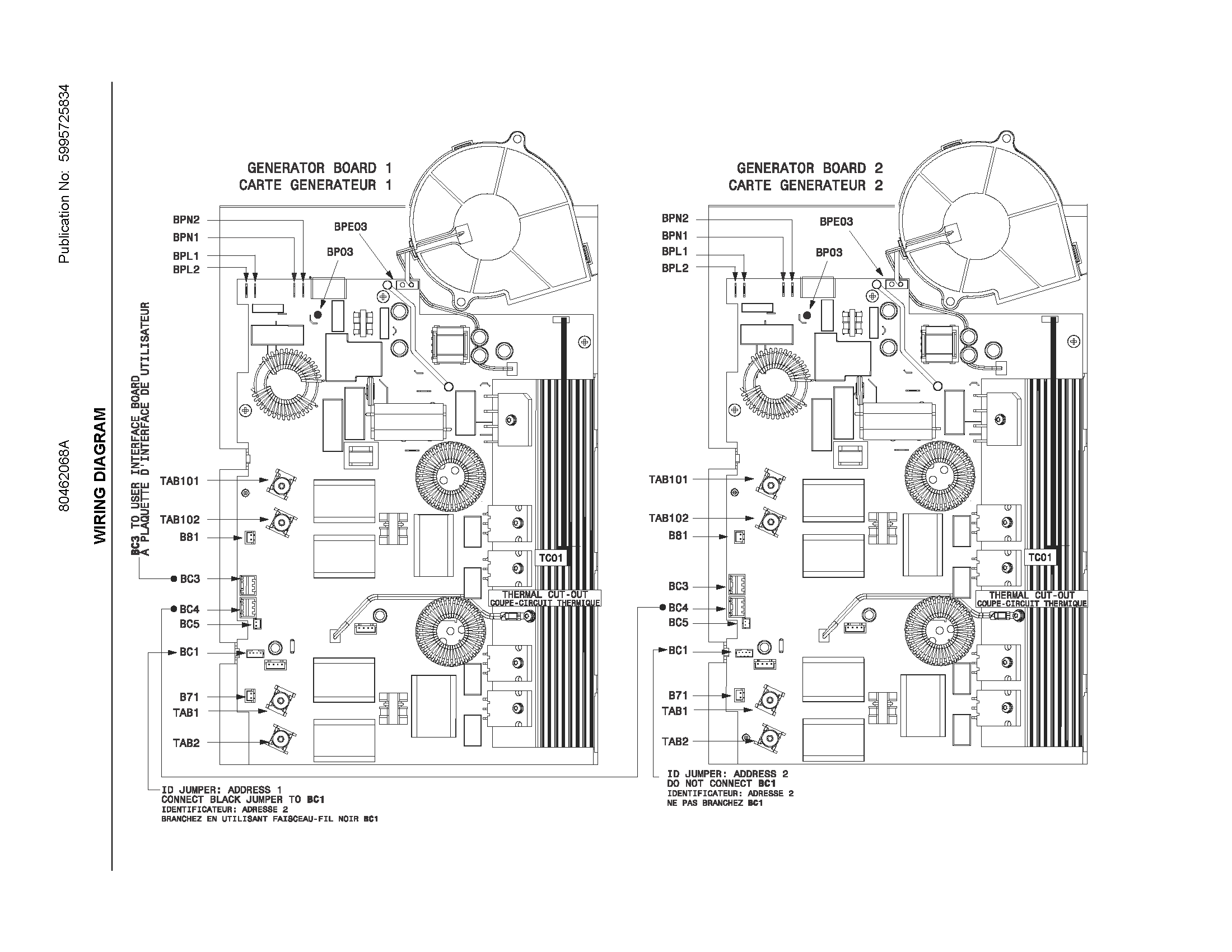

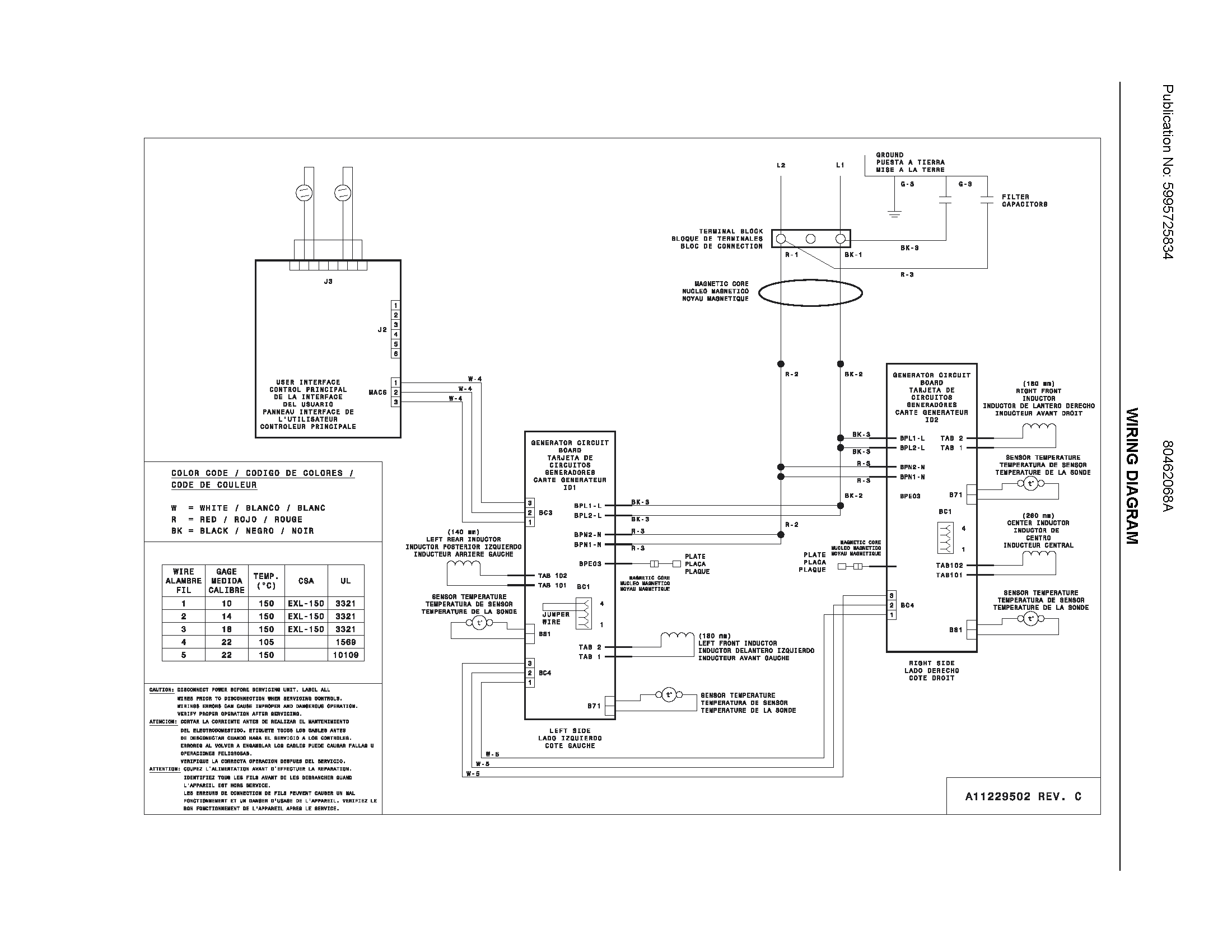

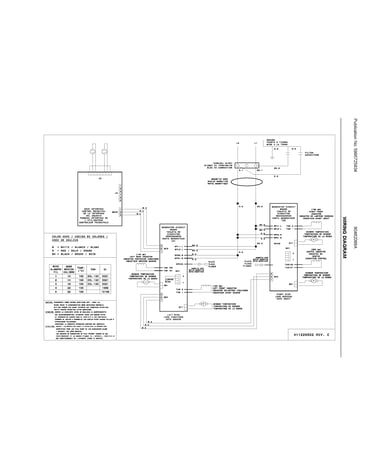

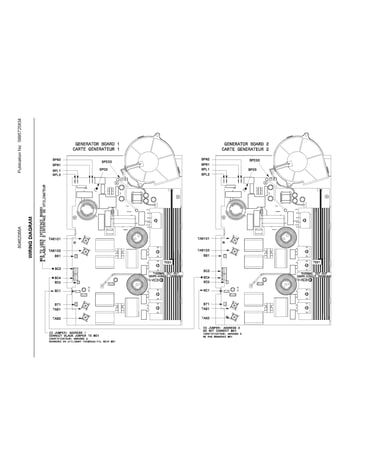

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Burner Boxes

Screws

ALL PARTS

Showing 10 of 31 parts |

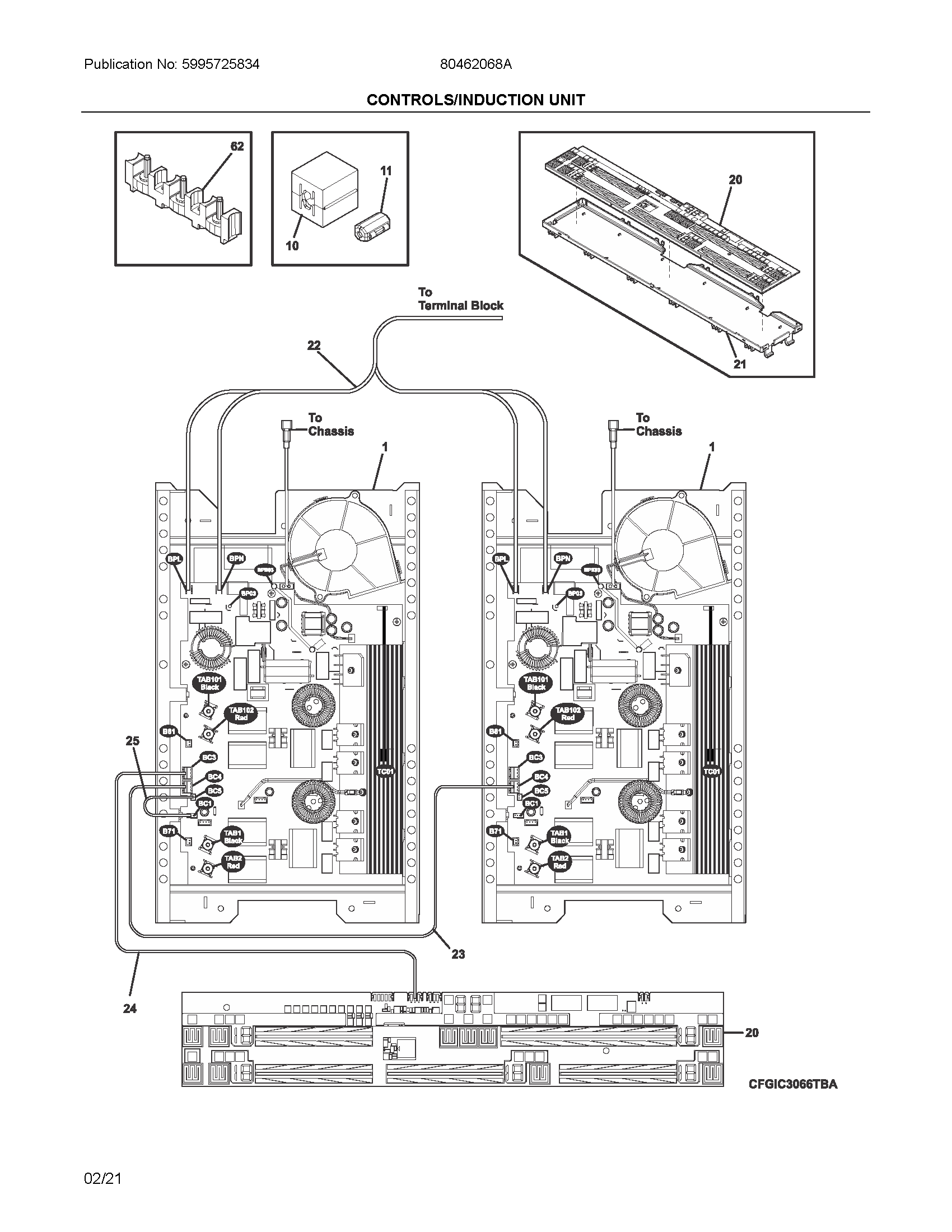

Controls/induction unit diagram

Cooktop induction module (replaces 357266087)

Part #357266088

$371.60

In Stock

Qty

#21

Controls/induction unit diagram

Carrier,user interface

Part #561630814

$38.64

In Stock

Qty

Element,induction Coil ,260 Mm 5304514341

#15B

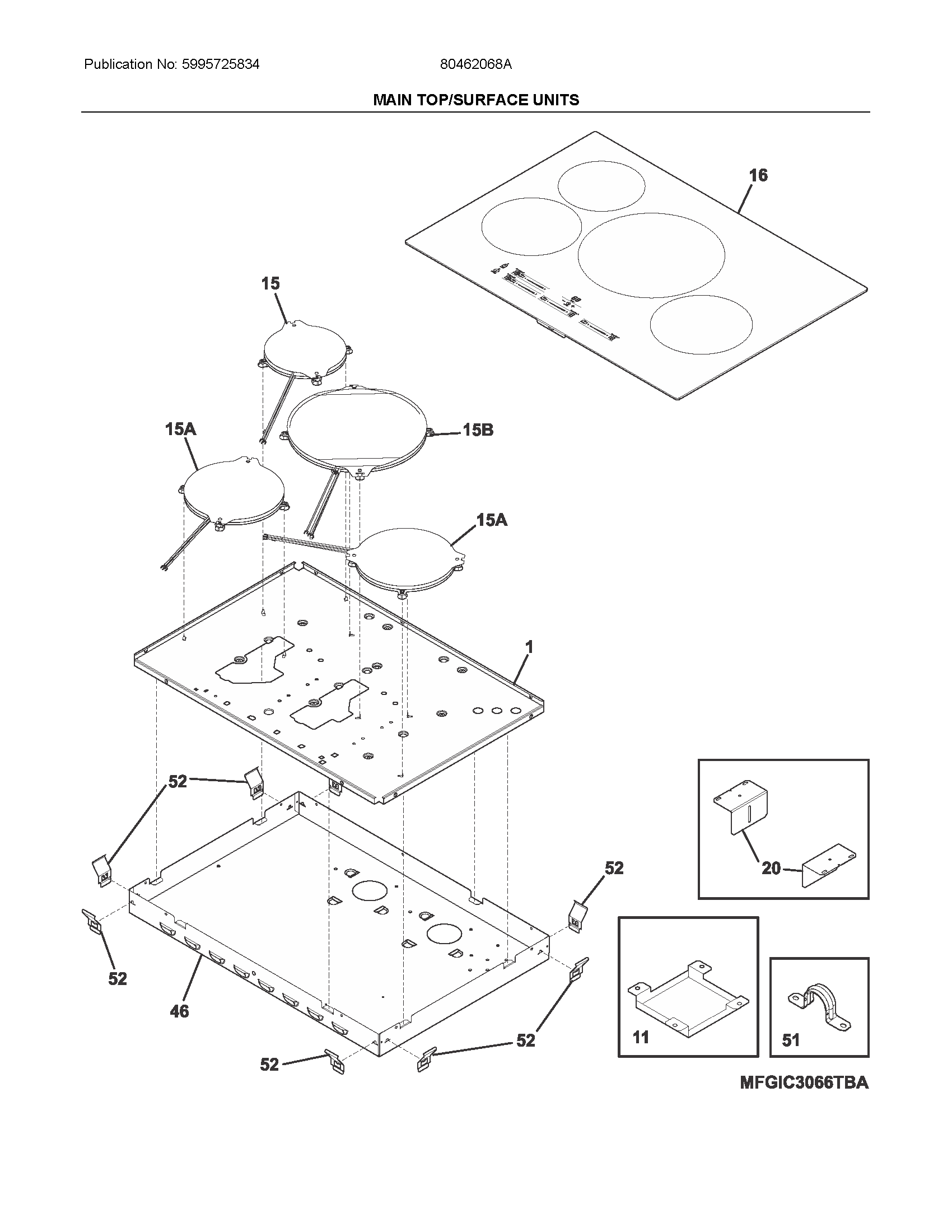

Main top/surface units diagram

Element,induction coil ,260 mm

Part #5304514341

$162.55 |

7% OFF Phone Price : $174.55

In Stock

Qty

#46

Main top/surface units diagram

Burner box

Part #5304514337

$80.33

In Stock

Qty

Element,induction Coil ,180 Mm 357226370

#15A

Main top/surface units diagram

Element,induction coil ,180 mm

Part #357226370

$82.73

In Stock

Qty

#NI

Main top/surface units diagram

Range screw, 8 x 5/8-in

Part #3131048

$21.71

In Stock

Qty

Ikea Cooktop Main Top (black) 5304525245

#16

Main top/surface units diagram

Ikea cooktop main top (black)

Part #5304525245

$225.29 |

5% OFF Phone Price : $237.29

In Stock

Qty

#52

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable

$6.63

In Stock

Qty

#NI

Controls/induction unit diagram

Harness-elec

Part #5304522464

$113.10

In Stock

Qty

#10

Controls/induction unit diagram

Filter,ferrite choke

Part #5304506076

$31.02

In Stock

Qty
