Model # GIE18HGHGRBB Official GE refrigerator

Here are the diagrams and repair parts for Official GE GIE18HGHGRBB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

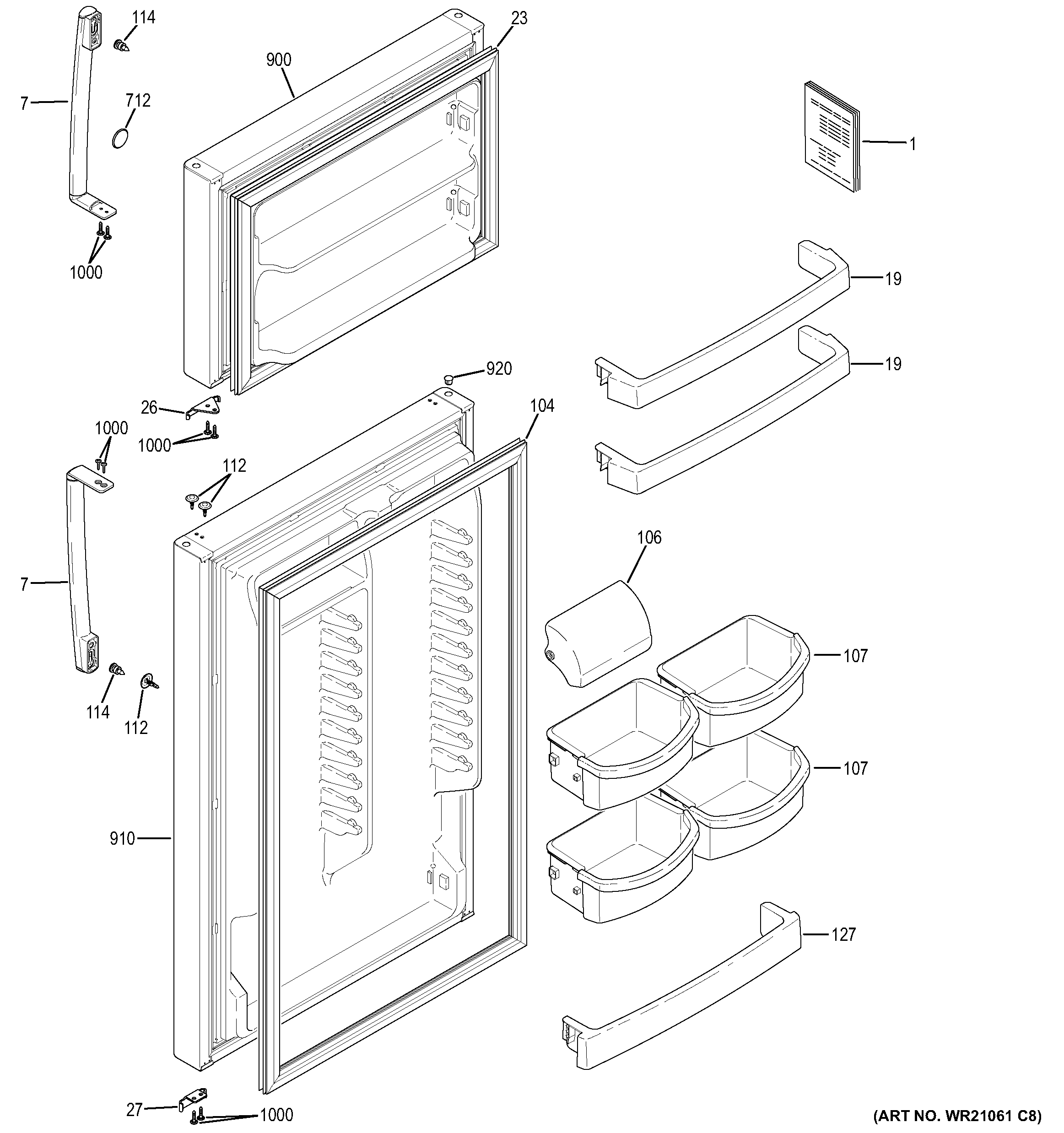

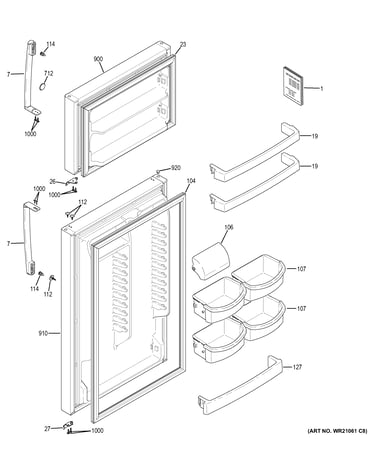

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
G.e. Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

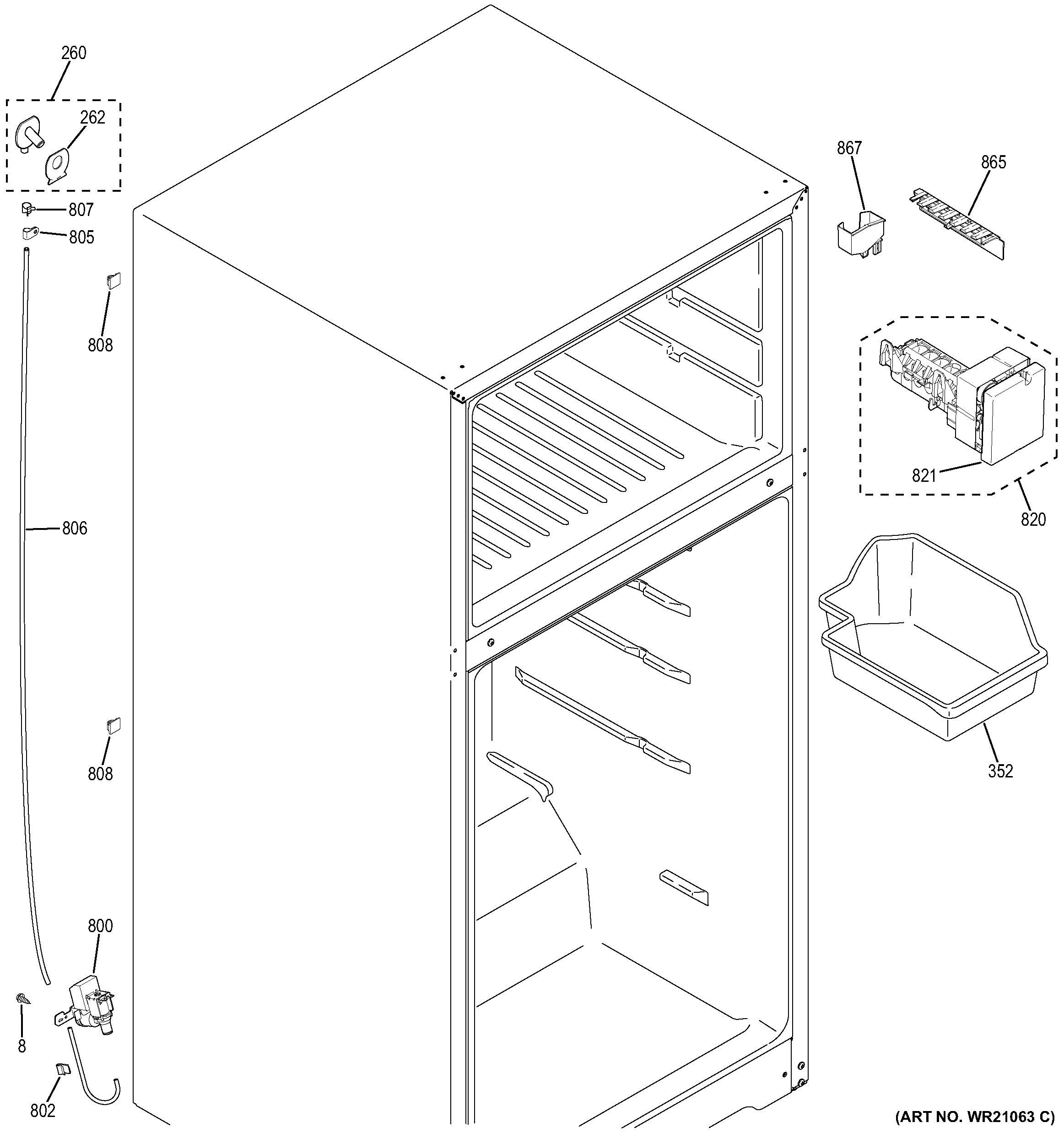

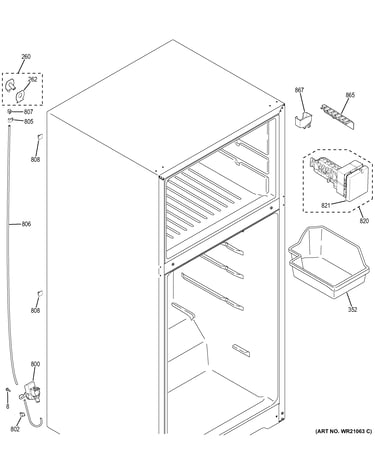

Ice maker diagram

G.e. refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Appliance Light Bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, Std398091, Wr02x12328, Wx12x1510) 40A15
#435

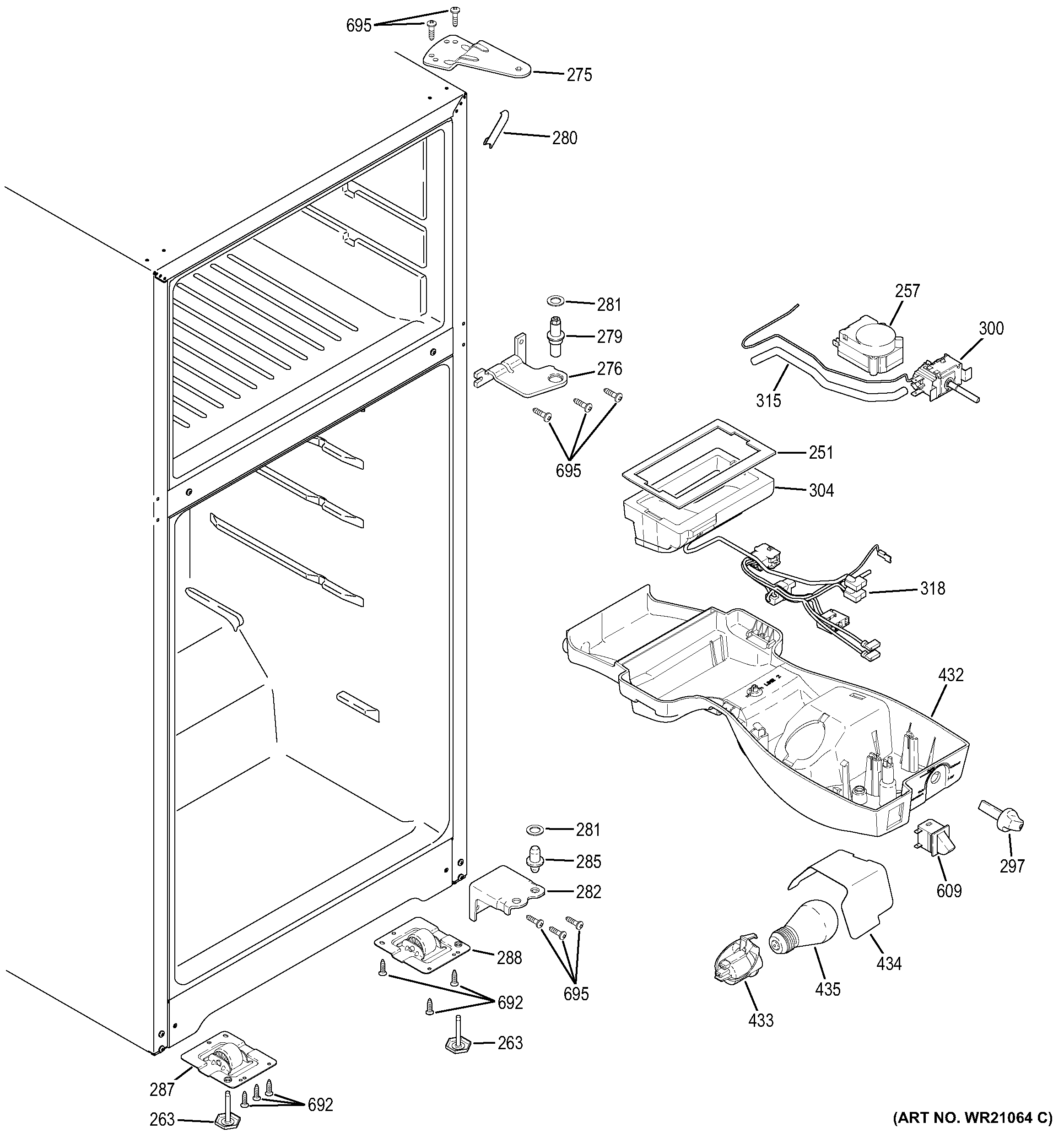

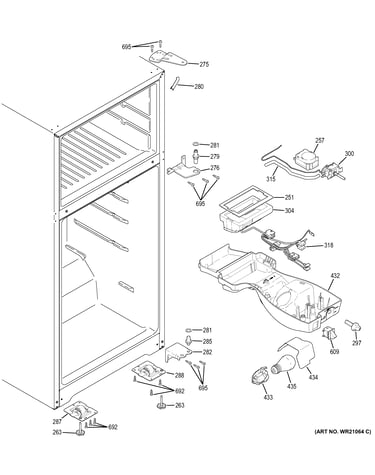

Fresh food section diagram

Appliance light bulb, 40-watt (replaces 40a15-2pk, 60a, 60a15rvl, std398091, wr02x12328, wx12x1510)

Part #40A15

BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Run Capacitor WR55X23731
#729

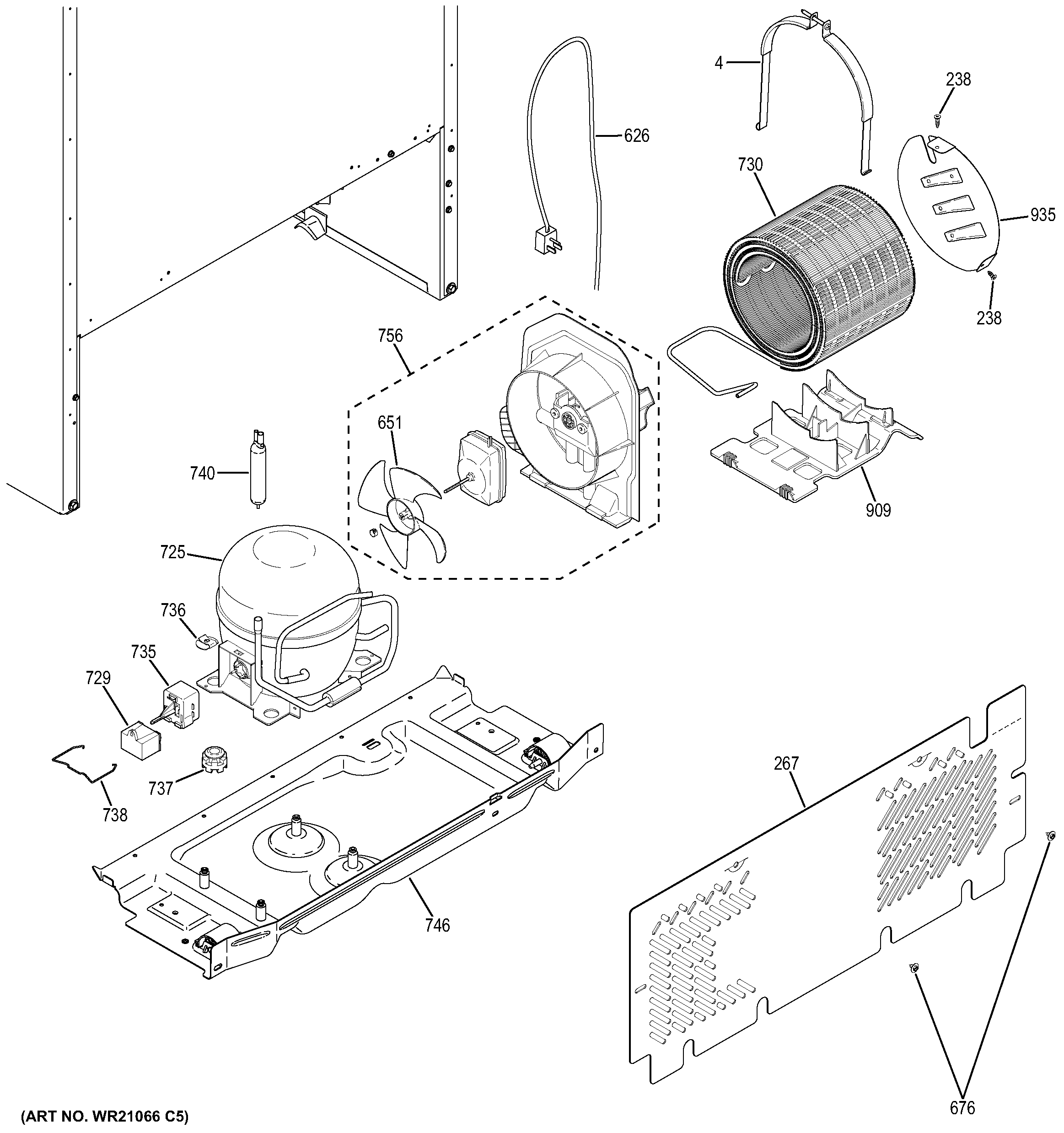

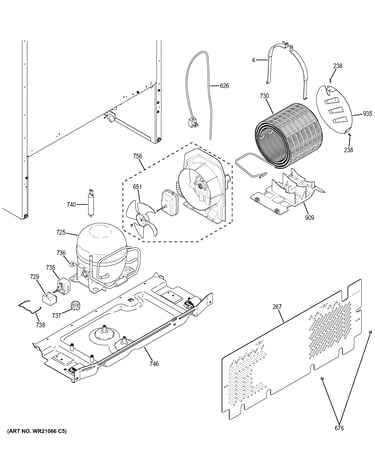

Machine compartment diagram

Refrigerator run capacitor

Part #WR55X23731

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR55X23731. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Refrigerator Condenser Fan Motor Assembly WR17X21162
#756

Machine compartment diagram

Refrigerator condenser fan motor assembly

Part #WR17X21162

Replaced by #WR17X24348

?
Manufacturer substitution
This part replaces WR17X21162. Substitute parts can look different from the original.
BEST SELLER
$89.92 |
6% OFF Phone Price : $95.92
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

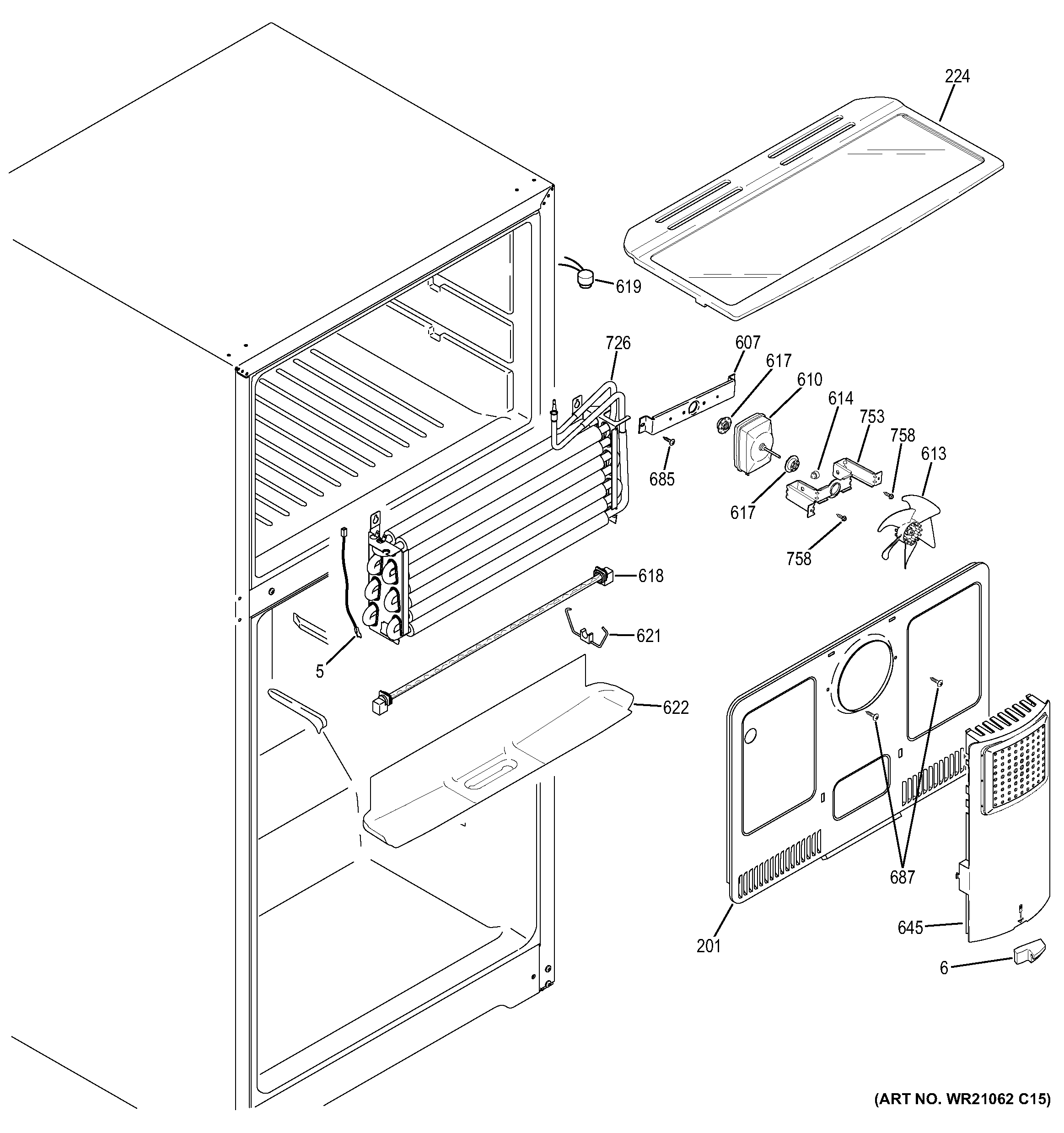

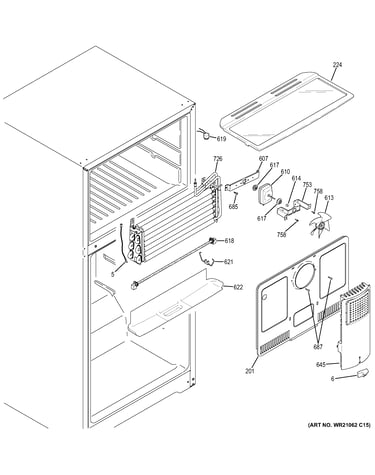

Freezer section diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Door Switch WR23X23343
#609

Fresh food section diagram

Refrigerator door switch

Part #WR23X23343

Replaced by #WR23X31507

?
Manufacturer substitution
This part replaces WR23X23343. Substitute parts can look different from the original.
BEST SELLER
$65.01 |
8% OFF Phone Price : $71.01
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X22304
#619

Freezer section diagram

Refrigerator defrost bi-metal thermostat

Part #WR50X22304

Replaced by #WR50X10071

?
Manufacturer substitution
This part replaces WR50X22304. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$17.43 |
10% OFF Phone Price : $19.43
In Stock
Terminal Socket WR02X9391
#433

Fresh food section diagram

Terminal socket

Part #WR02X9391

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR02X9391. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Snack Pan Slide Rail, Left (replaces Wr72x21220, Wr72x30036) WR72X21685
#473

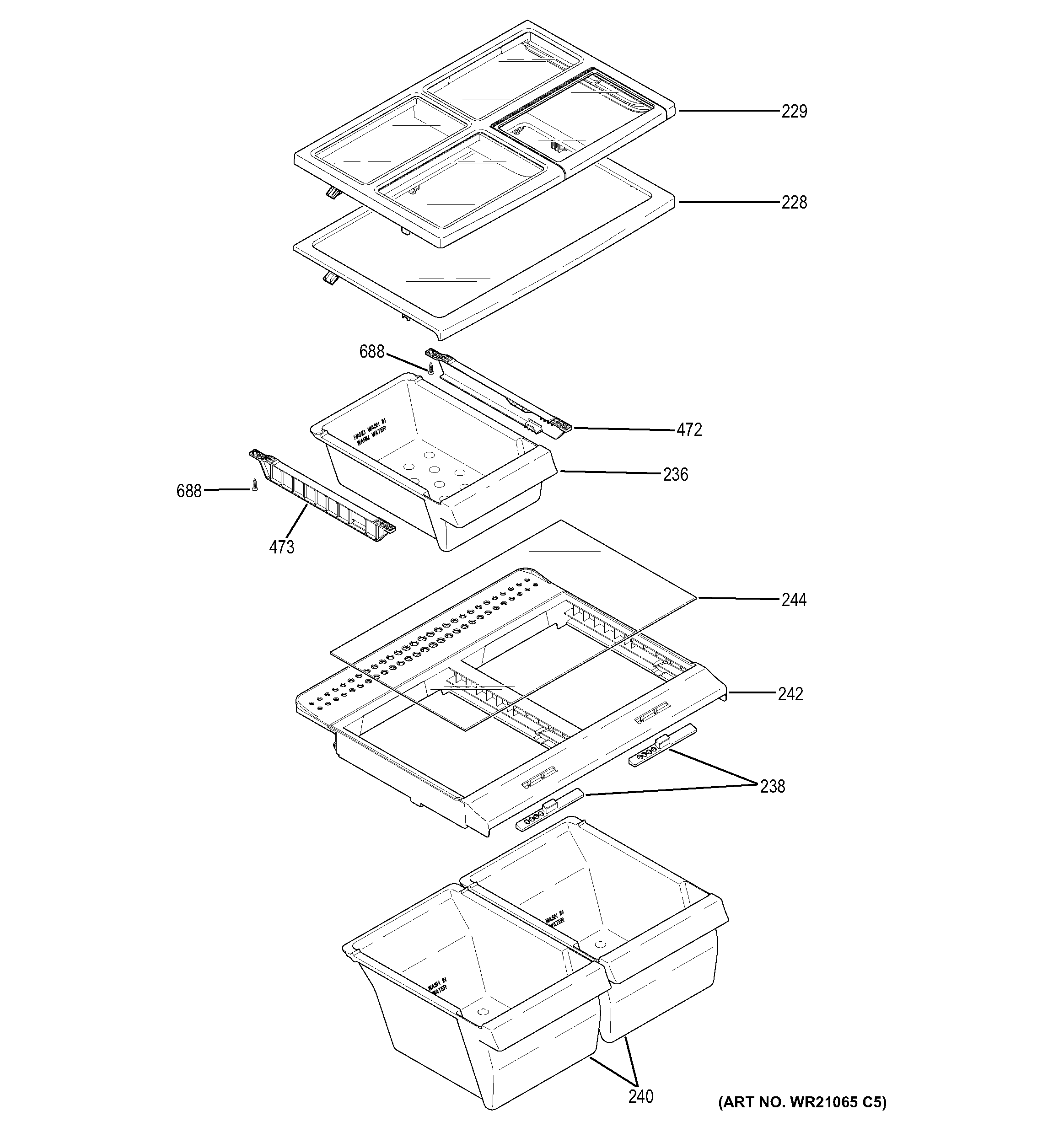

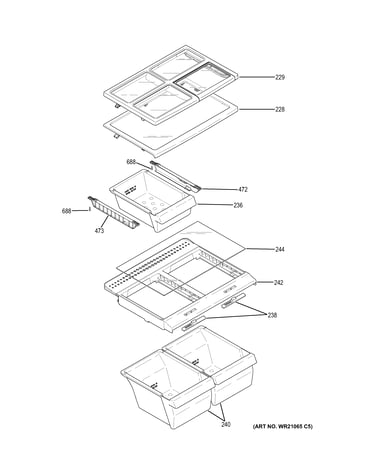

Fresh food shelves diagram

Refrigerator snack pan slide rail, left (replaces wr72x21220, wr72x30036)

Part #WR72X21685

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Water Inlet Valve WR57X21246
#800

Ice maker diagram

Refrigerator water inlet valve

Part #WR57X21246

Replaced by #WR57X39965

?
Manufacturer substitution
This part replaces WR57X21246. Substitute parts can look different from the original.
$49.18
In Stock
