Model # 150E4D-1 Official Devilbiss air compressor

Here are the diagrams and repair parts for Official Devilbiss 150E4D-1 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 48 parts |

#27

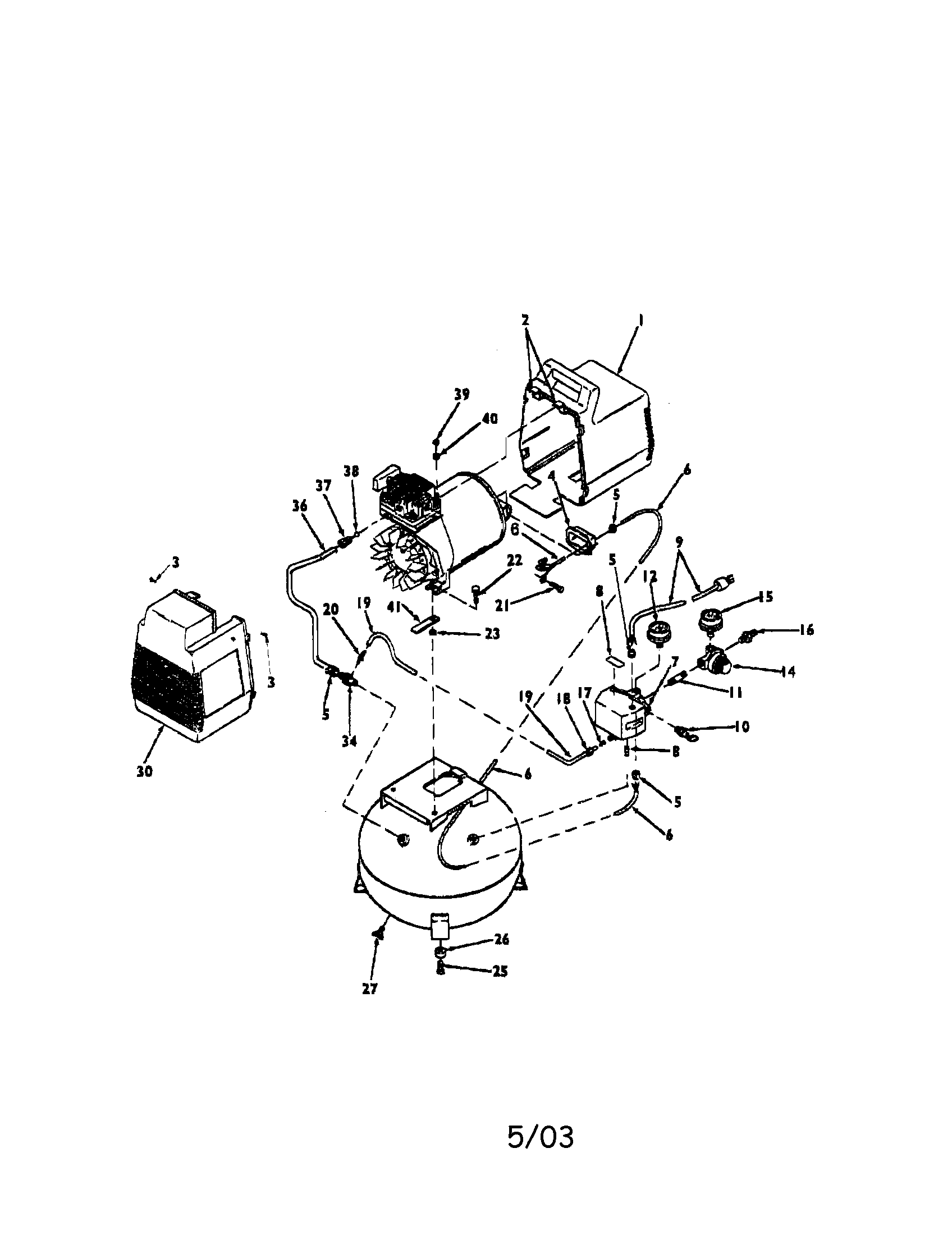

Shroud/tank pressure gauge diagram

Valve

Part #SS-2707

The manufacturer no longer makes this part, and there's no substitute part

#21

Shroud/tank pressure gauge diagram

Screw

Part #SUDL-9-1

The manufacturer no longer makes this part, and there's no substitute part

#66

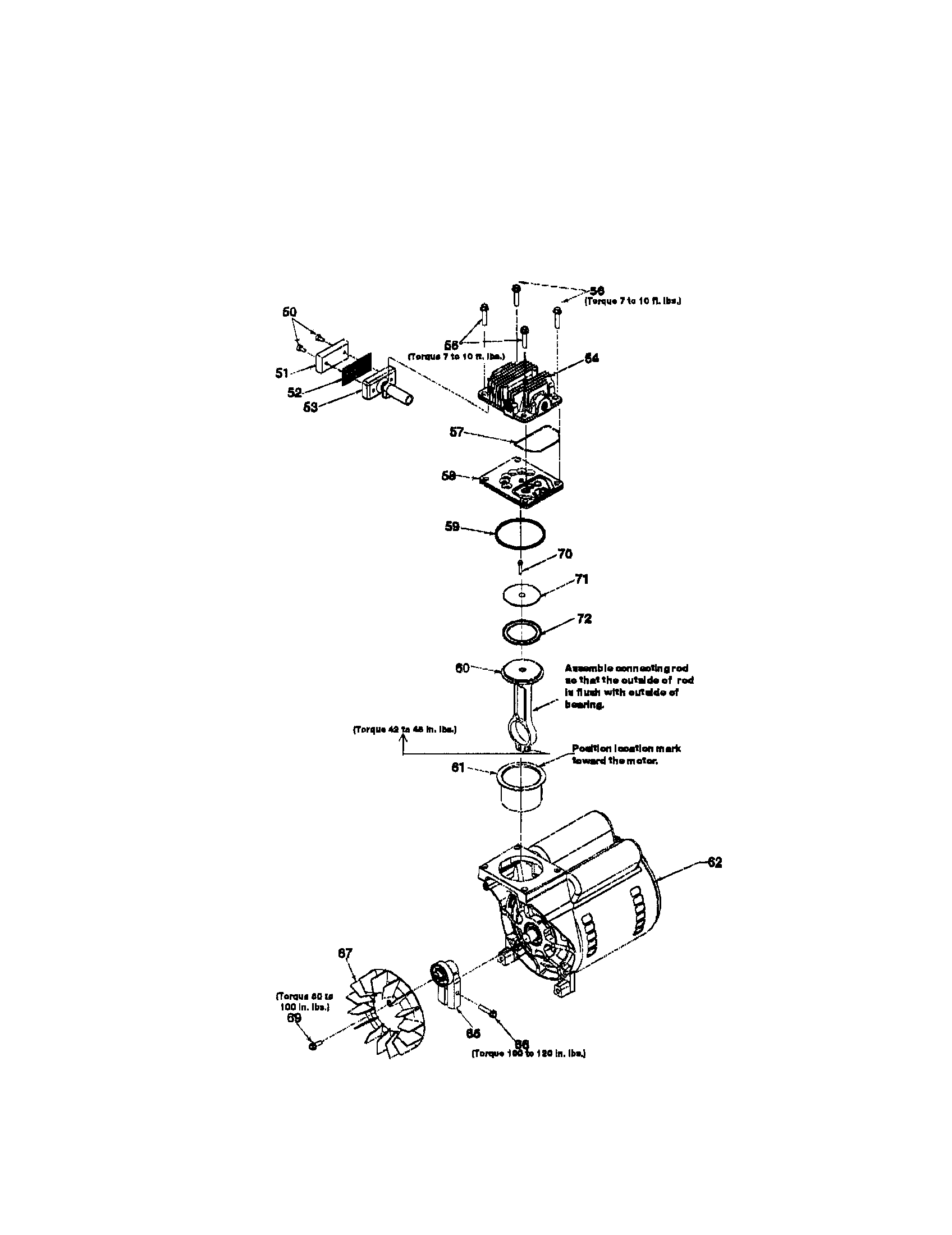

Motor/fan/air filter diagram

Screw

Part #SSF-615

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut SSP-7821-1

#37

Shroud/tank pressure gauge diagram

Air compressor compression nut

Part #SSP-7821-1

The manufacturer no longer makes this part, and there's no substitute part

Shroud/tank pressure gauge diagram

Air compressor motor wire harness

Part #CAC-4205

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Outlet Tube O-ring SSG-3105

#38

Shroud/tank pressure gauge diagram

Air compressor outlet tube o-ring

Part #SSG-3105

The manufacturer no longer makes this part, and there's no substitute part

#18

Shroud/tank pressure gauge diagram

Air compressor nut and sleeve

Part #SSP-7811

The manufacturer no longer makes this part, and there's no substitute part

#35

Shroud/tank pressure gauge diagram

Air compressor compression nut

Part #SSP-7813

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Cylinder Head O-ring ACG-45

#57

Motor/fan/air filter diagram

Tower air compressor cylinder head o-ring

Part #ACG-45

The manufacturer no longer makes this part, and there's no substitute part

#10

Shroud/tank pressure gauge diagram

Unknown brand name #696 air compressor safety valve

Part #TIA-4150

The manufacturer no longer makes this part, and there's no substitute part
