DeWalt
Miter Saw

Model # DWS782 TYPE 20 Official DeWalt miter saw

Here are the diagrams and repair parts for Official DeWalt DWS782-TYPE-20 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Lock Pin 153561-00
#49

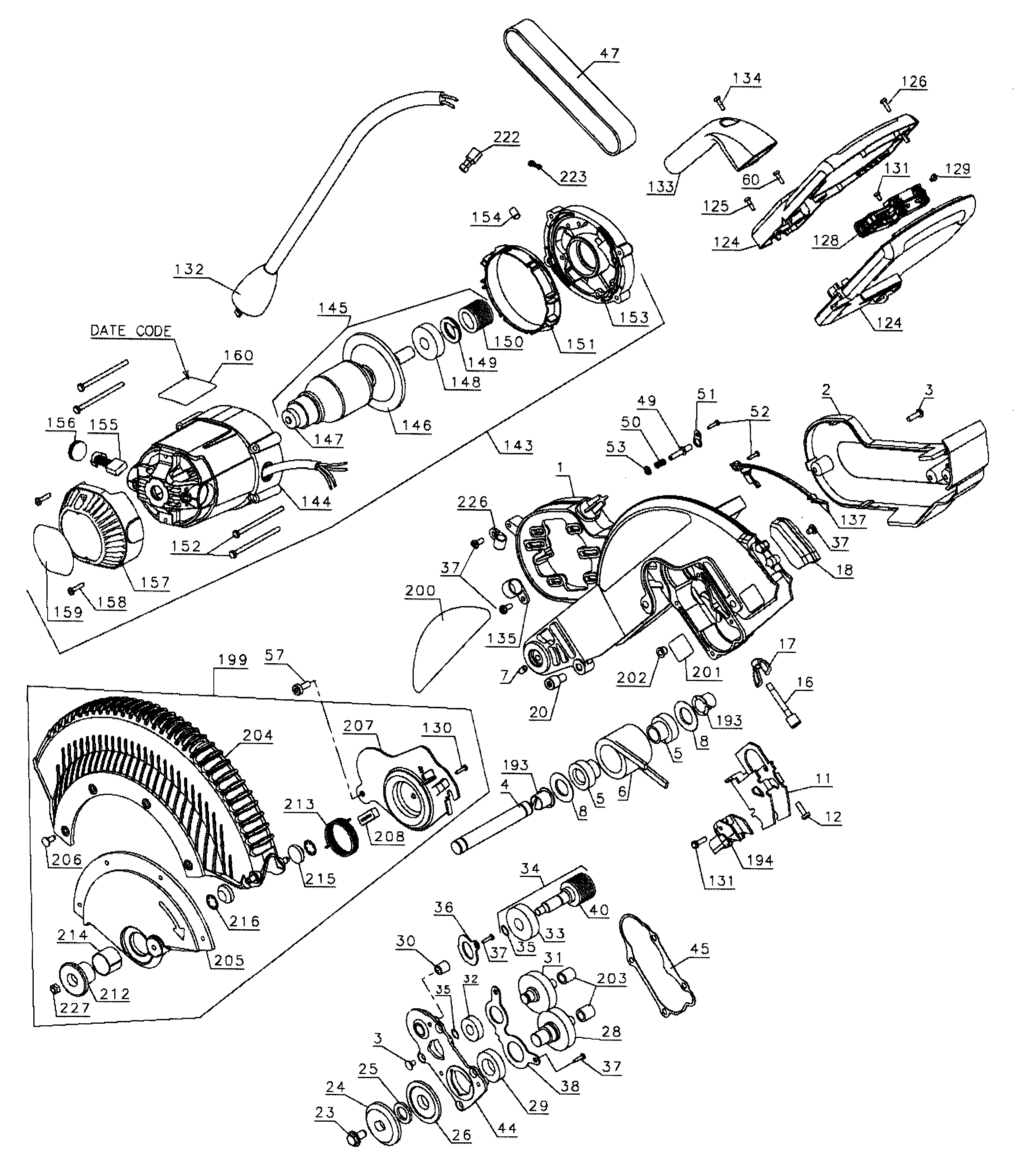

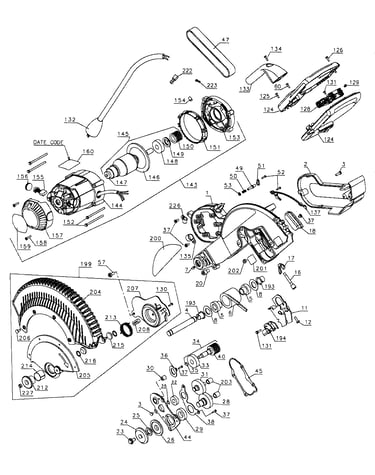

Arm diagram

Lock pin

Part #153561-00

The manufacturer no longer makes this part, and there's no substitute part

Motor N238354
#143

Arm diagram

Motor

Part #N238354

The manufacturer no longer makes this part, and there's no substitute part

Extnsn Kit DW7080
#856E

Base diagram

Extnsn kit

Part #DW7080

The manufacturer no longer makes this part, and there's no substitute part

Bumper 146768-00
#208

Arm diagram

Bumper

Part #146768-00

The manufacturer no longer makes this part, and there's no substitute part

Part 330019-22
#134

Arm diagram

Part

Part #330019-22

The manufacturer no longer makes this part, and there's no substitute part

O-ring 049787-00
#99

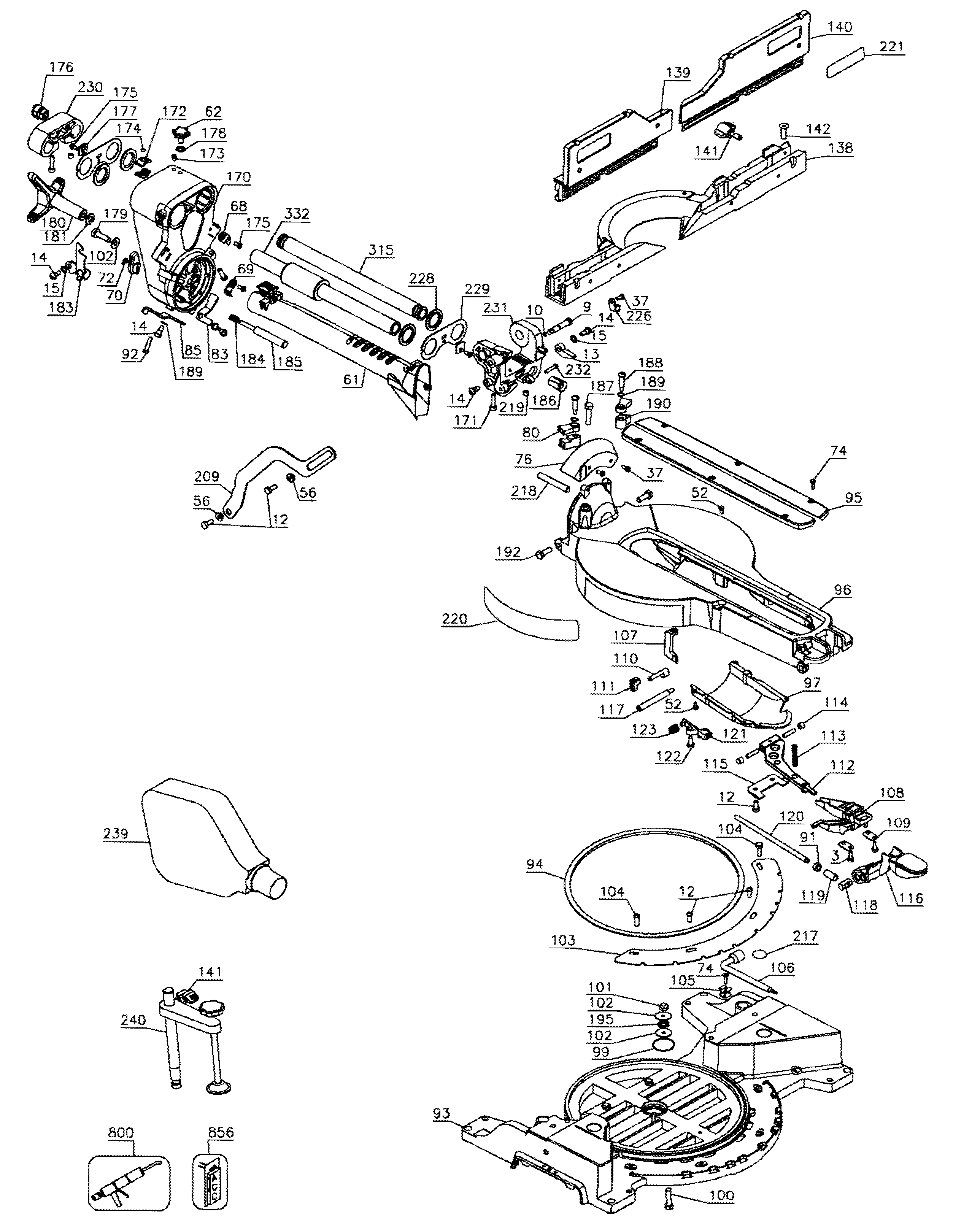

Base diagram

O-ring

Part #049787-00

The manufacturer no longer makes this part, and there's no substitute part

Stop Nut 385137-00
#227

Arm diagram

Stop nut

Part #385137-00

The manufacturer no longer makes this part, and there's no substitute part

Grease 93488-00
#800A

Base diagram

Grease

Part #93488-00

The manufacturer no longer makes this part, and there's no substitute part

Label 623788-00
#201

Arm diagram

Label

Part #623788-00

The manufacturer no longer makes this part, and there's no substitute part

Lever N082785
#116

Base diagram

Lever

Part #N082785

The manufacturer no longer makes this part, and there's no substitute part
