Model # JE2821H01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JE2821H01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

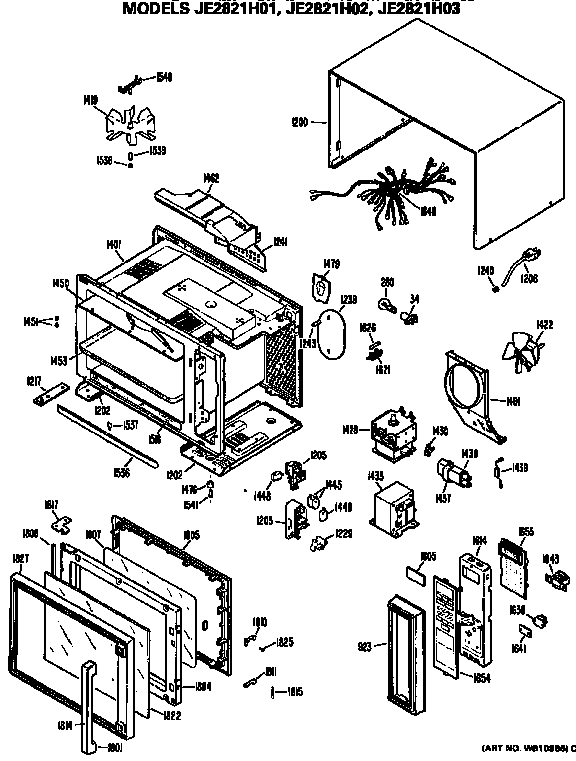

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Latch Switch WB24X5227

#1448

All parts diagram

Latch switch

Part #WB24X5227

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X5227. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Monitor Switch WB24X5228

#1445

All parts diagram

Monitor switch

Part #WB24X5228

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X5228. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Rectifier WB27X5386

#1439

All parts diagram

Rectifier

Part #WB27X5386

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5386. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron WB27X5387

#1428

All parts diagram

Magnetron

Part #WB27X5387

The manufacturer no longer makes this part, and there's no substitute part

Outer Case WB56X6052

#1200

All parts diagram

Outer case

Part #WB56X6052

$107.49
In Stock
Triac WB27X5391

#1638

All parts diagram

Triac

Part #WB27X5391

$57.49
In Stock
Choke Liner WB55X5305

#1804

All parts diagram

Choke liner

Part #WB55X5305

$91.99
In Stock
Cookbook Je1 39-4566

#LITR

All parts diagram

Cookbook je1

Part #39-4566

Replaced by #49-8247

?
Manufacturer substitution
This part replaces 39-4566. Substitute parts can look different from the original.
$26.99
In Stock
Lamp WB2X4253

#280

All parts diagram

Lamp

Part #WB2X4253

Replaced by #WB36X10003

?
Manufacturer substitution
This part replaces WB2X4253. Substitute parts can look different from the original.
This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
Bushing WB2X7677

#1206

All parts diagram

Bushing

Part #WB2X7677

The manufacturer no longer makes this part, and there's no substitute part

Effective articles & videos to help repair your microwaves
