Model # 52CEA312401AA Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 52CEA312401AA package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
Switch HH19ZH210
#NI

Front panel diagram

Switch

Part #HH19ZH210

$52.84
In Stock
Grommet P041-5109
#NI

Front panel diagram

Grommet

Part #P041-5109

$8.49
In Stock
Central Air Conditioner Run Capacitor P291-2054RS
#82

Control assy diagram

Central air conditioner run capacitor

Part #P291-2054RS

$39.04
In Stock
Blwr.wheel 52CQ500664
#125

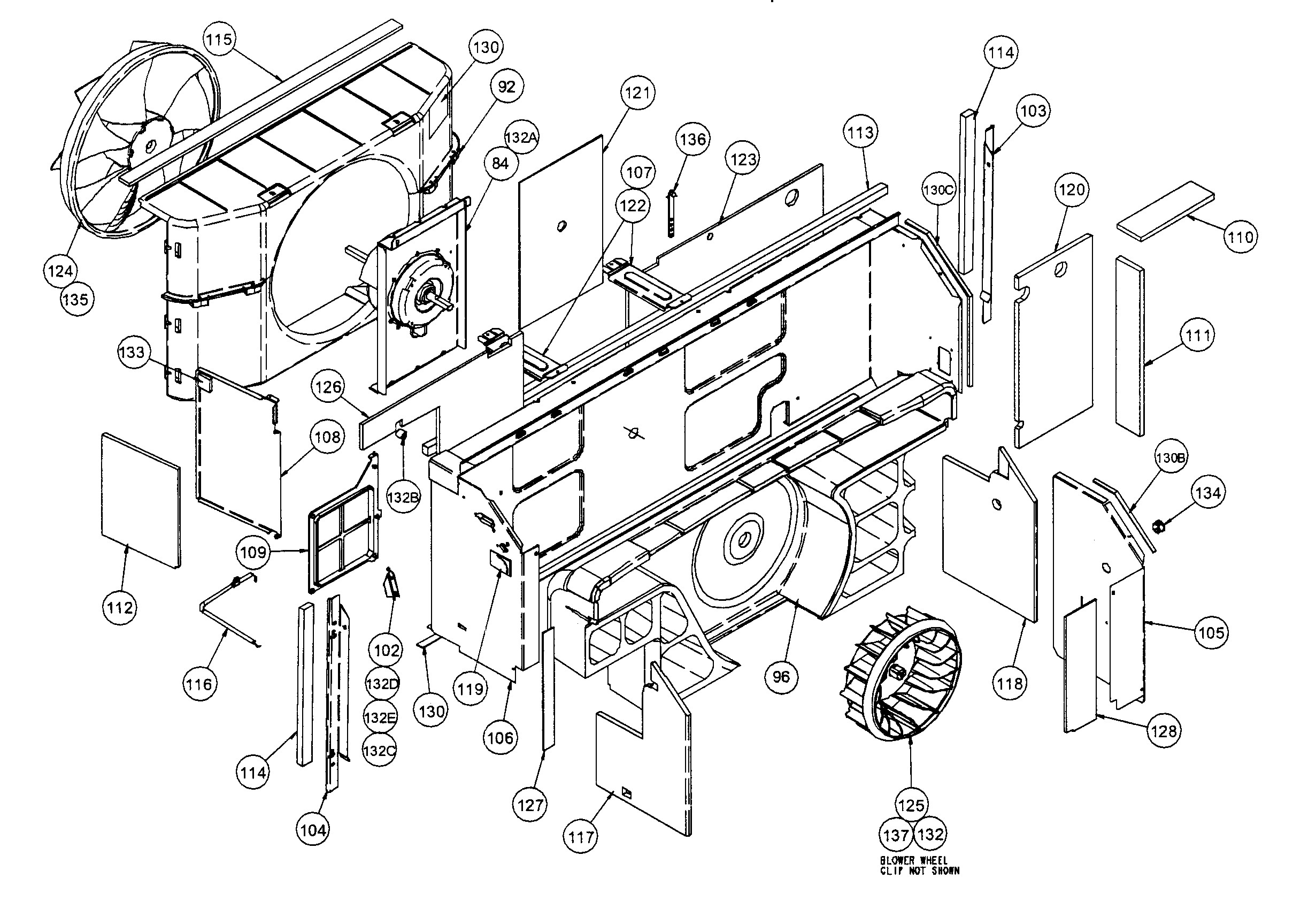

Cabinet parts diagram

Blwr.wheel

Part #52CQ500664

$198.32
In Stock
Paint 313974-751
#NI

Front panel diagram

Paint

Part #313974-751

$60.89
In Stock
Strainer KH11NH079
#NI

Front panel diagram

Strainer

Part #KH11NH079

$17.49
In Stock
Hinge Pin 52CQ500392
#24

Front panel diagram

Hinge pin

Part #52CQ500392

$136.20
In Stock
Overload HN68GP152
#NI

Front panel diagram

Overload

Part #HN68GP152

$50.42
In Stock
Cord 52CQ400814
#79

Control assy diagram

Cord

Part #52CQ400814

$112.92
In Stock
Clip 52CQ502223
#73

Control assy diagram

Clip

Part #52CQ502223

$17.26
In Stock
