Model # FFRE0533U10 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFRE0533U10 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |

Hardware Kit,mounting ,screws/locks 5304515724
#16

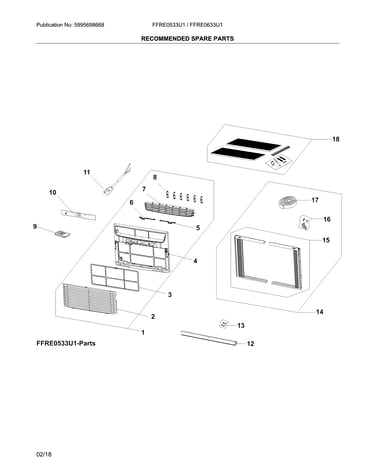

Recommended spare parts diagram

Hardware kit,mounting ,screws/locks

Part #5304515724

In Stock
Lever,louver ,lh 5304515940
#6

Recommended spare parts diagram

Lever,louver ,lh

Part #5304515940

In Stock
Room Air Conditioner Accordion Rail, Upper 5304515720
#12

Recommended spare parts diagram

Room air conditioner accordion rail, upper

Part #5304515720

This item is not returnable
$33.02
15% OFF Phone Price : $39.02
In Stock
Power Cord,assembly 5304515945
#11

Recommended spare parts diagram

Power cord,assembly

Part #5304515945

In Stock
Room Air Conditioner Accordion Filler Kit 5304515723
#15

Recommended spare parts diagram

Room air conditioner accordion filler kit

Part #5304515723

$90.19
6% OFF Phone Price : $96.19
In Stock
Overlay Control 5304515944
#10

Recommended spare parts diagram

Overlay control

Part #5304515944

In Stock
Panel,front Grille ,air Intake 5304515936
#2

Recommended spare parts diagram

Panel,front grille ,air intake

Part #5304515936

In Stock
Horizontal Louver 5304515941
#7

Recommended spare parts diagram

Horizontal louver

Part #5304515941

In Stock
Remote Control 5304515948
#9

Recommended spare parts diagram

Remote control

Part #5304515948

In Stock
Lever,louver ,rh 5304515939
#5

Recommended spare parts diagram

Lever,louver ,rh

Part #5304515939

In Stock
