Model # 56561900 Official Kenmore portable evaporative air cooler

Here are the diagrams and repair parts for Official Kenmore 56561900 portable evaporative air cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

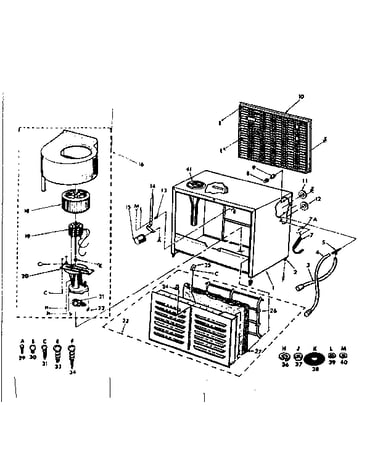

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Screw P8-434
#33

Functional replacement parts diagram

Screw

Part #P8-434

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower A3-128-823
#16

Functional replacement parts diagram

Air conditioner blower

Part #A3-128-823

The manufacturer no longer makes this part, and there's no substitute part

Leg Cabinet P9-790-85
#2

Functional replacement parts diagram

Leg cabinet

Part #P9-790-85

The manufacturer no longer makes this part, and there's no substitute part

Bushing M14-434
#13

Functional replacement parts diagram

Bushing

Part #M14-434

The manufacturer no longer makes this part, and there's no substitute part

Switch P2-166
#9

Functional replacement parts diagram

Switch

Part #P2-166

The manufacturer no longer makes this part, and there's no substitute part

Ms 8-32x3/16 P8-388-85
#30

Functional replacement parts diagram

Ms 8-32x3/16

Part #P8-388-85

The manufacturer no longer makes this part, and there's no substitute part

Cabinet A1-987-229
#1

Functional replacement parts diagram

Cabinet

Part #A1-987-229

The manufacturer no longer makes this part, and there's no substitute part

Pad Assembly A5-128-818
#23

Functional replacement parts diagram

Pad assembly

Part #A5-128-818

The manufacturer no longer makes this part, and there's no substitute part

Wheel A3-612-1
#18

Functional replacement parts diagram

Wheel

Part #A3-612-1

The manufacturer no longer makes this part, and there's no substitute part

Leg Pump P3-754
#22

Functional replacement parts diagram

Leg pump

Part #P3-754

The manufacturer no longer makes this part, and there's no substitute part
